Using this 28-channel controller to create a complete intelligent staircase lighting system requires the following items: 12V/24V single-color led strips (each strip power cannot exceed 15W), 2-pin power wires (adapt to the distance from the steps to the controller), and 12V/24V low-voltage power supply.
This led stair lights controller uses PIR sensor technology, automatically senses your movement up and down the stairs, and automatically turn on the stair lights, then it turns off automatically after a while (this delay time can be set).
The led stair light mode can be selected according to the buttons on the controller, the speed and brightness of the stair light can be adjusted.
RL-STEP-03 Stair Controller Manual
|Control Channel:||28 steps|
|Max Single Step Power:||Each step<15W, total<420W|
|Sensor Method:||PIR motion sensor|
|Control Method:||Controller buttons (Number, Mode, Speed, Time Delay, Brightness)|

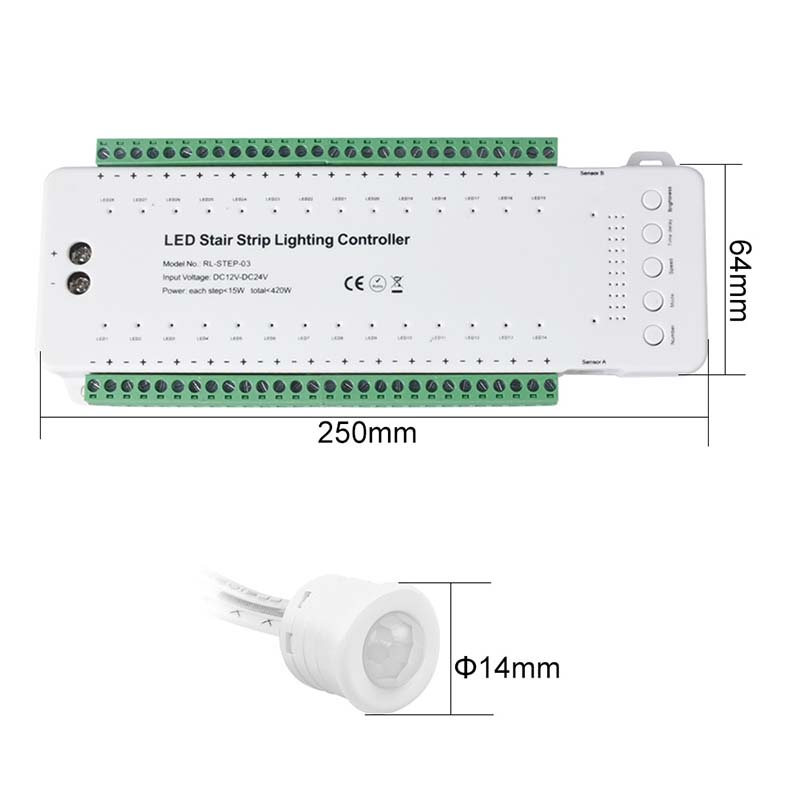

|Sensor Size:||14mm diameter|
|Sensor Installation:||Surface mount or recessed mount|

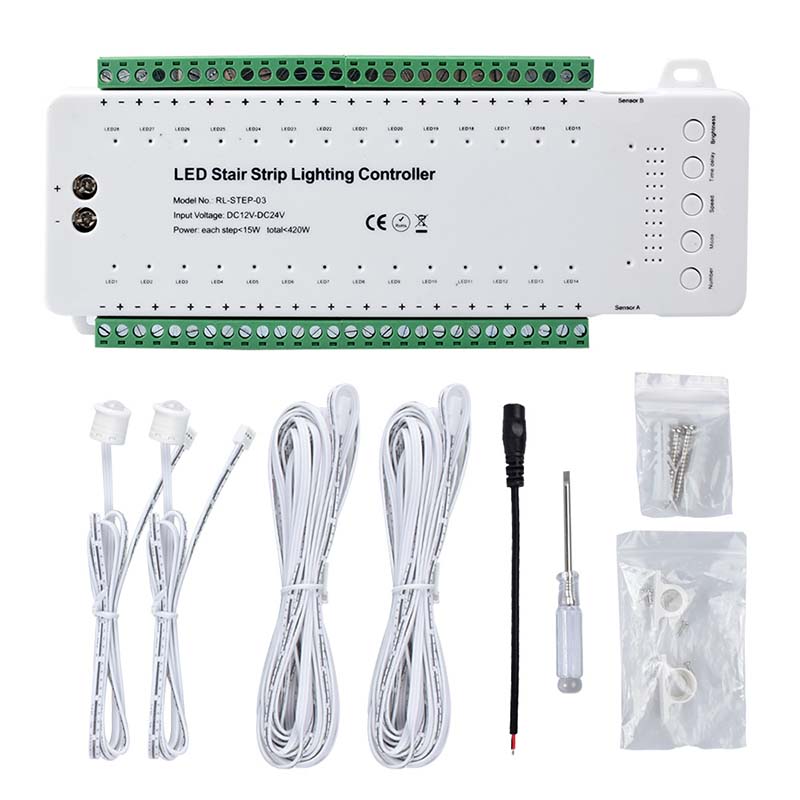

|Product List:||1*controller, 2*PIR sensor, 2*5m sensor extention cable, 1*RF remote (no battery), 1*manual|
How to use the controller button to set the stair lighting?
1. Step Number:
Long press the "number" key to set the number of the stair steps, short press to select the step number you want to set, and long press to save the setting. Each led step light corresponds to a blue signal light.
Long press the stair controller speed/mode button to enter the mode selection, short press to select the specific stair light mode, and long press to save the mode selection. There are 9 step lighting modes in total, you can set according to your preference.
|Mode 1:||All step lights on|
|Mode 2:||All step lights on one by one|
|Mode 3:||All step lights on with 2 steps at the time|
|Mode 4:||1 step light on, moving to other steps according to the "Speed" setting|
|Mode 5:||3 step light on, moving to other steps according to the "Speed" setting|
|Mode 6:||1 step light chase, moving to other steps according to the "Speed" setting|
|Mode 7:||2 step light chase, moving to other steps according to the "Speed" setting|
|Mode 8:||Separated chase, moving to other steps according to the "Speed" setting|
|Mode 9:||Auto change all modes (1-8 modes)|

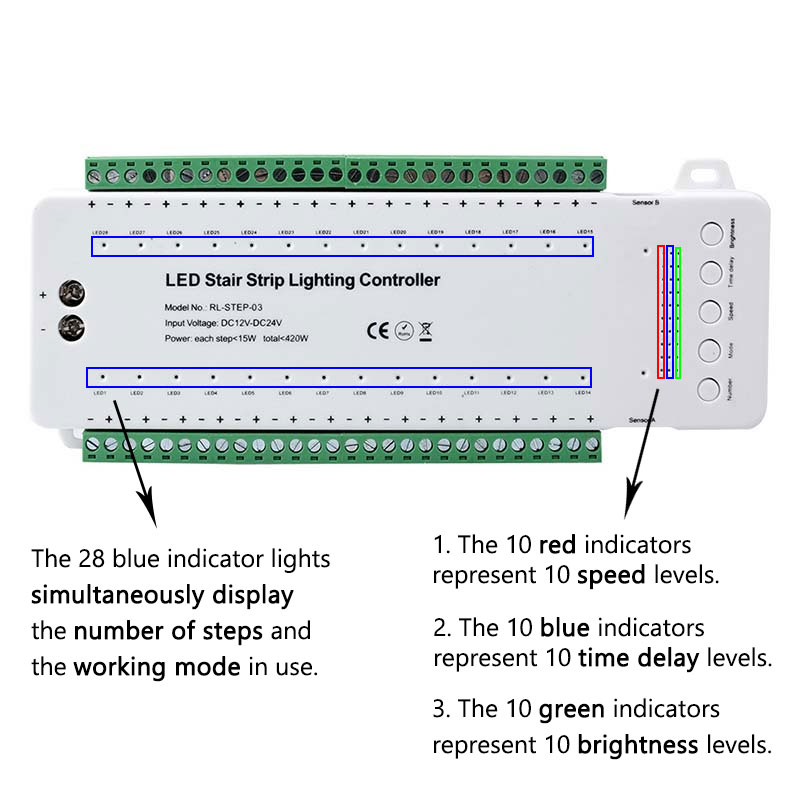

There are 10 speeds in total, corresponding to the red signal lights, short press to set.
4. Time Delay:
10 time delay settings, corresponding to the blue signal lights.
Short press to adjust the brightness of the led stair light. 10 brightness levels.
How to wire 2-pin single color led strip lights to this controller?
