DC24V 5m CRI90+ 4pin Breakpoint Resume Running Water Addressable White COB LED Strip Light
Related Products
DC24V 5m CRI90+ 4pin...
$34.98DC5-24V SP107E Wireless...
$16.98Flat Anti Glare LED Light...
$1.9820AWG 3-pin Male/Femail...
$0.79Black Extruded Aluminum...
$10.00 $7.9920% off72W3A DC24V Plastic Shell...
$17.99JST 3-Pin Male/Female...
$0.69-
Special Price: $34.98

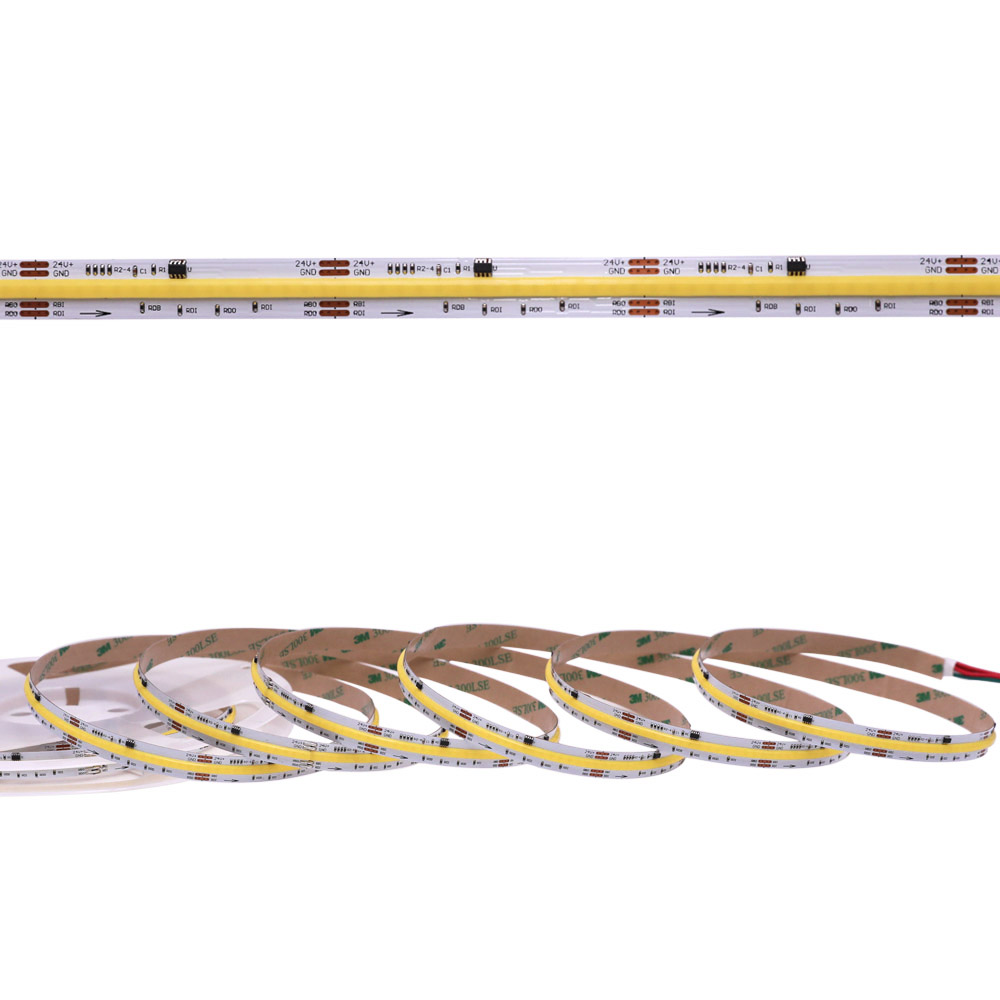

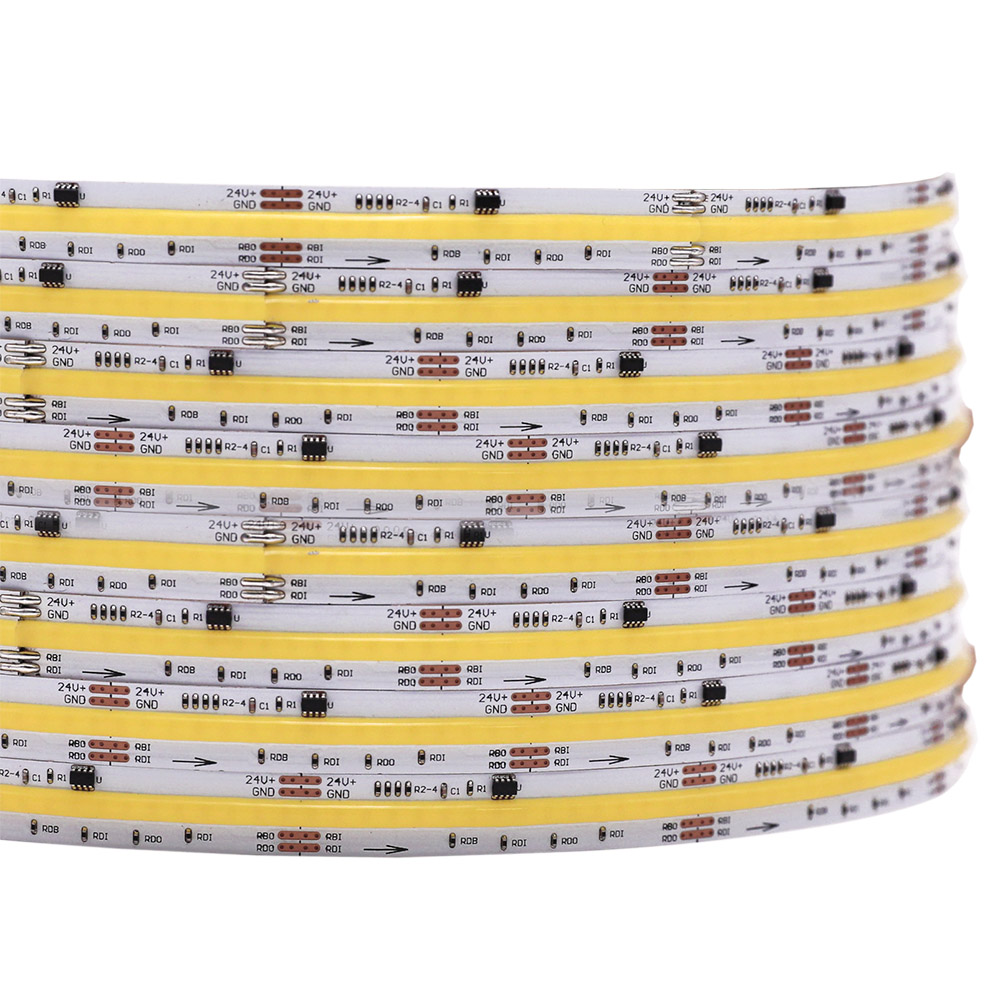

COB LED strip lights adapt chip-on-board technology, LED chips are placed directly on the FPCB, and sealed by a sealing layer, which have a linear luminescence and no light spot.

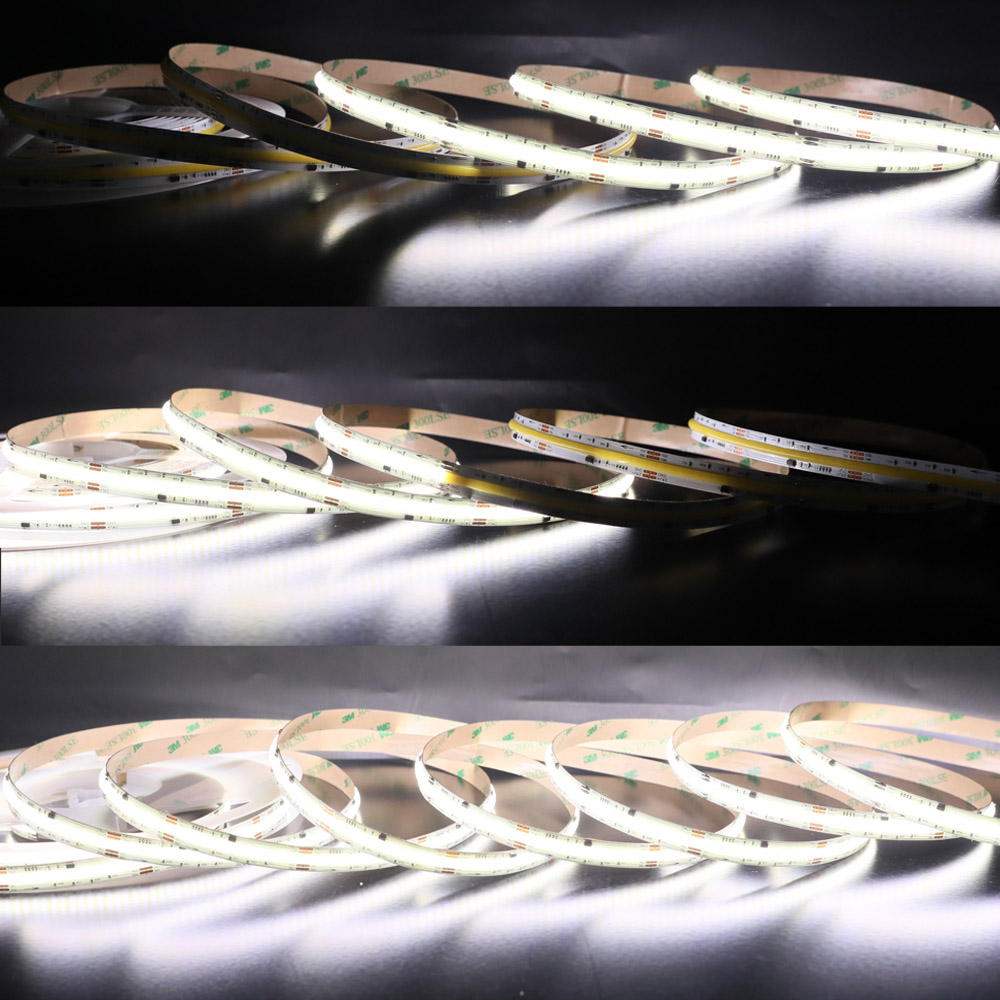

This 10mm wide COB LED strip is addressable (breakpoint resume, if one LED lose work, others still work) and showing a 6000K daylight / 4000K natural white / 2700K warm white color, 320LEDs/m, high LED density and high light brightness, which can realize dynamic effects of white light (flowing water, chasing, etc.), suitable for wall lighting on both sides of the stairs, and used together with step lights, cooler stair effect.
With 90+ CRI high color display capability, this addressable white led COB strip can restore the color of objects under natural light to the greatest extent, and the human eye can perceive more colors. A low color rendering index is not friendly to the eyes.
IP20 non-wateproof indoor use white light COB LED strips are suitable for home & residential installations, under cabinet lighting, kitchen lighting, room lighting, ceiling lighting, etc. IP67 waterproof COB white light strips can be used in outdoor environments, path lighting, architectural lighting, etc.
This white light addressable COB strip is powered by 24VDC and consumes 12W per meter. It requires a 24V SPI controller and a 24V plug-in power supply or a 24V switching power supply (minimum 72W capacity) to drive a 5m COB strip light.

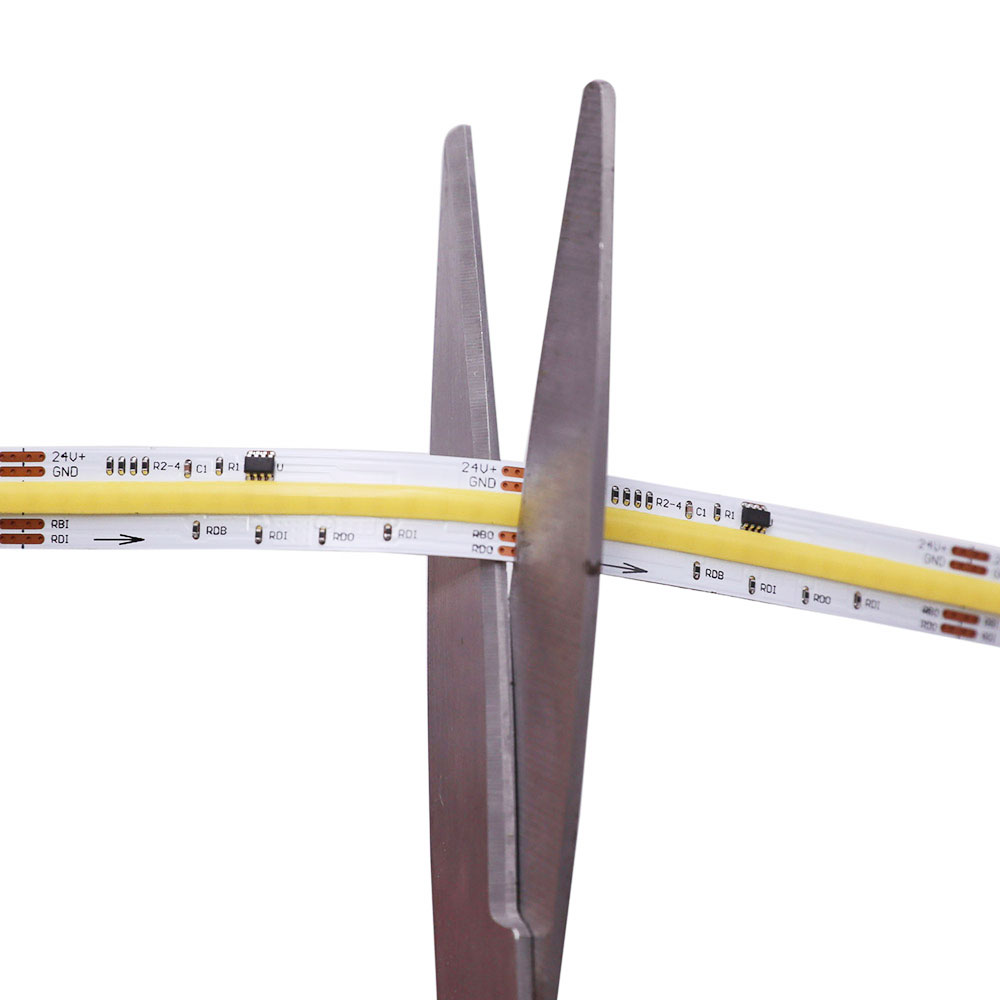

Comes with 3pin JST signal connector and 2pin power cable, allowing quick connection of multiple rolls of light strips. Every 50mm can be cut. 3-Pin addressable LED strip parts are here. A separate power supply is recommended every five meters.
Light Kit: SP107E LED Controller and 72W 3A 24V power adapter.
Standards and Certifications
LED Strip Type: | Running Water COB LED Strip |
LED Chip: | TM1934 Breakpoint Resume Addressable IC |
Input Voltage: | DC24V |
Power: | 12W/m |
Working Temperature: | -20℃~+45℃ |
Storage Temperature: | -20℃~+60℃ |
LED Color Temperature: | Addressable 6000K Daylight White / 4000K Natural White / 2700K Warm White |

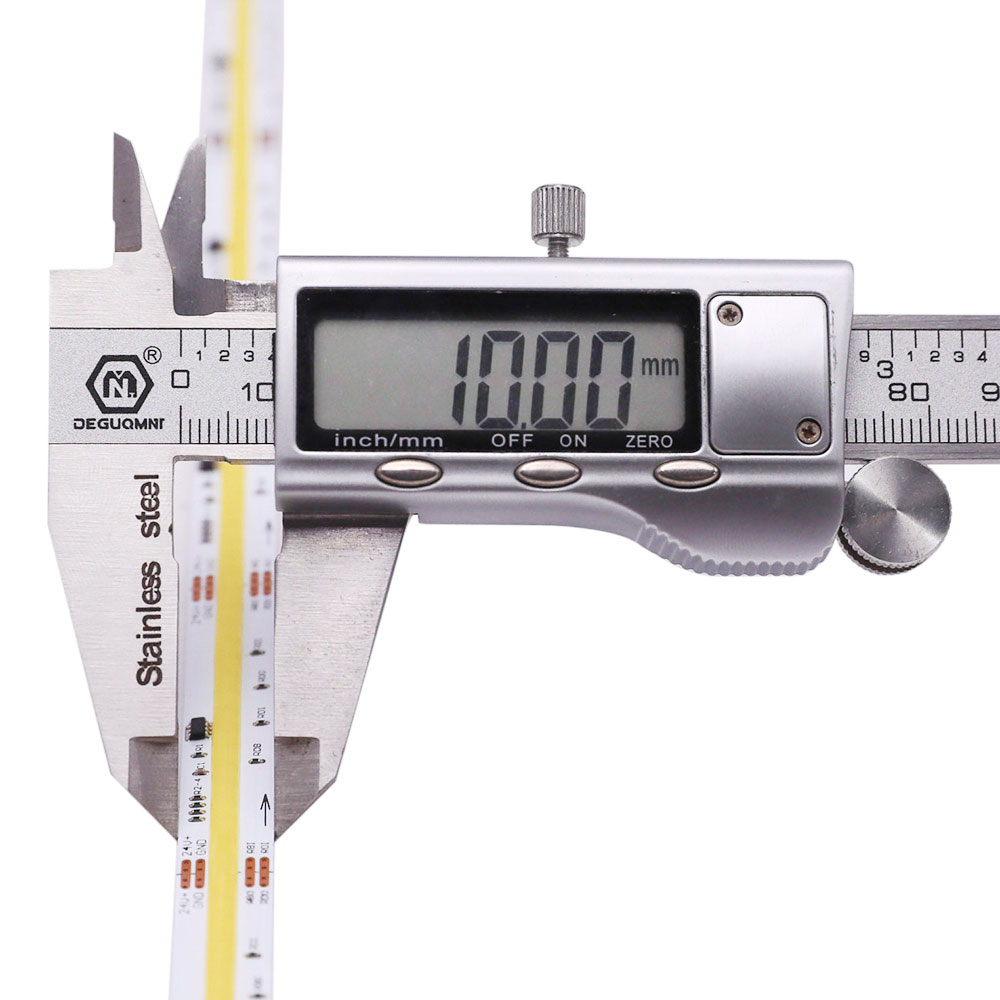

PCB Width: | 10mm |
LED Quantity: | 320 Chips/m |
Waterproof Rating: | Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68 |

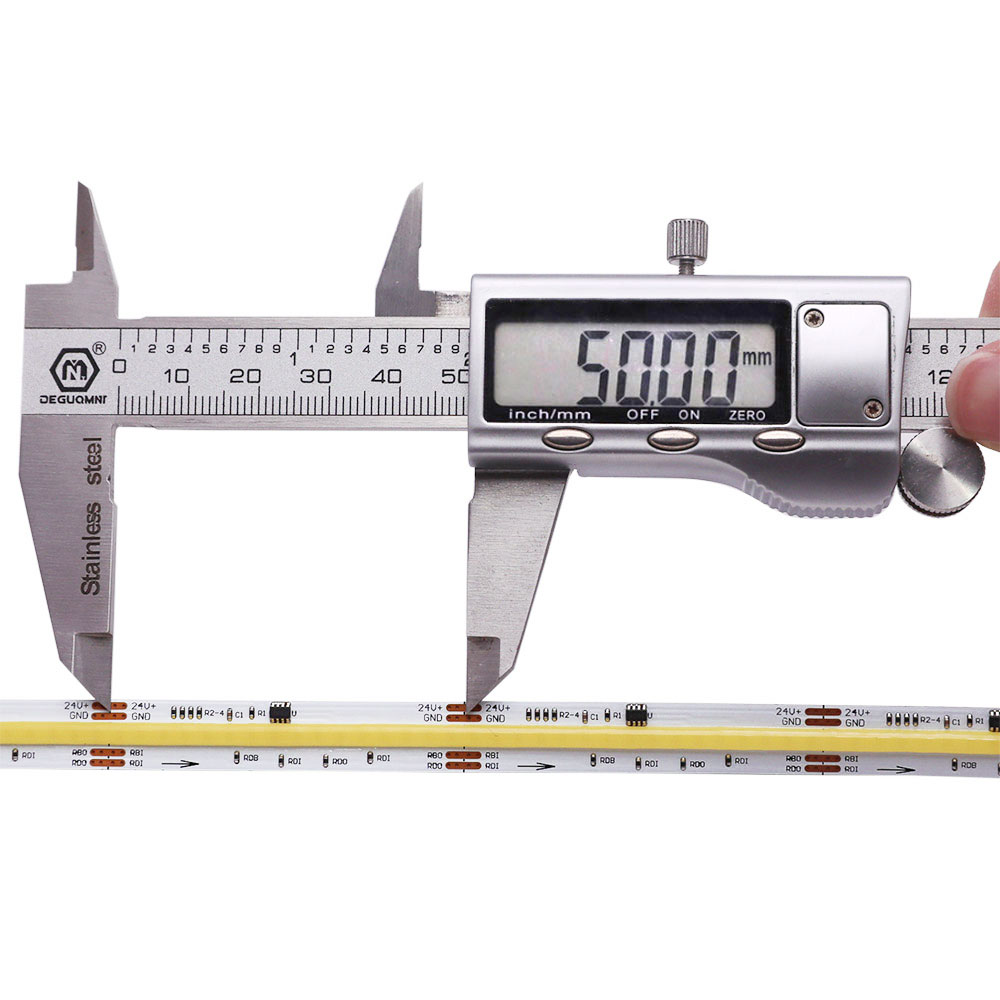

Cut Length: | 50mm |
Lumen: | 2-3 lm/chip |
Color Rendering Index: | Ra>90 |
Beam Angle: | 180° |
Strip Length: | 5m/16.4ft |
4-pin Breakpoint Resume Addressable LED Strip Wiring Diagram:
