PIR Sensor Sound Light Control 3000K 6000K Smart LED Stair Lights
This stair LED light fixture uses high quality LED chips, high efficacy, low energy consumption, and illuminates 2 square meters in a dark environment. The LED light is refracted through the uniform refractive surface, and the refracted light is soft, transparent and not dazzling. The load power is about 0.6 watts, bringing out 2W of lighting brightness, which saves energy.

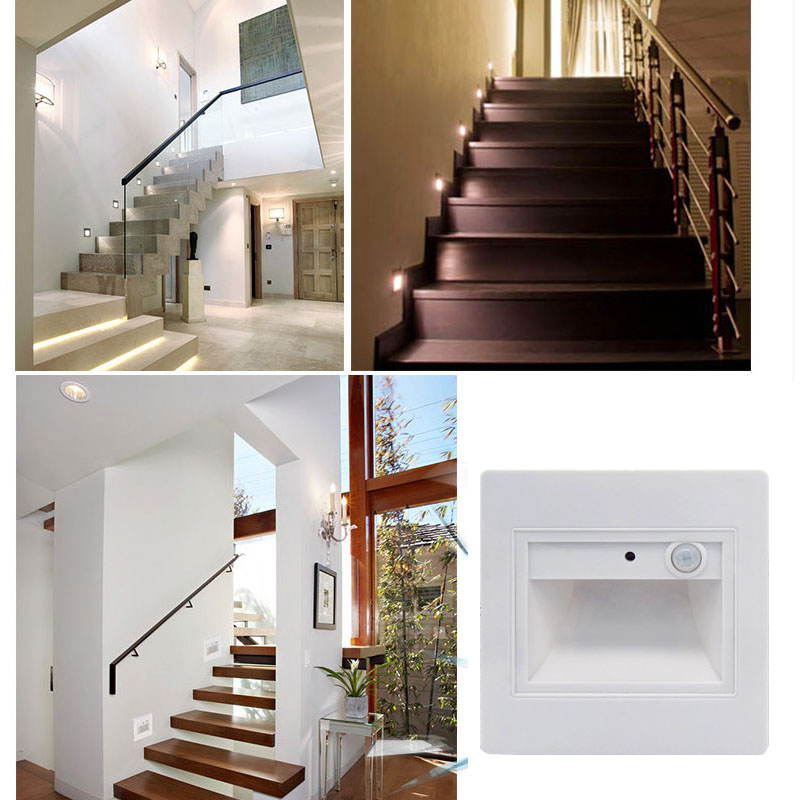

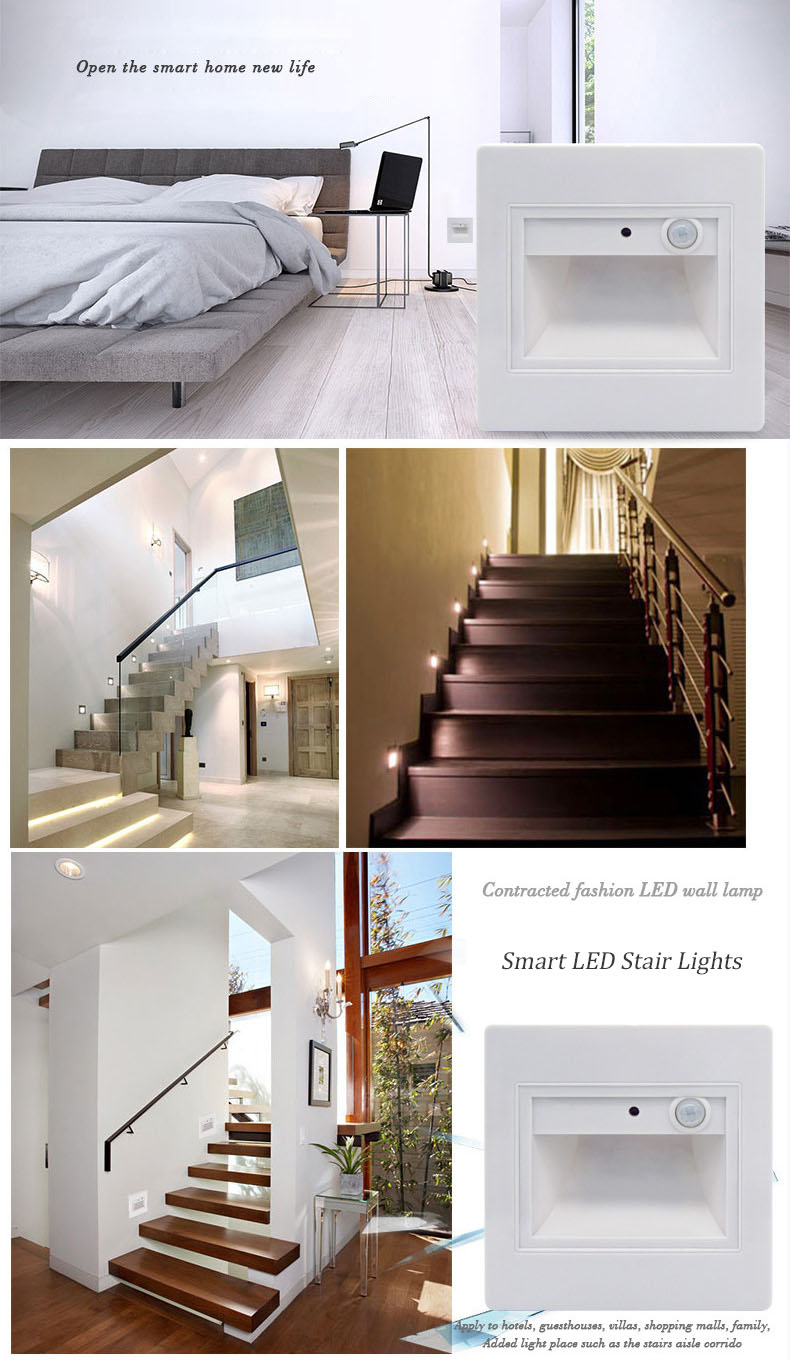

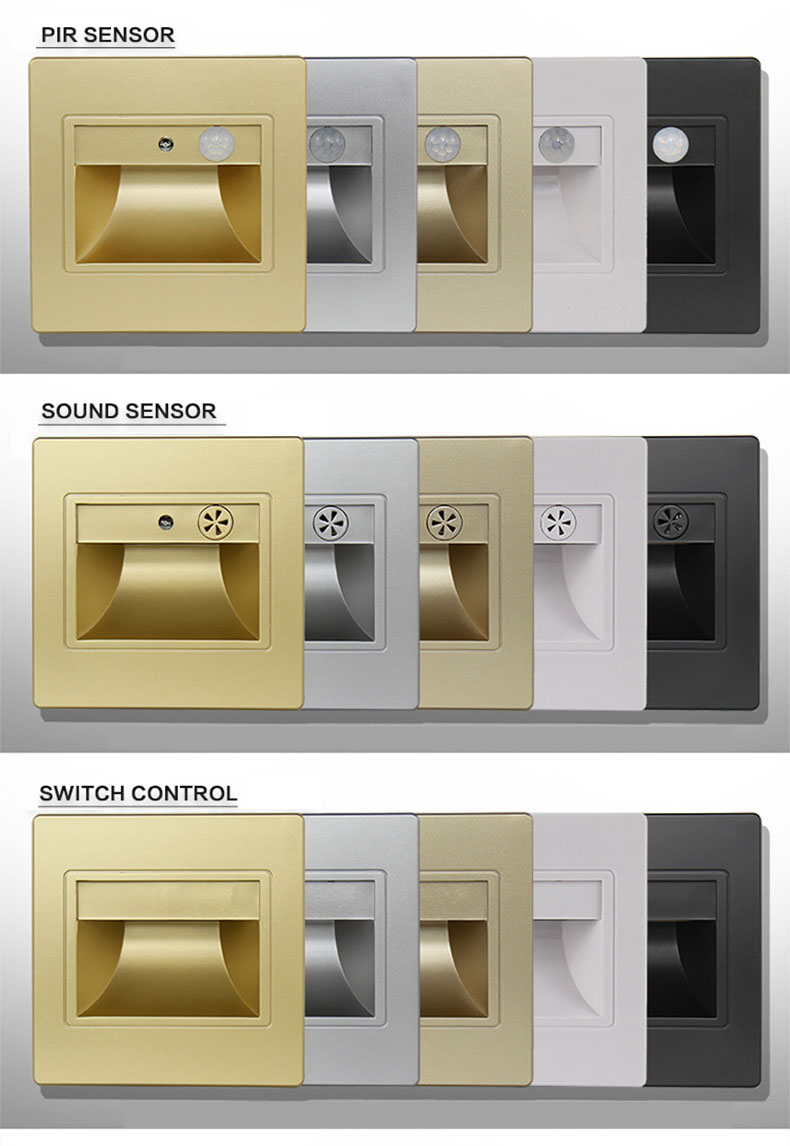

Three types are available, suitable for rooms, hotels, villas, shopping malls, homes, corridors, stairs, aisles and other places that need to be supplemented with light, and can be used as night lights, opening a new life for smart homes.
1. Conventional stair lights: The LED light is always on, and an additional switch is required to control the lights on and off.
2. PIR motion sensor stair lights: when the light is sufficient during the day, the LED light does not work, and the light sensitivity is lower than 10LUX to work. At night, human body induction is carried out according to the principle of thermal energy induction. Once the human body enters the sensing range (90° to 120° fan-shaped sensing area directly in front of the stair fixture, large sensing range), the stairway lighting will be automatically activated. When the person leaves the sensing area, it will turn off after a delay of about 30 seconds, so as to save electricity and protect the environment.
3. Sound and light control stair lights: The staircase lighting will only be activated when the light sensitivity is lower than 10LUX and there is sound (the sound is above 58 decibels). The same delay of about 30 seconds to turn off.
Non-working range: breathing sound 10dB, soft conversation 30dB, office 40dB, normal conversation 50dB.
Scope of work: Loud speech 60dB, noisy restaurant 70dB, subway 80dB, road excavator 90dB, truck 100dB, entertainment center 110dB.
4. Outdoor waterproof PIR sensor stair lights: It can be used in places such as decks.
5m sensing distance, responsive, intelligent control.
Built-in high-quality LED chip, fast heat dissipation, no stroboscopic.
Curved light groove, light downward, not dazzling, good light effect.
High-strength PC material, high temperature resistance, safer and not easy to scratch.
High light transmittance glass baffle, soft light to protect eyes, dust and mosquito repellent.
The face frame is seamlessly spliced with the lamp body without gaps.
Ultra-thin lamp body, the thickness of the panel is only 1cm, which will not destroy the overall style of your home installation. The panel can be disassembled by hand for easy installation and maintenance.

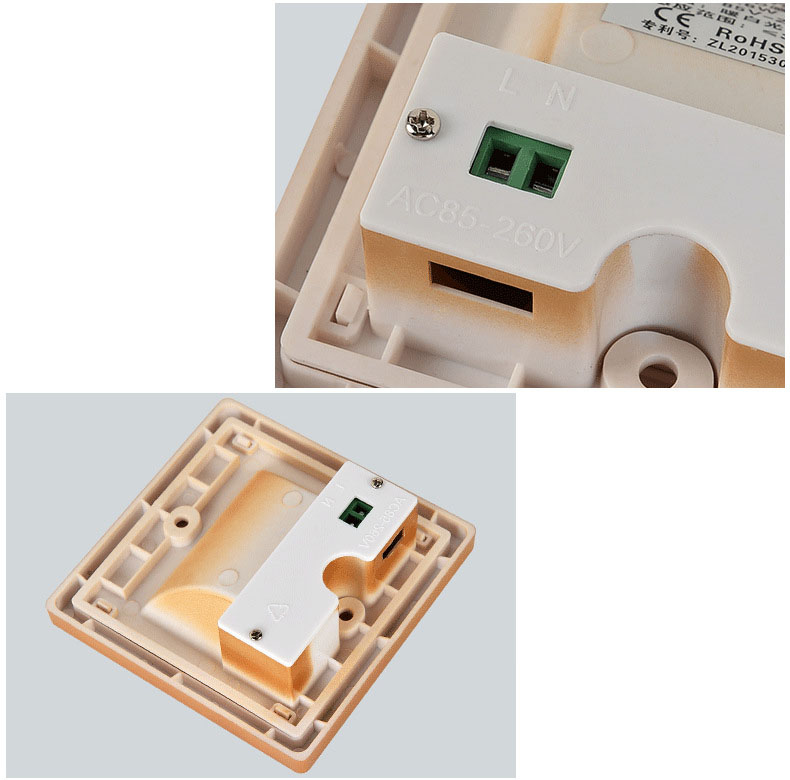

Built-in integrated LED driver, reserved binding posts, double-hole screw press wiring design, safe and stable, L is connected to the live wire, and N is connected to the neutral wire.
Adopt high heat dissipation design, air convection design, and excellent heat dissipation performance. PVC flame retardant rear seat, insulating and non-fading.
|Input Voltage:||AC85-265V 50~60Hz|

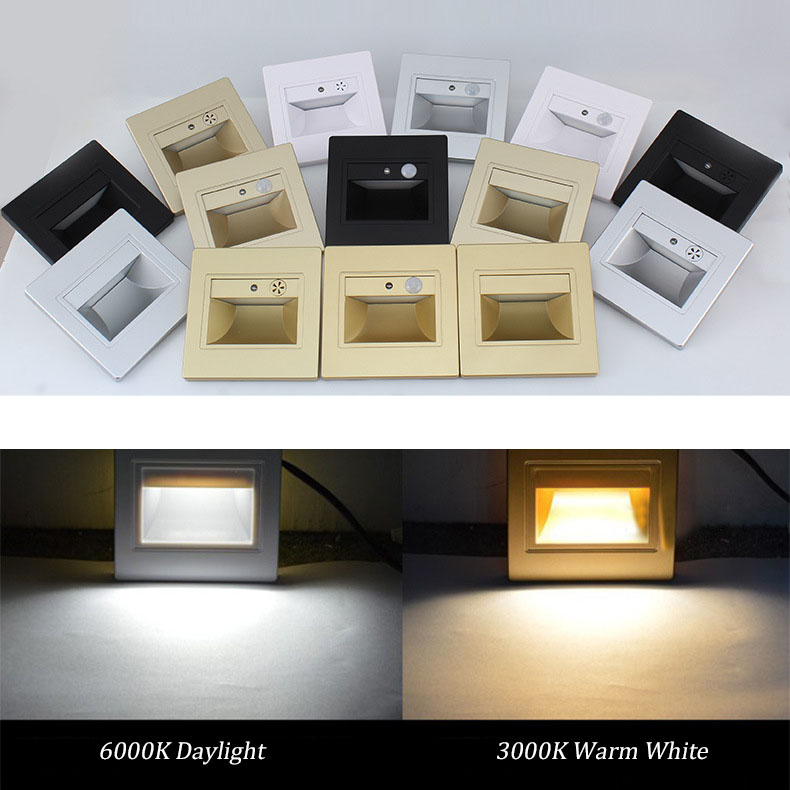

|Light Color (White Light Color Temperature):||2800K~3200K Warm White / 6000~6500K Daylight|
|Light Source:||Bright SMD5730 LED|
|Light Efficiency:||120 lm/W|
|Luminous Flux:||200 LM|
|Ingress Protection:||Waterproof IP67|
1) The installation height of the lamp is best when it is about 20 to 40 cm above the ground. Place one light fixture in the hallway at 2 to 3 meters, and install one at 2 to 3 steps on the stairs.
2) The installation distance between human body induction and voice-activated stair lights should be at least one meter.
3) The effect of PIR motion sensor stair lights will be affected by environmental factors. Please do not install the lamp in the heat source, the inlet and outlet of hot and cold air, and the place where the strong light changes obviously, and avoid the PIR sensor from being blocked.
4) The sensing distance of the PIR sensor stair lights will become shorter as the temperature increases.
5) If the stair lights are automatically triggered or always on during use, it is the reason for the long-term standby in the airtight space. It can be solved by turning off the power for a few minutes and then turning it on again.

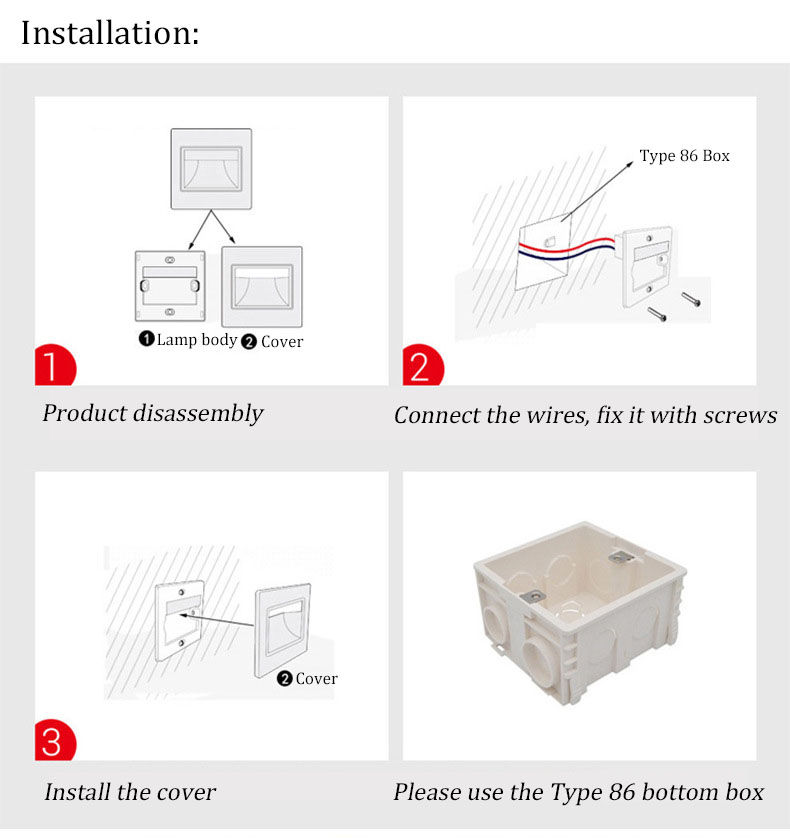

6) Embedded installation, it needs to be used with the 86-type bottom box. Mounting back box not included.
