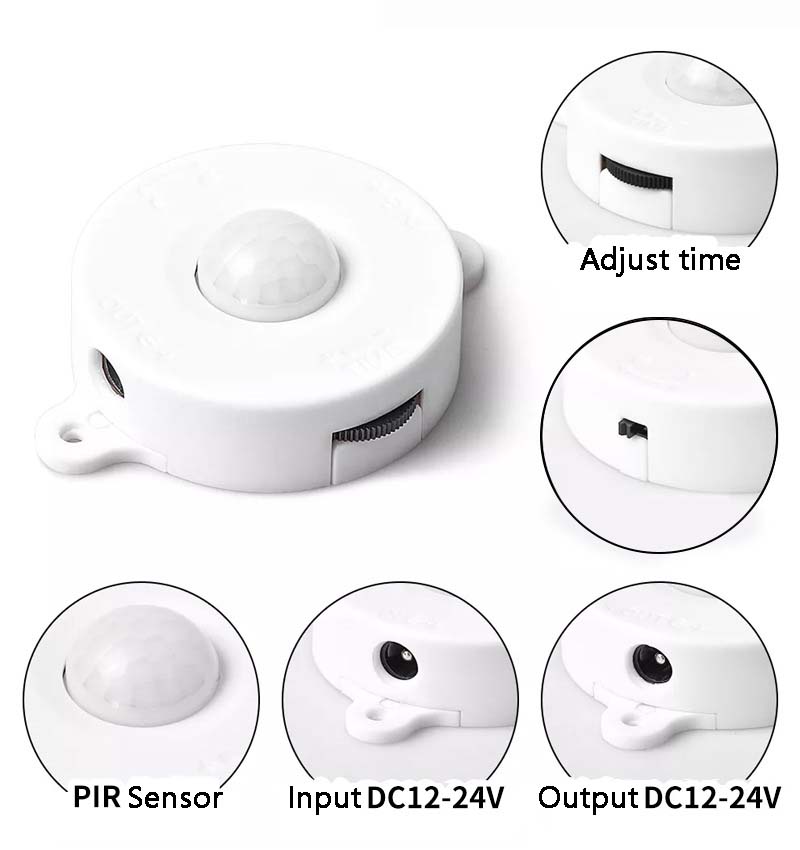

DC12-24V PIR Motion Sensor LED Light Switch Human Body Induction

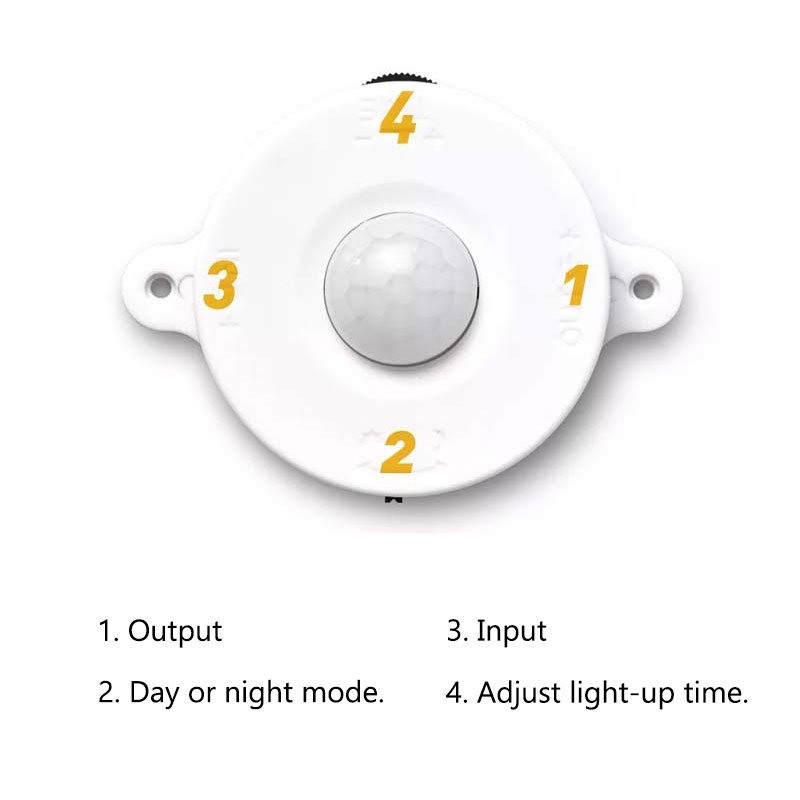

This PIR sensor smart light switch can freely turn the led light on/off automatically, and the built-in light sensor can recognize day and night. Mainly used to control LED lights and LED strips. Adjust the light to be soft and stable without flickering. With DC interface, easy to install and use.
You can add this motion sensor to your stair lights, bedroom lights, under cabinet lights, and more. You don't to turn on or off the lights with a remote or mobile APP. When it detects your movement, the light will automatically turn on and then turn off automatically. The light-up time can be set.
Product Type: Human Body Induction
Induction Method: Infrared Induction

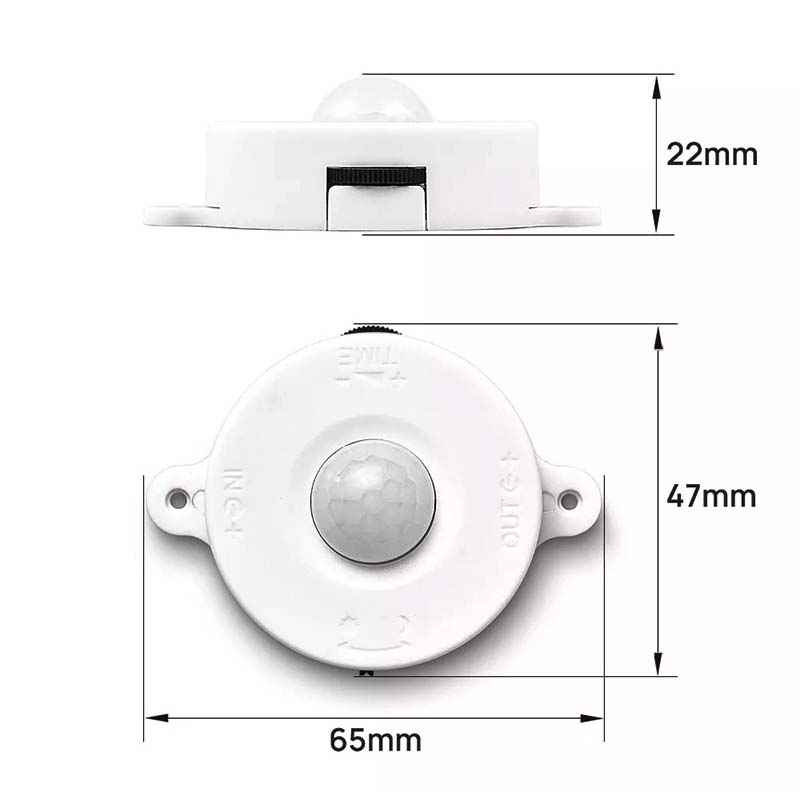

Product Size: 65mm*47mm*22mm
Switch Induction Range: 120°
Induction Distance: 5m

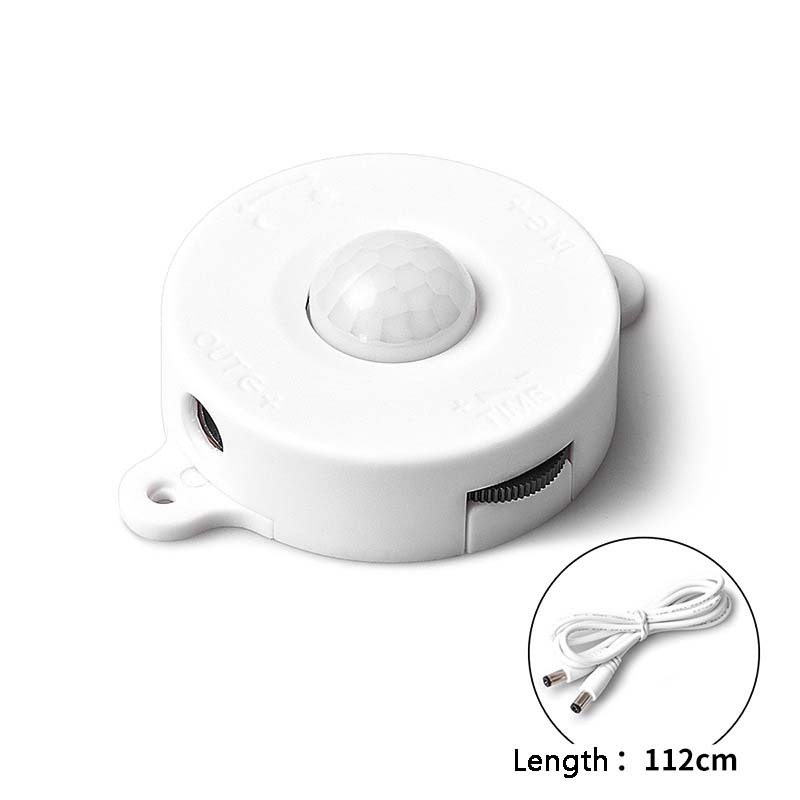

Wire Length: 112cm /44 inches
Installation Method: Paste at will
Shell Material: ABS
Protection Class: IP20
Delay Time: 10-300s
Output Current: <6A
