This is our new COB strip with CCT tunable white color, narrow 8mm PCB wide, and higher LED density (624 chips per meter). It's designed to run longer lengths than other COB CCT strips, with one-end power injection, it can keep light brightness and color the same within 10 meters/33ft, perfect for home and commercial projects.
Product Features:
8mm COB LED tape light
CCT adjustable white color, 2700K-6500K color temperature
624 chips per meter, 190 chips per foot, higher density
10m/33ft no voltage drop, two-end power injection for 15m/49ft and 20m/66ft
Need a CCT controller to change color (you can try our new filker-free 20KHz model LM-CH21W, which product in the kit also)
Powered by 24VDC, buy a 24V power supply here (power supply in the kit: LRS-100-24 for 5m strip; IP20 LRS-200-24 for 10m strip)

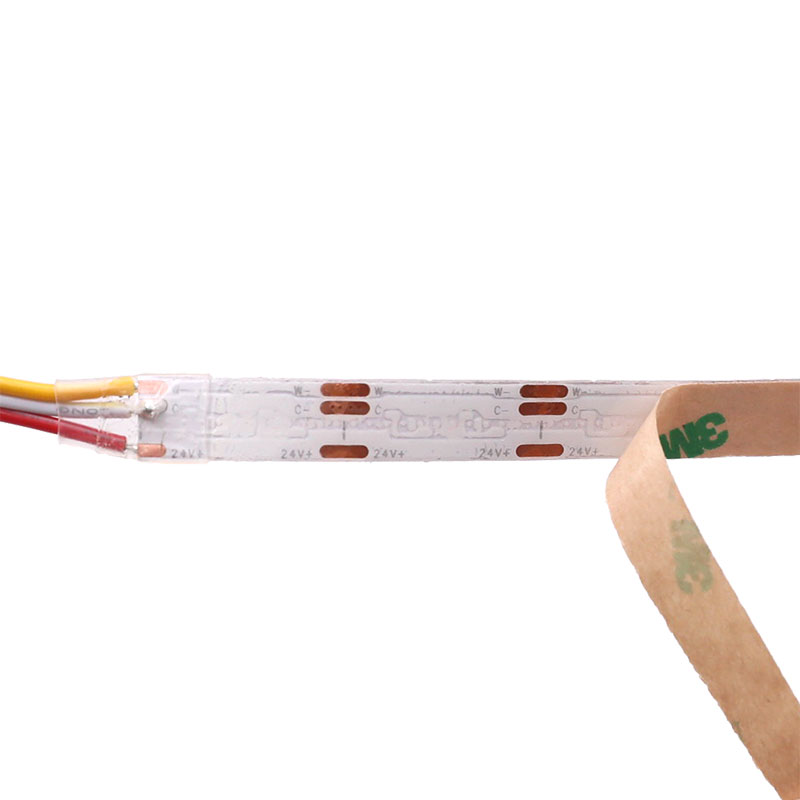

Please note that if you choose 8mm width, there are only 2 solder points on the surface, and the other one is on the back.
No available 3-pin COB connector to use because of its solder joint design with only 2 pins on the light side.
If you choose 10mm width, there are 3 solder points on the surface. COB connectors are available.
If you are looking for same kind of CCT LED strip with narrower beam angle and brighter lighting effect, consider our hot sale 10m CCT COB LED tape without voltage drop.
Standards and Certifications
Product Specification
| LED Strip Type: | CCT Tunable White Long COB LED Strip |
| CRI: | 90+ (High) |
| Input Voltage: | DC24V |
| Power: | 14W/m, 70W/16.4ft, 140W/33ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color: | CCT Tunable White, 2700K-6500K color temp |

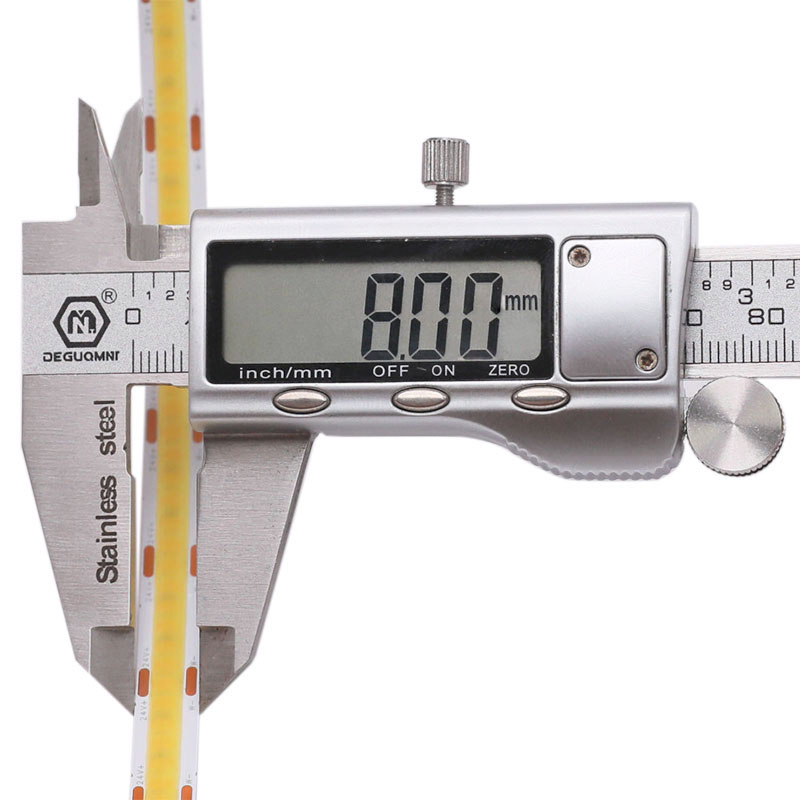

| PCB Width: | 8mm |
| LED Quantity: | 624Chips/m, 3120/16.4ft, 6240/33ft |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP67 |

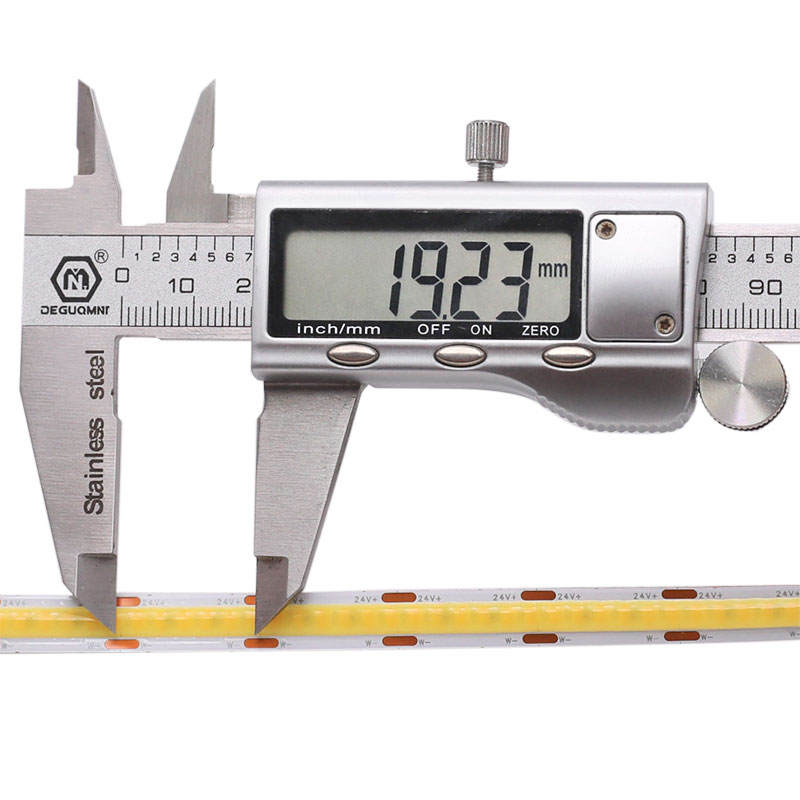

| Cuttable: | 19.23mm/0.76" |
| Lumen: | 936lm/m |
| Lifespan: | 50,000 hours + |
| Beam Angle: | 180° |
| Strip Length: | 5m/16.4Ft, 10m/33ft |
How to Wire CCT COB LED Strip?
