DC12-24V Color Chasing Motion Activated Stair Light Sensor LED Controller
It's an upgrade version of common stair light controller, used with your DC12V/24V addressable RGB led strip or white light running water led strip. It can control up to 512 pixels. Support WS2811, WS2818, SM16703, TM1903 IC chips.
This LED controller is suitable for stair side wall light design, outline the path of the stairs.
How to use this stair lighting controller?
There are 99 levels of stair light brightness (HH01-HH99, 2%, 3%, 4%.... . 100%), short press "+"/"-" to increase the brightness by one level.
2. Light delay
99 levels (LL01-LL99, 4s, 6s, 8s.... .200s), short press "+"/"-" to increase one level.
99 levels (EE01-EE99, 150 ms - the fastest speed, 175 ms, 200 ms.... . 2600 ms - the slowest speed), short press "+" / "-" to increase one level.

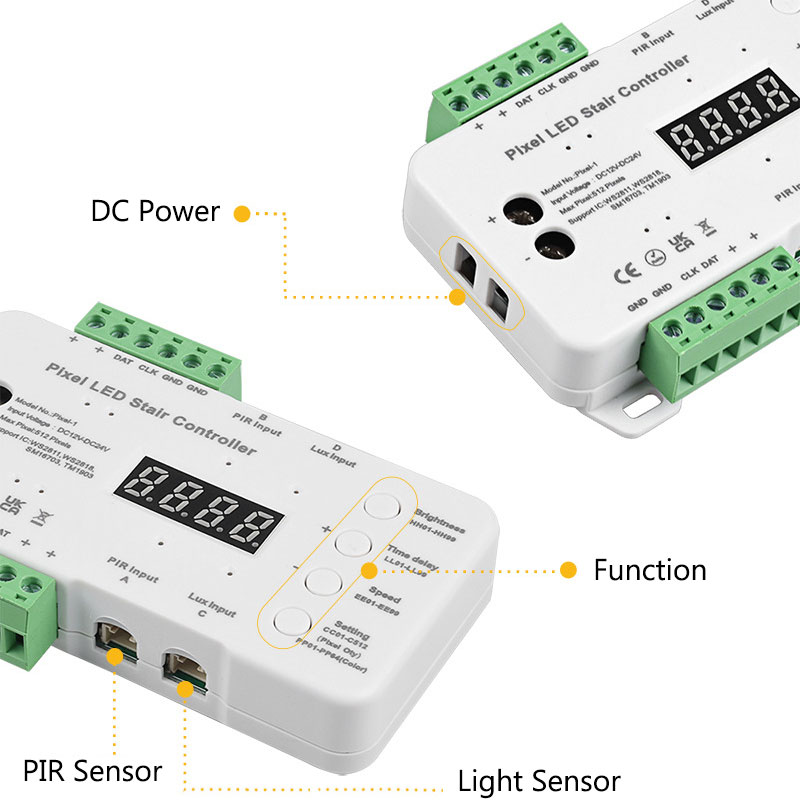

Press and hold the "Setting" button to set brightness, light delay, speed, addressable RGB or white type, number of pixels, and color modes. Use "+"/"-" to adjust the number of pixels (CC01-C512) and color (PP01-PP64).
Short press the "Setting" button to go to the next setting. After finishing all settings, press and hold the "Setting" key to save.
If you connect single color pixel LED strip to the controller, please select CH-1. Connect RGB addressable led strip to the controller, please select CH-3.
5. PIR light sensor
①The PIR sensor can turn on the light during the day and night.
② In the case of sufficient ambient light, the PIR sensor does not turn on the light.
6. Sensor installation method
Choose surface mount or embedded mount according to your preference.
Standards and Certifications
Type: Motion Sensor Addressable LED Stair Light Controller
Shell Material: ABS
Working Voltage: DC12-24
Max control pixels: 512
Support IC: WS2811, WS2818, SM16703, TM1903

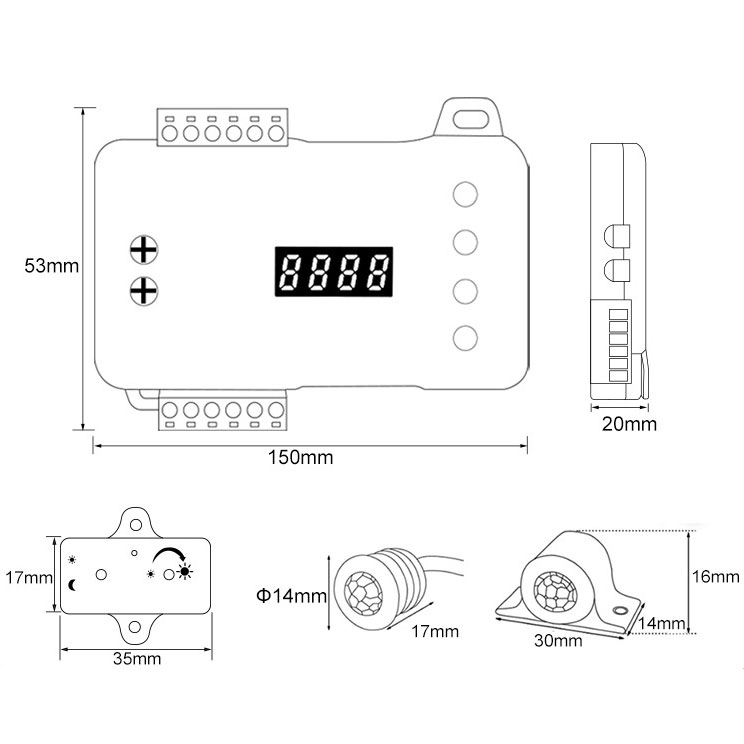

Controller Size: 150mm*53mm*20mm
Light Sensor Size: 35mm*17mm
PIR Sensor Size: 30mm*14mm*16mm for surface mount; 14mm*17mm for recessed mount
