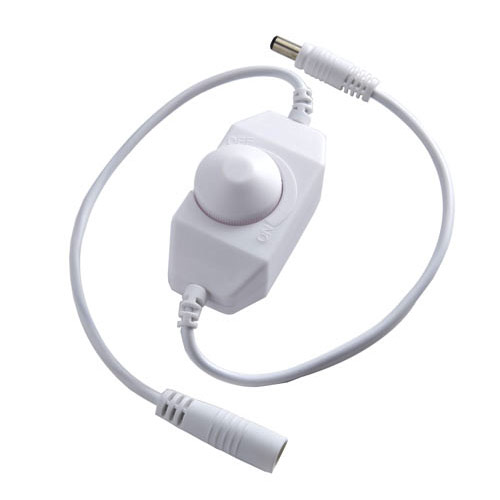

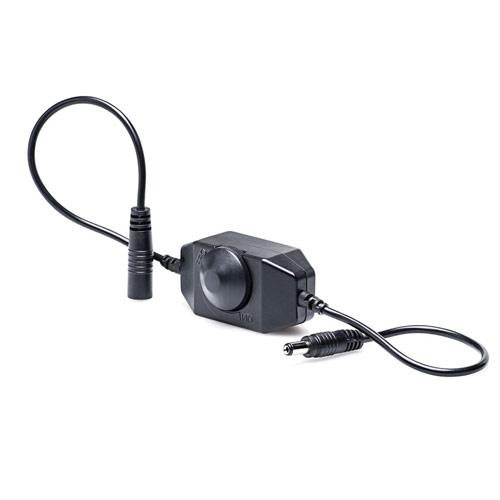

DC12/24V Max 2A 24-24W, Mini Manual rotation LED Dimmer, ABS Shell, For Single Color LED Lighting
This dimmer is a led controller that it can adjust brightness infinitely, there are one output channel in all. Its control mode is knob-operated control, you could adjust light to the appropriate brightness in accordance with your actual need.

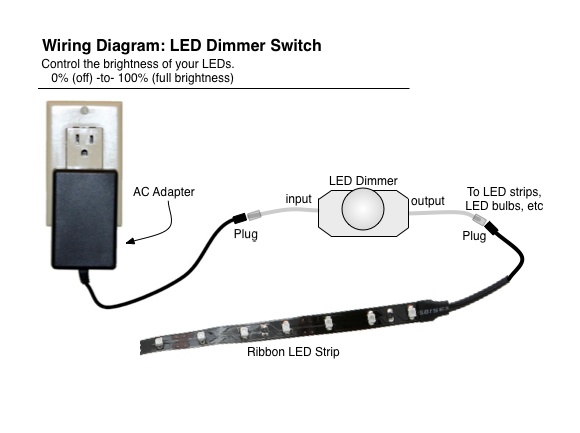

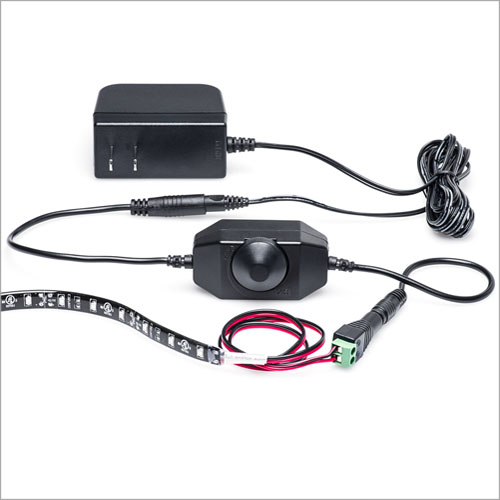

Dimmer with rotary knob for quick and easy wired dimming a 12 to 24 volt single color LED strip or LED lamp. Easy installation between the adpater and the LED strip with the DC 5.5mm plugs.
Dims LED strips/ lights very precise from 0 to 100%
Maximum load with 2A (24W at 12V or 48W at 24V).

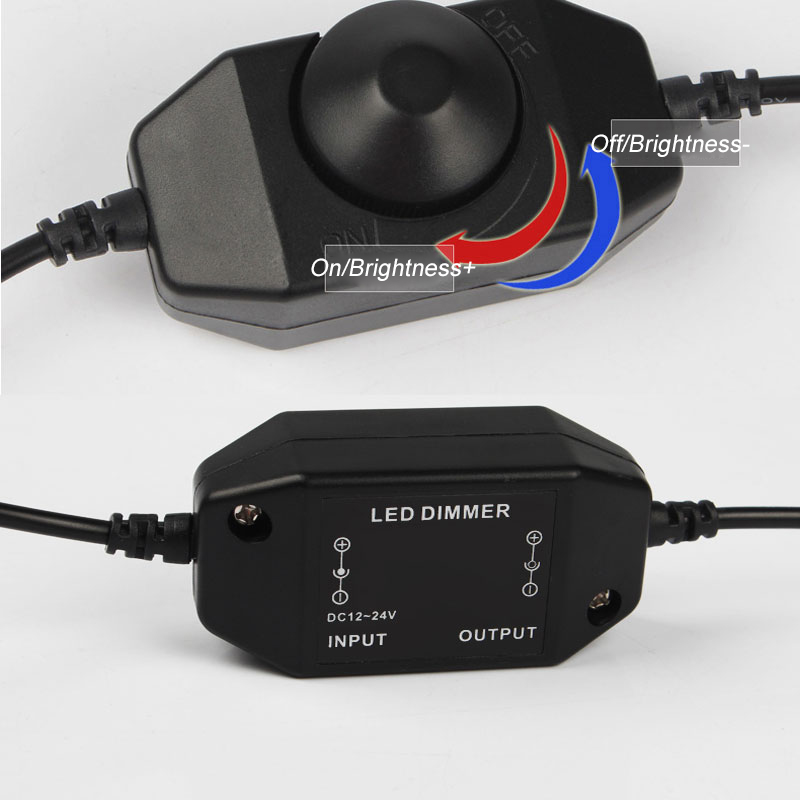

When the knob reaches 0% brightness, turn slightly further to entirely click off power.
Working temperature: -20-60℃
Supply voltage: DC5V, 12-24V
Output: 1 channel, 2A, Max 3A, DC JACK
External dimension: L61ΧW33ΧH32 mm
Net weight: 30g
Suitable for dimming
Supply voltage of this product is 12~24 Volts DC, do not exceed 24VDC.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only ? this product is not waterproof or weatherproof.
