DC12V-24V 0/1-10V Dimming Driver BC-331-10A
As LED and fluorescent lights are becoming more and more popular in the same project, but the dimming principles of LED and traditional fluorescent lights are different, so we developed a new 0/1-10V dimming controller which has solved the compatible problem of fluorescent dimming controller and LED illumination; with our driver, the controller can dim both fluorescent and LED lamps at the same time.
1. Working voltage from DC12V-24V.
2.1 output channel, Max output 10A.
3. PUSH DIM input voltage AC/DC12V-230V.
4. 0/1-10V to PWM dimming signal conversion, linear or log.
5. Support linear dimming or logarithmic dimming.
6. Compatible with many brand dimming systems.
7. Multi units can be worked together or use our power repeaters to control more lamps.
8. Power loss memory function. Overcurrent protection, short circuit protection.
Standards and Certifications

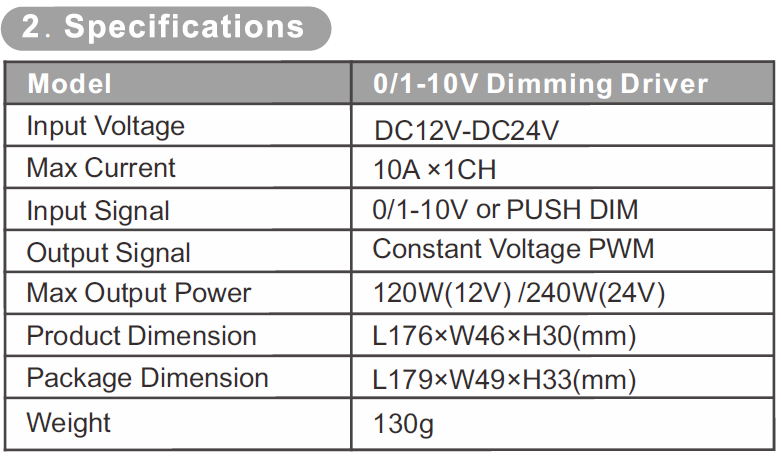

Input Voltage: DC12V-24V
Max Current: 10A×1CH
Input Signal: 0/1-10V or PUSH DIM
Output Signal: Constant Voltage PWM
Max Output Power: 120W(12V)/240W(24V)

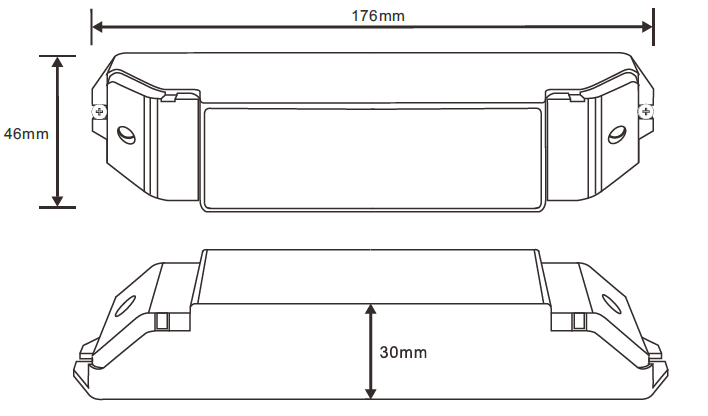

Product Dimension: L176×W46×H30(mm)
Package Dimension: L180×W50×H30(mm)

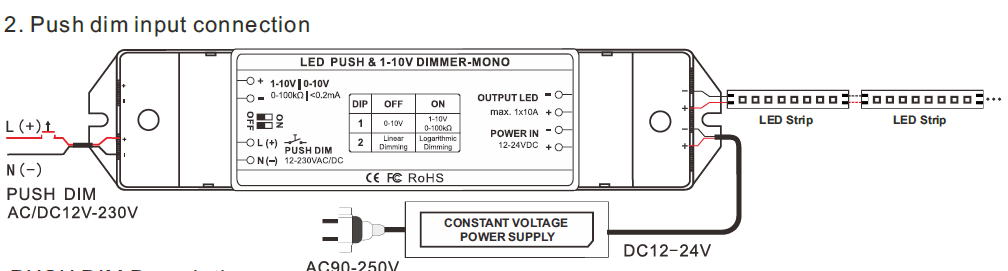

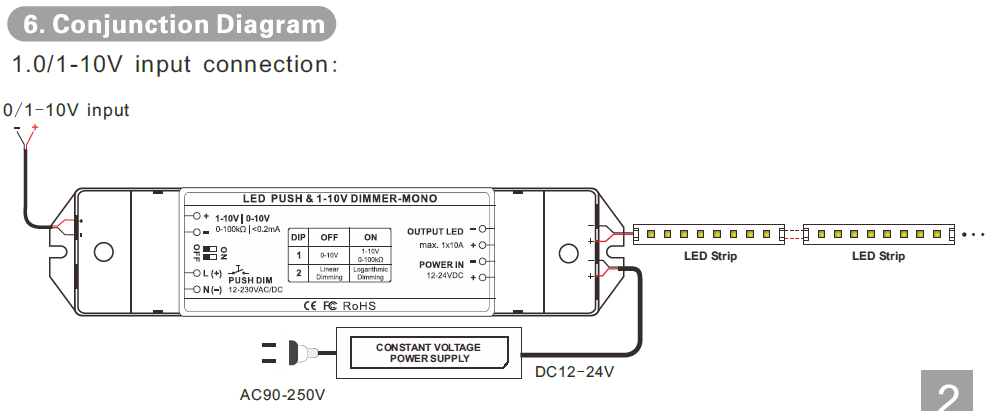

PUSH DIM Description:
1)Short press PUSH DIM button(less than 0.5S), to control the light ON/OFF.
2)Long press PUSH DIM button(more than 0.5S), adjust the light brightness; After each adjustment, the changing goes opposite.
3)When the light is OFF, long press PUSH DIM button, the light turn ON and dim.
4)When long press PUSH DIM to adjust the brightness, dimming range is 1%-100%, short
press it to turn OFF the light.
5)Power down function available ,it keeps same status when power up again.
When using only the PUSH function, DIP1 should put to the 0-10V option, that is, OFF.

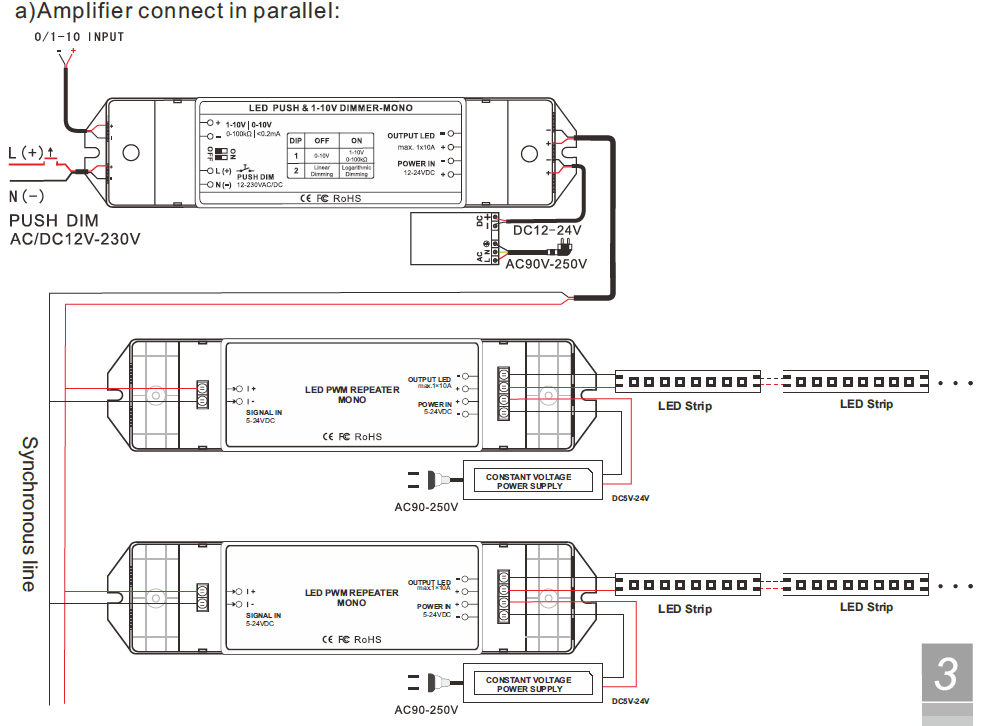

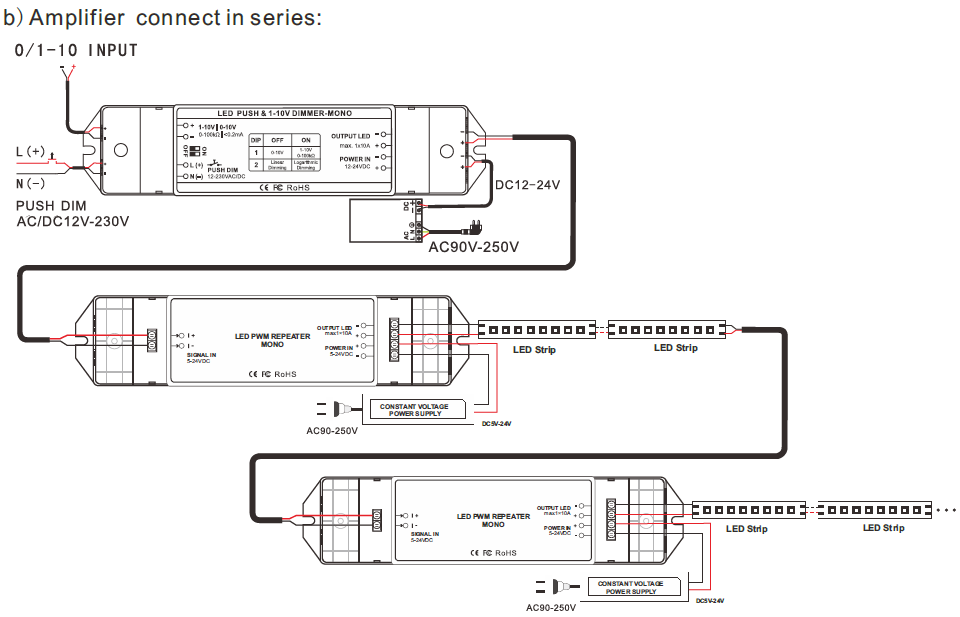

It can connect to our power amplifier to extend power unlimitedly.
1.In order to use it properly and safety, please read user's manual carefully before installation.
2.Please don't install this controller in lightening, intense magnetic and high-voltage fields.
3. To reduce the risk of component damage and fire caused by short circuit, make sure correct connection
4. Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
5.Don't connect cables with power on; make sure a correct connection and no short circuit checked with instrument before power on.
6. Please don't open controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without prior notice.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc. force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
