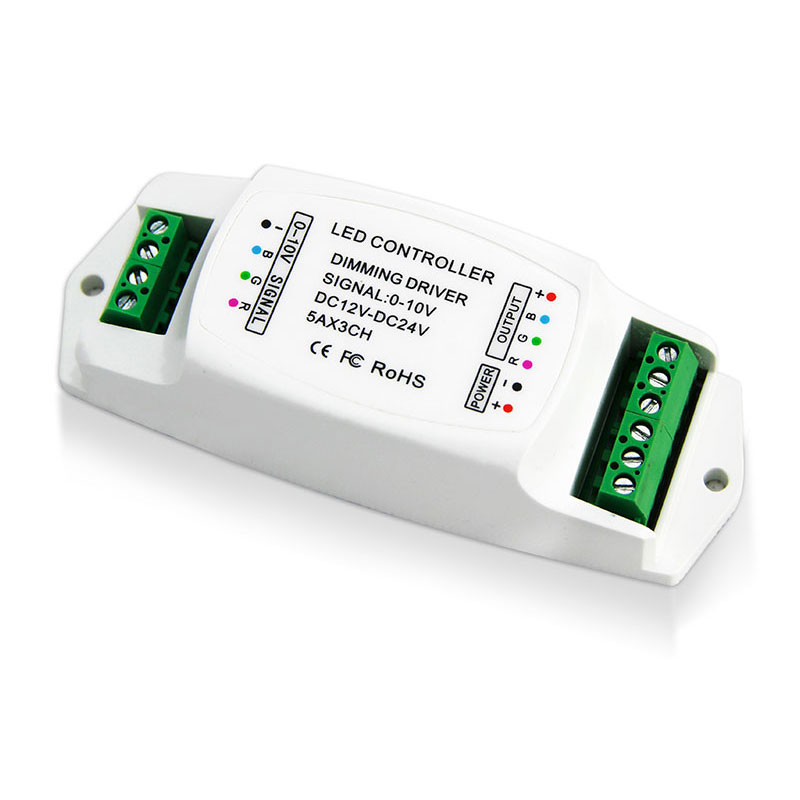

DC12V~24V 0-10V Dimming Driver BC-330-5A
As LED and fluorescent lights are becoming more and more popular in the same project, but the dimming principles of LED and traditional fluorescent lights are different, so we developed a new 0-10V dimming controller which has solved the compatible problem of fluorescent dimming controller and LED illumination; this controller can dim both fluorescent and LED lamps at the same time.
1. 0 - 10V to PWM dimming signal conversion.
2. Optical isolation protection for input & output.
3. Compatible with many brand dimming systems.
4. Working voltage from DC12V~24V

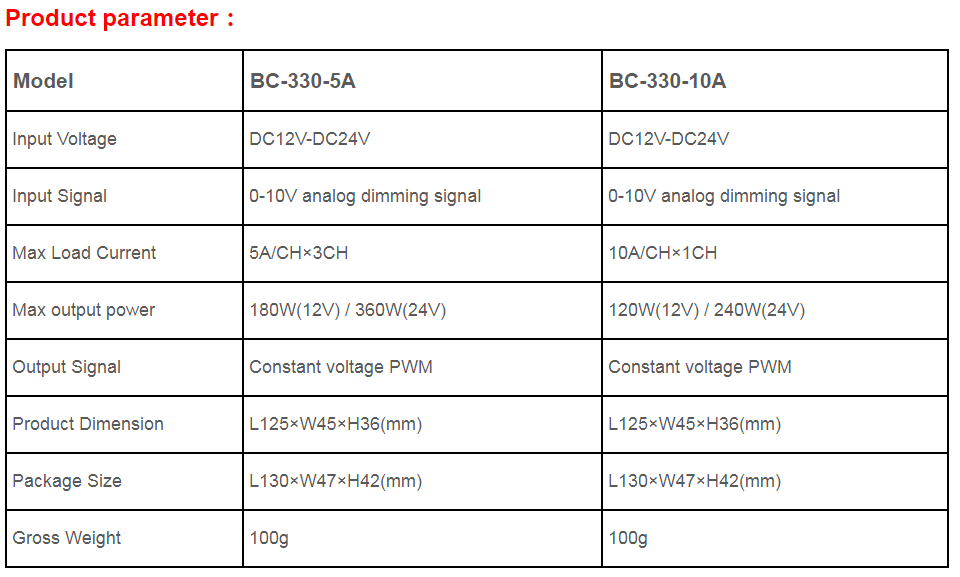

5. 5A Model: Max output 5A*3CH,15A in total.
10A Model: Max output10A*1CH,10A in total.
6. Multi units can be worked together or use our power repeaters to control more lamps.
7. Power loss memory function.
Standards and Certifications
