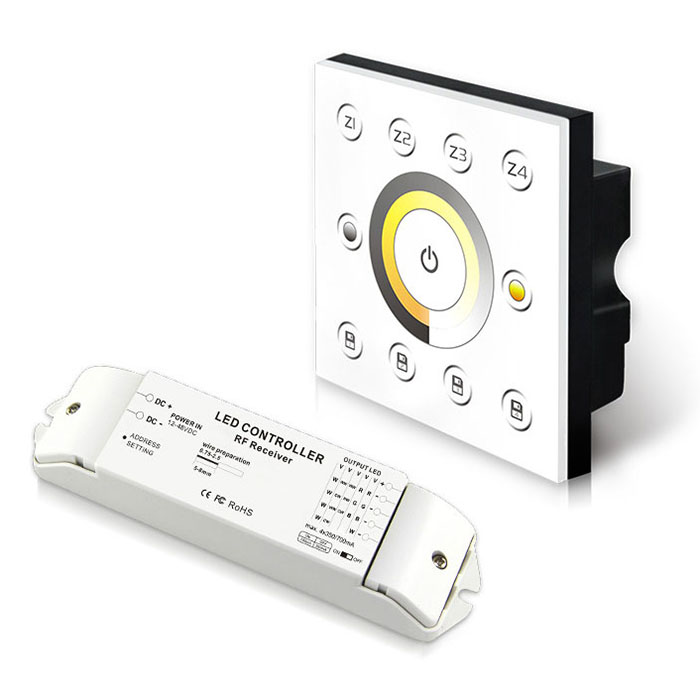

AC85V-265V Wireless Multi-Zone CC CCT Panel P6X+R4-CC-2.4G
This PX series touch panel controller is consist of Single zone series and Multi-zone series, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Moreover, it can control DMX512 LED lights, and communicate with 2.4G RF radio technology. P5X, P6X, P7X, and P8X are multi-zone control panels, can control Max. 4 zones, PX series could satisfy the controlling demand for all kinds of LED lighting products.

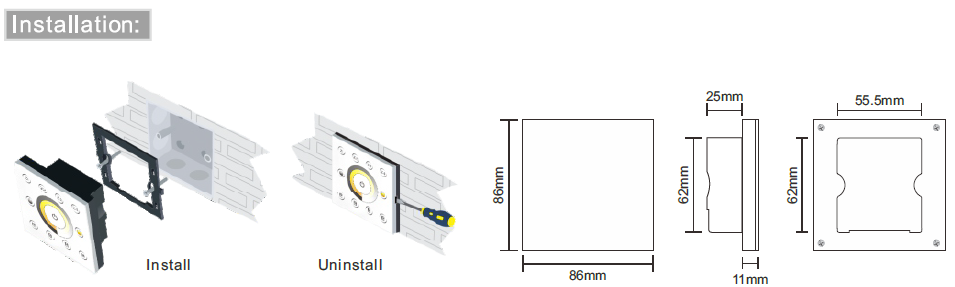

1、Fashionable appearance, simple operation, standardly 86 style socket, easy to install and disassemble.
2、Workable for dimming, color temperature, RGB and RGBW control.
3、It can control DMX512 LED lights, and communicate with 2.4G RF radio technology.

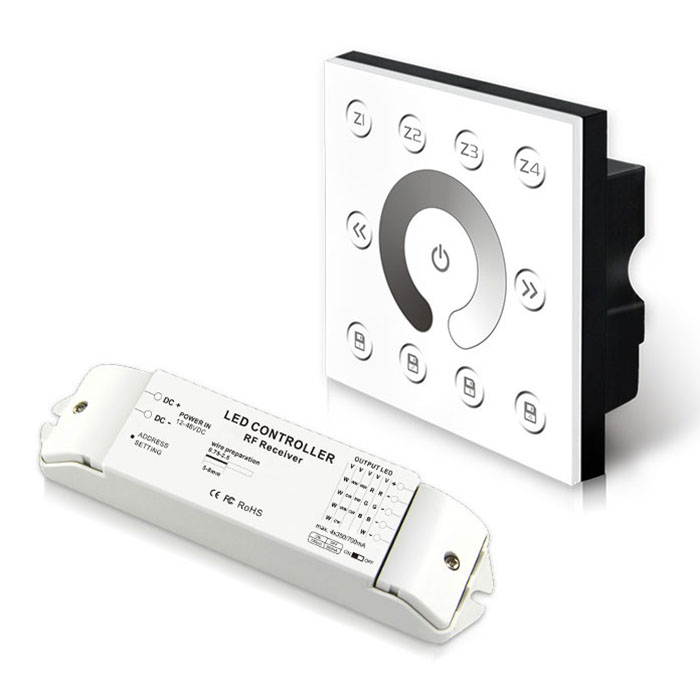

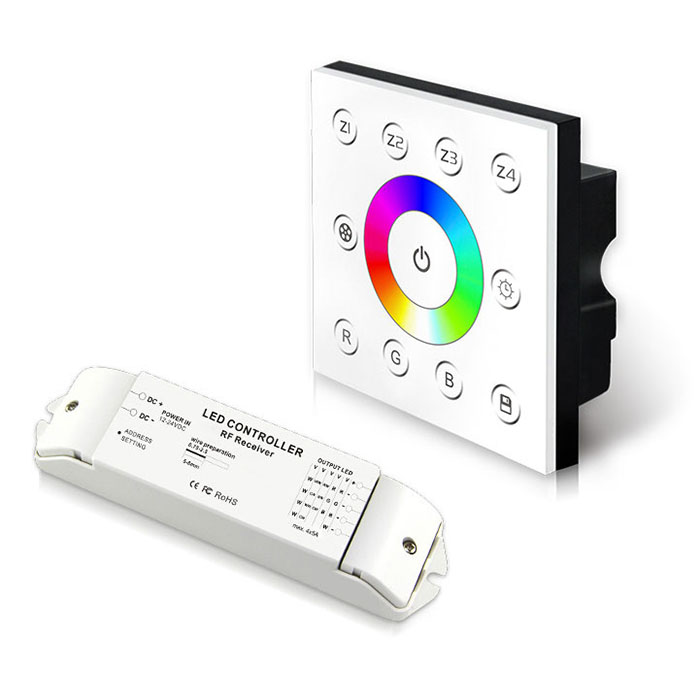

4、P5X, P6X, P7X, and P8X are multi-zone control panels, can control Max. 4 zones.
5、RGB/RGBW panel controller with the 10 built-in changing modes, with 4096 grey scales per channel, the led lamp is more rich and vivid without flash.
Standards and Certifications
Model: P6X CCT Panel
Input Voltage: AC85V-265V
Output Signal: DMX512+2.4G
Dimming Range: 5%-100%
Working Temperature: -20°C~55°C
Working Voltage: DC12V-DC48V
Output Current: 350/700mA×4CH
Driving LEDs/ CH: 1~12pcs 1W(3W) LED
Working Temp: -30℃-55℃
Weight (G.W): 137g

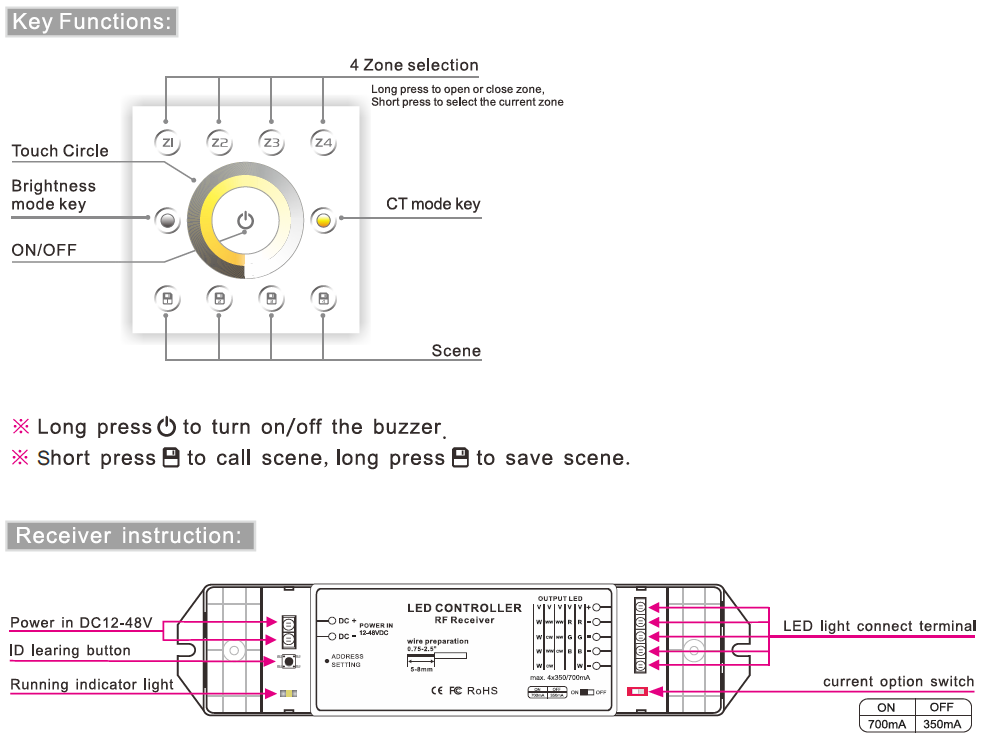

The matching method between panel and receiver:
learning ID: Press ID learning button on the receiver for 3 seconds. when the indicator light is on, press any zone key on the touch panel, the indicator light flashes ( the frequency is 1Hz) , activated.
Cancel ID: Press ID learning button on the receiver for 5 seconds. When the indicator light flashed quickly ( the frequency is 5Hz) , and all learnt IDs have been canceled.
Notice: The receiver can memorize up to 8 IDs. When receiving control information from any learnt ID, it can be controlled. If the memorized ID up to 8, long press learning key for 3 seconds to get out of the learning status, cancel the ID and reset. The receiver can not record the different zone on the same panel, if you want to control the other zone with the same panel, you need to cancel the ID and reset.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
7.Product has been updated.
