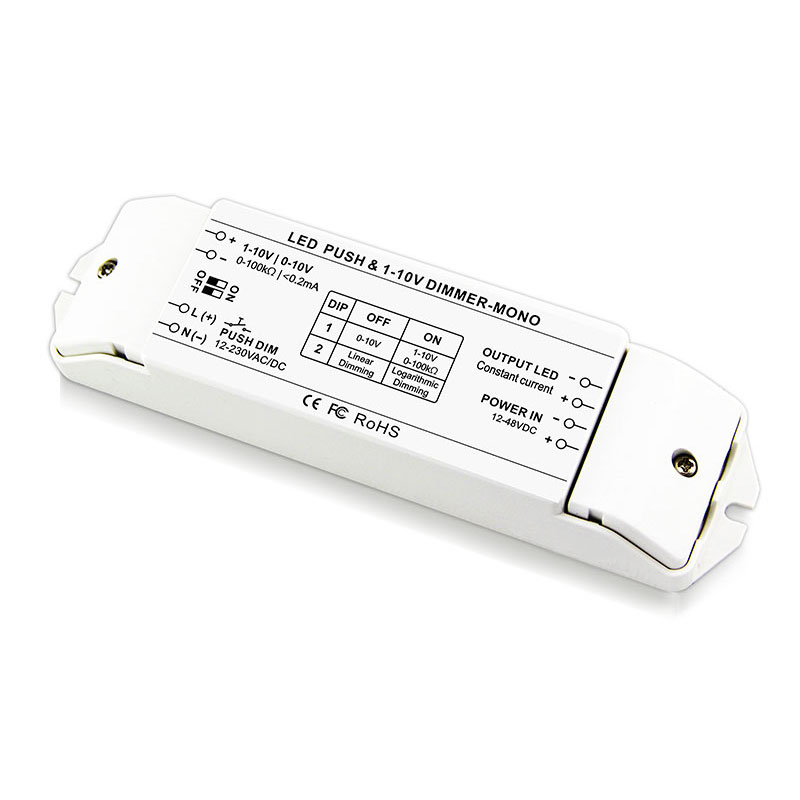

DC12V-48V 0/1-10V Dimming Driver BC-331-CC
As LED and fluorescent lights are becoming more and more popular in the same project, but the dimming principles of LED and traditional fluorescent lights are different, so we developed a new 0/1-10V dimming controller which has solved the compatible problem of fluorescent dimming controller and LED illumination; with our driver, the controller can dim both fluorescent and LED lamps at the same time.
1. Working voltage from DC12V-48V.
2. 1 output channel, constant current 350mA, 700mA, Maximum 2400mA (set before shipping).

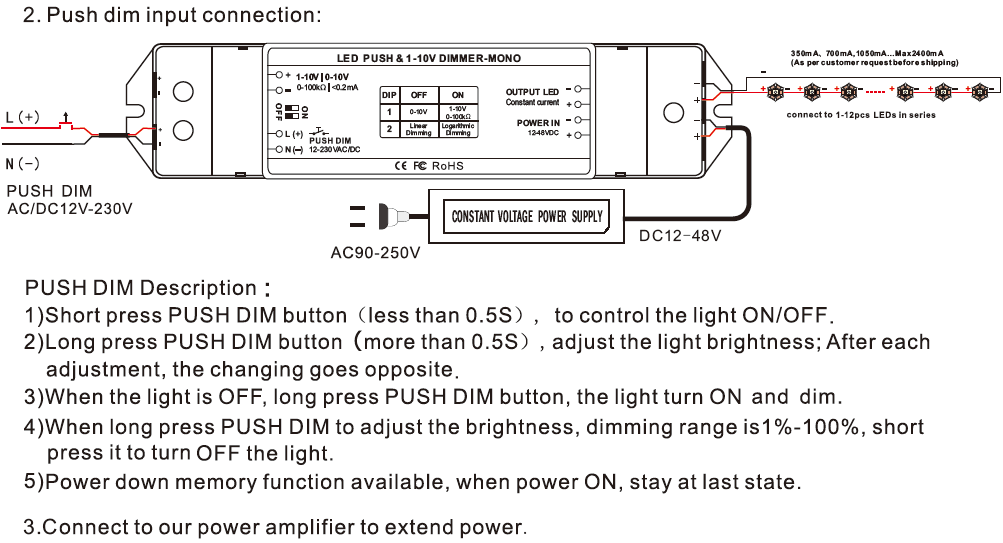

3. PUSH DIM input voltage AC/DC12V-230V.
4. 0/1-10V to PWM dimming signal conversion, linear or log.
5. Support linear dimming or logarithmic dimming.
6. Compatible with many brand dimming systems.

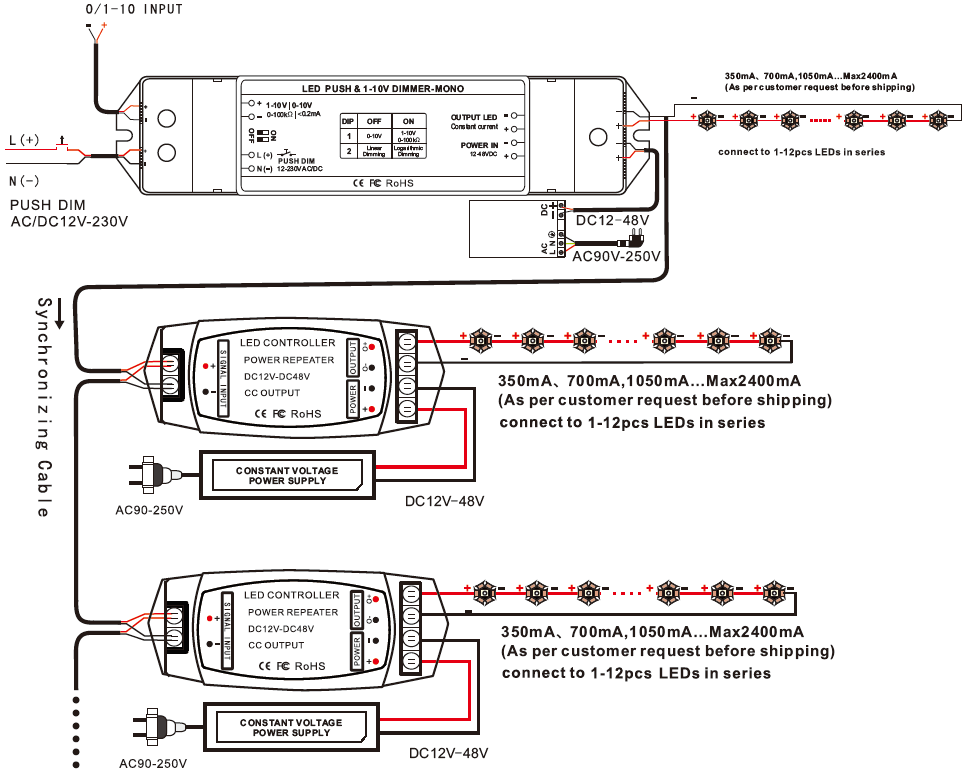

7. Multi units can be worked together or use our power repeaters to control more lamps.
8. Power loss memory function.

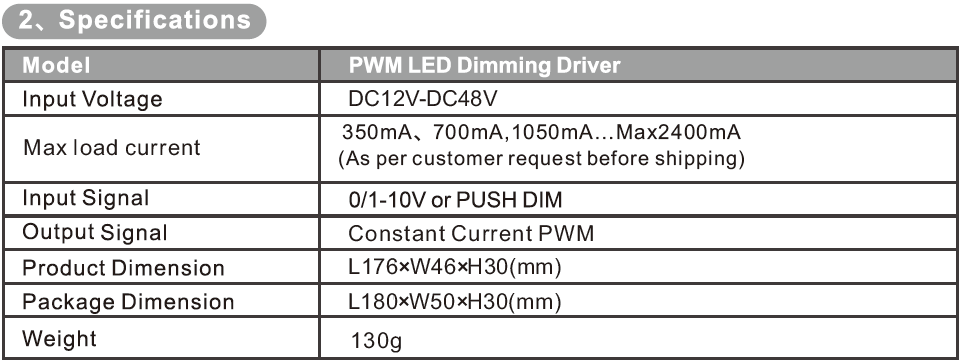

Standards and Certifications
Input Voltage: DC12V-28V
Max Load Current:
(As per customer request before shipping)

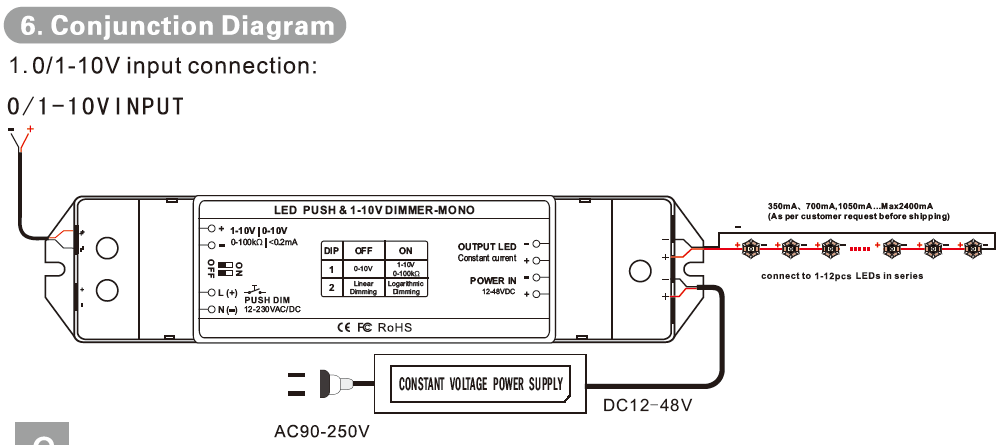

Input Signal: 0/1-10V or PUSH DIM
Output Signal: Constant Current PWM

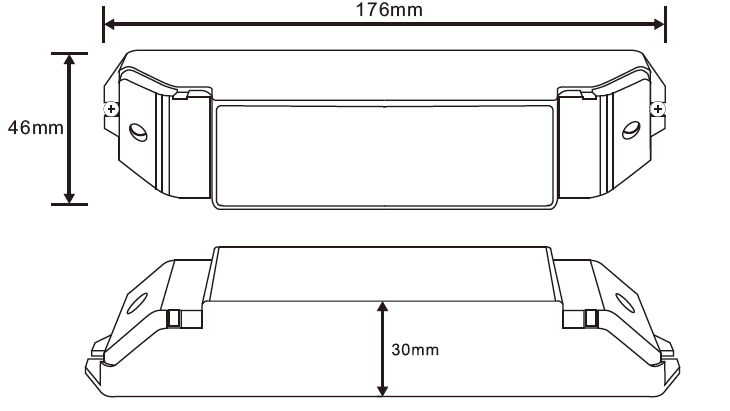

Product Dimension: L176×W46×H30(mm)
Package Dimension: L179×W49×H33(mm)
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc. force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
