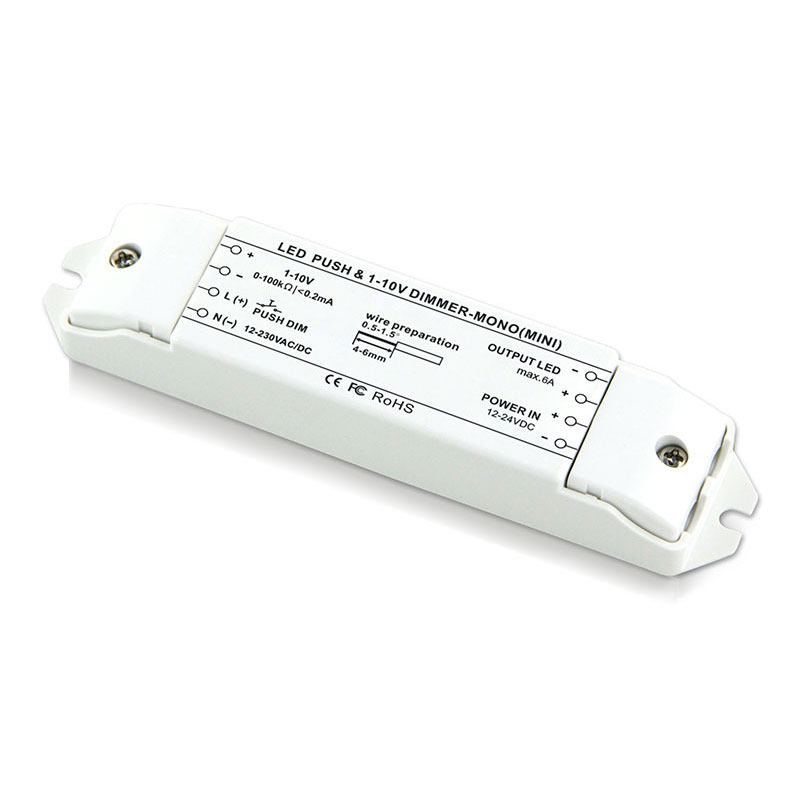

DC12V-24V 1-10V Dimming Driver BC-331-6A
As LED and fluorescent lights are becoming more and more popular in the same project, but the dimming principles of LED and traditional fluorescent lights are different, so we developed a new 1-10V dimming controller which has solved the compatible problem of fluorescent dimming controller and LED illumination; with our driver, the controller can dim both fluorescents and LED lamps at the same time.
1. Working voltage from DC12V-24V.
2. 1output channel, Max output 6A.
3. PUSH DIM input voltage AC/DC12V-230V.
4. 1-10V to PWM dimming signal conversion.
5. Short circuit protection; overcurrent protection.
6. Compatible with many brand dimming systems.
7. Multi units can be worked together or use our power repeaters to control more lamps.
8. Power loss memory function.
Standards and Certifications
Input Voltage: DC12V-DC24V
Max Current: 6A×1CH
Input Signal: Potentiometer, active/passive 1-10V or PUSH DIM
Output Signal: Constant Voltage PWM
Max Output Power: 72W(12V)/144W(24V)
Product Dimension: L135×W30×H20(mm)
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure the correct connection.
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller.
(please select DC12-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur. The manual is only suitable for this model; any update is subject to change without prior notice.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction and quality problems occur, we provide free repair or replacement services except for the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
7.Product has been updated.
