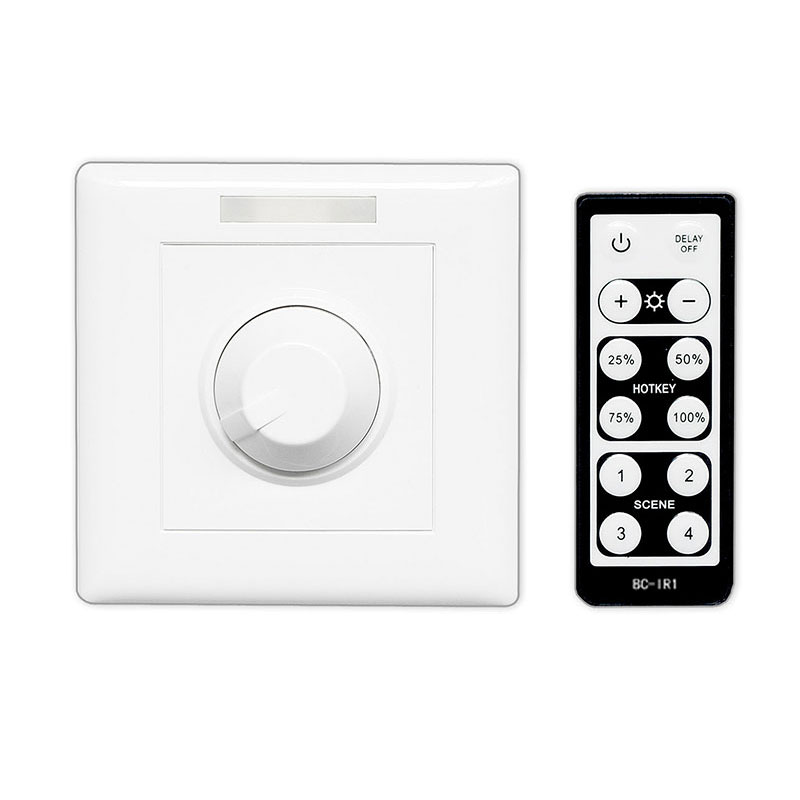

AC 85-265V LED Signal Dimmer BC-320-010V
signal dimmer, this dimmer is AC 85-265V input, and output AC 85-265V and analog dimming signal. The user can adjust the analog signal either by infinite switch knob or by IR remote. Easy to install, it's suitable for commercial or household standard 86 style socket base.
1. AC85-265V input.
2. AC input, built-in isolated power protection.
3. Can dim signal either by infinite switch knob or by IR remote.
4. The lowest dimming signal is selectable as 0% or 10% by changing the switch position.
5. Standard 86 style socket base, easy to install.
6. Delay OFF button, fluorescent indicator, users friendly.
7.25%, 50%, 75%, 100%, 4 brightness shortcuts and DIY modes for fast dimming.
1、 Standard 86-style socket, easy to install.
2、 Infinite knob style dimming and wireless IR remote dimming, easy to operate.
3、 Real 0~100% brightness adjust 4096 scale levels. Comfort to human eye visual characteristic. Lamplight soft and stable, without flickers, welcome to compare.
4、 Delay OFF button, a fluorescent indicator, users friendly. 25%, 50%, 75%, 100%, 4 brightness shortcuts.
5、 Automatically adapt to AC85-265V working voltage.
6、 High voltage input, Isolated Power, Please select the suitable dimmer according to the type of dimming signal of the dimmable power supply.
Standards and Certifications
1.In order to use it properly and safety, please read user's manual carefully before installation.
2.Please don't install this controller in lightening, intense magnetic and high-voltage fields.
3. To reduce the risk of component damage and fire caused by short circuit, make sure correct connection
4. Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
5.Don't connect cables with power on; make sure a correct connection and no short circuit checked with instrument before power on.
6. Please don't open controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without prior notice.
