BC-331-16A DC12-24V 16A*1CH LED Push & 1-10V Dimmer
As LED and fluorescent lights are becoming more and more popular in the same project, but the dimming principles of LED and traditional fluorescent lights are different, so we developed a new 0/1-10V dimming controller which has solved the compatible problem of the fluorescent dimming controller and LED illumination; with our driver, the controller can dim both fluorescent and LED lamps at the same time.
1.Working voltage from DC12V-DC24V.
2.1output channel, Max output 16A.
3. PUSH DIM input voltage AC/DC12V-230V.

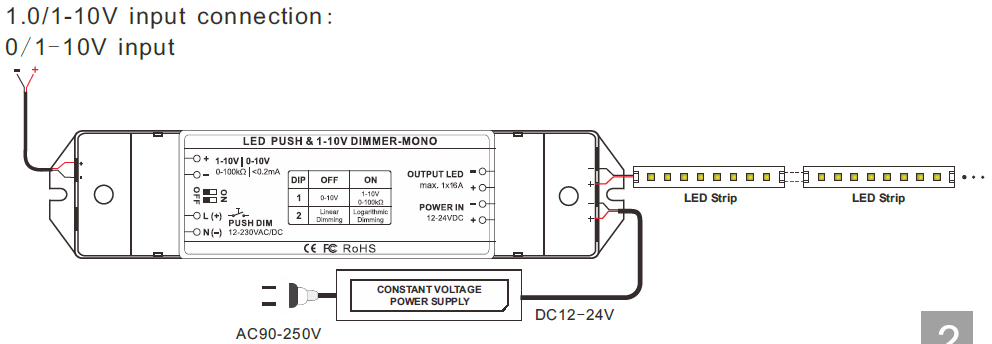

4. 0/1-10V to PWM dimming signal conversion, linear or log.
5. Support linear dimming or logarithmic dimming.
6. Short circuit protection; over current protection.
7. Compatible with many brand dimming systems.
8. Multi-units can be worked together or use our power repeaters to control more lamps.
9.Power loss memory function.
Standards and Certifications

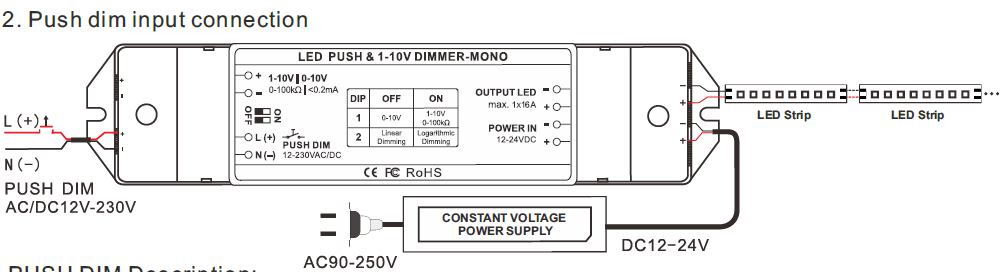

PUSH DIM Description:
1)Short press the PUSH DIM button(less than 0.5S), to control the light ON/OFF.
2)Long press the PUSH DIM button(more than 0.5S), adjust the light brightness; After each adjustment, the change goes opposite.
3)When the light is OFF, long-press the PUSH DIM button, the light turns ON and dim.
4)When long press PUSH DIM to adjust the brightness, dimming range is 1%-100%, short press it to turn OFF the light.
5)Power down function available, it keeps the same status when power up again. When using only the PUSH function, DIP1 should put to the 0-10V option, that is, OFF.

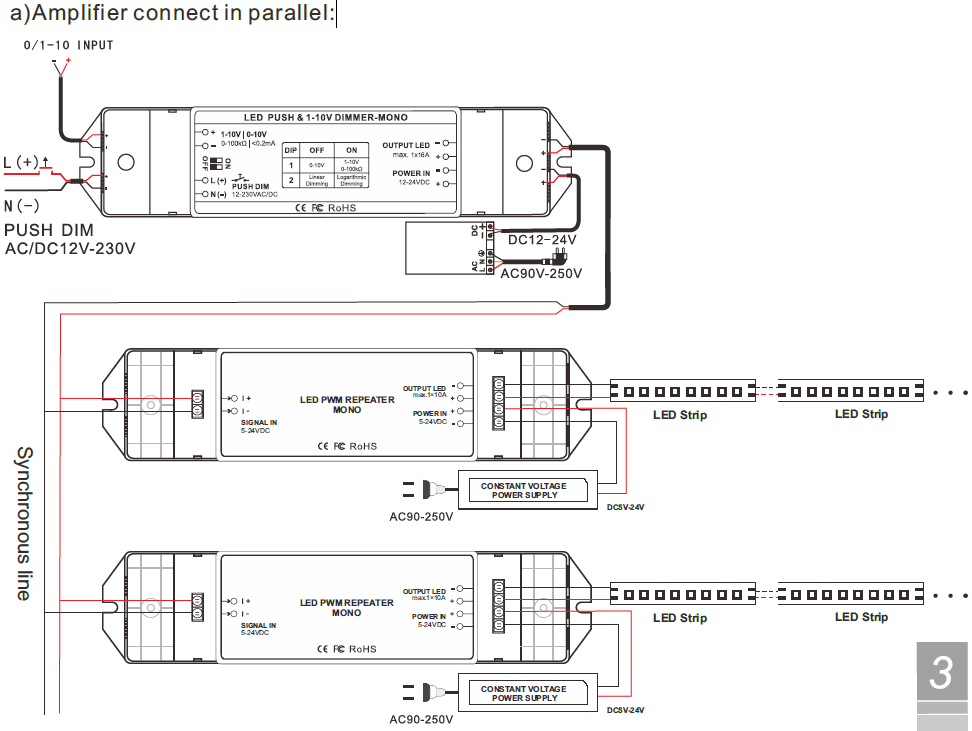

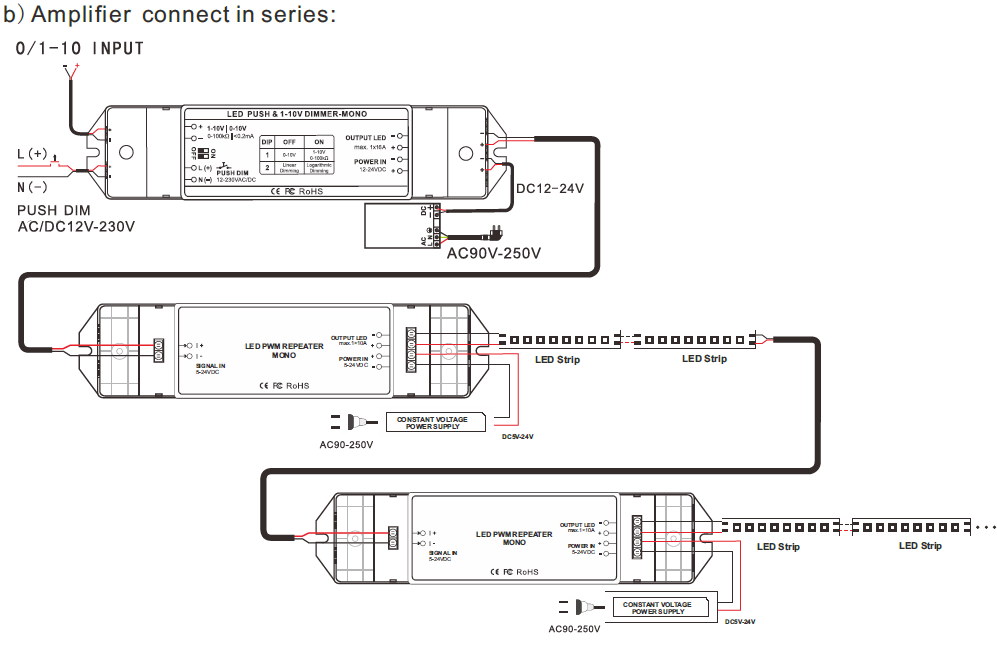

It can connect to our power amplifier to extend power unlimitedly.
The power source must be a DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of the total, so please select at least 20% higher output power supply than the consumption of LED lights.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc. force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment or near harmful chemicals.
