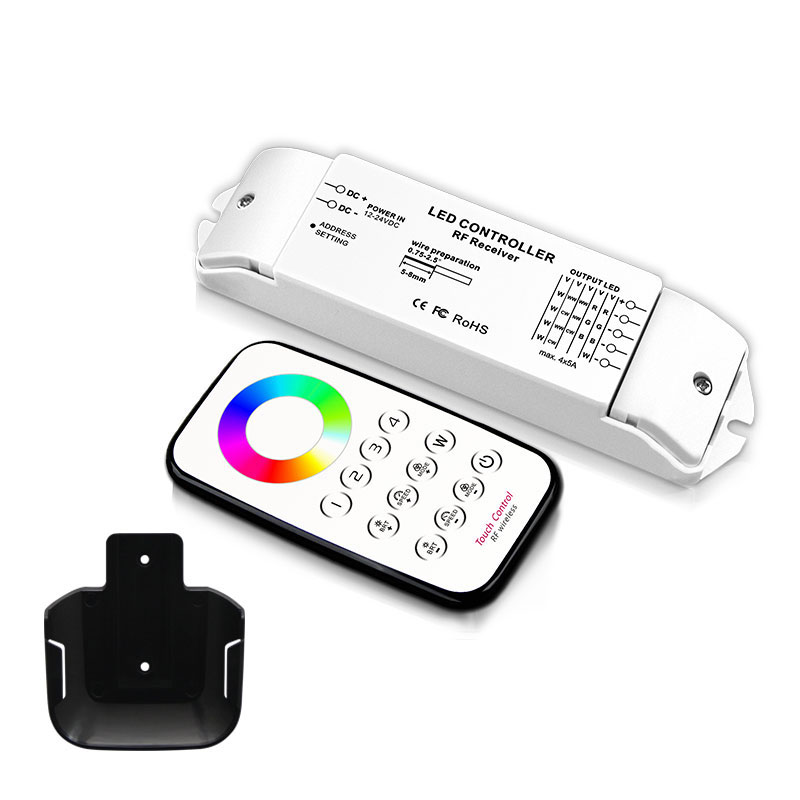

DC12V-24V Multi-Zone RGBW Controller T8+R4M
This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency; there are several functions on the remote, such as on-off, pause, modes changing, brightness and speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or obstacles. With our R Series receiver, it is easy to change lamp lights such as dimming, color temperature, RGBW etc; thus can satisfy the different demands of clients. T series has a simple fashion design, comfortable hand feeling, and user-friendly.
1. Automatically adapt to LED light which works from DC12V-24V.
2. The receiver can implement features such as dimming, RGBW and color temperature control.

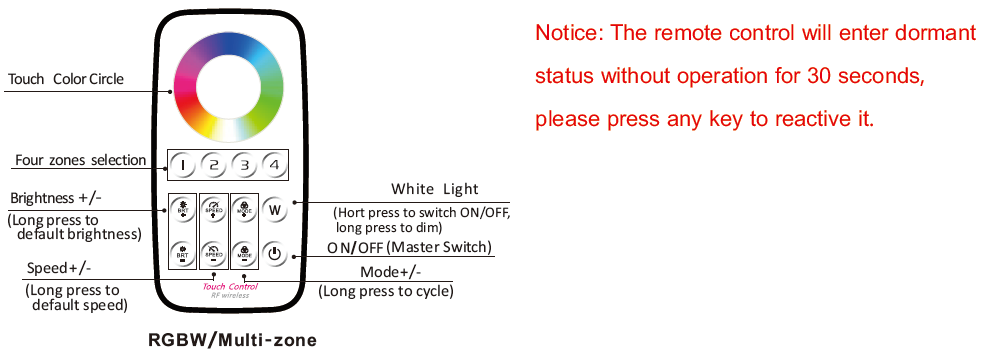

3. Using RF remote control, the wireless signal is with strong penetrating power, not limited to direction or obstacles, and can control the multi-function of ON/OFF, pause, change mode, brightness, and speed, etc.

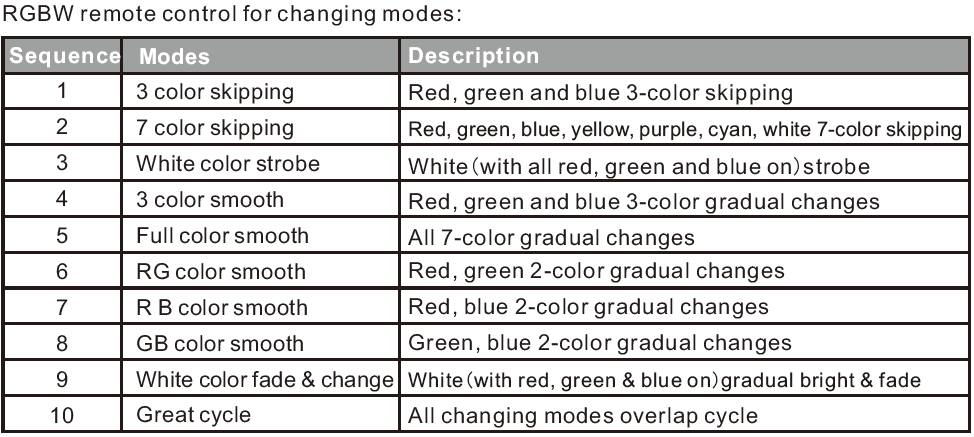

4.10 strobe & fade change mode, with 4096 grey scales per channel, led lamp is more rich and vivid without flash.
Standards and Certifications
Model： Wireless Remote（T8)
Working Frequency: 433.92MHz
Remote Distance: 40m-50m
Working Temp: -20-55℃
Compatible Remote: T6/T7/T8
Working Voltage: DC12V-24V
Output Current: Max 5A×4CH
Output Power: Max 240W(12V)/480W(24V)
Working Temp: -30℃-55℃
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
7.Product has been updated.
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.reduce the risk of component damage and fire caused by a short circuit, make sure correct connection.
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller.
(please select DC12-24V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur.
