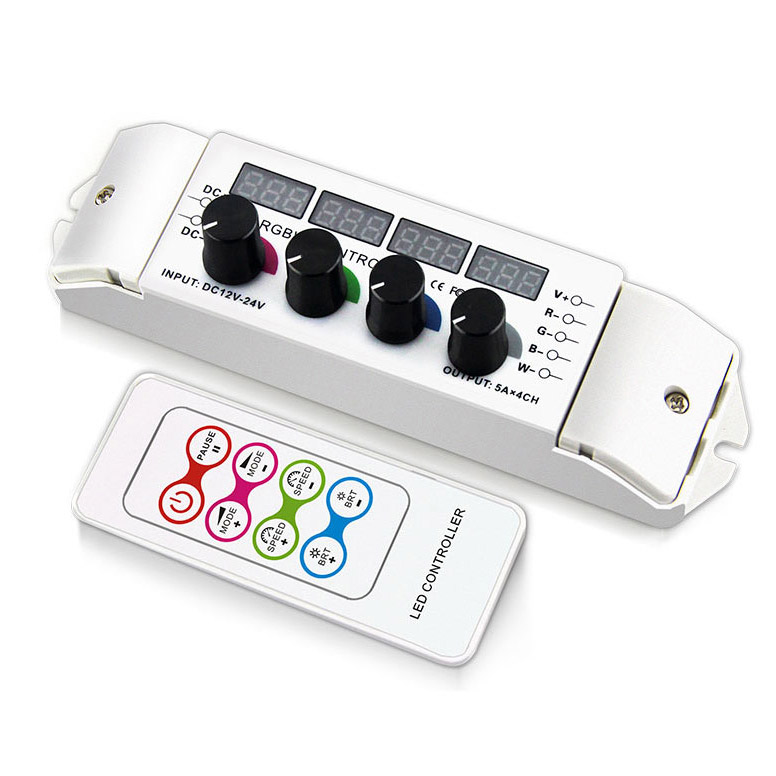

DC12V-24V Constant Voltage RGBW Controller BC-354
it is a universal high-performance power controller for entire color changing which adopted PWM (Pulse-Width-Modulation) controlling technology. Controls all common anode constant voltage RGBW LED light, such as RGBW full color LED module, LED strip, LED SMD tape, etc. It can be controlled by the RF remote within the effective area no matter the direction and obstacles.
Function and Feature:
1. Automatically adapted input voltage DC12V-24V.
2. 37 changing modes such as skipping, smooth, etc., RGB 4096 grey scale levels each.
3. The LED digital tube indicates the current mode, speed, and brightness, very straightforward.
4. 4 dimming rotary knobs, conforms to the special treatment of human eye’s feature, can DIY your favorite color.
5.Overcurrent protection and short circuit protection
6. Work with power repeater, the power can be amplified unlimitedly.
Standards and Certifications
Model: Rotary RGBW controller
Input voltage: DC12V-24V
Output current: 5AX4CH
Output power: 240W(12V)/480W(24V)
Scale levels: 4096 level X 4
Speed level: 16 levels
Brightness level: 16 levels
Remote control distance: 30m with an obstacle, 60m without obstacle
1. To ensure your safety and product proper usage, please read the user manual carefully.
2. To avoid installed the product in a minefield, strong magnetic field, and high voltage area.
3. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause a fire.
4. Please install the product in a well-ventilated area to ensure an appropriate temperature environment.
5. The product must be worked with a DC constant voltage power supply. Please check the consistency of input power with the product, if the output voltage of the power complies with that of the product.
6. Connect the wire with the power on is forbidden. Ensure proper wiring first then check to ensure no short-circuit, then power on！
7. Don't repair it by yourself whenever an error occurs. Contact the supplier for any inquiry.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction and quality problems occur, we provide free repair or replacement services except for the following cases:
1. Any defects caused by wrong operations.
2. Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4. Any damages due to transportation, breaking, flooded water after the purchase.
5. Any damages caused by an earthquake, fire, flood, lightning strike, etc. force majeure of natural disasters.
6. Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
