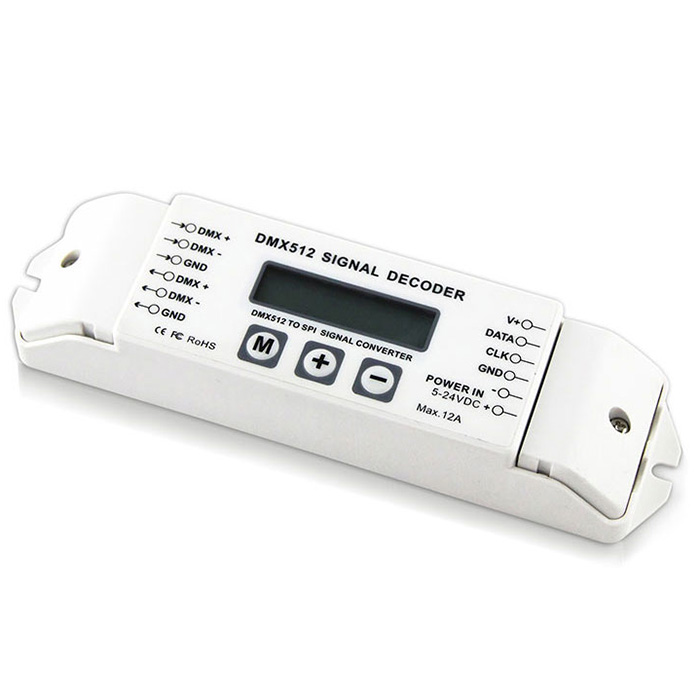

DC5V-24V RGB RGBW DMX512 Signal Decoder BC-820
It adapts the most advantage microchip technology, to convert the universal standard DMX512/1990 signal into various LED driving IC signals, and allows the LED lamps controlled by DMX512 protocol.
1. Automatically adapts input voltage DC5V-24V.
Input power: DC5V-24V
Input signal: DMX512/1990
Output signal: 6803/8806/2811/2801/3001/9813/1814/6812 selectable
Driving channel: 510(RGB)/512(RGBW)
Control Pixel: 170(RGB)/128(RGBW)
Weight (G.W): 180g
Standards and Certifications
1.To ensure correct operation, please read the user manual carefully before use.
2.Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
3.To reduce the risk of component damage and fire caused by a short circuit, make sure the correct connection.
4.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
5.Check if the voltage and power adapter suit the controller. (please select DC5-24V power supply with constant voltage)
6.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
7.Please don’t open the controller cover and operate if problems occur. Please contact your controller supplier for the first time.
