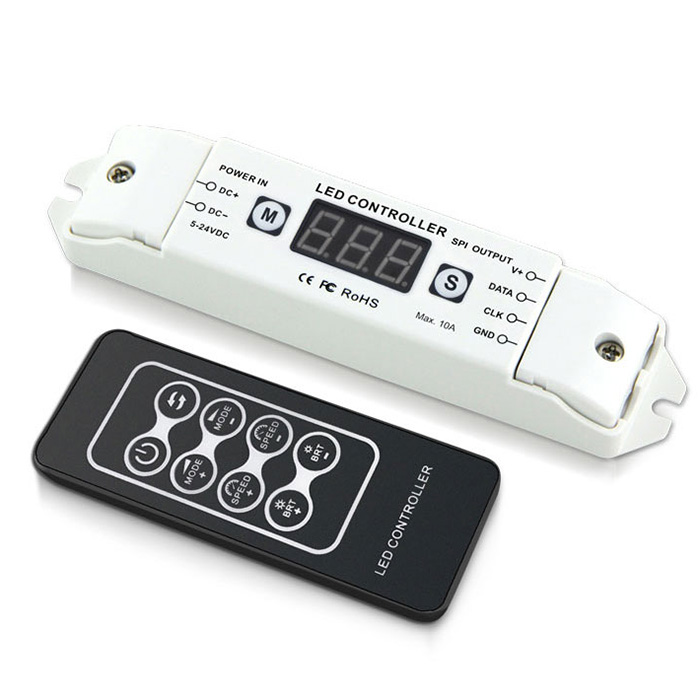

DC5V-24V LED pixel light controller BC-201
Welcome to use our LED pixel light controller, it is a small size but with powerful function LED dream color controller, it can be controlled by touch key and digital tube display, easy to use. At the same time, it supports RF remote control. It can control all the LED lights which are driven by IC. The user can choose the IC type, set up the control pixel points. It has a variety of built-in dynamic color change effects, the user can change the brightness, running speed, and the direction of color change; also user can adjust the RGB series, and can DIY the color change effect as you wish.
1. A variety of dynamic lighting effects.
2. The user can change the brightness, running speed, and the direction of color change; also user can adjust the RGB series, and can DIY the color change effect as you wish.

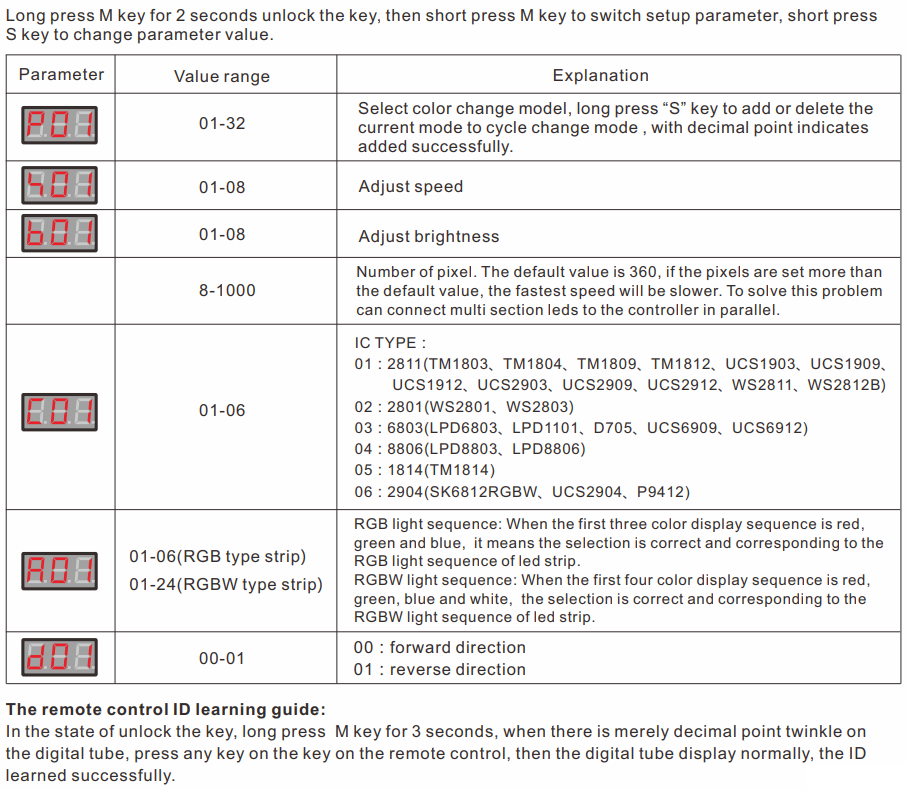

3. 6 IC series, control pixel quantity settable, support RGB/RGBW pixel strip.
Standards and Certifications
Working voltage: DC5V-DC24V
Output current: Max 10A
Output power distance: 50W(5V)/120W(12V)/240W(24V)
Remote control: 30-50m

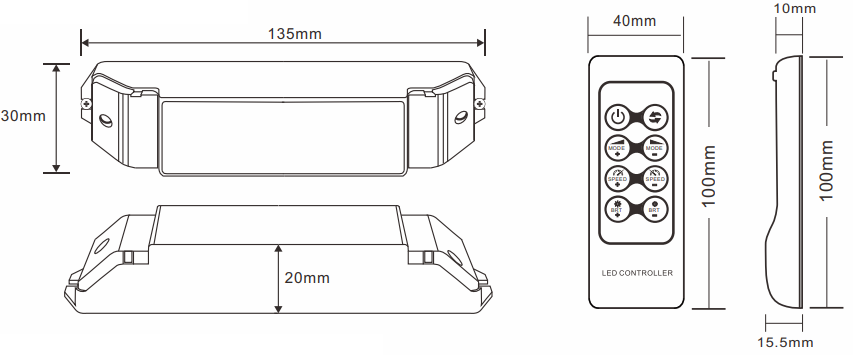

Dimension: L135 X W30 X H20(mm)
Weight (G.W): 110g
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction and quality problems occur, we provide free repair or replacement services except the following
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying the circuit, incorrect connections and
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment
or near harmful chemicals.
7.Product has been updated.
1.To ensure correct operation, please read the user manual carefully before use.
2.Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
3.To reduce the risk of component damage and fire caused by a short circuit, make sure the correct connection.
4.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
5.Check if the voltage and power adapter suit the controller. (please select DC5-24V power supply with
6.Donot connect cables with power on; make sure a correct connection and no short circuit checked with
instrument before power on.
7.Please don’t open the controller cover and operate if problems occur. Please contact your controller
supplier for the first time.
