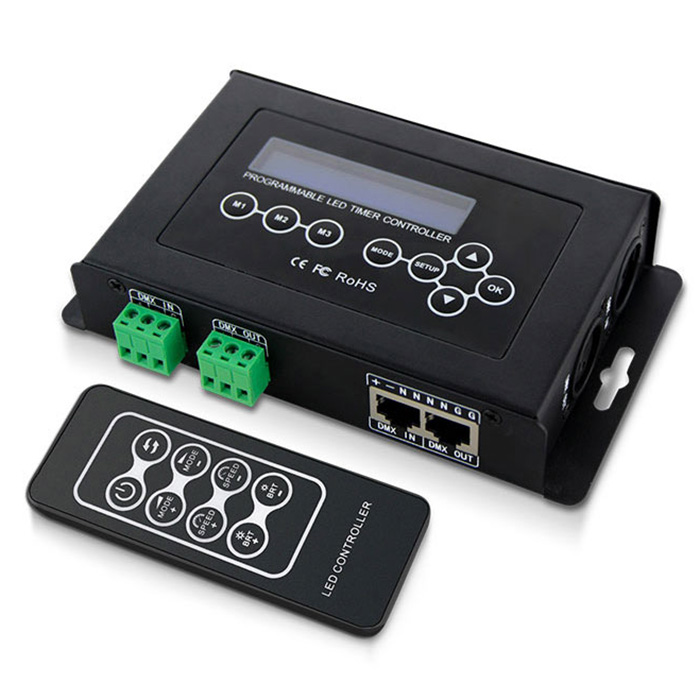

DC9V DMX512 Controller BC-100

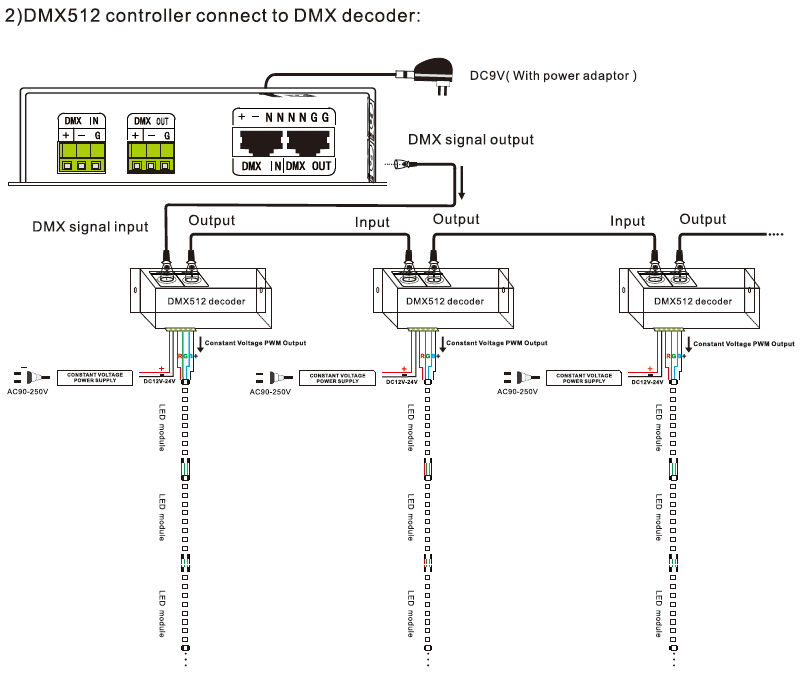

It is the upgraded version of the BC-100 DMX512 controller, it outputs international standard DMX512/1992 signal, it not only can control all the LED lights in the market as long as it receives standard DMX signal but also can work with DMX Decoder to control generally led lights which do not accept DMX512 signal. This DMX512 Controller has an LCD screen, easy to operate with RF wireless remote control. Built-in real-time clock system and a strong DIY & combination function can achieve the abundant light color effect and can meet your various control requirements.

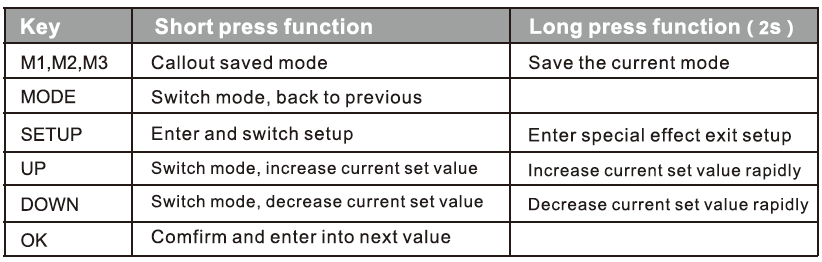

1、With LCD screen, easy to operate.
2、Built-in real time clock system, your program can be set to play in any time.
3、40 built-in patterns, 4 DIY programming modes, and 4 combined modes, it can combine hundreds of control patterns.
4、Multilevel changing speed, brightness and RGB sequence adjustment for your choices.
5 Output standard DMX512/1990 signal can control 170 Pixels.

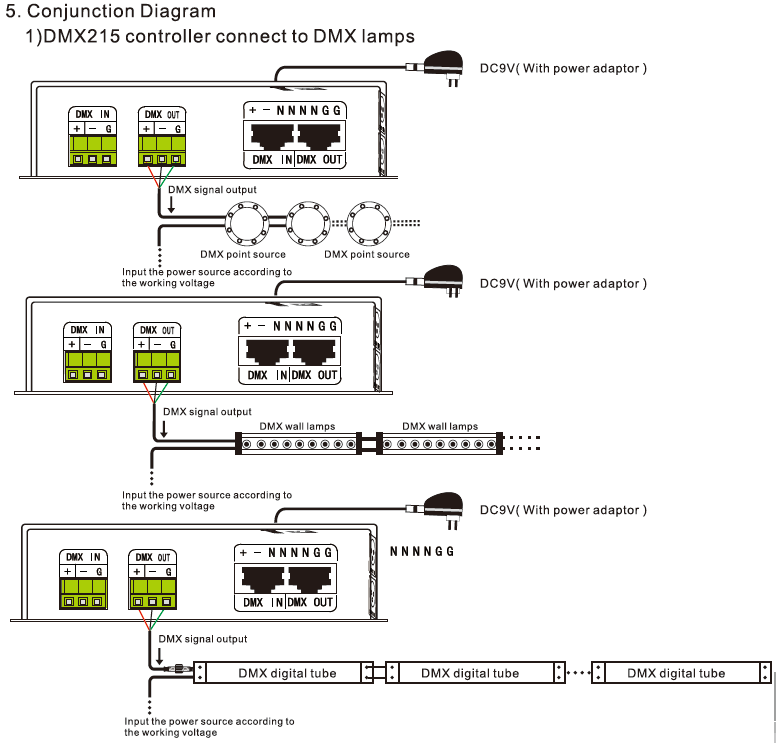

6、Support multiple DMX512 connectors like XLR-3, RJ45, terminals, easy to use.

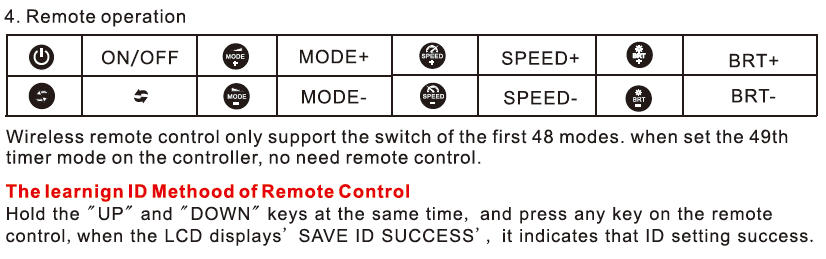

7、With RF wireless remote control can choose to change modes and control speed and brightness.
Working Voltage: DC9V (With adapter)
Output Signal: DMX512
DMX Interface: XLR-3，RJ45，Terminal Block
Working Temp: -20-55
Standards and Certifications
