BC-LR01 Mini 3 Pin LED SPI Signal Remote Transmitter And Receiver
- $1.60 $1.3913% off
- $23.98 $19.9817% off
- $9.98 $2.4975% off
- $74.98 $65.9812% off
Special Price: $20.98

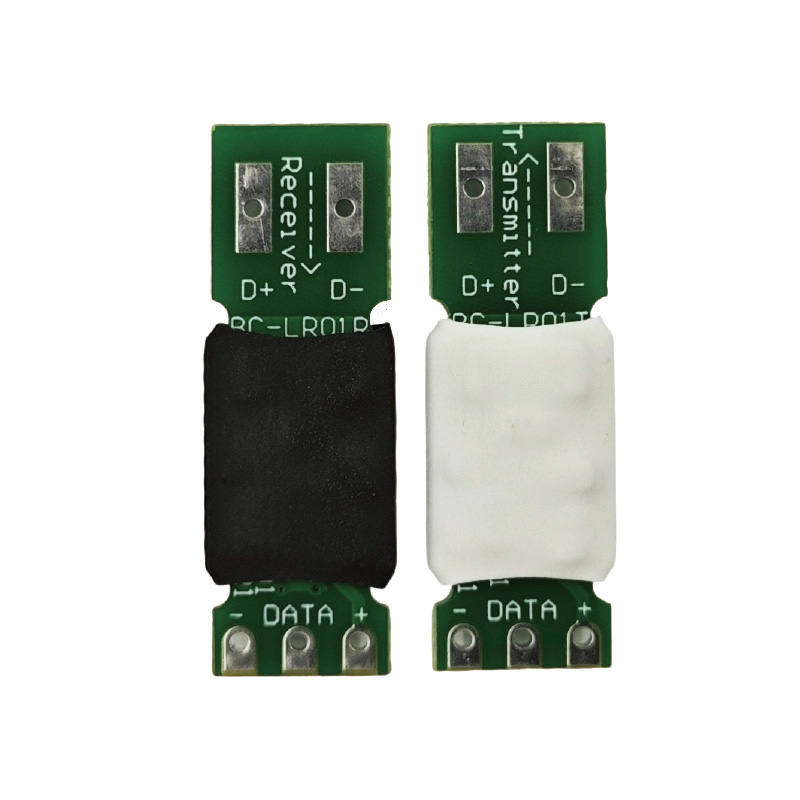

SPI (TTL) signal remote transmitter and receiver for 3-pin addressable led strip lighting projects, 5pairs/pack (5*Transmitter+5*Receiver) for sale. The wire distance between the signal transmitter and the signal receiver can be up to 100m (328ft). The BC-LR01 mini signal remote transmitter and receiver can solve the problem of SPI signal limitation in many programmable lighting projects, with protection circuits for input and output.

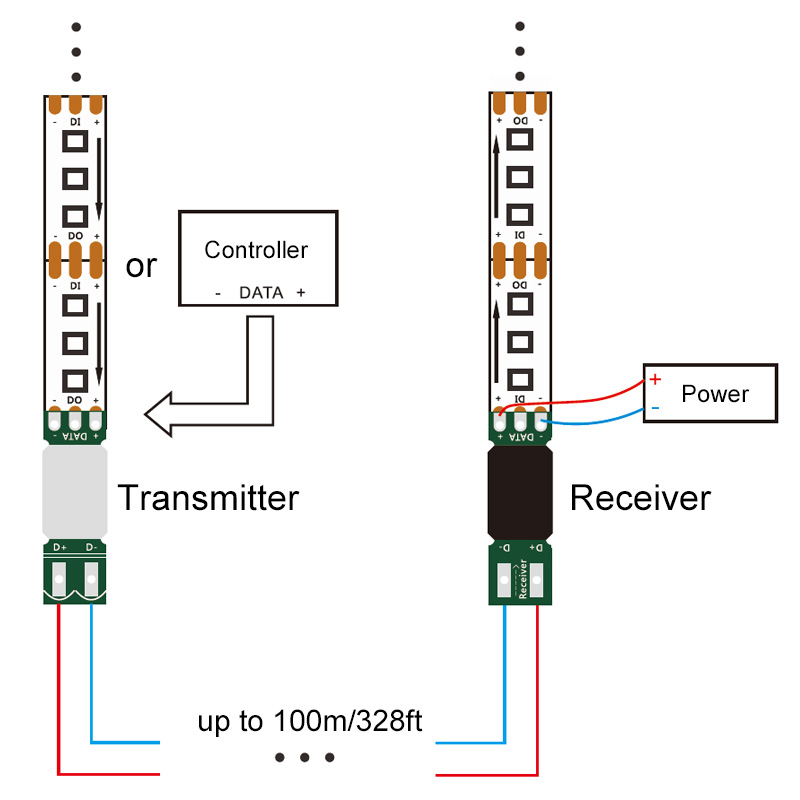

The signal transmitter outputs SPI/TTL to differential signal to the receiver, and the remote receiver converts the received differential signal to SPI/TTL signal to continue controlling the next digital LED. 5-24V input voltage.
|Product Type:||SPI Signal Remote Transmitter And Receiver|
|Available IC Chips:||WS2812B, WS2811, SK6812, UCS1903, SM16703, etc.|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
