DMX512 Control System

10 sub-categories

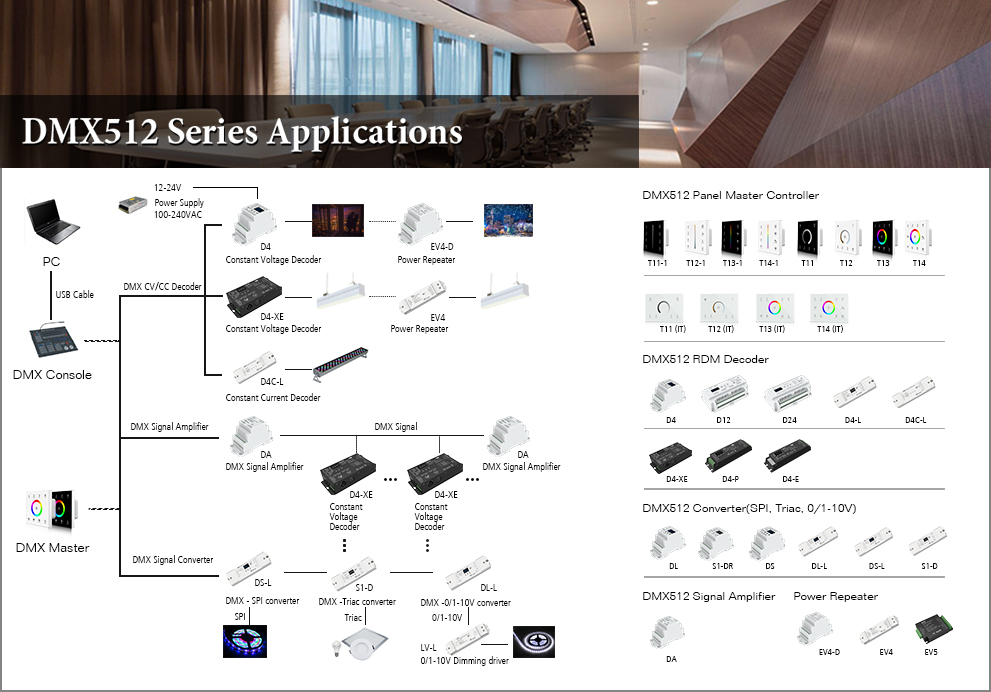

The SkyDance DMX512 Control System provides a versatile lighting control solution for residential and commercial LED lighting applications. By connecting 1–5 channel constant voltage LED strips, addressable LED strips, or 1–4 channel constant current LED fixtures to compatible DMX decoders, and linking them to a wall-mounted DMX master panel, you can achieve centralized lighting control, synchronized operation, or independent multi-zone control. Adjust brightness, color temperature, RGB/RGBW colors, and other lighting functions through an intuitive wall panel.

For more advanced lighting projects, USB-to-DMX masters provide a computer-based control solution, allowing you to program and manage DMX lighting through dedicated software, with 128-channel and 512-channel options available.

SkyDance also offers a range of DMX signal converters to extend DMX control beyond conventional LED strips and fixtures. DMX-to-0/1-10V converters allow you to integrate 0-10V or 1-10V dimmable LED drivers and lighting fixtures, DMX-to-DALI converters enable DMX-based control of compatible DALI lighting systems and drivers, while DMX Triac dimmers enable DMX control of compatible AC Triac-dimmable lights and drivers.

From simple residential lighting setups to multi-zone commercial installations and integrated lighting projects, SkyDance DMX512 provides a flexible and expandable control system for different LED lighting technologies.

Shop DMX512 Control System by type

10 types · pick one to see its products →
  •  DMX512 Master

    DMX512 Master

    The SkyDance DMX512 Master Series is designed to provide convenient and flexible control for DMX512-based LED lighting systems, making professional DMX lighting more accessible to homeowners, electricians, lighting installers, and commercial lighting contractors. Whether you need straightforward wall-mounted control for residential lighting or more advanced computer-based control for commercial lighting projects, SkyDance offers different DMX master solutions to match your application.

    The working principle is simple: a DMX master acts as the central control unit, generating DMX512 control data and transmitting it through the DMX signal lines (A/B) to compatible constant-voltage, constant-current DMX decoders, or high-voltage DMX decoders, or DMX-SPI decoders. The decoders then translate these commands into output signals to control the connected LED strips and fixtures.

  •  CV DMX512&RDM Decoder

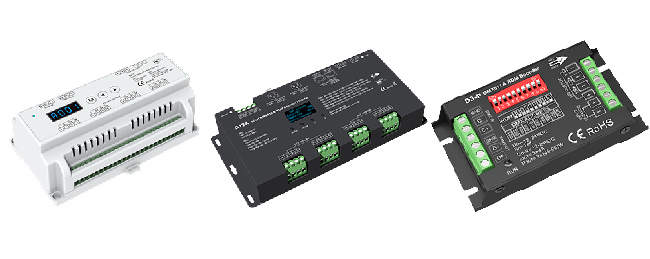

    CV DMX512&RDM Decoder

    Skydance CV Constant Voltage DMX 512 LED decoder are compatible with latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) international standard protocols. These CV led DMX decoders convert universal DMX512/1990 digital signal to constant voltage PWM signal to drive low-voltage LED strip lights and controlled by DMX512 console or DMX master to realize 0-100% lighting adjustment.

    To control single color, dual color, RGB, RGBW or RGB+CCT constant voltage LED strip lighting with 1/3/4/5/12/24 channels CV DMX decoder. The DMX address can be set via a digital tube display /OLED screen key or a 10-pin DIP switch, or remotely via a DMX512/RDM console.

    Over-heat / Over-load / Short circuit / Reverse polarity protection. 5-year warranty.

  •  CC DMX512&RDM Decoder

    CC DMX512&RDM Decoder

    SkyDance CC DMX512 & RDM Decoder Series is specially designed for DMX-controlled constant current LED lighting systems, converting standard DMX512 digital signals into regulated constant current PWM outputs for precise, smooth 0–100% dimming.

    Available in 1-channel models with selectable 250–3000mA output and 4-channel models with 150–500mA, 350–1200mA, or 700–1750mA output per channel, this series accommodates a wide range of constant current LED modules and fixtures, including single-color, tunable white (CCT), RGB, and RGBW lighting.

    - DMX512 & RDM Compatibility: Supports DMX512 control and RDM bidirectional communication, allowing remote DMX address configuration and communication between the DMX master and decoders.

    - High-Precision Dimming: Selectable 8-bit or 16-bit grayscale resolution, seven adjustable PWM frequencies from 250Hz to 16kHz, and selectable linear or logarithmic dimming curves on supported models.

    - Standalone Operating Modes: Built-in RGB/RGBW dynamic programs and independent dimming modes allow operation without an external DMX signal.

    - Easy Configuration: Integrated digital display and setting buttons provide convenient local DMX address and operating parameter adjustments.

    - Reliable Quality & Protection: Reverse-polarity protection and short-circuit protection. With CE and RoHS compliance and a 5-year warranty, they offer dependable performance for architectural lighting, commercial spaces, and professional DMX-controlled constant current LED projects.

  •  High Voltage DMX512&RDM Decoder

    High Voltage DMX512&RDM Decoder

    SkyDance High Voltage DMX512 & RDM Decoder Series is specially designed for DMX-controlled high-voltage LED strip lighting systems. With a universal AC 110–240V input, these decoders convert standard DMX512 digital signals into high-voltage constant voltage PWM outputs, enabling smooth and precise 0–100% dimming without requiring an external low-voltage DC power supply.

    Available in 3-channel (1.5A/channel) and 4-channel (2A/channel) models, they support single-color, tunable white (CCT), RGB, and RGBW high-voltage LED strips, making them suitable for a variety of architectural and commercial lighting applications.

    - DMX512 & RDM Compatibility: Complies with DMX512, DMX512 (1990), DMX512-A, and RDM standards, enabling reliable integration with professional DMX lighting control systems and remote device configuration. Multiple DMX connection options, including terminal blocks, XLR3, and RJ45 ports, provide flexible system integration.

    - Precise & Smooth Dimming: Selectable linear or logarithmic dimming curves and adjustable PWM frequencies of 1kHz, 2kHz, 4kHz, and 8kHz provide flexible dimming performance for different lighting environments.

    - Convenient Configuration: An integrated digital display and setting buttons allow easy DMX starting address configuration, while RDM-enabled consoles can remotely configure decoder addresses.

    - Standalone & Wireless Control: Built-in dynamic lighting programs and standalone dimming modes allow independent operation without a DMX signal. Optional 2.4GHz RF remote control provides additional wireless control flexibility.

    - Reliable Quality & Protection: With CE/RED compliance and a 5-year manufacturer's warranty, they offer a reliable solution for commercial lighting, architectural illumination, building facades, and large-scale high-voltage LED strip projects.

  •  DMX-SPI Decoder

    DMX-SPI Decoder

    All latest products of the Skydance DMX-SPI Decoder System come with a built-in RF module. They are fully compatible with addressable RGB and RGBW LED strips & fixtures, including UCS1903/UCS2903, TM1812, SK6813, WS2811/SM16703, WS2815, GS8206, GS8208, LPD6803, LPD8806, WS2801, SK9822, as well as TM1814 RGBW, SK6812 RGBW, SM16714 RGBW and WS2814 RGBW.

    Please note that the wireless RF remote function cannot work simultaneously with a DMX master controller. Therefore, if you use the Skydance RGB or RGBW remote to control your pixel lighting, this setup is typically used for standalone or independent applications where a complex DMX console is not required, allowing you to easily manage lighting effects, color transitions, and dimming directly via wireless convenience.

    Like the DMX-SPI signal converters from the Ltech brand, these decoders come with a 5-year warranty.

  •  DMX to DALI Converter

    DMX to DALI Converter

    SkyDance DMX to DALI Converter is designed to bridge DMX512 lighting control systems with DALI-compatible lighting equipment, allowing DMX512 controllers to manage DALI dimmable LED drivers, controllers, luminaires, and other compatible DALI control devices. The operating mode, channel quantity, DMX start address, and DALI start address can all be configured through the built-in buttons and digital display.

    By translating DMX512 channel data into DALI dimming commands, it enables existing DMX-based lighting networks to integrate DALI lighting systems without replacing their original DALI drivers or control gear.

    This is particularly useful for lighting projects that need to combine the flexibility of DMX512 centralized control with the standardized digital dimming capabilities of DALI lighting equipment.

    Featuring DALI-2 certification, compliance with the DALI standard IEC 62386 and DMX512 protocol compatibility, the DMC provides a practical interface for integrating lighting equipment from different manufacturers. Its DIN rail mounting design makes it convenient to install inside electrical distribution panels and centralized lighting control cabinets. Powered by an external DC12–48V power supply, it works with a separate DALI bus power supply to establish the corresponding signal network.

  •  DMX0/1-10V Decoder

    DMX0/1-10V Decoder

    SkyDance DMX 0/1-10V Decoder Series is designed to bridge professional DMX512 lighting control systems with conventional 0-10V or 1-10V dimmable LED drivers. It converts DMX512 digital control signals into 4 independent channels of selectable 0-10V or 1-10V analog dimming signals, allowing a DMX lighting console to centrally control the brightness of multiple groups of compatible LED drivers and lighting fixtures.

    Ideal for integrating analog dimmable lighting into professional DMX-controlled environments, these decoders provide a convenient solution for new lighting installations as well as upgrading existing 0-10V / 1-10V lighting systems. They are particularly suitable for commercial buildings, hotels, restaurants, retail spaces, offices, galleries, architectural lighting projects, and other applications requiring centralized multi-zone lighting control.

    With CE, RoHS, and FCC certifications and a 5-year manufacturer's warranty, they provide a reliable interface between modern DMX control systems and conventional 0-10V / 1-10V dimmable LED lighting.

  •  DMX Triac Dimmable

    DMX Triac Dimmable

    SkyDance DMX Triac Dimmer Series is specially designed to bring professional DMX512 lighting control to conventional AC-powered, phase-cut dimmable LED lighting systems. It converts standard DMX512 digital control signals into 1-channel or 2-channel AC phase-cut outputs, enabling centralized dimming and on/off control of compatible Triac-dimmable LED drivers, LED lamps, incandescent lights, and high-voltage halogen fixtures.

    Operating with a universal AC 100–240V input, these dimmers are installed between the AC power supply and compatible lighting loads, allowing DMX lighting consoles to control multiple lighting zones independently.

    - Forward-Phase & Reverse-Phase Dimming: Selectable leading-edge or trailing-edge phase-cut control provides better compatibility with different Triac-dimmable LED drivers and lighting fixtures.

    - Adjustable Minimum Brightness: Configurable minimum brightness helps optimize low-level dimming performance and reduce flickering or unstable operation with compatible lighting loads.

    - Reliable Quality & Protection: Stable phase-cut dimming performance, automatic over-temperature protection, and additional overload protection. With CE compliance and a 5-year manufacturer's warranty, they provide a dependable solution for integrating conventional AC dimmable lighting into modern DMX512 control systems.

  •  DMX AC Switch

    DMX AC Switch

    SuperLightingLED offers high-performance DMX AC Light Switch Controllers designed for seamless DMX512 relay switching of 100-240V AC lighting loads. The SkyDance DMX AC Switch Series is designed to bring conventional AC-powered lighting and electrical loads into professional DMX512-controlled installations where centralized ON/OFF operation is required instead of brightness dimming.

    It receives standard DMX512 control commands and switches the AC power supply to connected lighting circuits, delivering full AC mains power when turned ON and completely interrupting the output when turned OFF.

    Unlike DMX Triac dimmers, which regulate brightness through AC phase-cut control, DMX AC switches provide straightforward power switching without modifying the AC waveform. This makes them an ideal solution for controlling non-dimmable LED fixtures, conventional AC lights, decorative lighting, and other compatible mains-powered equipment.

  •  DMX512 Signal Amplifier

    DMX512 Signal Amplifier

    A DMX512 signal amplifier becomes essential when a lighting control network exceeds the practical limits of a standard DMX signal line or requires more flexible signal distribution.

    In a typical DMX512 system, one signal segment supports up to 32 DMX device loads. As more decoders, DMX fixtures, or lighting controllers are connected, the electrical load on the bus increases and signal quality may deteriorate. Long cable runs, poor-quality cables, and complex wiring layouts can also contribute to DMX signal attenuation and communication instability.

    A SkyDance DMX512 signal amplifier helps solve these problems in three common situations:

    - Too Many DMX Devices: When more than 32 DMX devices are connected to one signal segment, a DMX amplifier can regenerate the incoming signal and create additional output segments for more devices.

    - Long-Distance Signal Transmission: When DMX cables run over long distances, a DMX amplifier can regenerate and reshape the signal before it continues to the next section of the installation.

    - Multiple DMX Signal Branches: When different lighting areas, building sections, or fixture groups need separate DMX signal lines, a multi-output DMX splitter provides independent signal distribution without relying on passive Y-splitters.

    Whether you are installing DMX LED strip controllers, architectural LED wall washers, stage lighting fixtures, or large-scale DMX decoder networks, adding the appropriate signal amplifier can improve system reliability and simplify wiring management.

    **Important:** RDM communication requires an RDM-compatible lighting controller, amplifier, and downstream devices throughout the signal path. A standard DMX-only amplifier should not be substituted into an RDM communication path when bidirectional RDM functionality needs to be maintained.

Best-selling DMX512 Control System

1–20 of 91 products

Which DMX Control System Should You Choose?

Choosing the right DMX control system depends on your project requirements and preferred control architecture.

If your DMX system requires Ethernet-based network control or you prefer integrated DMX LED drivers, explore our LTech DMX Series.

If product certifications are an important requirement for your project, take a look at our SunRicher DMX Series.

For projects that require complete DMX-controlled lighting fixtures rather than separate controllers and decoders, explore our MiBoxer (Mi-Light) DMX Series and Outdoor Lighting Collection.



Blog: DMX Control LED Lighting Strip – Things You Need To Know

FAQ About DMX512 Control Systems

Direct answers to real jobsite questions about DMX512 wiring, decoders, signal limits, and lighting control from our senior engineering desk.

To control LED lights with DMX, connect your DMX512 console or wall master to a dedicated DMX decoder using shielded twisted-pair cable, then run low-voltage DC power from the decoder outputs to your LED strip lights. The master sends 8-bit or 16-bit channel values over the bus, and the decoder translates those digital frames into pulse-width modulation (PWM) dimming for single-color, tunable white, RGB, or RGBW tape. For multi-channel jobs, our CV DMX decoders provide terminal blocks for DC12V to DC48V inputs and let you assign distinct start addresses directly on-device or over RDM.

DMX512 is an RS-485 differential bus protocol running up to 512 channels per universe over hundreds of meters, whereas SPI is a single-ended, chip-level protocol designed for short-distance addressable IC data. Standard low-voltage LED strip lights lack microchips, so they rely on a DMX decoder to dim entire sections together. If you need chasing patterns or individual pixel nodes, use a dedicated translator like our DMX-SPI decoders to bridge DMX512 console commands into SPI clock and data lines for chips like WS2811, WS2812B, or UCS1903.

You control RGB LED strip lights by wiring the common positive lead and the red, green, and blue cathode channels to a 3-channel or 4-channel DMX decoder, then mapping 3 consecutive DMX addresses on your board. For example, setting the decoder start address to 001 maps Red to channel 1, Green to channel 2, and Blue to channel 3. If you run 4-in-1 chips, our RGBW LED strip lights pair directly with 4-channel units like the D4-L, giving you independent pastel tone tuning and pure white task light alongside standard color mixing.

The RS-485 transceiver chips driving standard DMX512 ports can reliably supply electrical current to a maximum of 32 unit loads over 300 m before signal attenuation corrupts your data frames. When your installation demands 50 or 100 separate driver locations, insert an optically isolated DMX distribution amplifier every 32 fixtures. The amplifier regenerates the electrical pulse edges and isolates electrical noise, preventing ground loops between remote power supplies from knocking out the entire lighting run.

Remote Device Management (RDM, ANSI E1.20) adds bi-directional data over the standard 3-pin DMX cable pair so you can discover, configure, and monitor decoders from the console without climbing a ladder. On standard decoders, setting addresses means manually toggling dip switches or pressing buttons on recessed junction boxes. With RDM-capable decoders, your lighting console interrogates the link, retrieves the decoder serial ID, reassigns start addresses remotely, and reads operating temperatures and fault statuses across the network.

Alexa can control DMX LED strip lights, but it requires a bridge controller that translates cloud IoT commands into local DMX512 packets. Compact wireless masters like our WT-DMX-M or WT-DMX-S connect to 2.4 GHz Wi-Fi via the Tuya platform while transmitting hardwired DMX signals to downstream decoders. When you issue a voice command to change scenes, adjust brightness, or select a color, the Wi-Fi master encodes that instruction into standard DMX512 universe channels instantly.

Constant voltage (CV) DMX decoders output a fixed 12V, 24V, or 48V DC bus and modulate brightness by rapidly switching the negative return on and off via PWM, which matches standard flexible LED tape. In contrast, constant current (CC) decoders regulate the operating milliamp output (commonly 350 mA, 700 mA, or 1050 mA) directly, which is required for high-power architectural wall washers, landscape spotlights, and bare downlight diodes. Pairing a CC fixture with a CV decoder will overdrive the emitter and burn out the LEDs within minutes.
