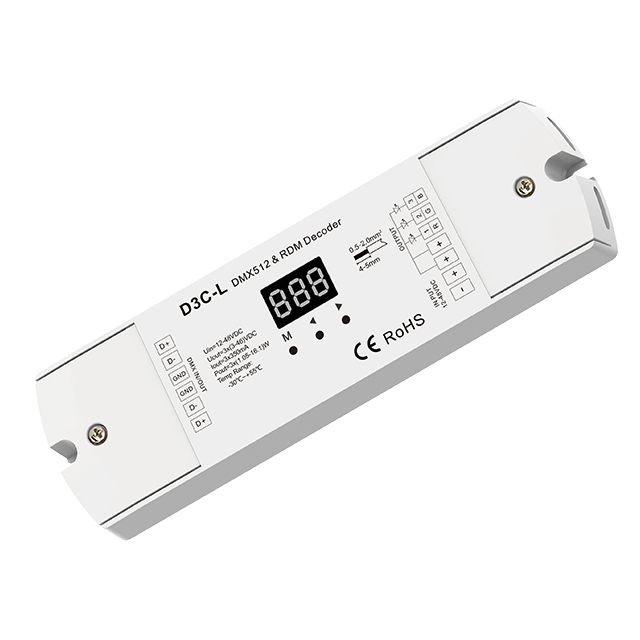

3CH Constant Current DMX512 & RDM Decoder D3C-L
RDM/Stand-alone function/Two PWM frequency/Linear or logarithmic dimming/Numeric display
Comply with the DMX512 standard protocols.
Digital numeric display set DMX to decode start address by buttons.
RDM function can realize intercommunication between DMX master and decoder.
For example, DMX decoder address can be set by DMX master console.
PWM frequency 2000/500Hz is selectable.
Logarithmic or linear dimming curve selectable.
Stand-alone RGB mode and 3 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
Input voltage: 12-48VDC
Output voltage: 3 x (3-46)VDC
Output current: 3CH,350mA/CH
Output power: 3 x (1.05-16.1)W
Output type: Constant current
Standards and Certifications
