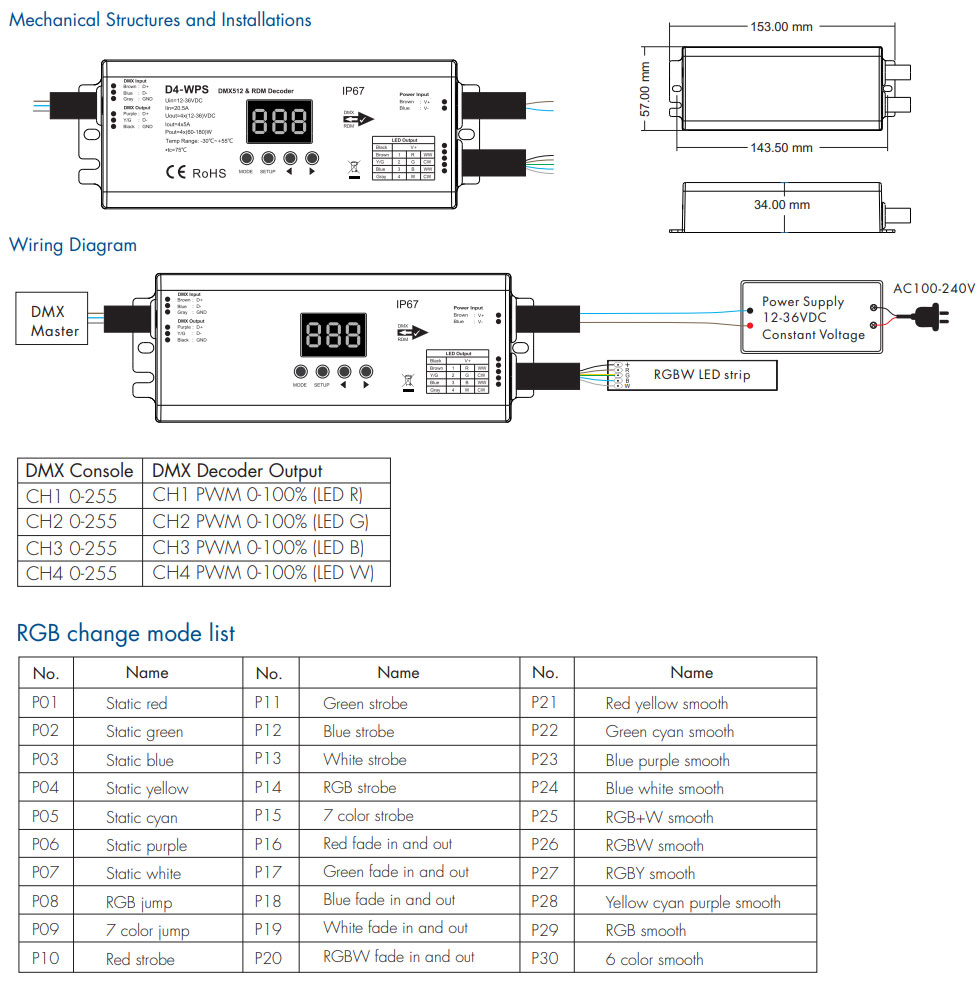

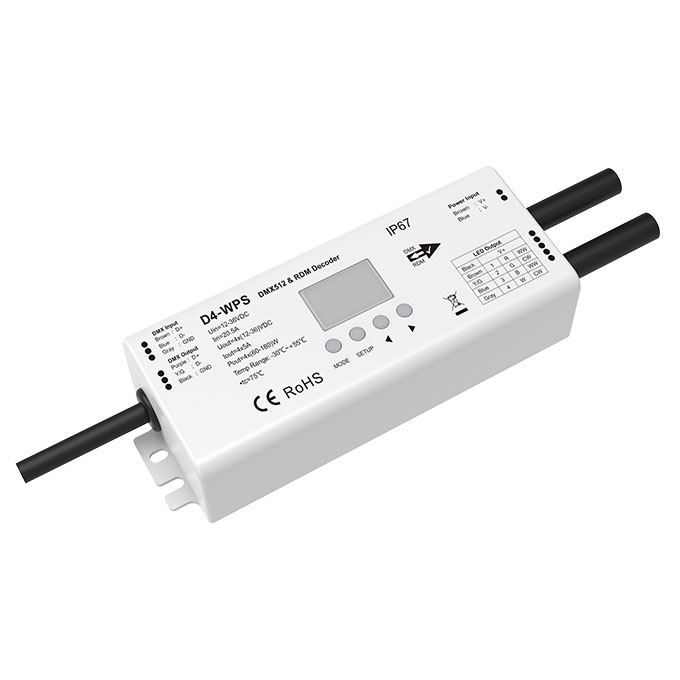

12-36VDC 4CH*5A IP67 Outdoor Waterproof DMX512 & RDM Decoder D4-WPS For RGBW LED Strips
4 Channel Constant Voltage Waterproof DMX512 & RDM Decoder. To control RGBW led strip lights. IP67 waterproof/RDM/Stand-alone function/Seven PWM frequency/Linear or logarithmic dimming/Numeric display.
● Waterproof DMX512 decoder with IP67 rating, suitable for outdoor and damp environments.
● Comply with the DMX512/RDM standard protocols.
● Digital numeric display, set DMX decode start address by buttons.
● 1/2/4 DMX channel output selectable.
● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
● PWM frequency 250/500/1000/2000/4000/8000/16000Hz selectable.
● Logarithmic or linear dimming curve selectable.
● Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable, which be controlled by buttons with built-in programs, instead of DMX signal.
● Over-heat / Over-load / Short circuit protection, recover automatically.
Standards and Certifications
|Output Voltage:||4 x (12-36)VDC|
|Output Power:||4 x (60-180V)|
|Output Type:||Constant voltage|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
