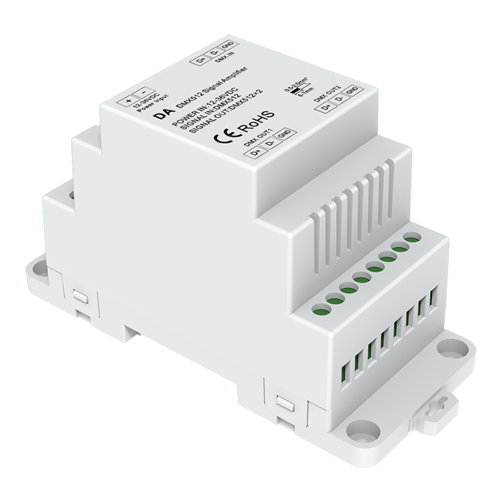

DMX Signal Amplifier DA For waterproof led strip lights
Dedicated to amplify,distribute,and insulate the siganl that comes from the lighting system equipment when it is connected to the bus of DMX512(or RS-485)
Realize extending the signal transmission distance.
Signals expansion output control, increase DMX (485) signal amplifier to distributemulti-channel control.
Photoelectricity insulation between input and output terminals, output terminals among channels, so as to avoid the expensive equipment such as light, 485 communica equipment, DMX driver, precise digital lighting controller, being burnt by the possible hig voltage which caused from the wrong wire connection and a broken equipment, also can avoid the signal interference between each DMX equipment.
Standards and Certifications
