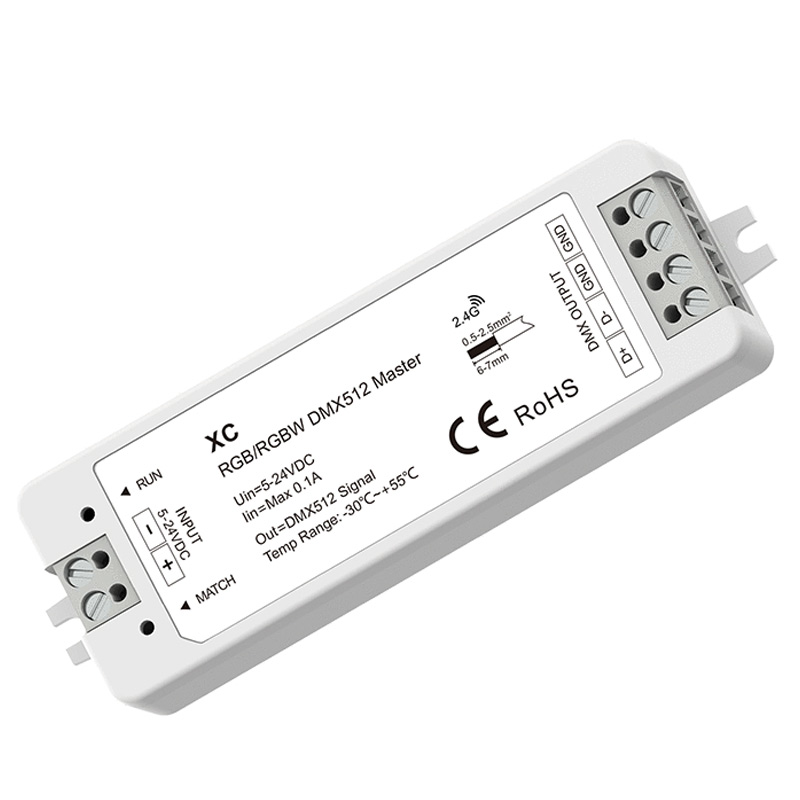

DC5-24V RF-DMX512 RGB DMX Master XC
Mini-style RF 2.4G multi-pixel RGB LED controller with DMX512 signal output.
Send international standard DMX512/1990 signal to DMX512 decoders or RGB LED lamps with DMX decode chip.
Match with Skydance’s 2.4G RGB/RGBW remote control, such as R9.
32 kinds of dynamic mode, include horse-race, chase, flow, trail or gradual change style.
Input voltage: 5-24VDC
Power consumption: 1W
Input signal: RF 2.4GHz
Output signal: DMX512
Dynamic mode: 32
Control dots: Max 170 RGB pixels (510 Channels)
Safety and EMC
EMC standard (EMC): EN55032:2015,
Standards and Certifications

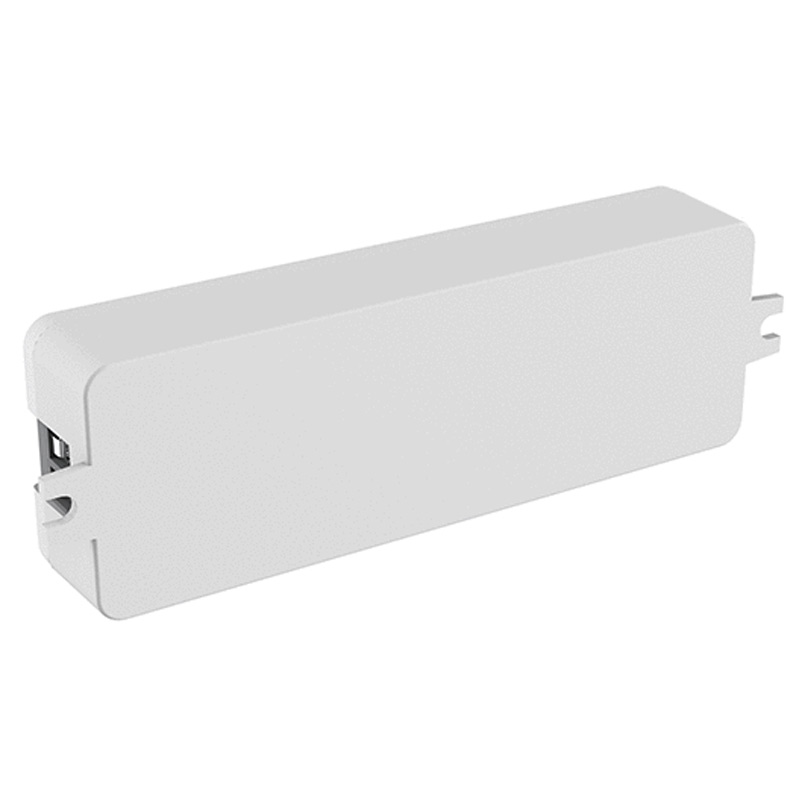

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
