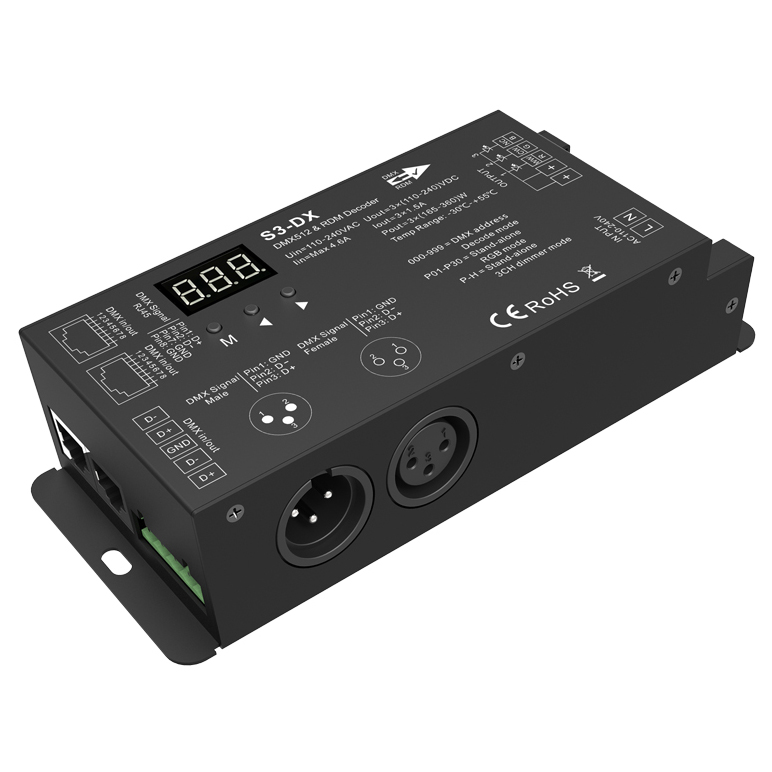

110-240VAC 500-1000W High Voltage LED Tape Light DMX512 Decoder S3-DX
Comply with the DMX512 standard protocols.

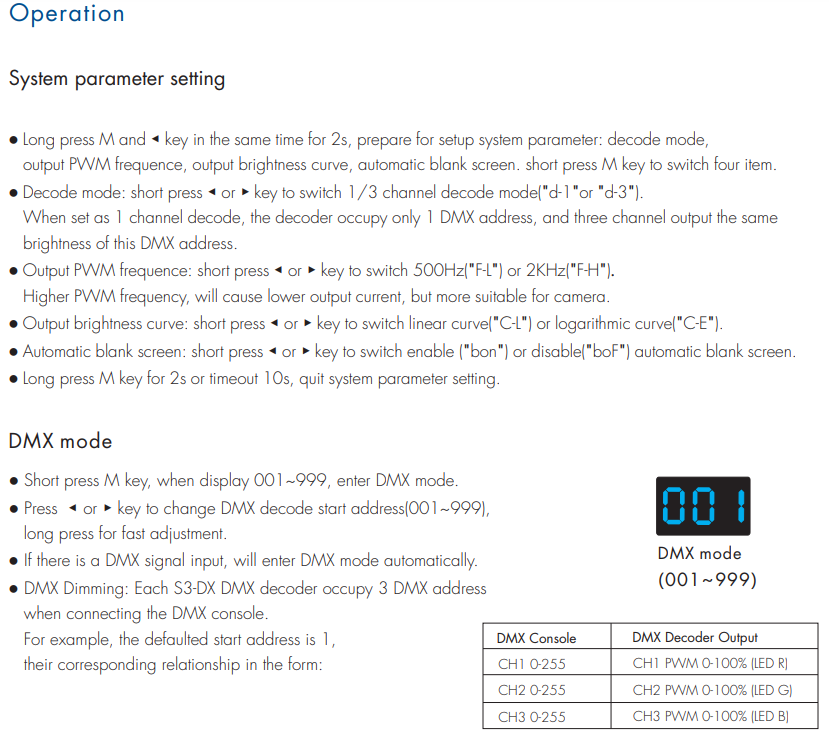

Digital numeric display set DMX to decode start address by buttons.
RDM function can realize intercommunication between
DMX master and decoder. For example,
DMX decoder address can be set by DMX master console.
1/3 DMX channel output selectable.
PWM frequency 2000/500Hz selectable.

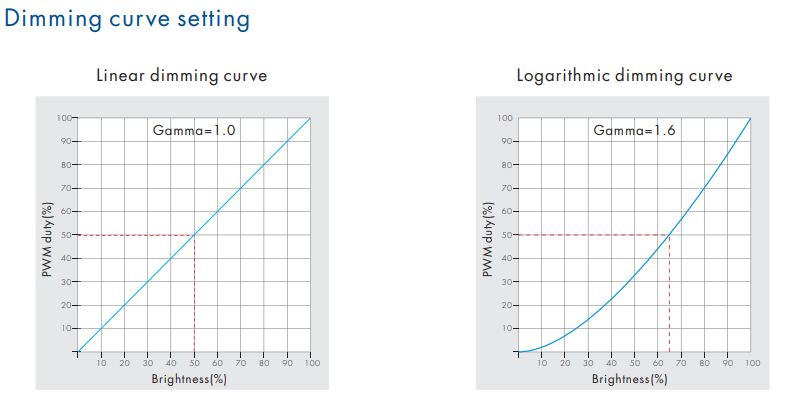

Logarithmic or linear dimming curve selectable.
Stand-alone RGB mode and RF mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
Also, match with Skydance’s 2.4G RGB remote control.

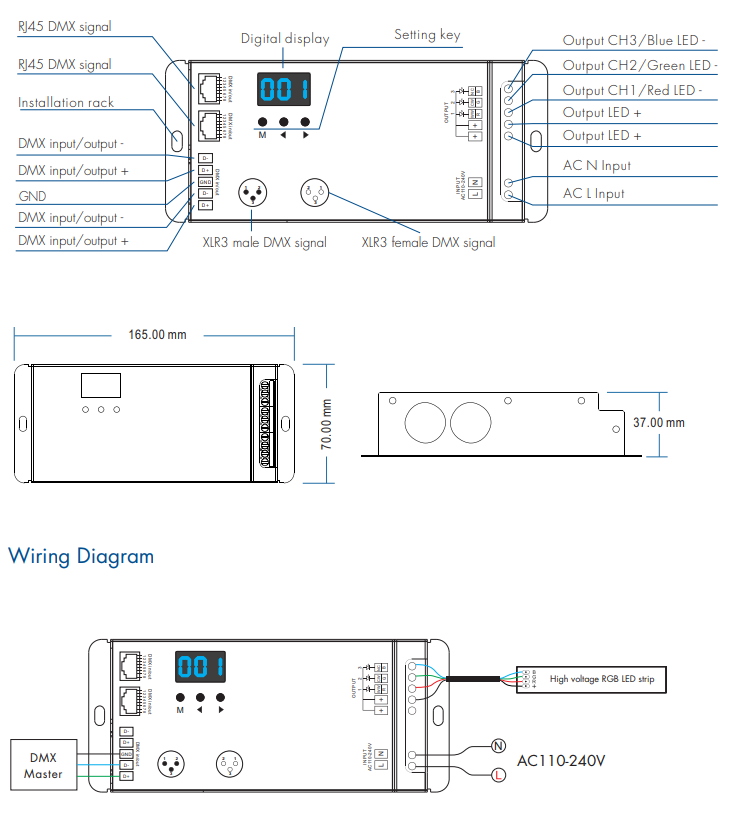

Green terminal, XLR3, and RJ45 port DMX signal input.
Input voltage: 110-240VAC
Input current: 4.6A
Output voltage: 3 x (110-240)VDC
Output current: 3CH,1.5A/CH
Output power: 3 x (165-360)W
Standards and Certifications
This controller applies to a high voltage LED strip, please carefully ensure all wire connections and polarities are correct and secure before applying power, otherwise, this controller or high voltage LED strip will be damaged.
