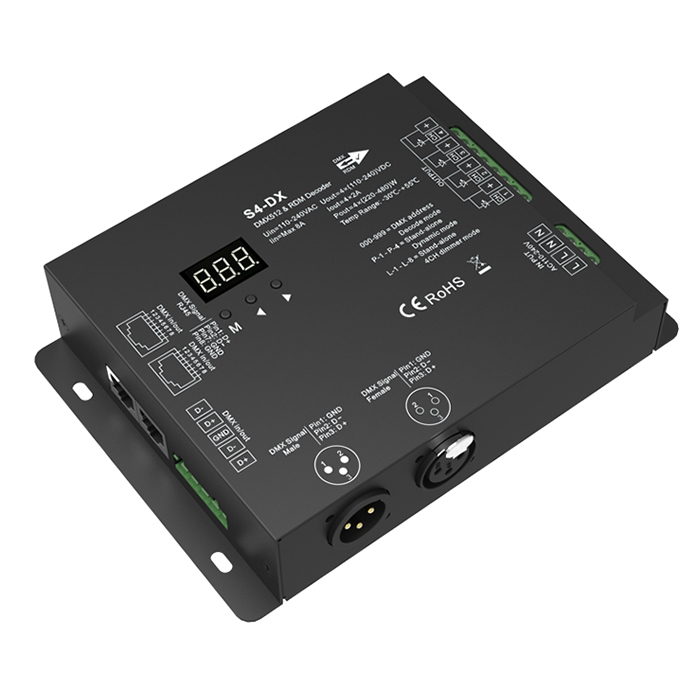

4CH*2A 110-240VAC DMX Decoder S4-DX For AC110V-220V High Voltage RGBW LED Tape Lights
4CH*2A 110-240VAC DMX... $65.98
Touch Panel 4 Zone RGBW... $20.98
AC110V/220V High-Grade... $59.98
Touch Panel 4 Zone RGBW... $21.98
AC110/220V High Voltage... $61.98
4CH*2A 110-240VAC DMX...
Touch Panel 4 Zone RGBW...
Touch Panel 4 Zone RGBW...
AC110/220V High Voltage...
● Comply with the DMX512 standard protocols.
● Digital numeric display set DMX decoder start address by buttons.
● RDM function can realize intercommunication between
DMX master and decoder. For example,
DMX decoder address can be set by DMX master console.
● 1/2/4 DMX channel output selectable.
● PWM frequency 2000/500Hz selectable.
● Logarithmic or linear dimming curve selectable.
● Stand-alone dynamic mode and 4 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of the DMX signal.
● Green terminal, XLR3, and RJ45 port DMX signal input.
Standards and Certifications
Input and Output
Input current： 8A
Output voltage： 4 x (110-240)VDC
Output current： 4CH,2A/CH
Output power： 4 x (220-480)W
This controller applies to high voltage LED strip, please carefully ensure all wire connections and polarities are correct and secure before applying power, otherwise, this controller or high voltage LED strip will be damaged.

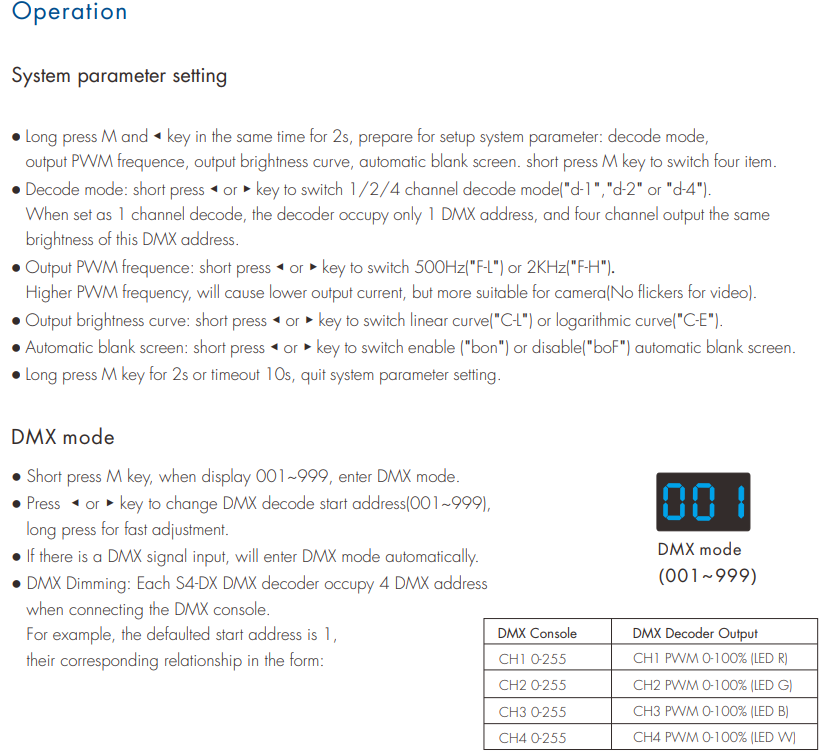

System parameter setting
Long press M and ◀ key in the same time for 2s, prepare for setup system parameter: decode mode,
output PWM frequency, output brightness curve, automatic blank screen. short press M key to switch four items.
● Decode mode: short press ◀ or ▶ key to switch 1/2/4 channel decode mode("d-1","d-2" or "d-4").
When set as 1 channel decode, the decoder occupies only 1 DMX address, and four channel output the same brightness of
this DMX address.
● Output PWM frequence: short press ◀ or ▶ key to switch 500Hz("F-L") or 2KHz("F-H").
Higher PWM frequency, will causea lower output current, but more suitable forthe camera.

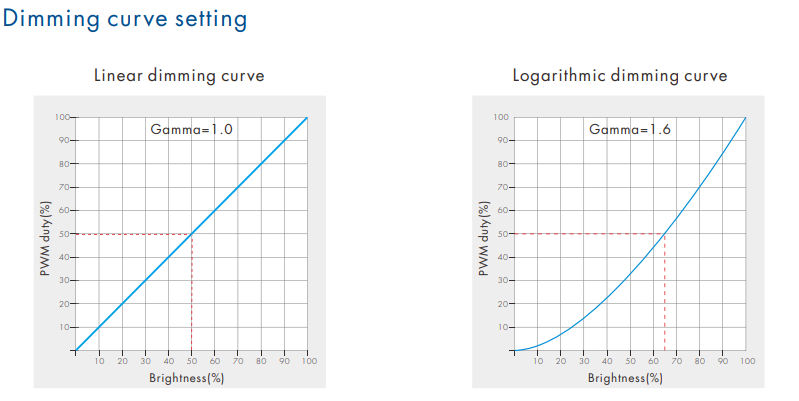

● Output brightness curve: short press ◀ or ▶ key to switch linear curve("C-L") or logarithmic curve("C-E").
● Automatic blank screen: short press ◀ or ▶ key to switch enable ("bon") or disable("boF") automatic blank screen.
● Long press M key for 2s or timeout 10s, quit system parameter setting.
● Short press M key, when display 001~999, enter DMX mode.
● Press ◀ or ▶ key to change DMX decode start address(001~999),
long press for fast adjustment.
● If there is a DMX signal input, will enter DMX mode automatically.
● DMX Dimming: Each S4-DX DMX decoder occupy 4 DMX address
when connecting the DMX console.
For example, the defaulted start address is 1,
their corresponding relationship in the form:

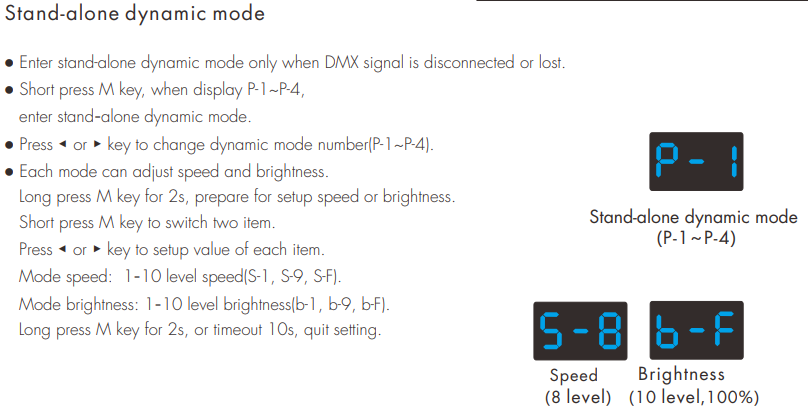

Stand-alone dynamic mode
● Enter stand-alone dynamic mode only when DMX signal is disconnected or lost.
● Short press M key, when display P-1~P-4,
enter stand-alone dynamic mode.
● Press ◀ or ▶ key to change dynamic mode number(P-1~P-4).
● Each mode can adjust speed and brightness.
Long press M key for 2s, prepare for setup speed or brightness.
Short press M key to switch two item.
Press ◀ or ▶ key to setup value of each item.
Mode speed: 1-10 level speed(S-1, S-9, S-F).
Mode brightness: 1-10 level brightness(b-1, b-9, b-F).
Long press M key for 2s, or timeout 10s, quit setting.
Stand-alone dimmer mode
● Enter stand-alone dimmer mode only when DMX signal is disconnected or lost.
● Short press M key, when display L-1~L-8, enter stand-alone dimmer mode.
● Press ◀ or ▶ key to change dimmer mode number(L-1~L-8).
● Each dimmer mode can adjust each channel brightness independently.
Long press M key for 2s, prepare for setup four channel brightness.
Short press M key to switch four channel(100~1FF, 200~2FF, 300~3FF, 400~4FF).
Press ◀ or ▶ key to the setup brightness value of each channel.
Long press M key for 2s, or timeout 10s, quit setting.
Restore factory default parameter
● Long press ◀ and ▶ key for 2s, restore factory default parameter, display"RES".
● Factory default parameter: DMX decode mode, DMX decode start address is 1, 4 channel decode,
high PWM frequence output, logarithmic brightness curve, dymamic mode number is 1,
dimmer mode number is 1, disable automatic blank screen.
