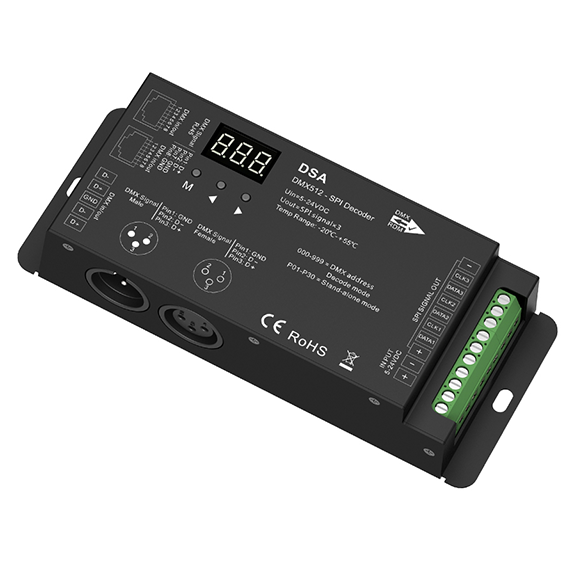

DMX512 to SPI Converter DSA For led strip light kit

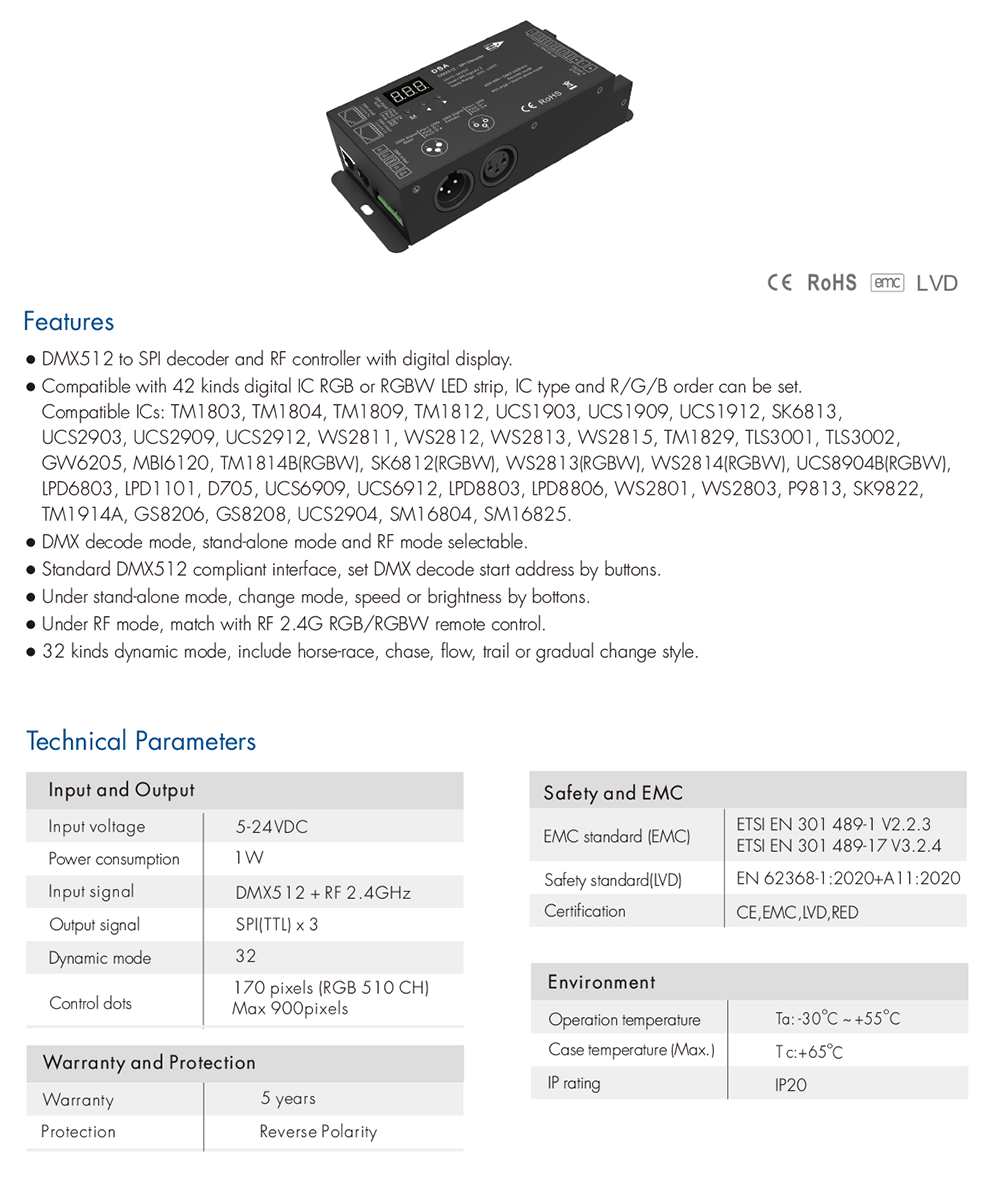

● DMX512 to SPI decoder and RF controller with digital display.

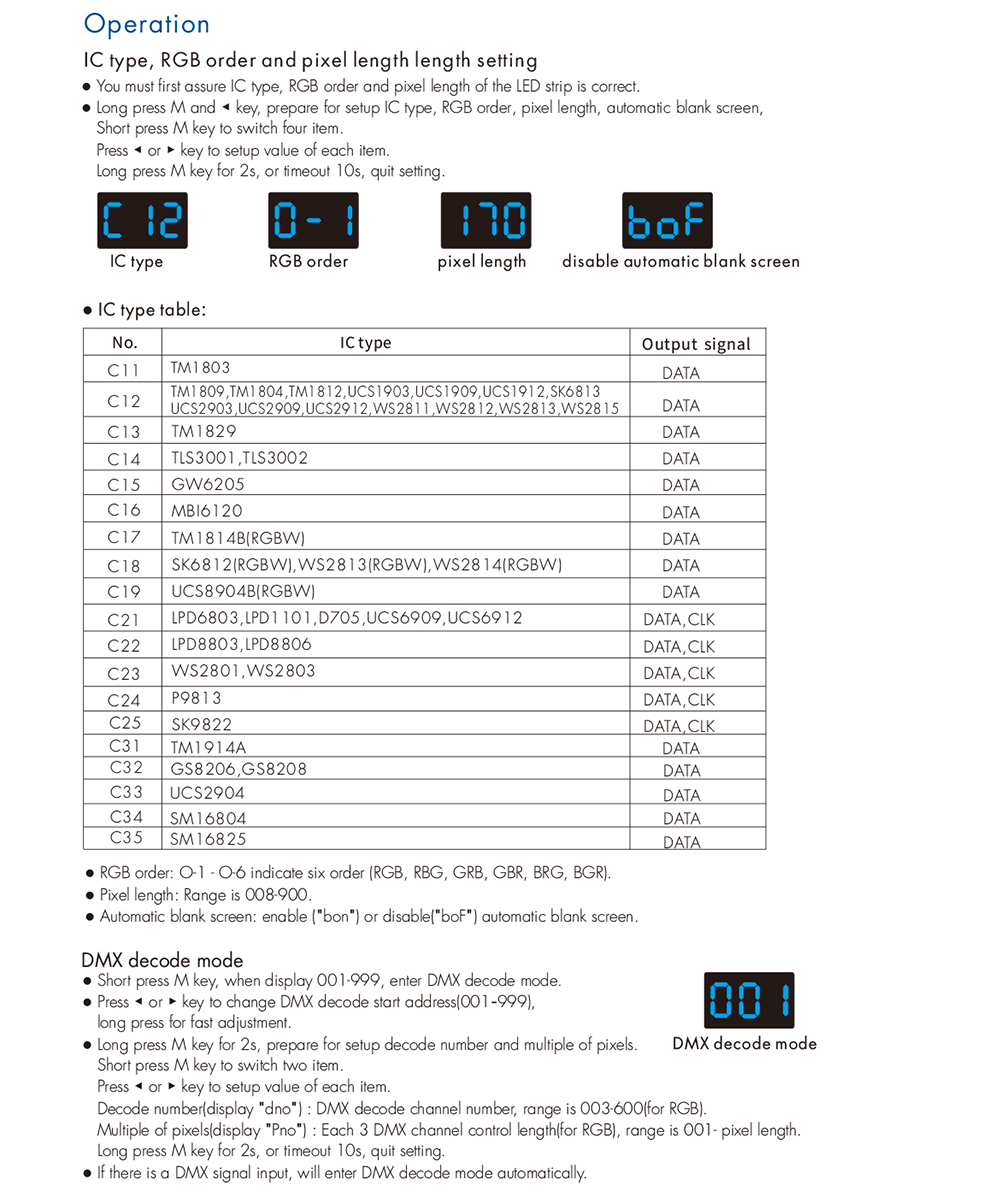

● Compatible with 42 kinds digital IC RGB or RGBW LED strip, IC type and R/G/B order can be set.Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW), SK6812(RGBW), WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825.
● DMX decode mode, stand-alone mode and RF mode selectable.

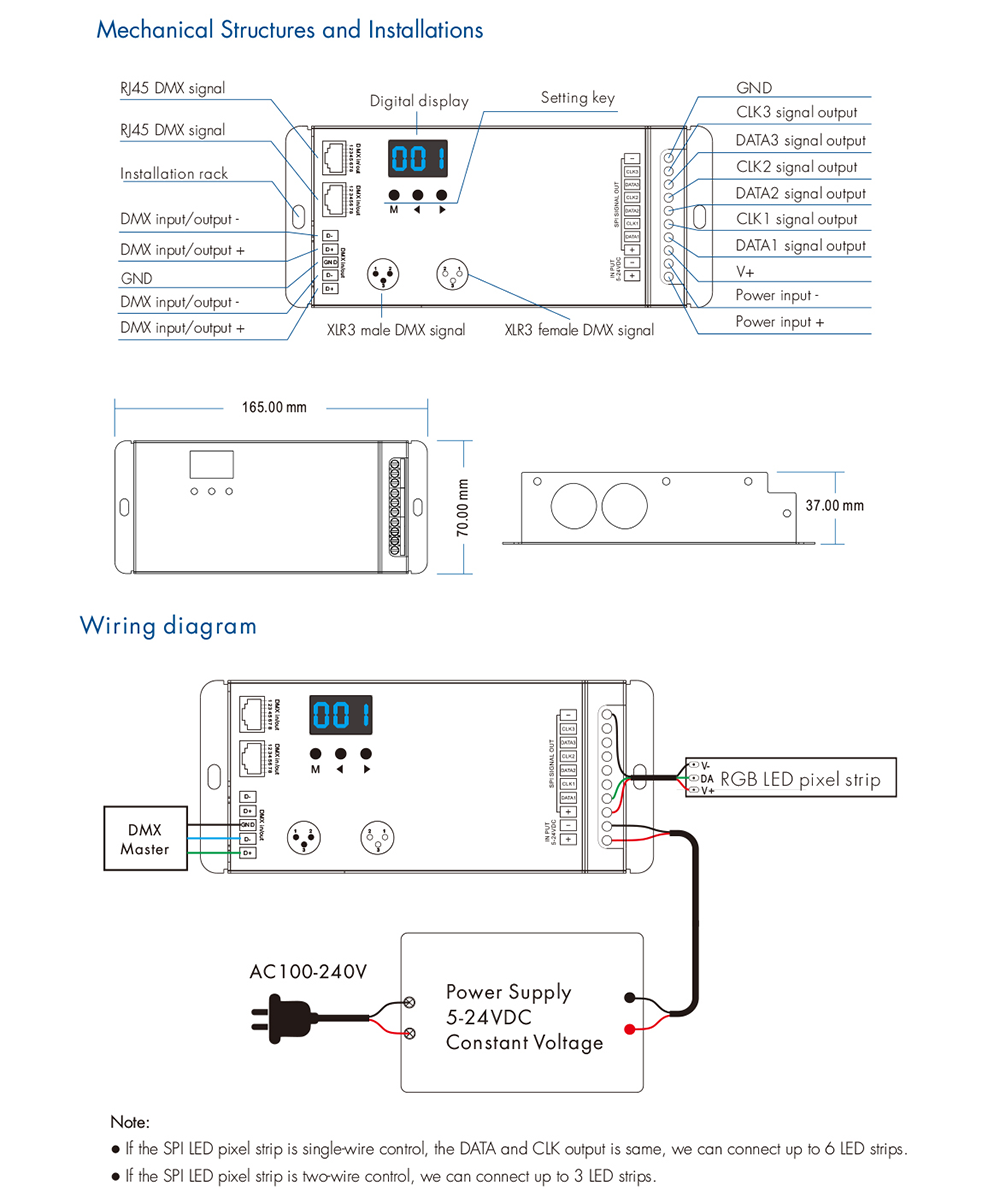

● Standard DMX512 compliant interface, set DMX decode start address by buttons.
● Under stand-alone mode, change mode, speed or brightness by bottons.

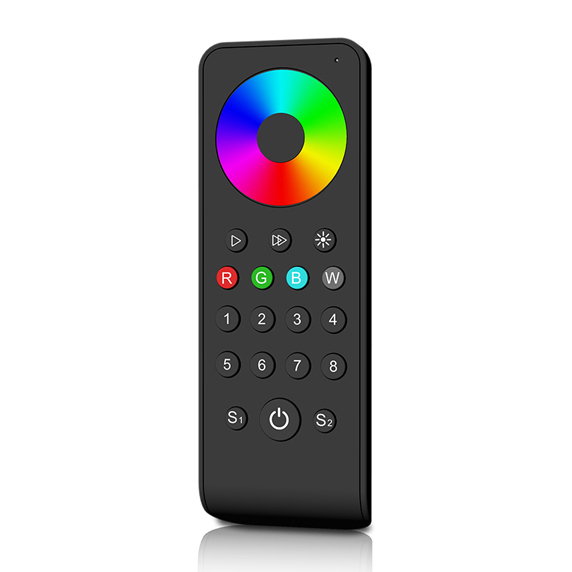

● Under RF mode, match with RF 2.4G RGB/RGBW remote control.
● 32 kinds dynamic mode, include horse-race, chase, flow, trail or gradual change style.
