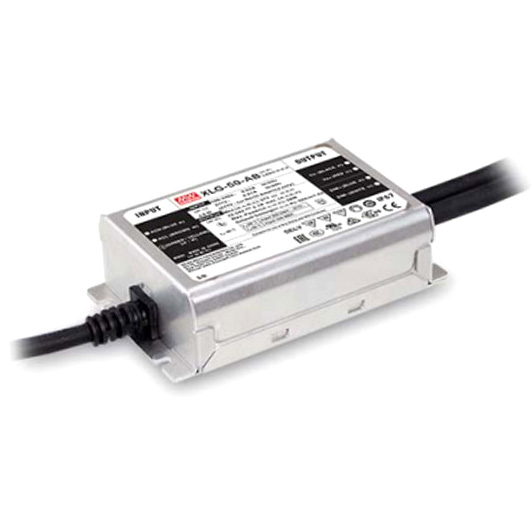

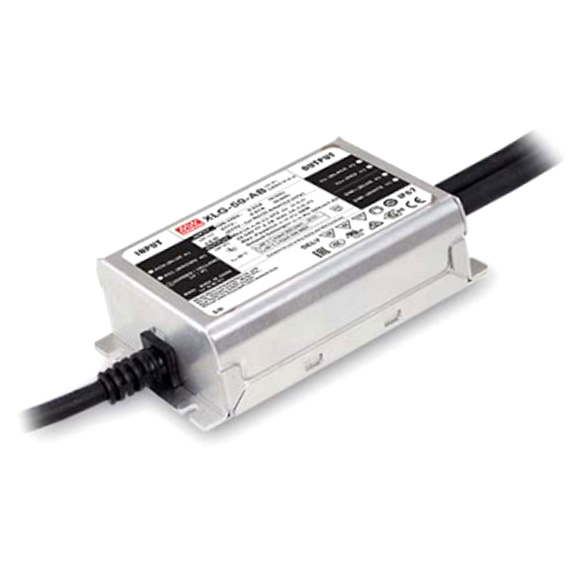

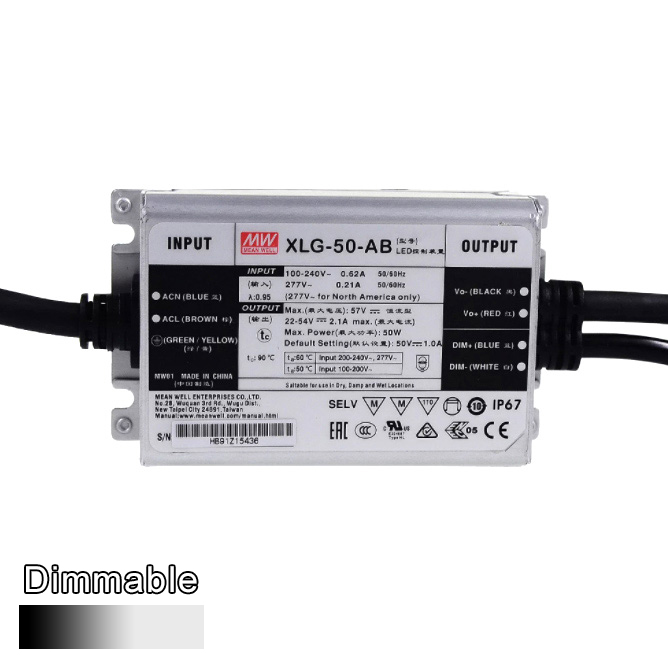

XLG-50-AB 50Watt AC100-305V Input Voltage Mean Well High-Efficacy Waterproof UL-Listed LED Display Lighting Power Supply
The difference between XLG-50-A and XLG-50-AB:
XLG-50-A with single channel to power the controller or the led strip light

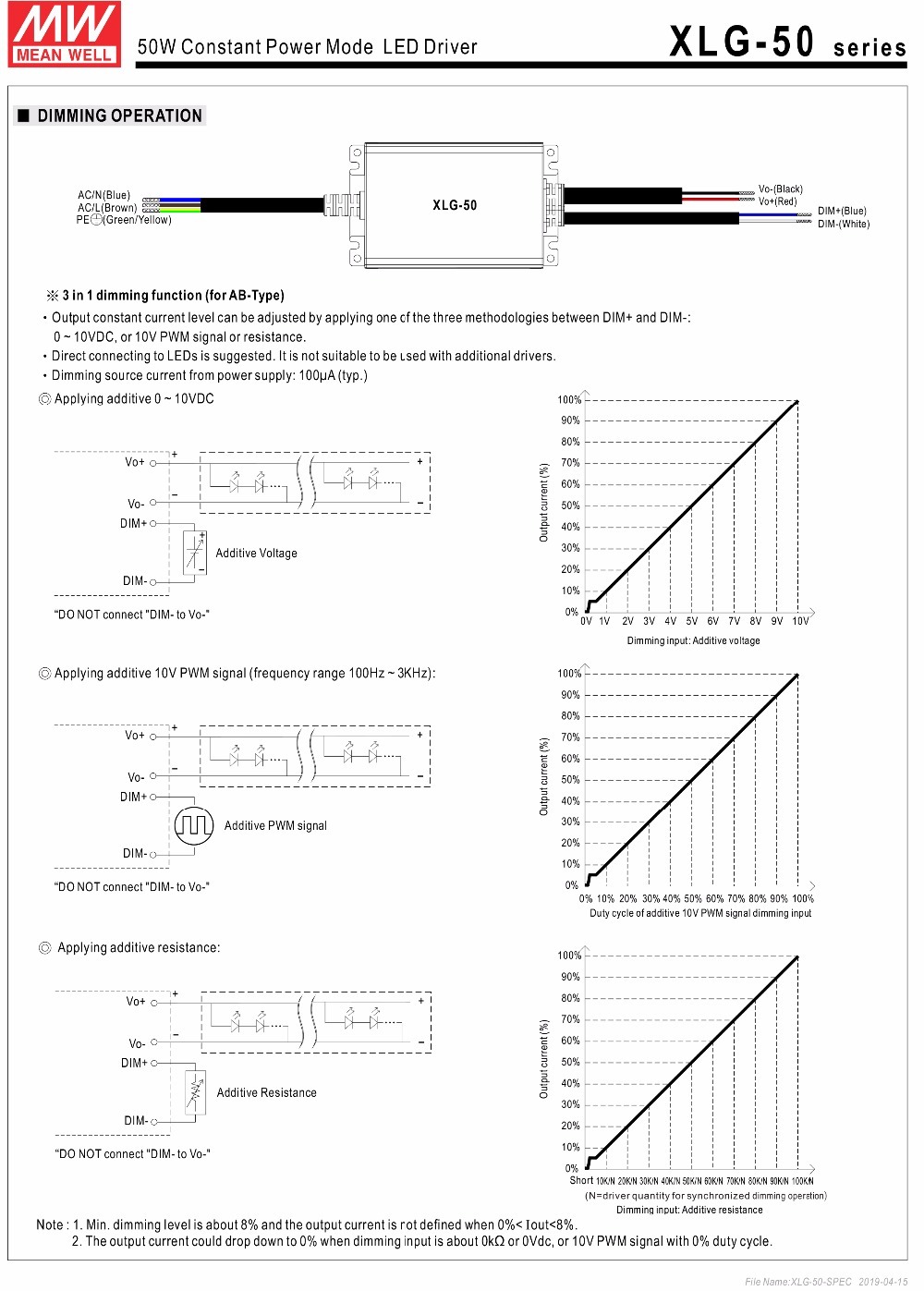

XLG-50-AB: with dual channels to power the controller or the led strip light and with 3 in 1 dimming function(0~10Vdc,10V PWM signal and resistance)
Note: Because the power supply is waterproof, we recommend that you choose the waterproof LED strip light.

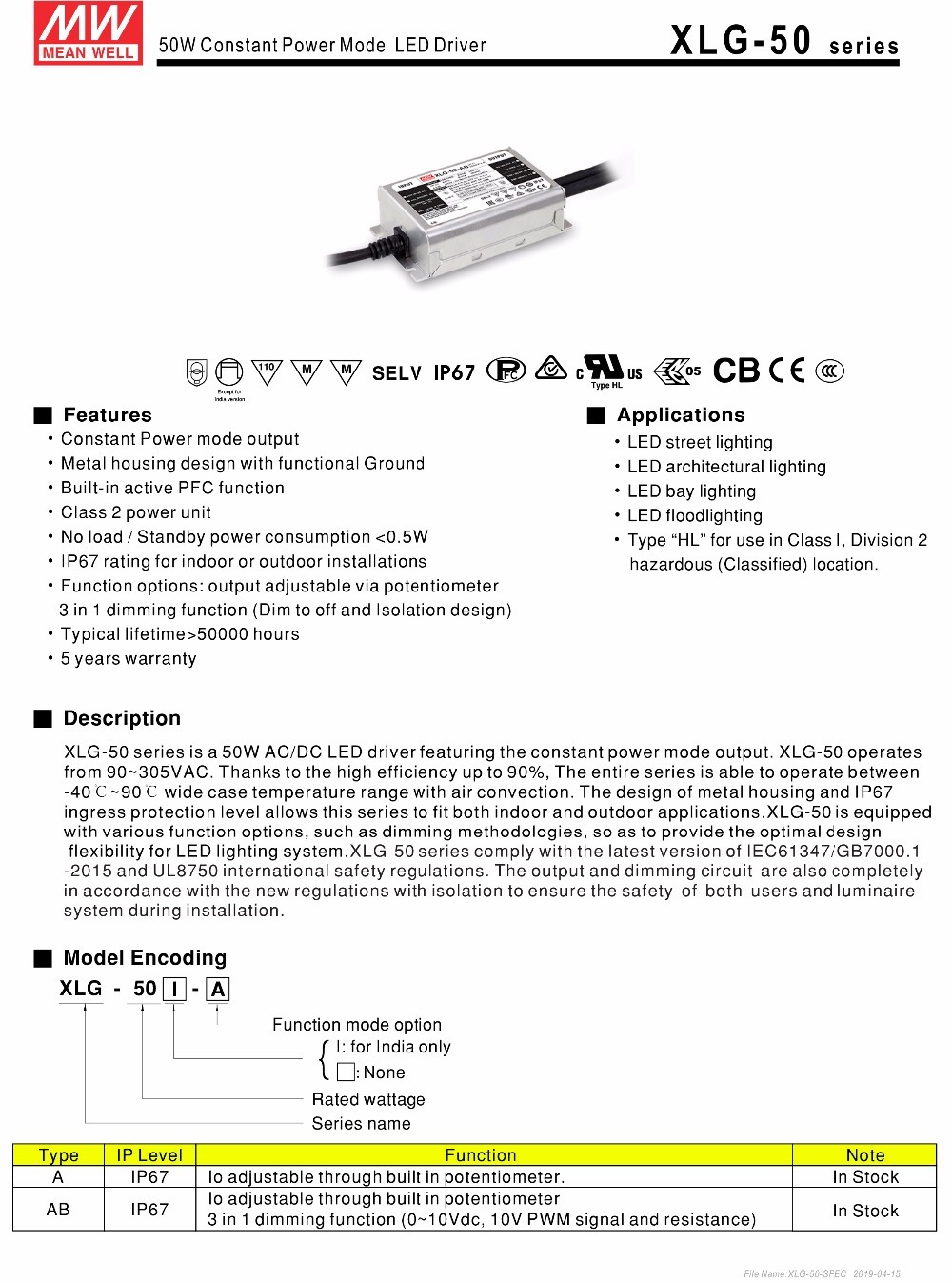

Constant Power mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer

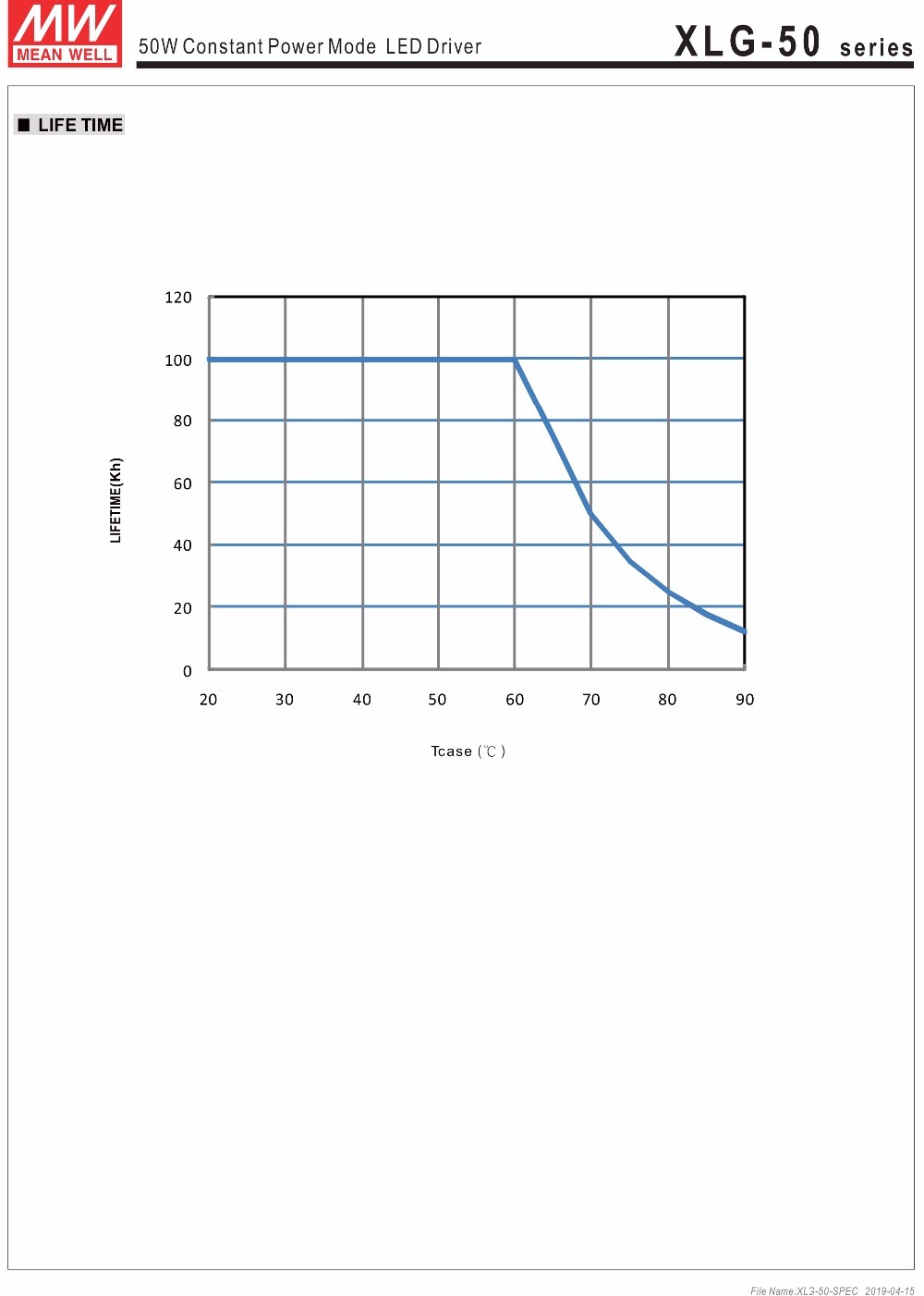

Typical lifetime>50000 hours

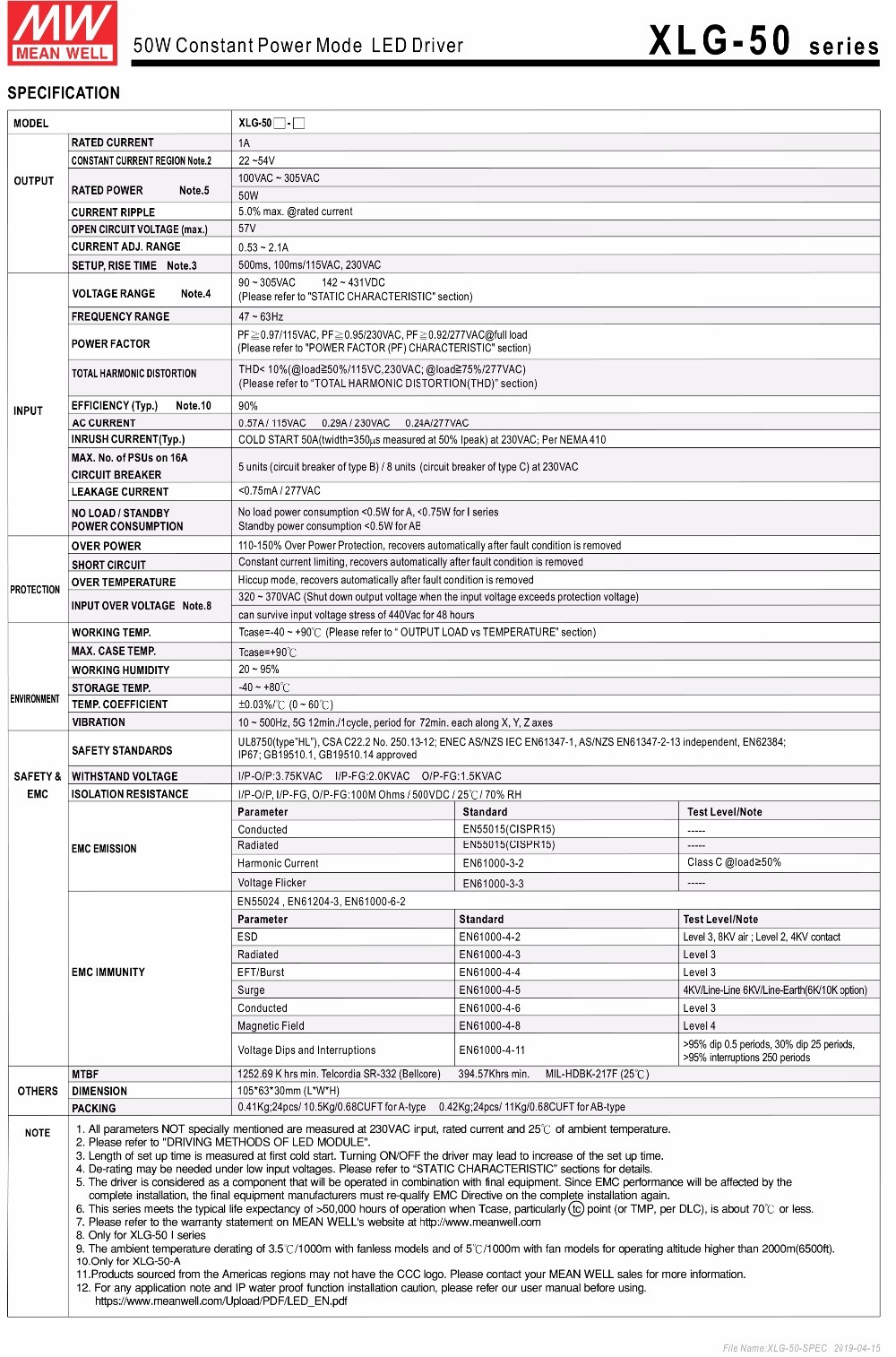

Rated Current: 1A

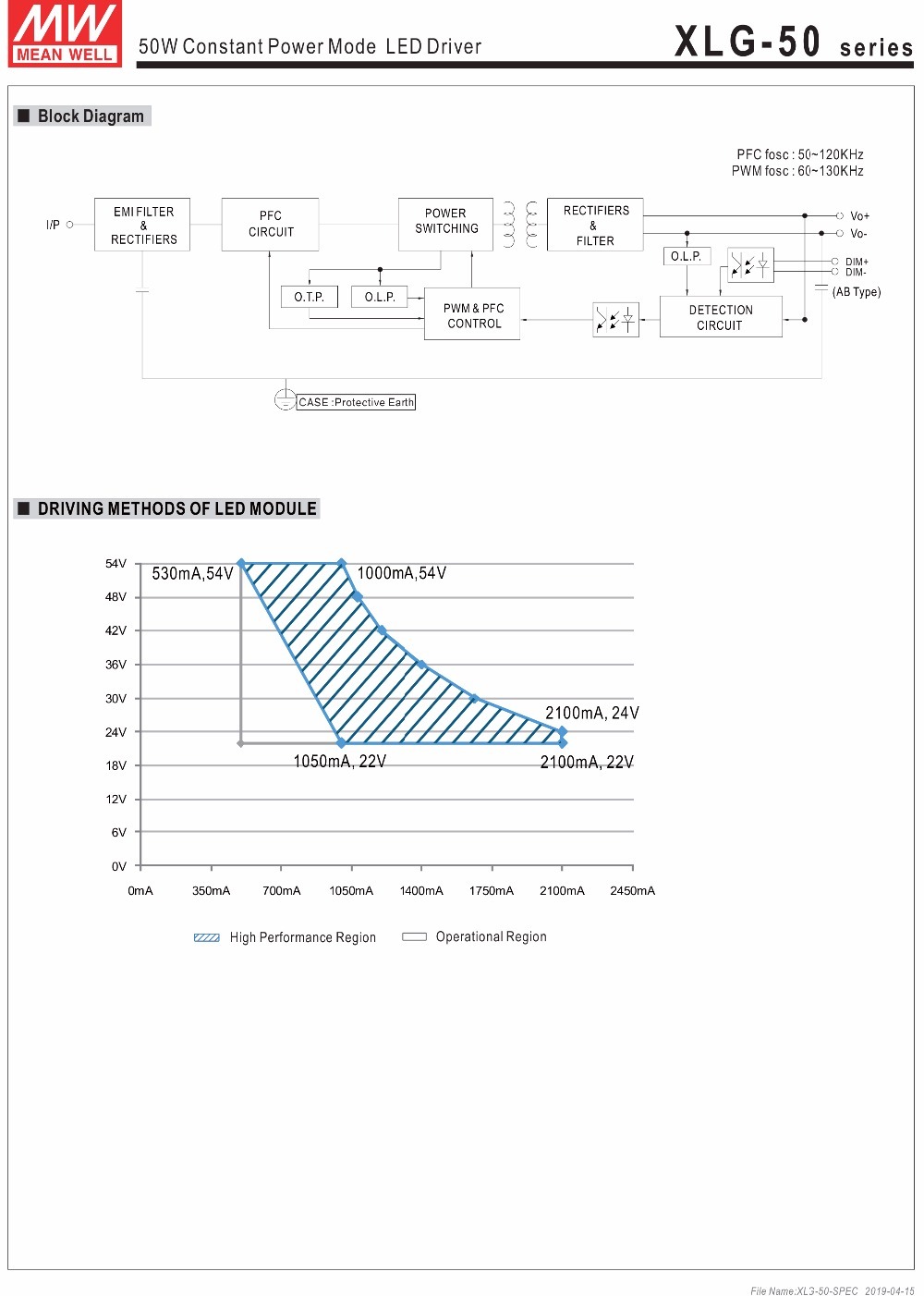

Constant Current Region Note.2: 22-54V
Rated Power: 50W
Input Voltage: 100-305VAC
Current Ripple: 5.0%max
Open Circuit Voltage: 57V
Current ADJ.Range: 0.53-2.1A
Frequency Range: 47-63Hz
AC Current: 0.57A/115VAC 0.29A/230VAC 0.24A/277VAC
Leakage Current: 0.75mA/277VAC
Working Temp: -20-95°C
Storage Temp: -40-80°C
1 * XLG-50-AB
LED street lighting
LED architectural lighting
LED bay lighting
Type“HL”for use in Class I, Division 2 hazardous (Classified) location.
