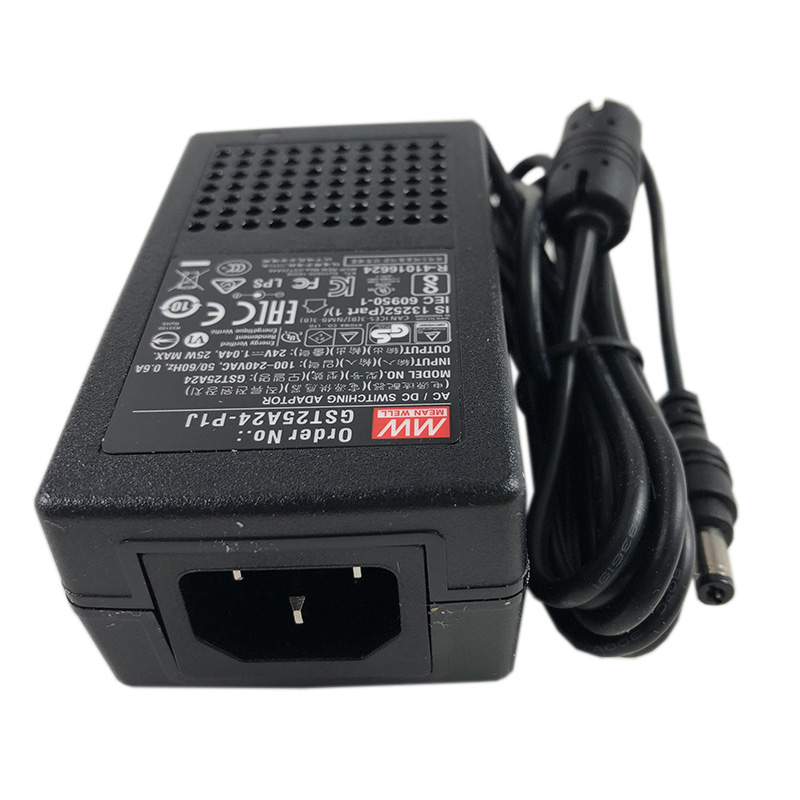

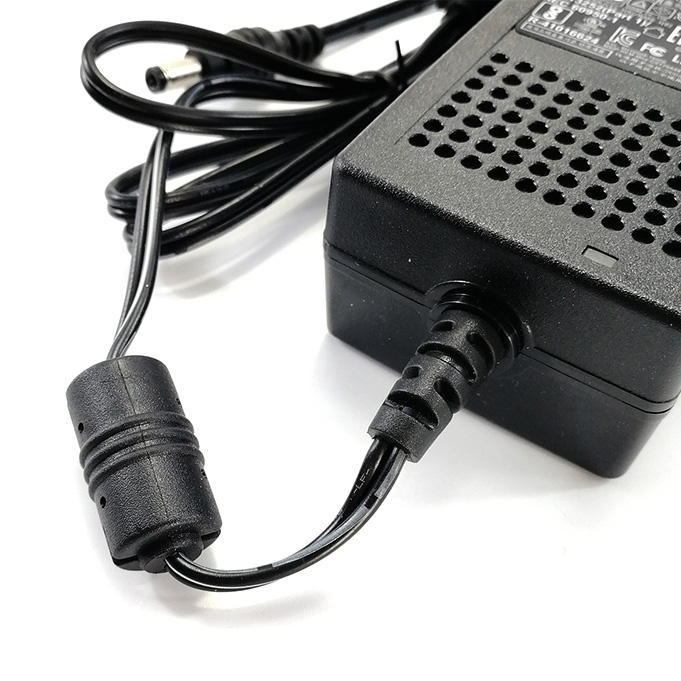

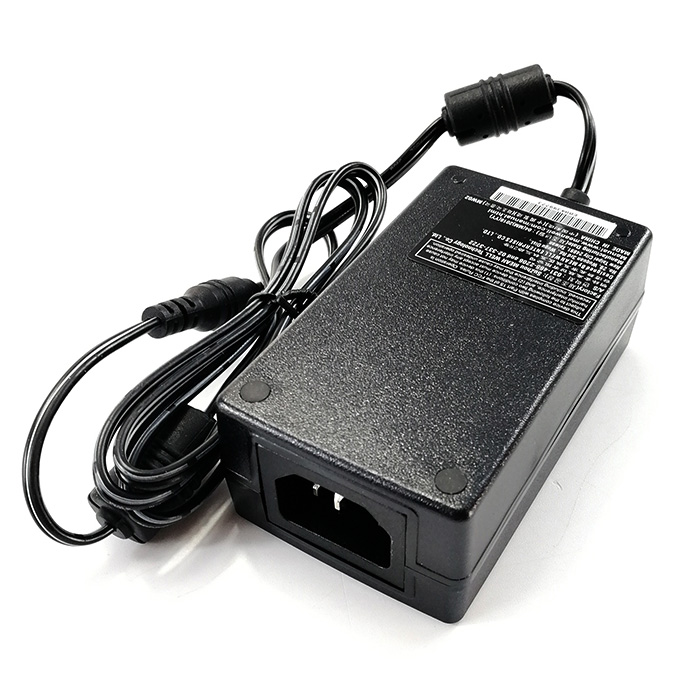

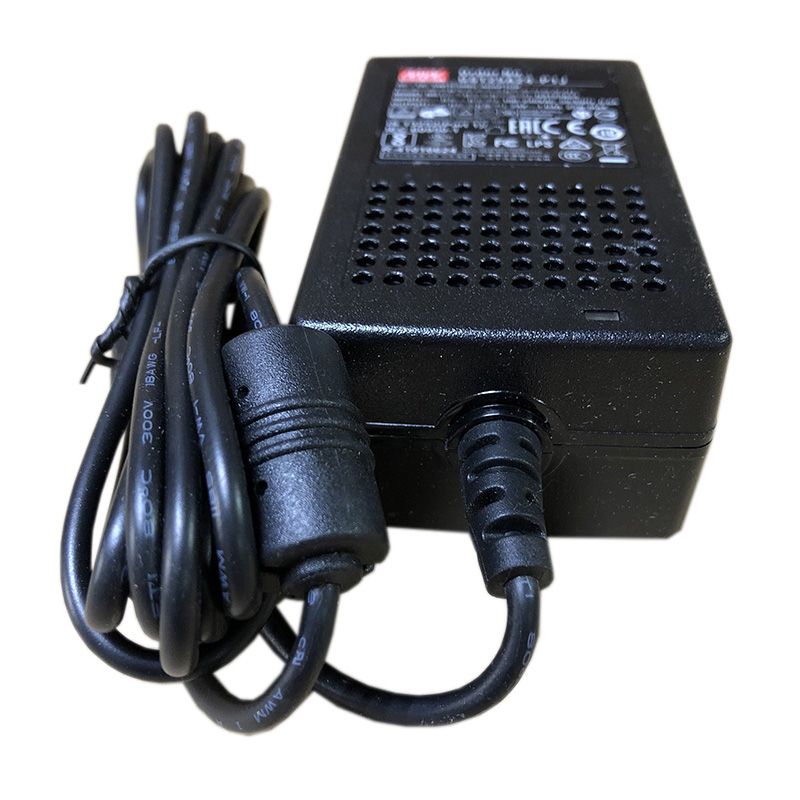

Mean Well DC24V 1.04A 25W GST25A24 AC To DC Reliable Green Industrial LED Power Adaptor
GST25A24 input voltage 85-264VAC, universal; output voltage is DC24V, output current is 1.04A, total power is 25W, suitable for DC24V low-power LED light.
This item is power adapter (transformer) of AC -DC Low Voltage for 24V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.
Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage 85% of this Power supply adaptor, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
Universal AC input / Full range
3 pole AC inlet IEC320-C14
Output connector: 2.1mm x 5.5mm center positive female barrel plug
No load power consumption <0.075W
Energy efficiency Level VI
Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5
Class I power (with earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
High operating temperature up to +70°C
LED indicator for power on
3 year warranty
Primary Output Voltage: 24VDC
Output Current: 1.04A
Maximum Output Power: 25W
AC Power Cord: included
Input Voltage: 85 to 264VAC
Input Frequency: 47 to 63Hz
Maximum Input Current: 0.6A/115VAC, 0.35A/230VAC
Output Connector Type: Cylindrical Female
Output Connector Diameters: 2.1mm x 5.5mm/0.08in*0.22in
Polarity: Center Positive
Number of Outputs: 1
Product Type: AC to DC Power Supply
Agency Approvals: UL/CUL/TUV/BSMI/CCC/FCC/CE
Operating Temperature-Min (Cel): -30
Operating Temperature-Max (Cel): 70
Product Note: Level VI
Type: Auto Switching
Style: Desktop Adapter
1* GST25A24 LED power adaptor
