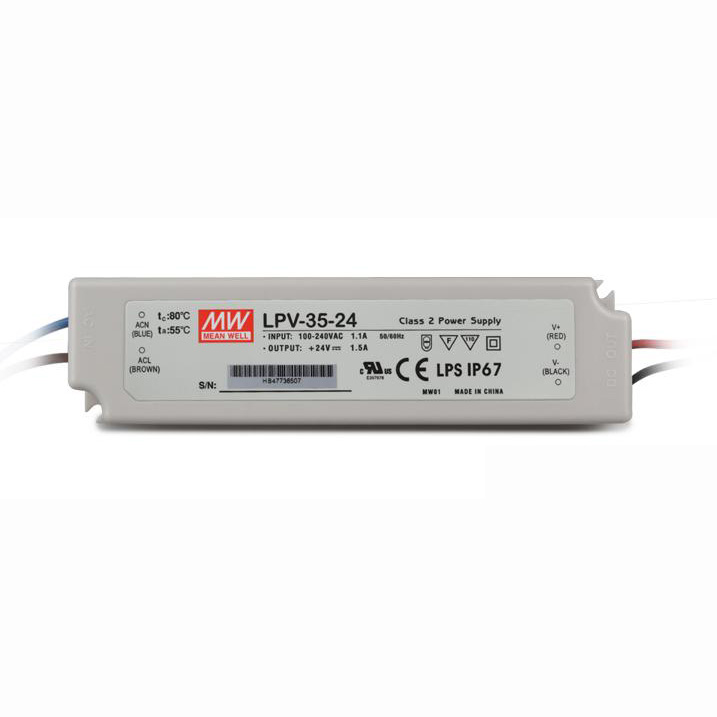

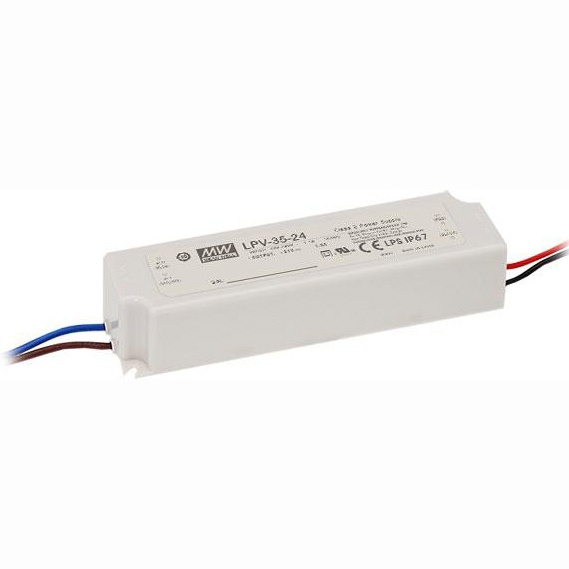

LPV-35-24 36Watt AC90～264V Input Mean Well High-efficacy Waterproof DC24V UL-Listed LED Display Lighting Power Supply
MeanWell power supply is a professional power supplier with UL certification. LPV-35-24 is a constant voltage single output switching power supply with an input voltage range of 90～264VAC (international). Our customers are mainly concentrated in the United States (110V) and Europe (220V). ), so you can choose with confidence.
The output voltage is DC24V, and the low voltage is characterized by safety and stability, energy-saving and environmental protection, and high efficiency. This power supply can withstand 300VAC surge input for 5 seconds, so you must pay attention when connecting high-voltage power. At the same time, this power supply has short-circuit/overload/overvoltage protection.
IP67 waterproof can be applied to outdoor environment waterproof and rainproof, the power supply shell is an insulated plastic shell, the heat dissipation effect is worse than that of the aluminum shell, to avoid the power supply for a long time, it is recommended that you use the light strip power 80% of the power supply, suitable for LED related devices and electrical products are also provided with a two-year warranty.
This led driver combined with connectors provides a pleasing and imposing aesthetic with a unique and functional design that combines modern aesthetics with the power of a high-grade product. Mean well high power AC/DC converter led driver range from 18 to 150 watts has been earning supreme customer's rating for a long time.
Constant voltage design
Universal AC input/ Full range
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit 1 Over load / Over voltage
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level (Note.7)
Fully isolated plastic case
Class I power unit, no FG
Class 2 power unit
Suitable for LED related fixture or appliance
(such as LED Decoration or Advertisement devices
100% full load burn-in test
Low cost, high reliability
2 years warranty
DC voltage: DC24V
Rated current: 1.5A
Current range: 0-1.5A
Rated power: 36W
Output voltage accuracy ±5%
Input voltage range 90～264VAC/127～370VDC
Input surge current Cold start,0.7A/230V
Leakage current <0.25mA / 240VAC
Overload protection The over current point is 110%～150%, automatic detection, automatic recovery
More product specification, pls see MeanWell website: https://www.meanwell.com/productSeries.aspx
