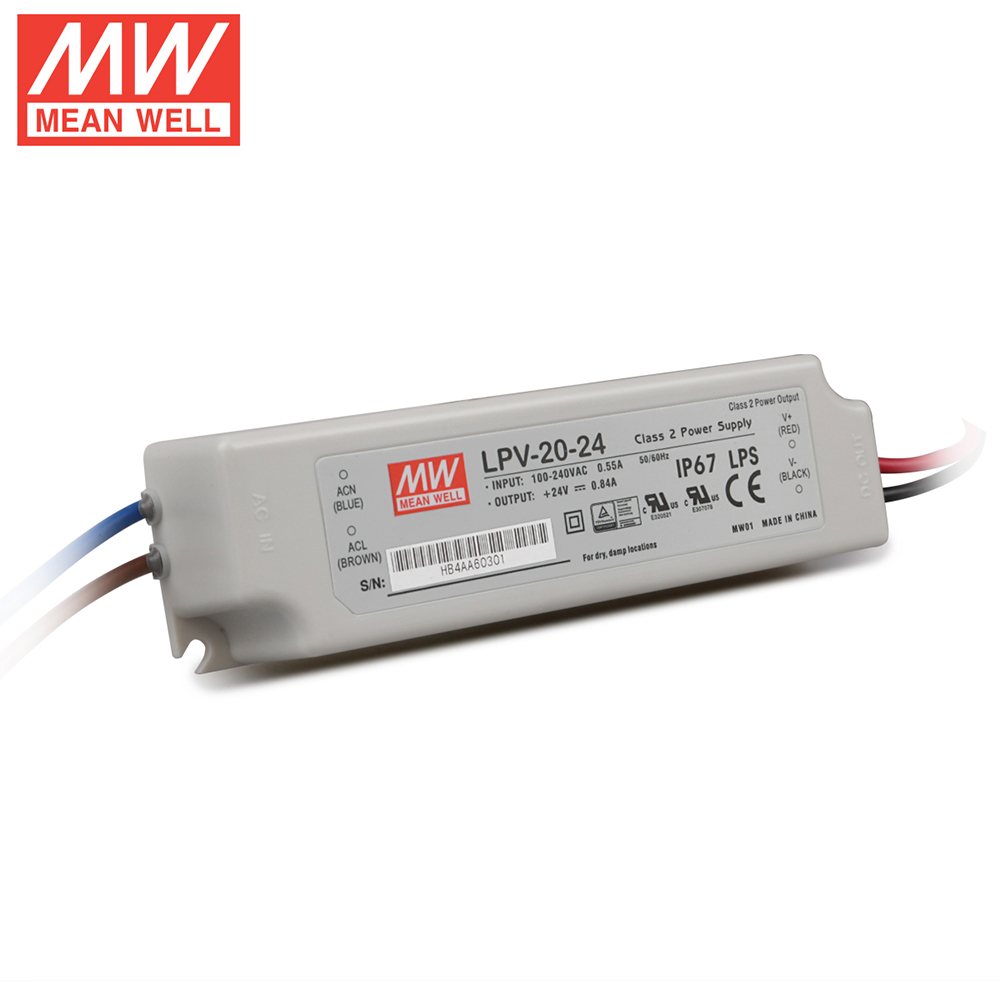

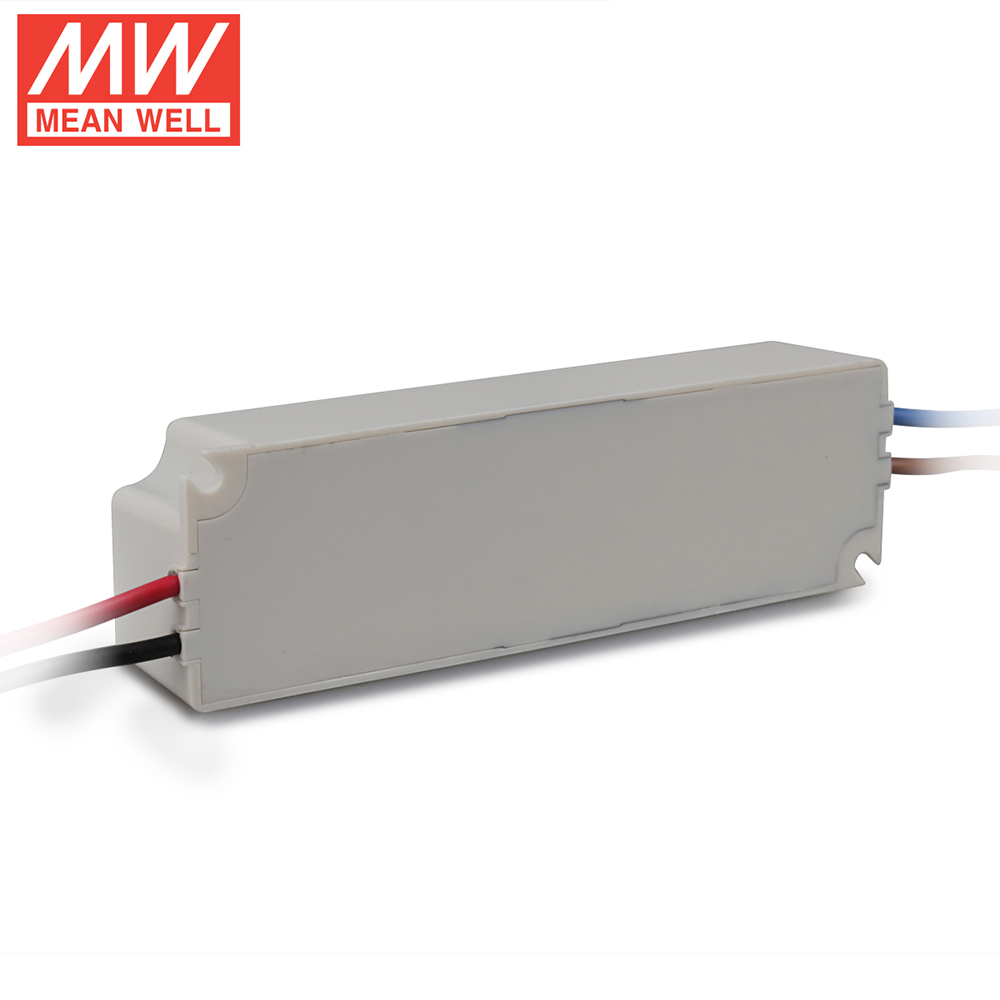

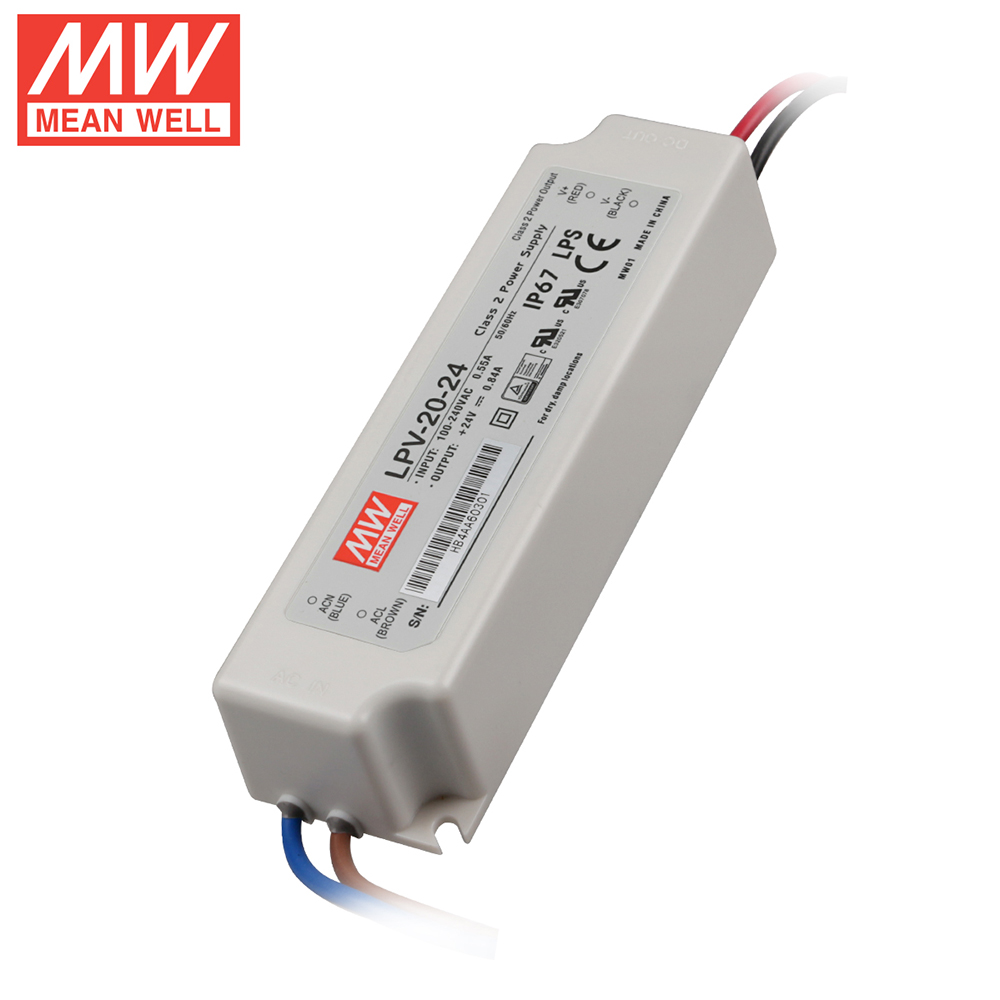

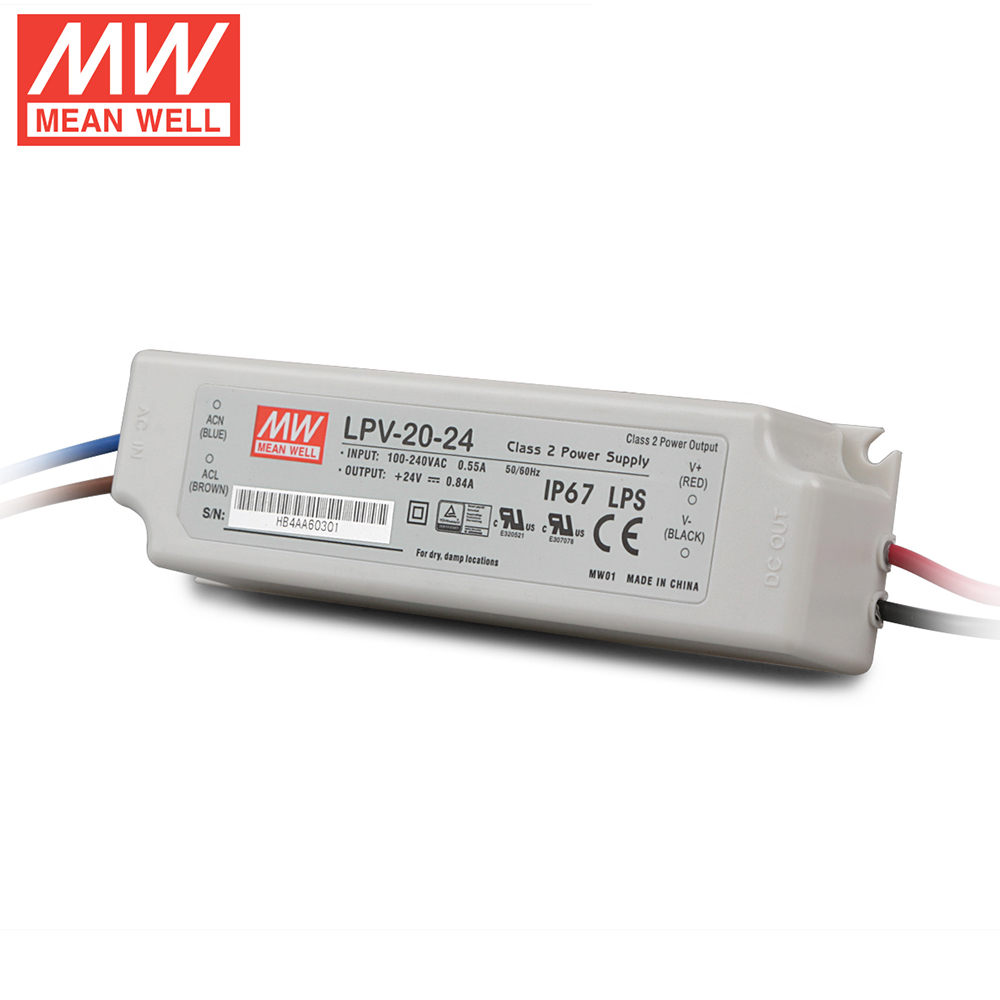

LPV-20-24 20Watt AC90～264V Input Mean Well High-efficacy Waterproof DC24V UL-Listed LED Display Lighting Power Supply
Constant voltage design
Universal AC input/ Full range
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit 1 Over load / Over voltage
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level (Note.7)
Fully isolated plastic case
Class I power unit, no FG
Class 2 power unit
Suitable for LED related fixture or appliance
(such as LED Decoration or Advertisement devices
100% full load burn-in test
Low cost, high reliability
2 years warranty

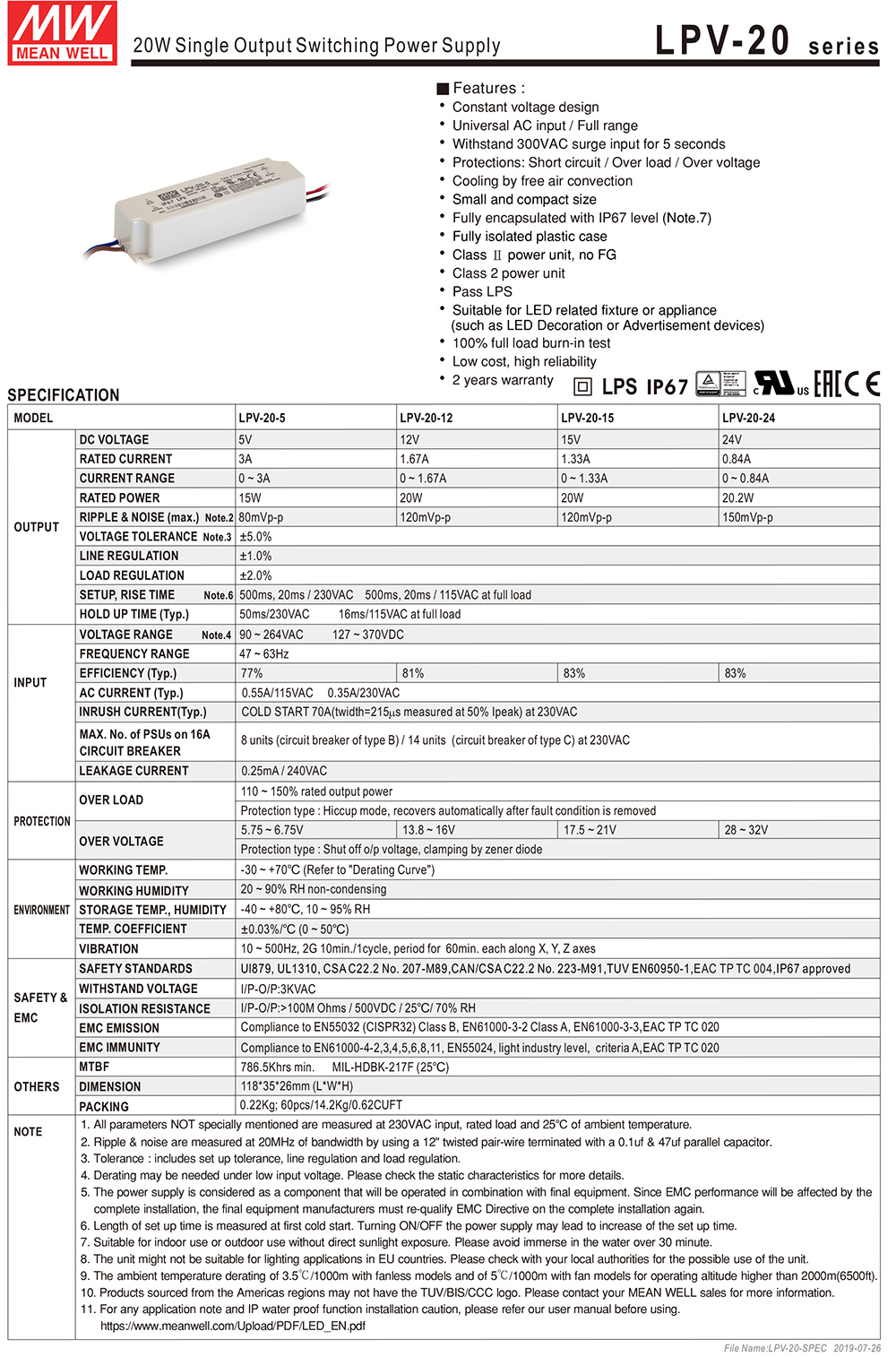

DC voltage: DC24V
Rated current: 0.84A
Current range: 0-0.84A
Rated power: 20.2W
Output voltage accuracy ±5%
Input voltage range 90～264VAC/127～370VDC
Input surge current Cold start, 70A/230V
Leakage current <0.25mA / 240VAC
Overload protection The over current point is 110%～150%, automatic detection, automatic recovery
Over-voltage protection The output voltage will be cut off when the rated output voltage is 115%～135%, and the diode clamped
Start up hold time 500ms, 20ms, 50ms at 230VAC full load
Insulation characteristics between input and output: 3KVAC

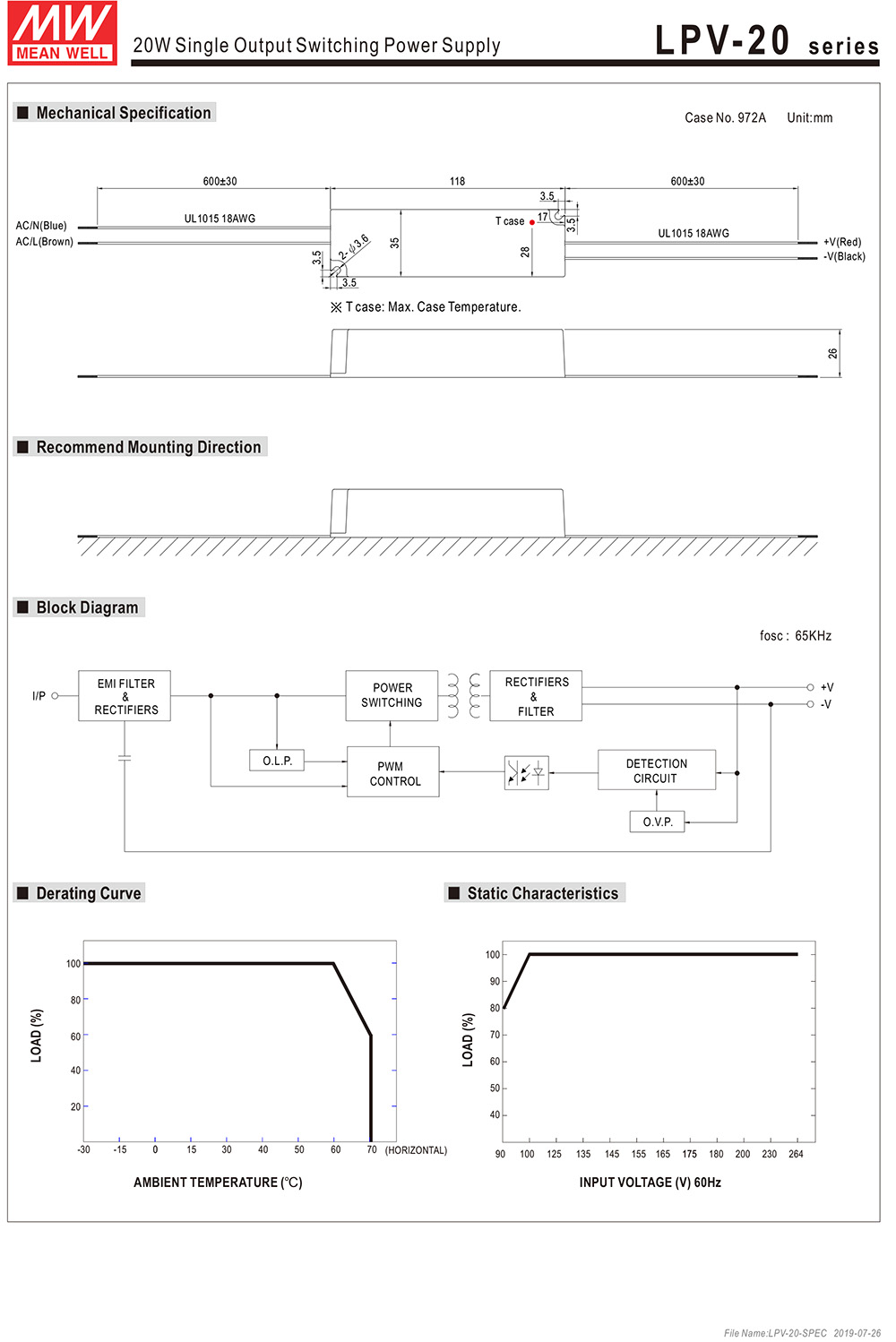

Working temperature -30～+70℃ (see output derating curve)
Vibration resistance 10～500Hz, 2G 10 minutes/cycle, 60 minutes for each axis of XYZ
Safety certification through UL879, UL1310, CSA-C22.2 No.207-M89; CAN/CSA-C22.2 No.223-M91, TUV EN60950-1, IP67 certification
Electromagnetic compatibility standards Emission: EN55022 (CISPR22) class B Harmonics: EN61000-3-2 class A, EN61000-3-3
Electromagnetic compatibility standards Anti-interference: EN61000-4-2,3,4,5,6,8,11, EN55024, Class A light industry standard
Mean time between failures ≥786,500 hours, MIL-HDBK-217F (25℃)
Wiring mode Input/output: UL standard, 18AWG×2C(60cm)
More product specification, pls see MeanWell website: https://www.meanwell.com/productSeries.aspx
