MeanWell DC24V 1.67A 40W GST40A24 AC To DC Reliable Green Industrial LED Power Adaptor

Model: GST40A24
MeanWell DC24V 1.67A 40W GST40A24 AC To DC Reliable Green Industrial LED Power Adaptor
  • MeanWell DC24V 1.67A 40W GST40A24 AC To DC Reliable Green Industrial LED Power Adaptor
  • MeanWell DC24V 1.67A 40W GST40A24 AC To DC Reliable Green Industrial LED Power Adaptor
  • MeanWell DC24V 1.67A 40W GST40A24 AC To DC Reliable Green Industrial LED Power Adaptor
  • MeanWell DC24V 1.67A 40W GST40A24 AC To DC Reliable Green Industrial LED Power Adaptor

Select Specifications:

Select UL-Listed:

$27.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$27.98
10-29
$27.42
30-49
$26.58
50+
$25.46
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    GST40A24 input voltage 85-264VAC, universal; output voltage is DC24V, output current is 1.67A, total power is 40W, suitable for DC24V low-power LED light.

    In order to avoid power load, we usually support LED strips or other LED lights with power less than 80% of the rated power, so please choose a suitable LED power supply according to the actual LED power adaptor.


    NOTE:

    This item is power adapter (transformer) of AC -DC Low Voltage for 24V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.

    Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage 85% of this Power supply adaptor, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.

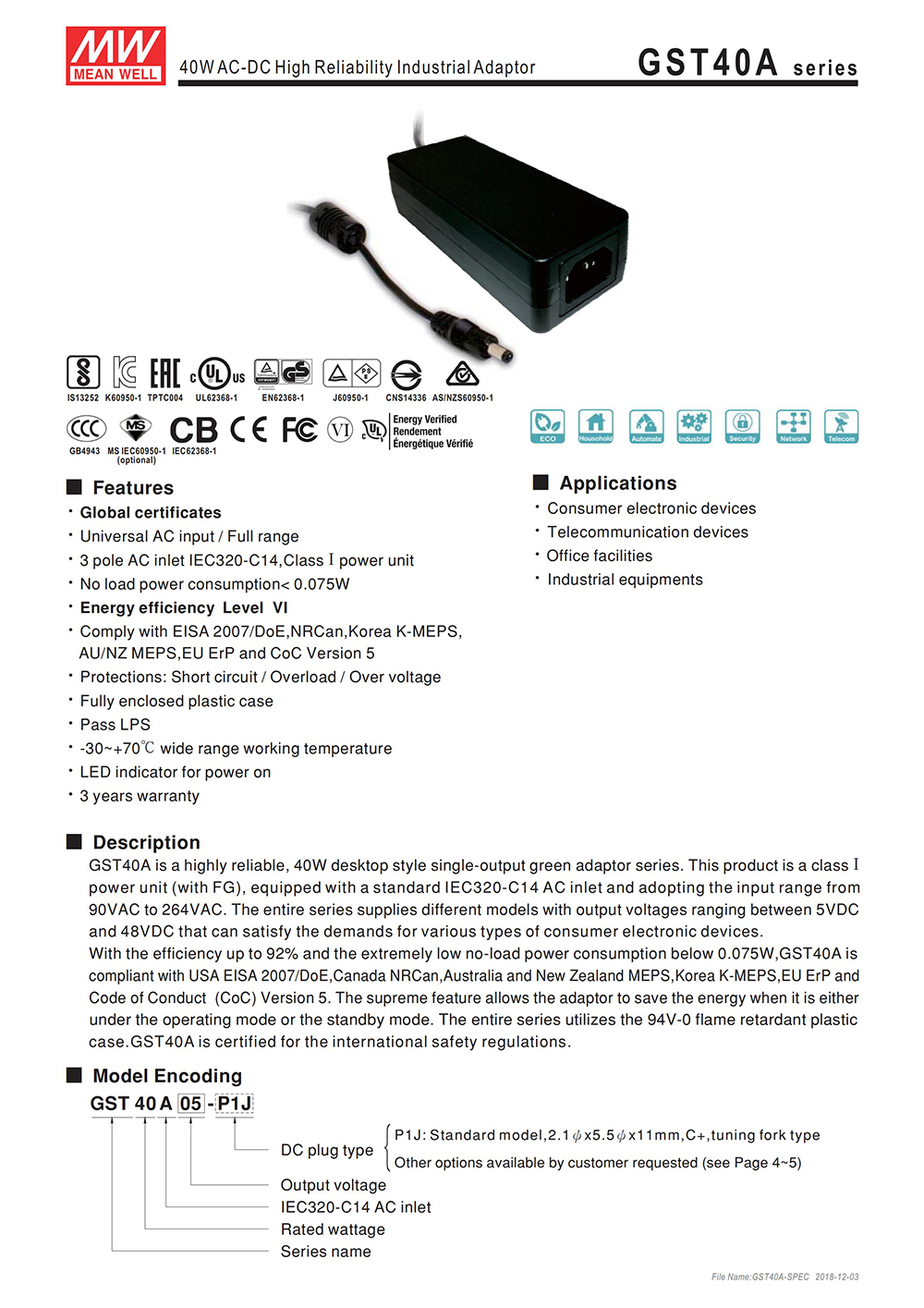

    Standards and Certifications





    GST40A24



    Features:

    Universal AC input / Full range

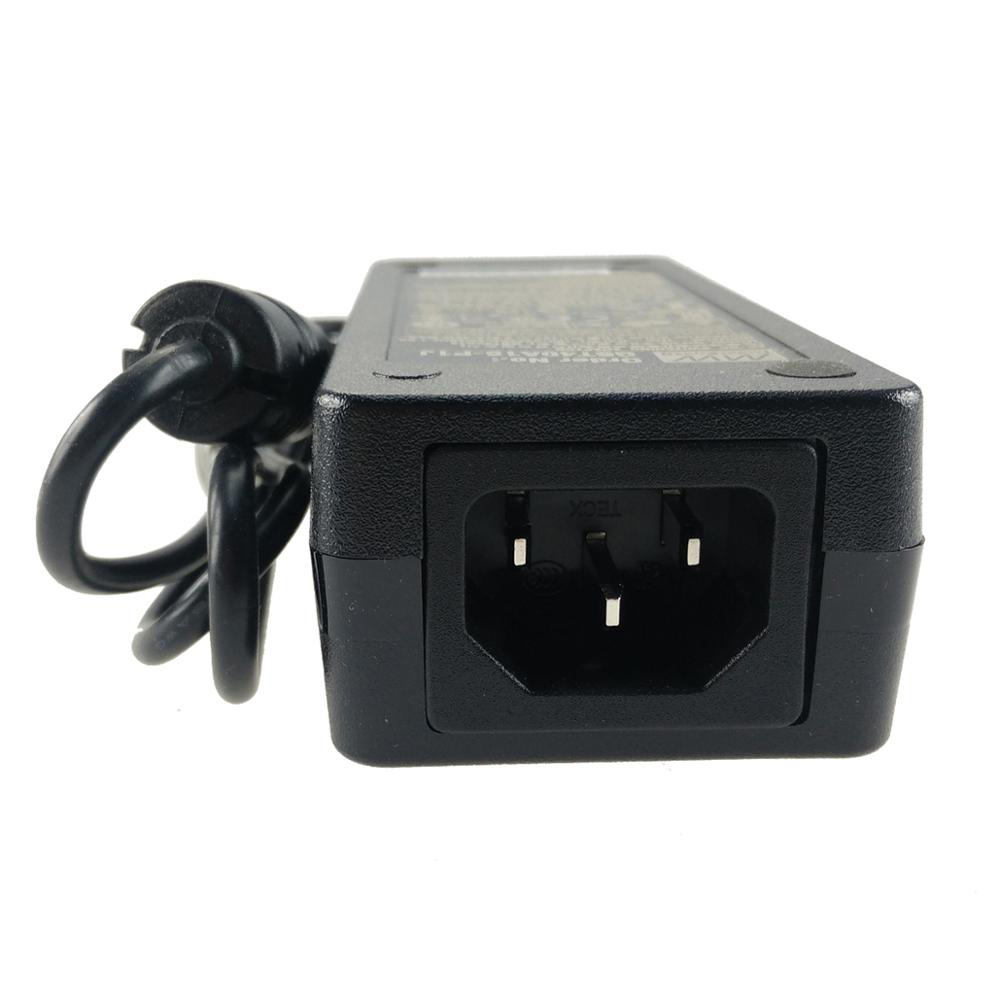

    3 pole AC inlet IEC320-C14

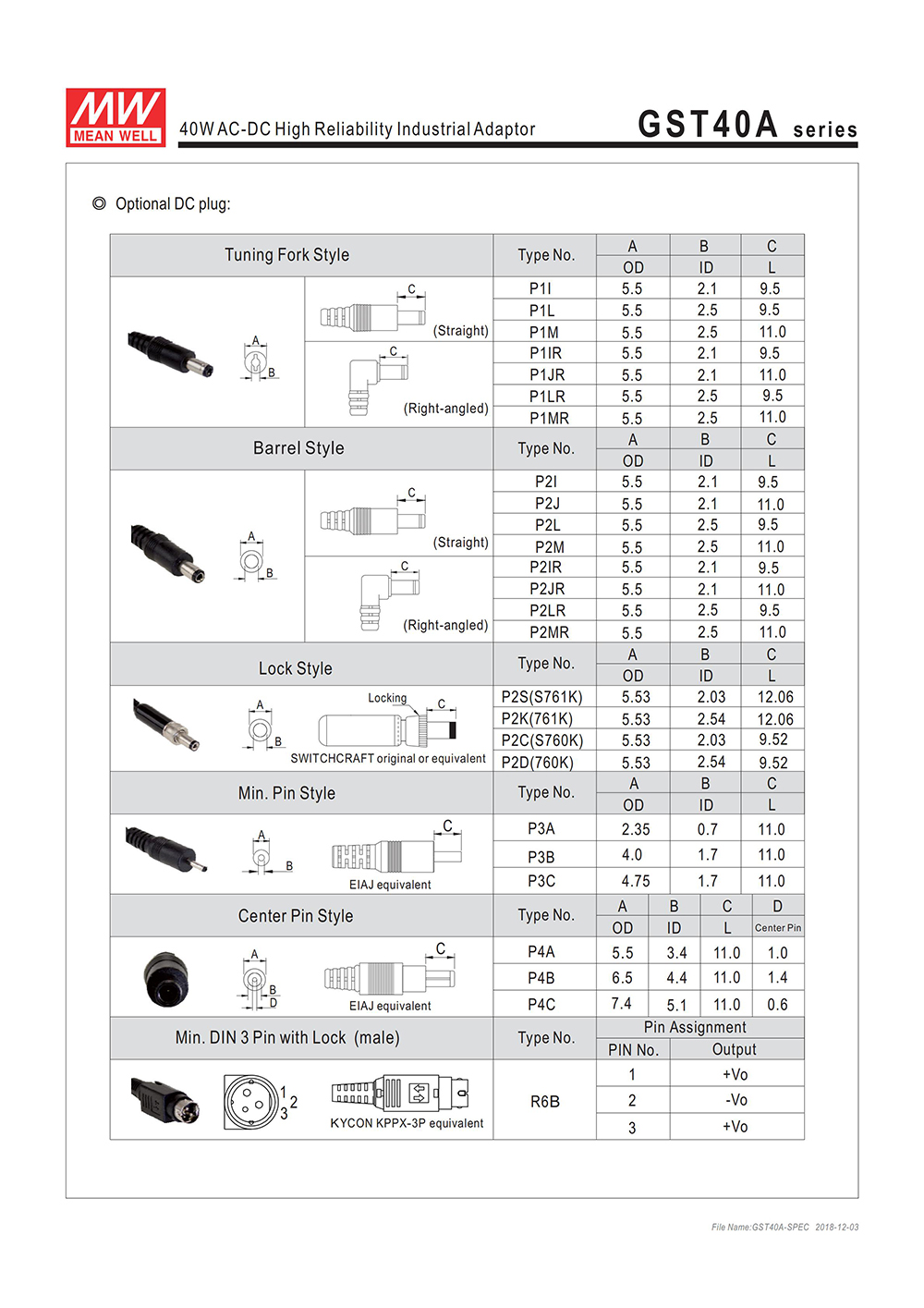

    Output connector: 2.1mm x 5.5mm center positive female barrel plug

    No load power consumption <0.075W

    Energy efficiency Level VI

    Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5

    Class I power (with earth pin)

    Protections: Short circuit / Overload / Over voltage

    Fully enclosed plastic case

    Pass LPS

    High operating temperature up to +70°C

    LED indicator for power on

    3 year warranty

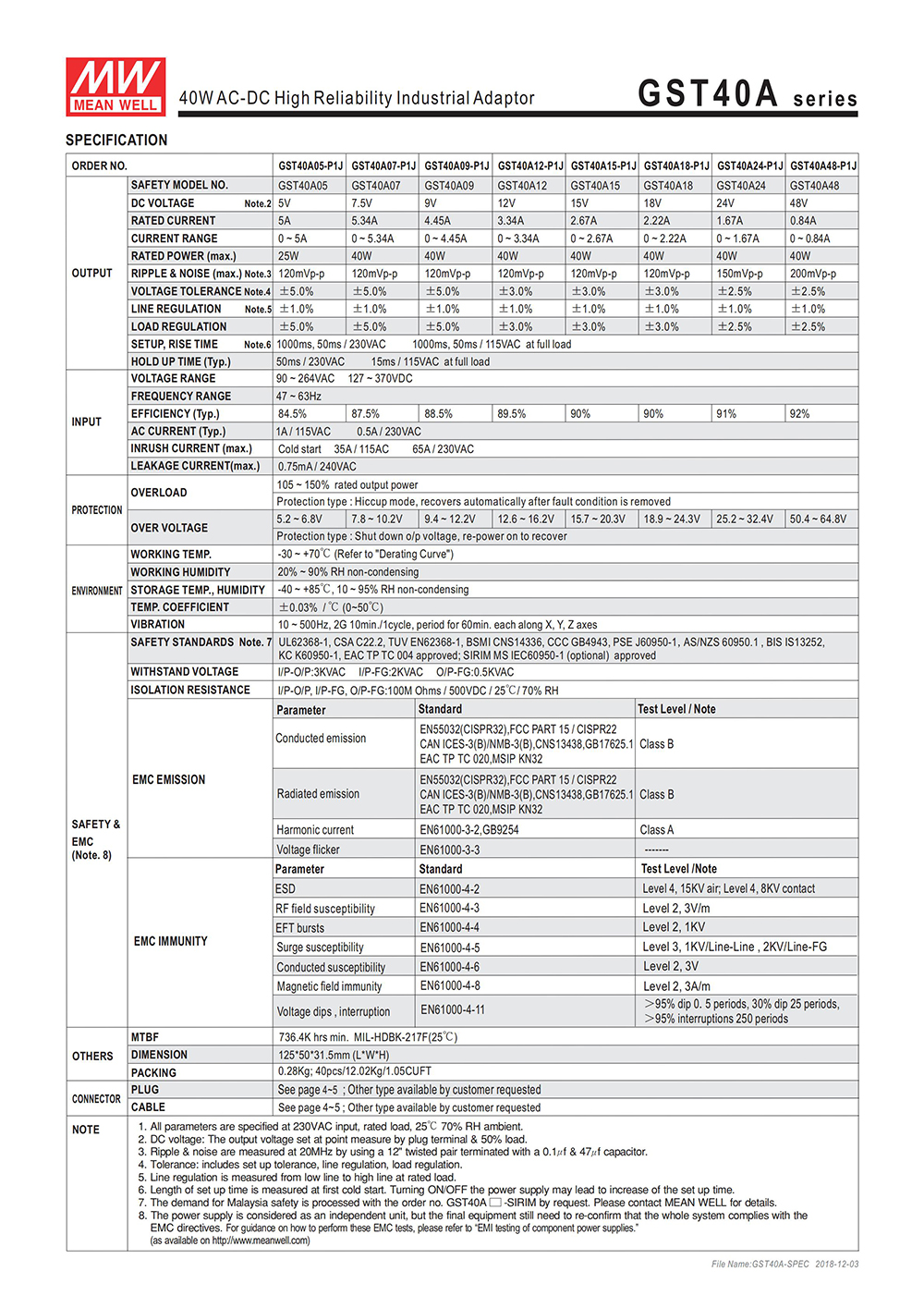

    Product Specification

    Primary Output Voltage:   24VDC

    Output Current:   1.67A

    Maximum Output Power:  40W

    AC Power Cord: included

    Family:   GST40

    Input Voltage:   85 to 264VAC

    Input Frequency:   47 to 63

    Maximum Input Current:   1A

    Output Connector Type:   Cylindrical Female

    Output Connector Diameters:   2.1mm x 5.5mm/0.08in*0.22in

    Polarity:   Center Positive

    Number of Outputs:  1

    Product Type:   AC to DC Power Supply

    Agency Approvals:   UL/CUL/TUV/BSMI/CCC/FCC/CE

    Efficiency:   91%

    Operating Temperature-Min (Cel):   -30

    Operating Temperature-Max (Cel):   70

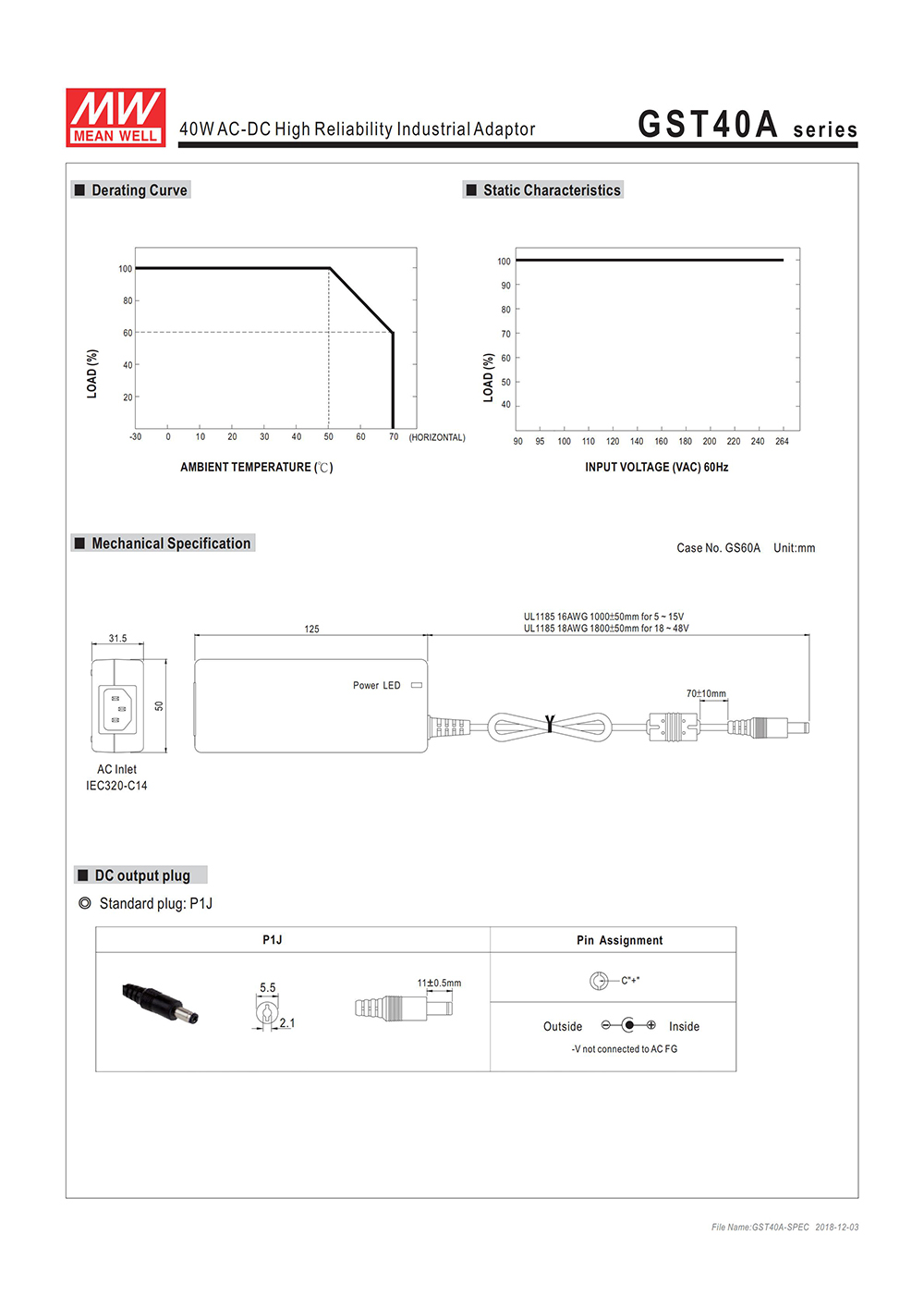

    Length:   4.92in

    Width:   1.97in

    Height:   1.24in

    Product Note:   Level VI

    Color:   Black

    Type:   Auto Switching

    Style:   Desktop Adapter



    Product List

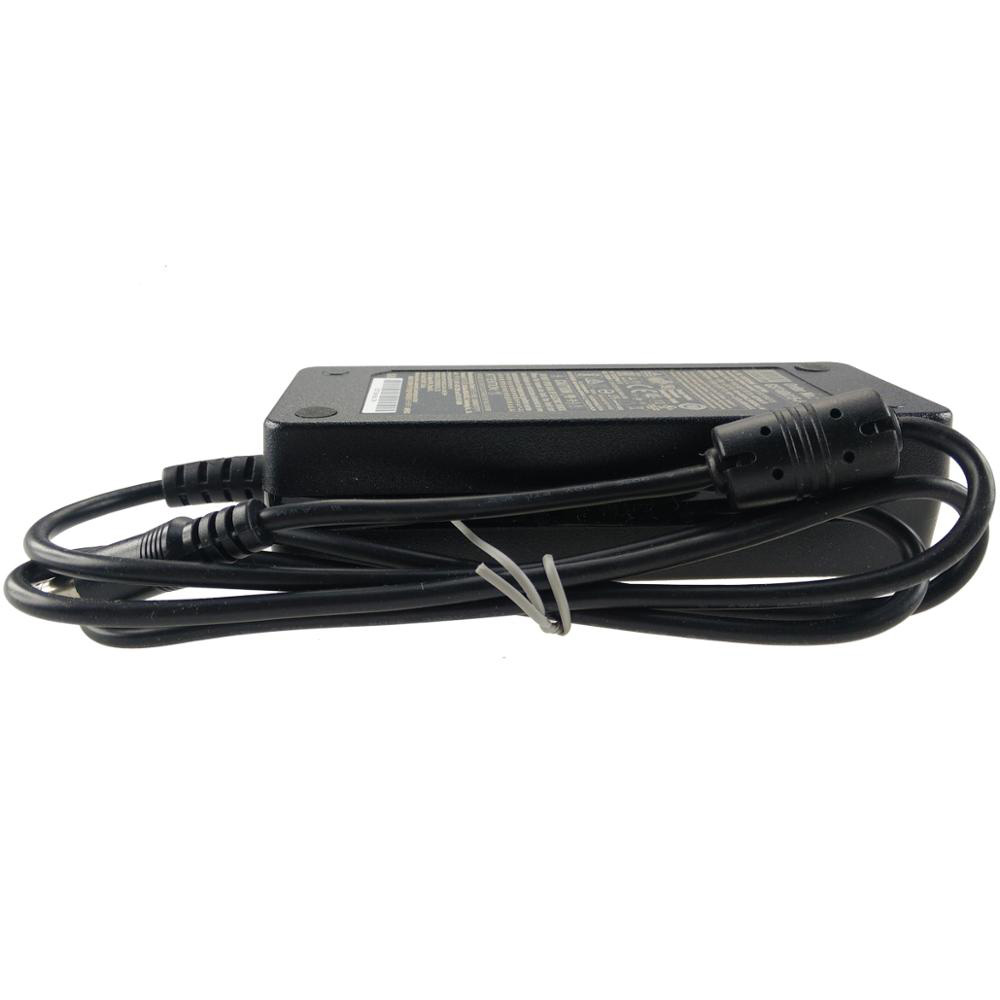

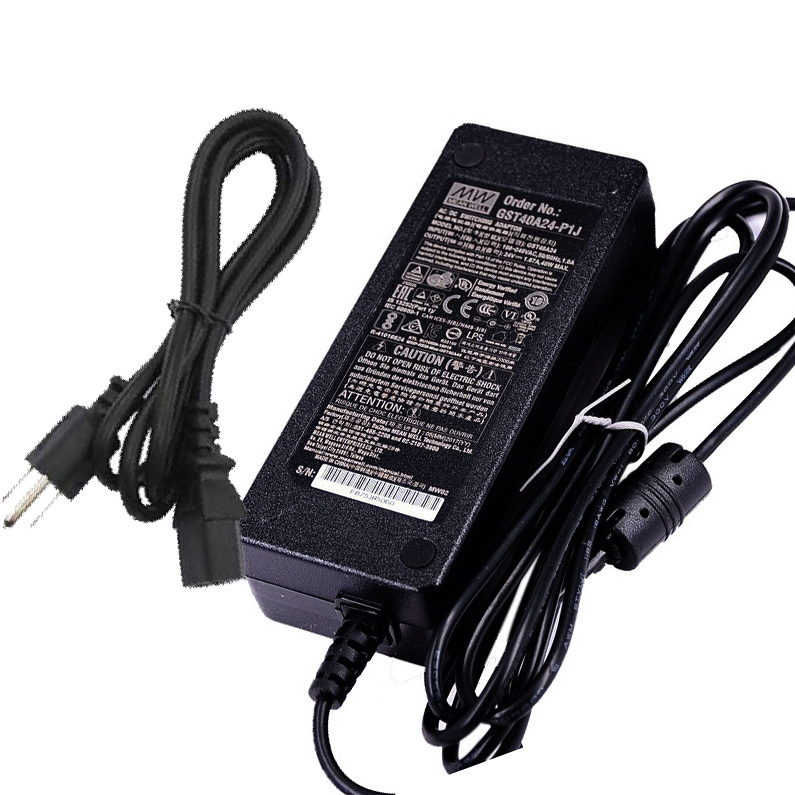

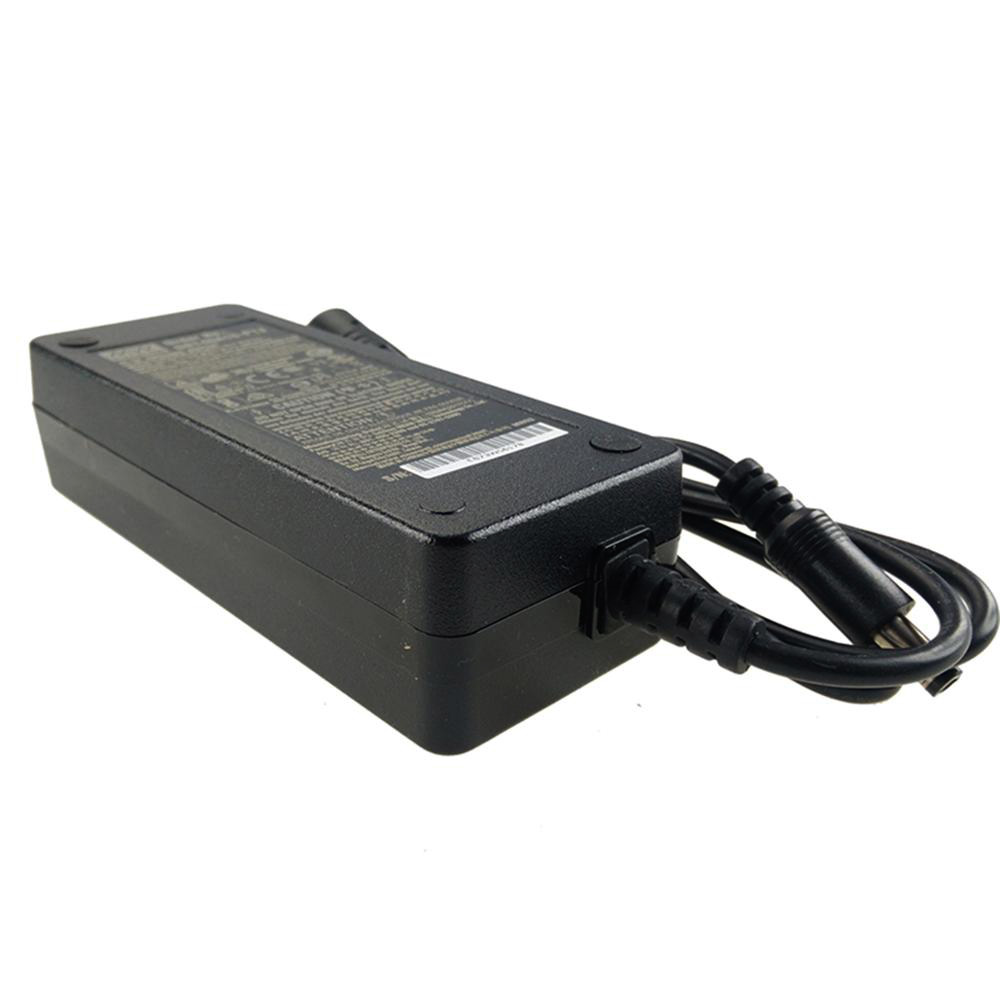

    1* GST40A24 LED power adaptor
