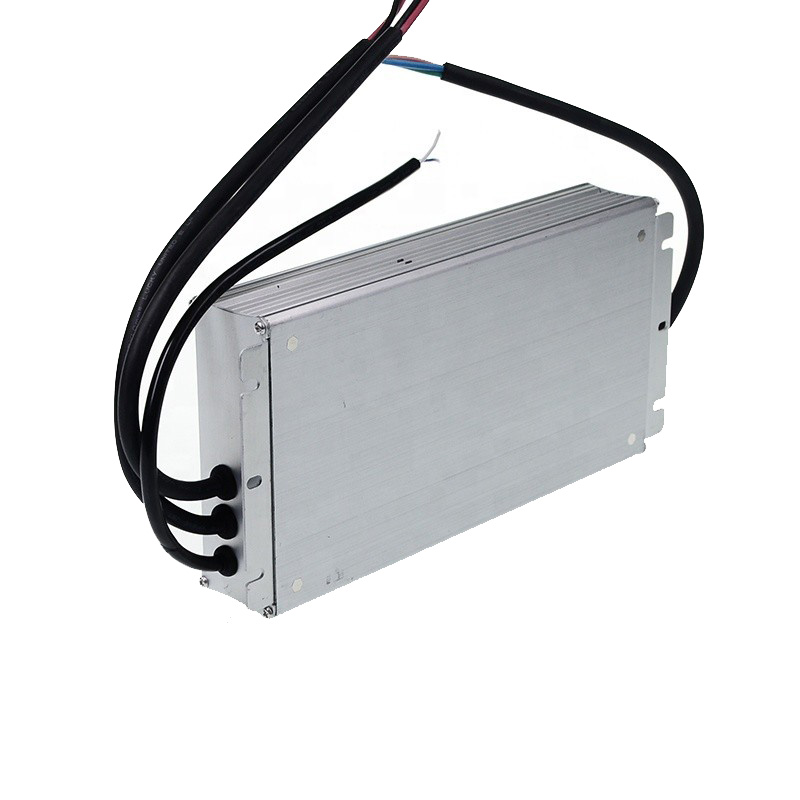

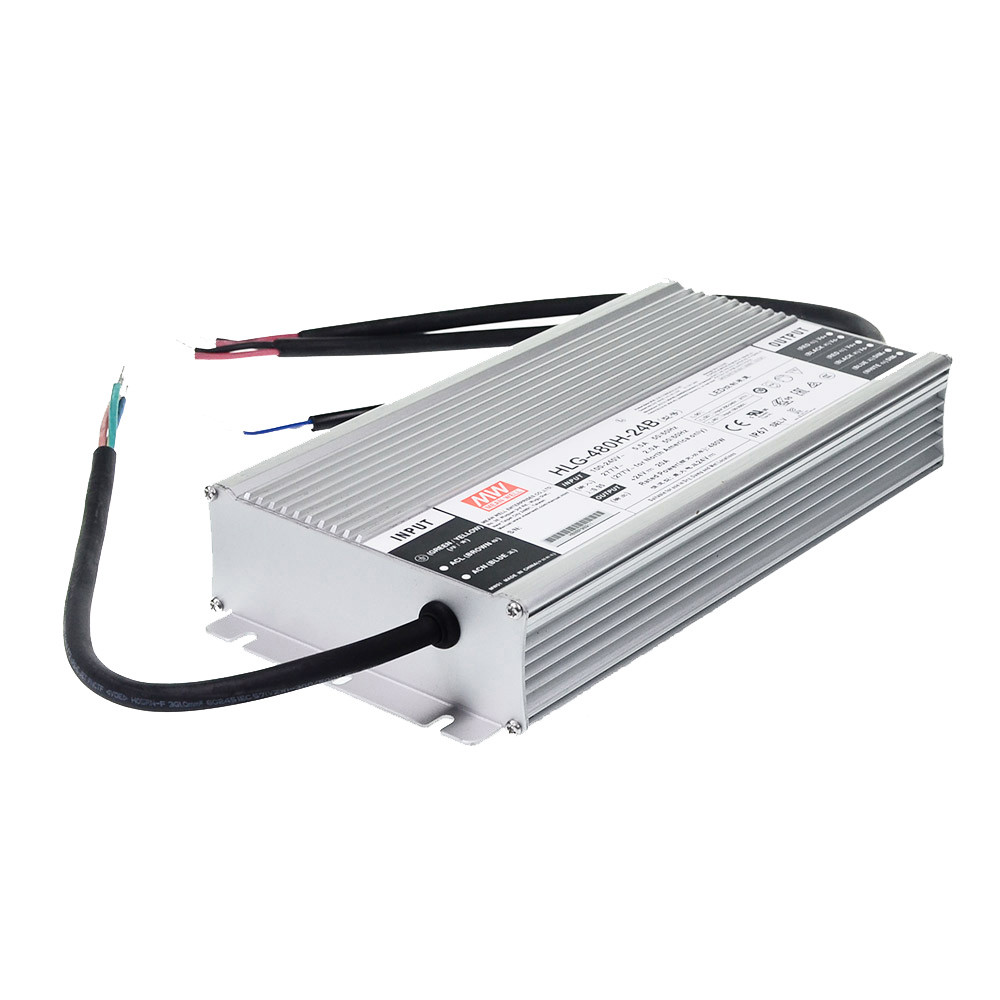

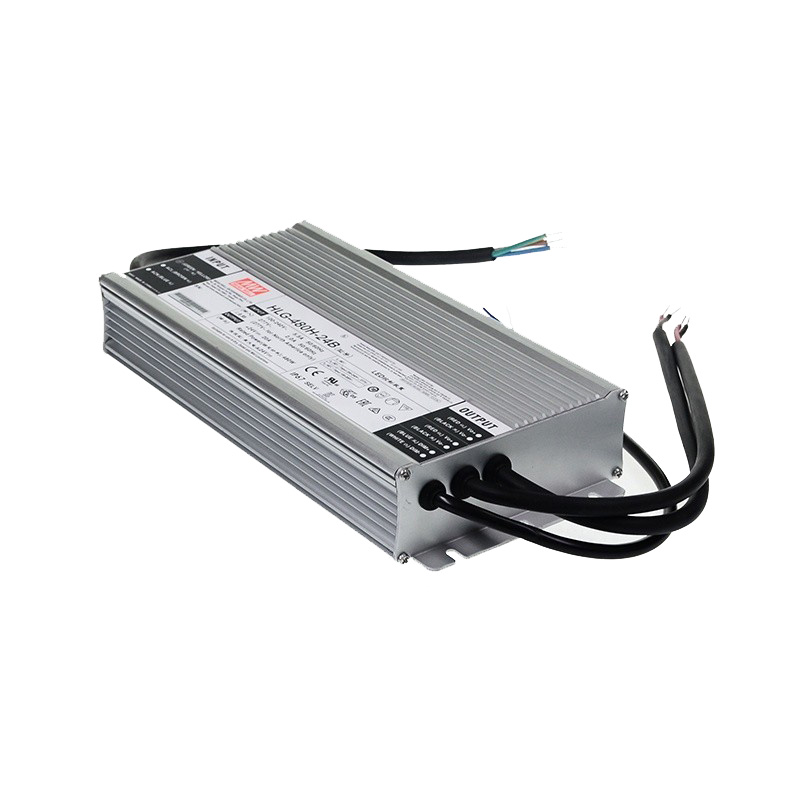

HLG-480H-24B 480Watt AC90～305V Input Voltage Mean Well IP67 Waterproof DC24V UL-Listed LED Power Supply
Metal housing with class I design
IP67 / IP65 rating for indoor or outdoor installations

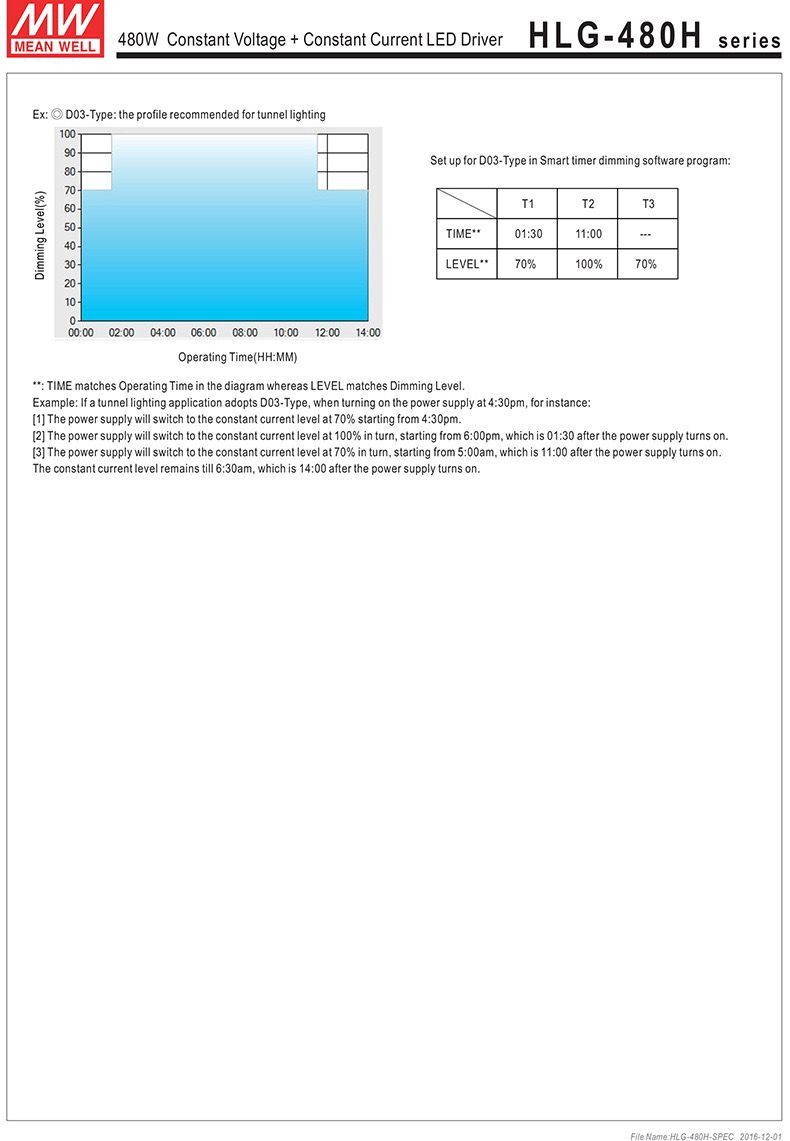

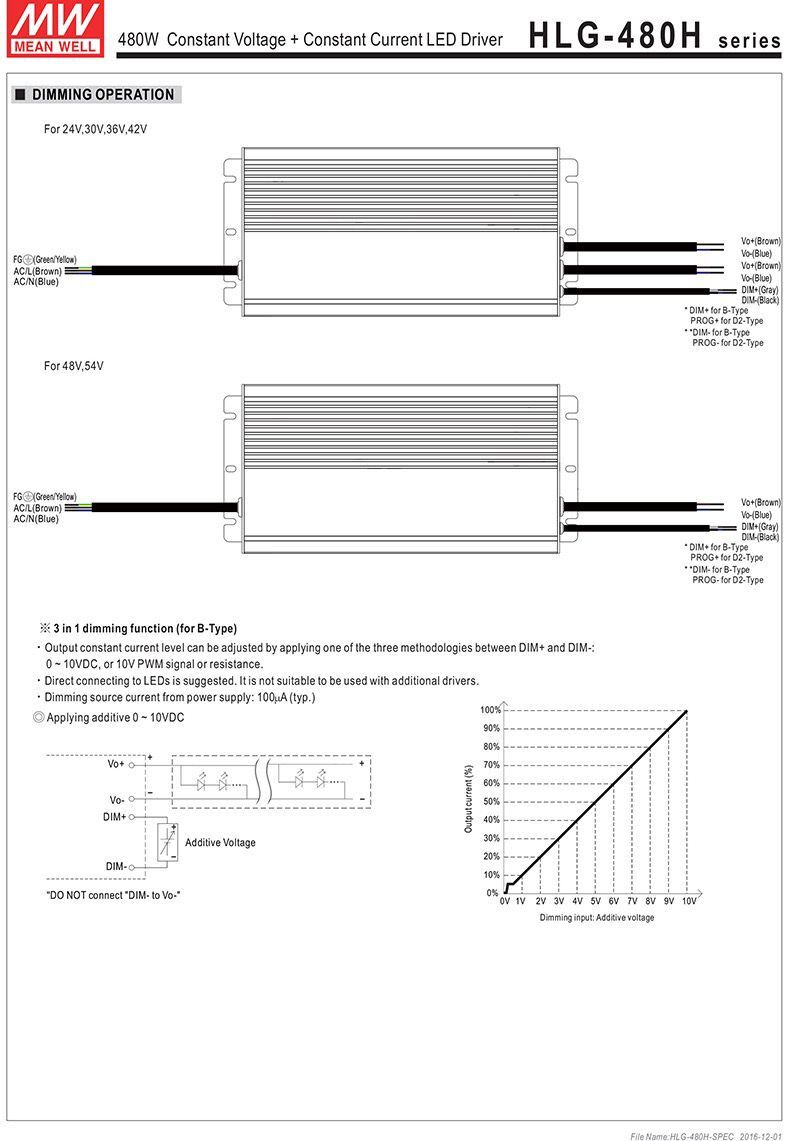

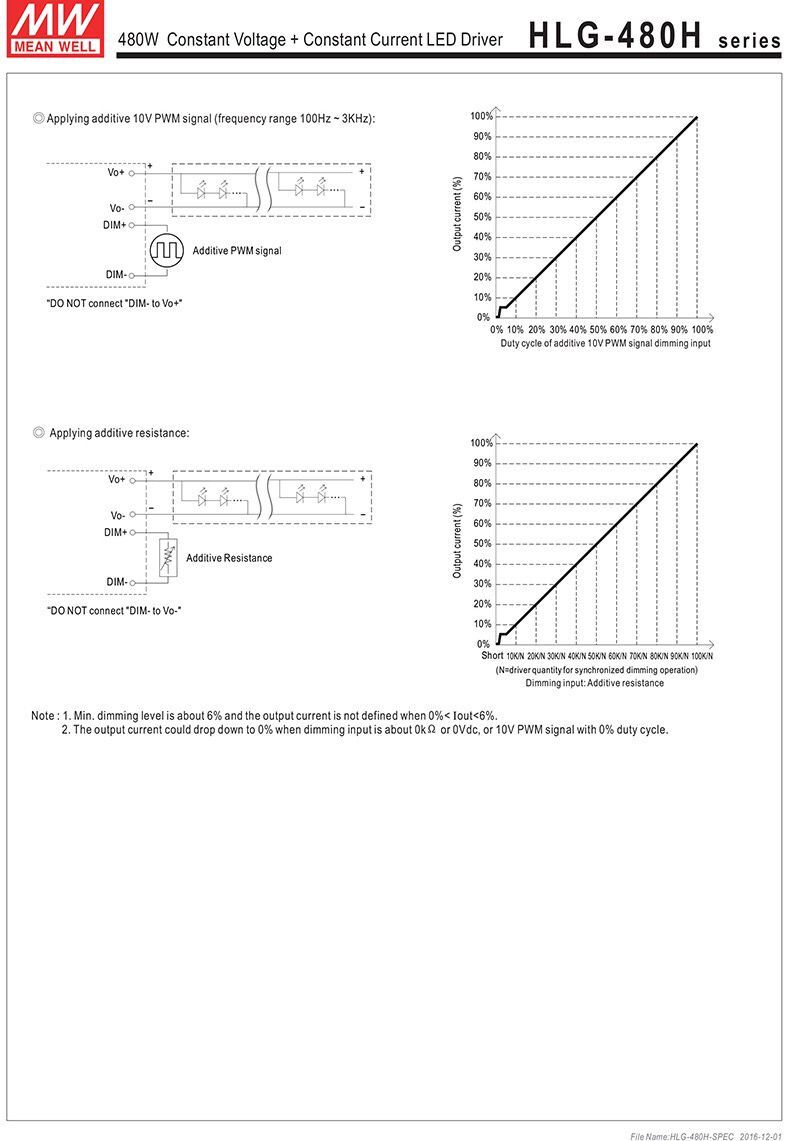

Function options: output adjustable via potentiometer;3 in 1 dimming;

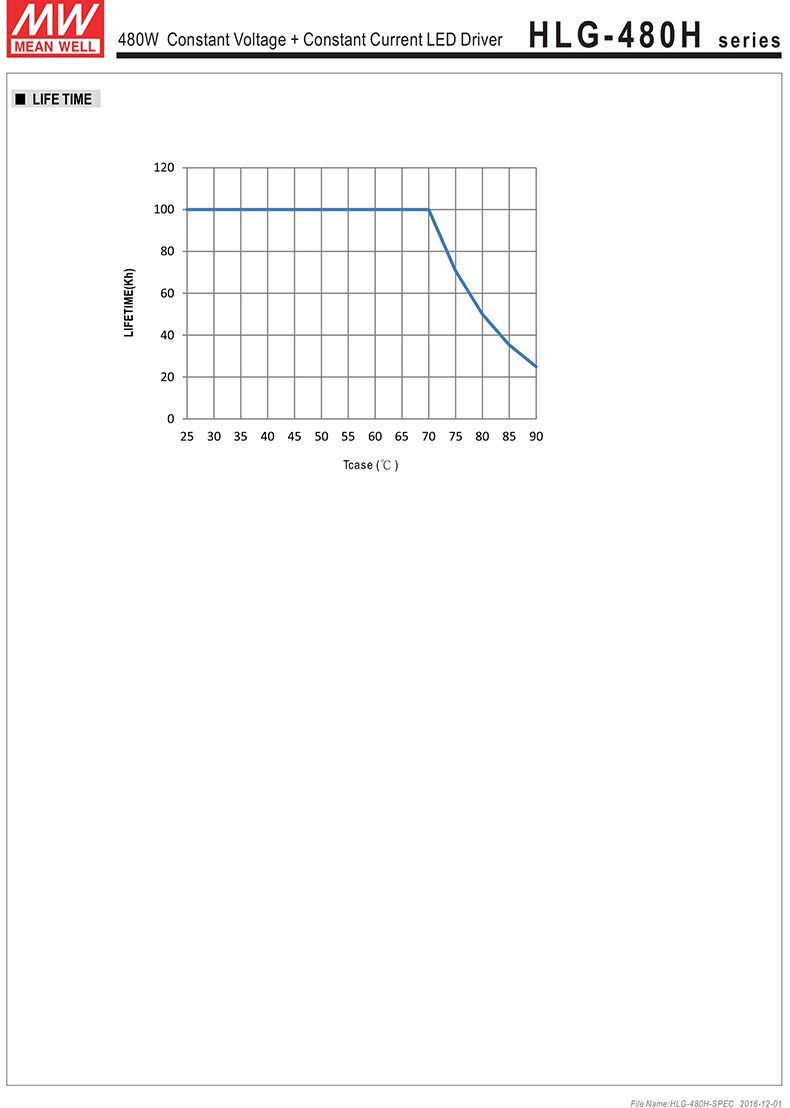

Typical lifetime> 62000 hours
7 years warranty

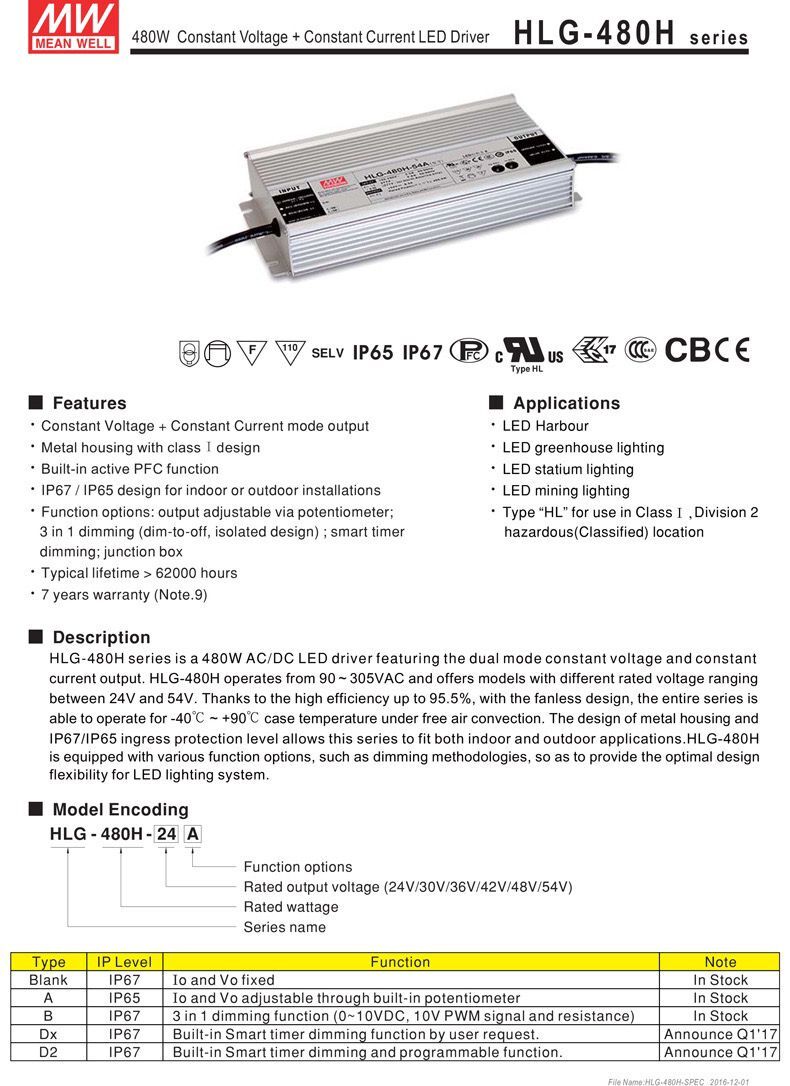

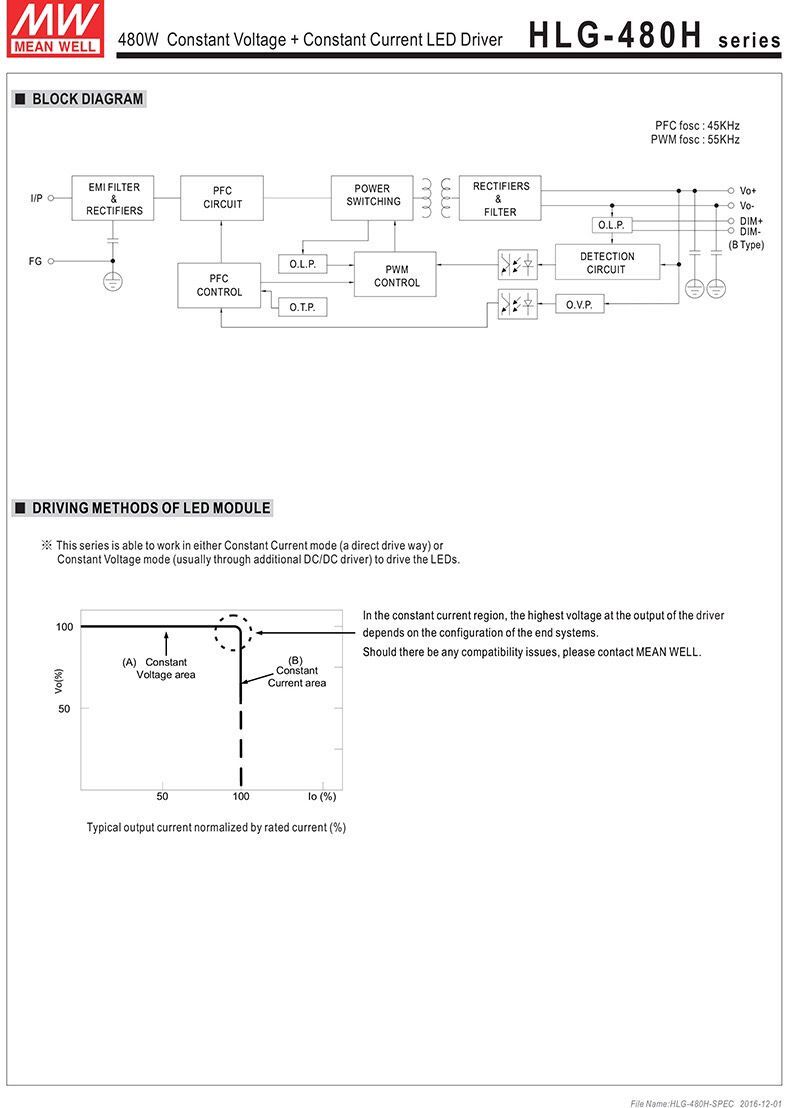

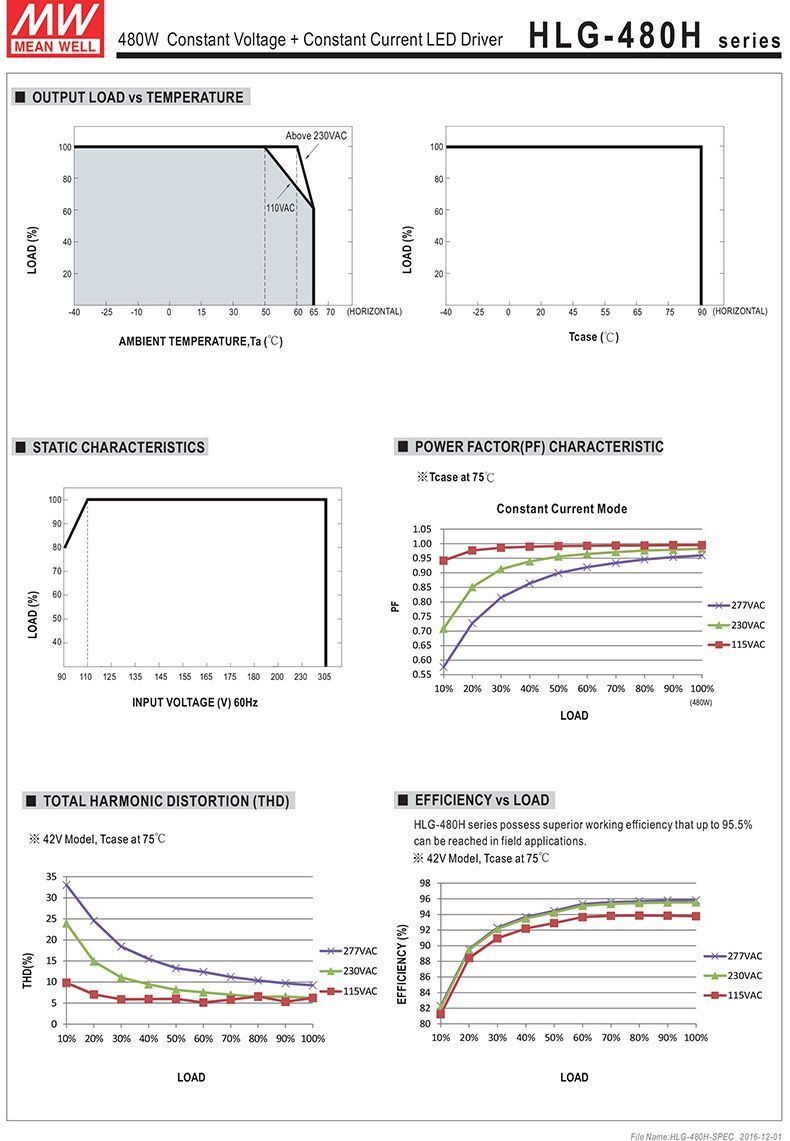

HLG-480H series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constantcurrentoutput. HLG-480H operates from 90-305VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series is able tooperate for -40~ +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HLG-480H is equipped with various function options, such asdimming methodologies, so as to provide the optimal designflexibility for LED lighting system
Standards and Certifications

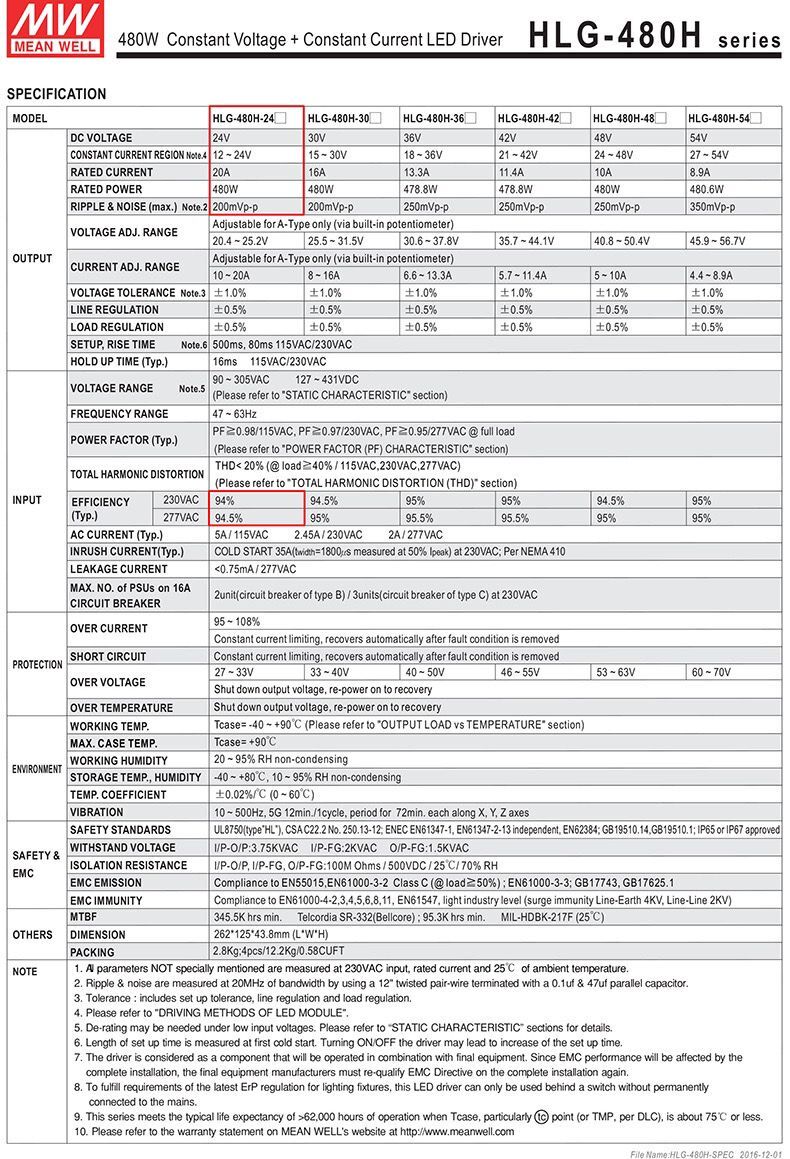

DC Voltage: DC24V
Rated Current: 20A
Current Range: 20.4-25.2A
Rated Power: 480W
Input Voltage Range: 90～305VAC/127～431VDC
Frequency Range: 47-63Hz
Leakage Current: <0.75mA / 277VAC
Waterproof Rating: IP67
1* HLG-480H-24B IP67 Waterproof LED power supply
LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
