UHP-1500 24V 48V Meanwell PFC Switch Mode Power Supply Fanless

Model: UHP-1500-24 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $499.98 $471.986% off
Qty Discounts Off Price
1-4
$471.98
5-9
$462.54
10-14
$448.38
15+
$429.50
* Discounts may vary based on options below
Select Specifications:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The Mean Well UHP-1500 delivers 1500W of regulated DC energy in a slim 41mm 1U low-profile enclosure, engineered specifically for high-capacity LED strip lighting installations requiring zero acoustic noise. Operating across a universal AC input range of 90V to 264V with built-in active PFC (PF > 0.95), this ul listed power supply converts incoming grid voltage into stable 24V or 48V DC output with peak conversion efficiency reaching 96%. Its conduction-cooled, fanless design eliminates moving mechanical parts, preventing internal dust accumulation and ensuring silent operation in noise-sensitive architectural coves, recording studios, and commercial display cases. This meanwell led driver is available with selectable DC24V or DC48V configurations, as well as optional AC input cord accessories. Refer to our guide on how to connect meanwell led power supply to led strip to verify that total system wattage does not exceed 85% of rated driver output for long-term electrical reliability.

how to connect meanwell led power supply to led strip

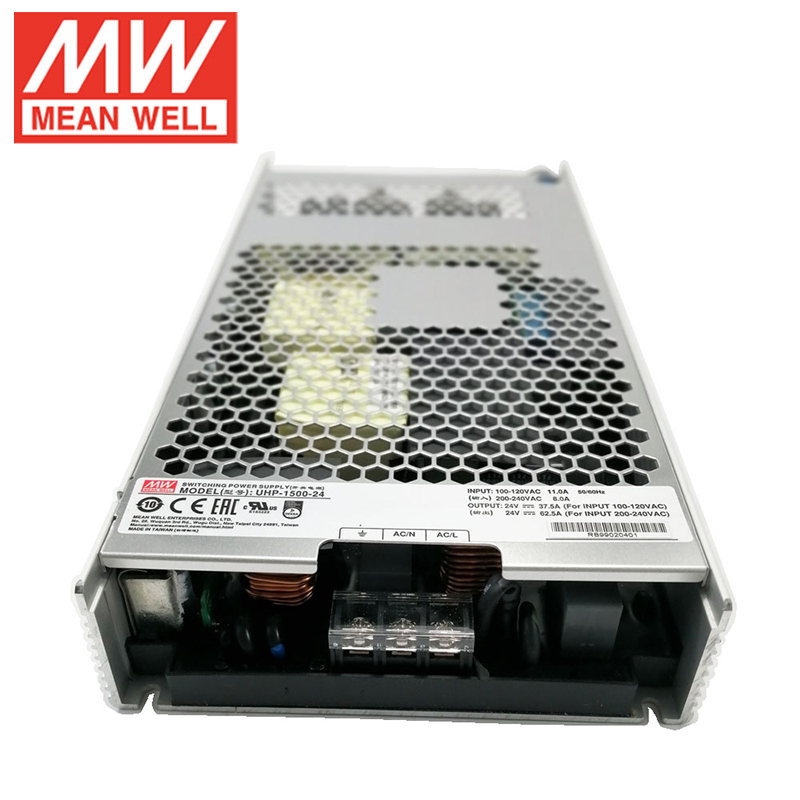

Terminal wiring configuration for LED strip lighting

Key Features of the UHP-1500 Power Supply

Fanless Conduction Cooling

Dissipates thermal load entirely through an aluminum baseplate without internal fans, operating at 0 dB acoustic noise.

Built-in Active PFC

Maintains an active power factor greater than 0.95 to maximize line utility efficiency and minimize harmonic distortion.

High Conversion Efficiency

Achieves up to 96% energy efficiency to reduce heat build-up and lower operating electrical costs under full load.

1U Low-Profile Design

Measures 41mm in total height, enabling easy integration into narrow ceiling coves and 1U standard equipment racks.

Complete Circuit Protections

Includes integrated automatic recovery protections against short circuit, overload, overvoltage, and overtemperature conditions.

Dual Output Voltage Options

Available in DC 24V (62.5A) and DC 48V (31.25A) models to power long continuous linear lighting runs.

Technical Highlights

  • Fanless conduction-cooled architecture operates at 0 dB for zero acoustic interference in quiet rooms.
  • Delivers 1500W continuous output power with a DC output trim range adjustable via onboard potentiometer.
  • Universal AC input from 90VAC to 264VAC accommodates global power grids without manual toggle switches.
  • Built-in active PFC circuit achieves PF > 0.95 at 230VAC full load to comply with commercial harmonic standards.
  • Operating ambient temperature spans from -30℃ to +70℃ with integrated thermal derating safety protection.
  • Meets international safety standards including UL62368-1, EN62368-1, and IEC62368-1 certifications.

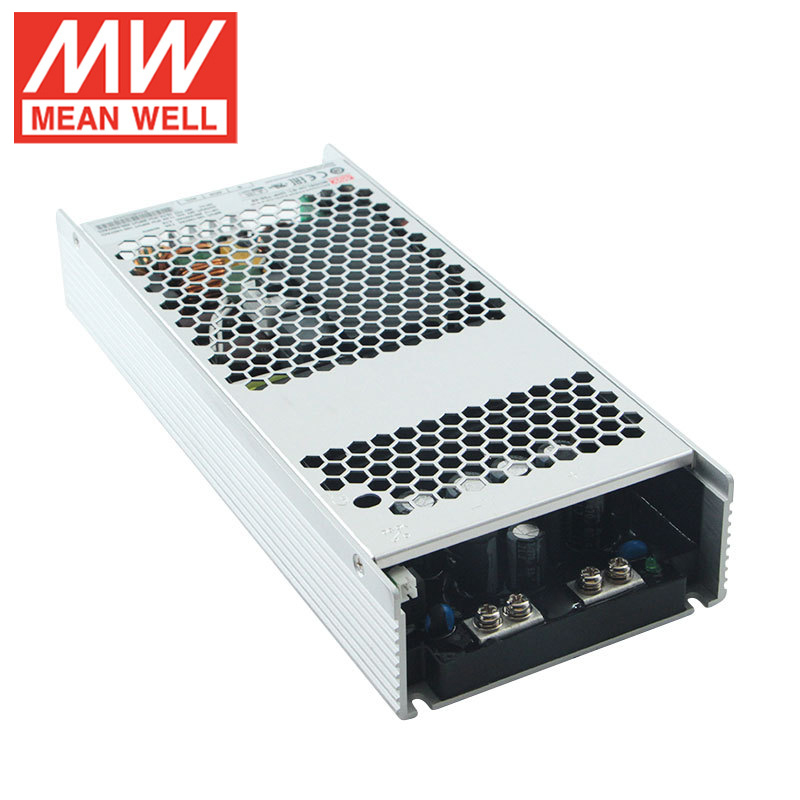

UHP 1500 Meanwell Switch Mode Power Supply
Mean Well UHP-1500 series fanless switch mode power supply

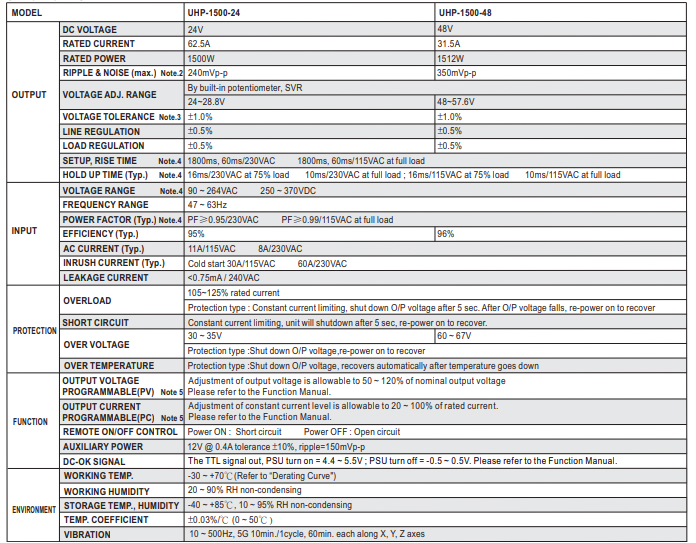

Product Specifications

ParameterDetails
Model SeriesMean Well UHP-1500
Available ModelsUHP-1500-24 / UHP-1500-48
Rated Output Power1500W continuous
Nominal DC Output Voltage24V DC (UHP-1500-24) / 48V DC (UHP-1500-48)
Rated Output Current62.5A (24V model) / 31.25A (48V model)
Voltage Adjustment Range21.6V to 28.8V (24V) / 43.2V to 57.6V (48V)
Input Voltage Range90V to 264V AC universal (47-63 Hz)
Power FactorPF ≥ 0.95 at 230VAC full load
Conversion Efficiency95.5% (24V model) / 96.0% (48V model)
Cooling MechanismFanless conduction cooling
Acoustic Noise Level0 dB (silent operation)
Enclosure Dimensions290mm × 140mm × 41mm (L × W × H)
Form Factor1U low profile
Working Temperature-30℃ to +70℃ (derating curves apply above 50℃)
Working Humidity20% to 90% RH non-condensing
Overload Protection105% to 125% rated output power (constant current limiting)
Overvoltage ProtectionShut down output voltage, re-power on to recover
Overtemperature ProtectionShut down output voltage, recovers automatically after temperature drops
Safety StandardsUL62368-1, EN62368-1, IEC62368-1 compliant
Withstand VoltageI/P-O/P: 3.0kVAC, I/P-FG: 2.0kVAC, O/P-FG: 0.5kVAC
UHP 1500 Meanwell Switch Mode Power Supply - view 2

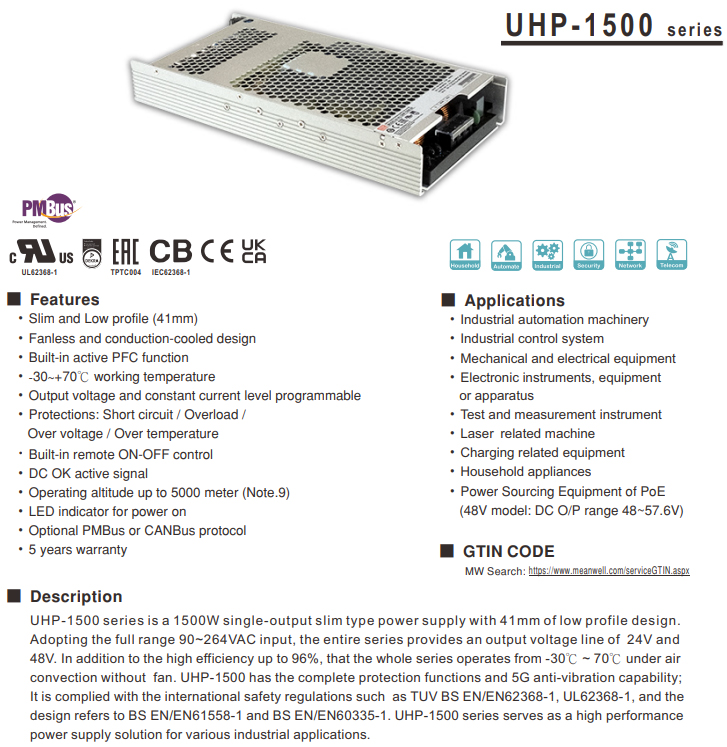

UL certification and compliance standards markings

Target Lighting Environments & Setups

Acoustic Coves & Recording Studios Powers large arrays of linear cove lighting without mechanical fan noise, preserving critical audio environments in recording studios, broadcasting booths, and commercial screening rooms.
High-Density Commercial LED Installations Supplies stable output for extensive architectural runs of single color, tunable white, and RGBW LED strip lights across shopping malls, hotel lobbies, and restaurant ceilings.
Dust-Controlled Industrial Environments Because the fanless housing does not draw air across internal components, it prevents lint, fiber, and particulate buildup in textile workshops, automated control panels, and cleanrooms.

How to Wire & Install This Power Supply

  1. Select the correct driver model: choose DC 24V for standard commercial low-voltage linear lighting, or DC 48V for extended continuous runs using 48V LED strip lights.
  2. Calculate the total lighting load: before installation, calculate power for LED strip lights to verify that the aggregate connected wattage does not exceed 80% to 85% of 1500W (maximum 1200W to 1275W continuous load).
  3. Prepare the mounting surface: install the power supply flat against an aluminum or steel plate measuring at least 450mm × 450mm × 3mm to ensure adequate conduction heat dissipation.
  4. Wire the AC input: ensure mains AC power is completely disconnected at the circuit breaker. Connect Line (L), Neutral (N), and Earth Ground (FG) securely to the AC input terminals.
  5. Connect the DC load: attach the positive wire from your LED strip to the +V terminal and the negative wire to the -V terminal using appropriately gauged copper conductors (e.g. 8 AWG to 10 AWG).
  6. Inspect and energize: re-verify all screw terminal connections, ensure correct polarity, close the terminal barrier cover, and turn on AC mains to test full illumination under load.
⚠ Precautions
  • Do not exceed 85% continuous electrical load capacity (1275W maximum continuous) to maintain efficiency and component lifespan.
  • This is an IP20-rated indoor power supply; for exterior wet locations exposed to precipitation, use a dedicated 24V waterproof power supply instead.
  • The fanless design relies on conduction cooling; do not mount on drywall, wood, or within unventilated enclosed plastic enclosures.
  • Always connect the Frame Ground (FG) terminal to earth ground to guarantee electrical safety and surge protection.

What's in the Box

  • ✓1 × Mean Well UHP-1500 Switching Power Supply (DC24V or DC48V as selected)
  • ✓1 × Official Technical Specification and Wiring Manual

Frequently Asked Questions

Q: how to connect led strip lights to power supply

A:To connect LED strip lights, strip 8mm of insulation from your conductors, attach the positive lead (+ / red) to the +V terminal and the negative lead (- / black) to the -V terminal on the power supply, tighten the terminal screws firmly, and verify polarity before switching on power.

Q: can i use a 24v power supply on a 12v

A:No. Connecting a 24V power supply to a 12V LED strip will deliver double the rated voltage, resulting in rapid diode burnout and permanent circuit failure. Always match strip voltage to driver voltage.

Q: how to power 24v led strip

A:Power a 24V LED strip by wiring its positive and negative input copper pads directly to the +V and -V terminals of a meanwell 24 volt power supply, keeping total combined strip wattage within 80% of the driver rating.

Q: Why is the UHP-1500 designed without a cooling fan?

A:The fanless conduction-cooled design completely eliminates operating fan noise (0 dB) and avoids fan bearing failures, preventing dust intake in clean or acoustic spaces while maintaining full 1500W output when mounted on a metal baseplate.
