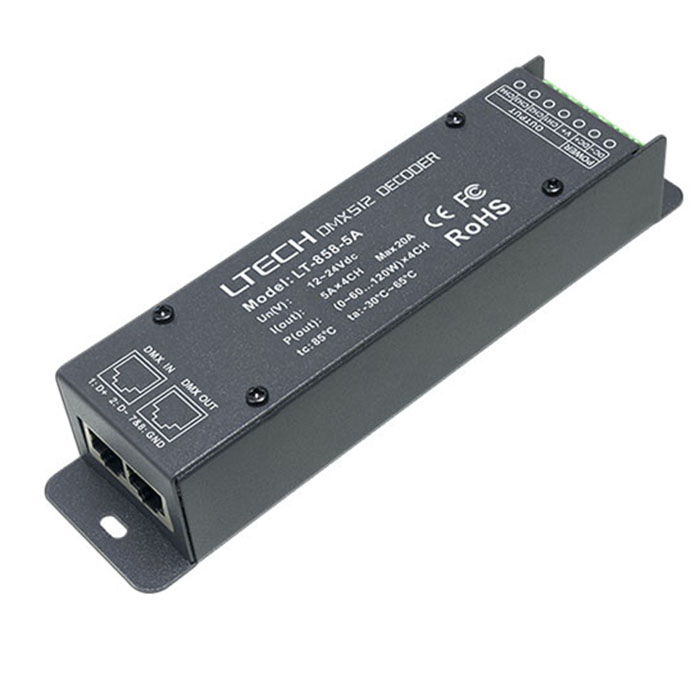

4CH CV DMX Decoder LT-858-5A
LT-858-5A with the standard RDM remote device management protocol supports DMX512 signal bi-directional communication achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol). Realize 0-100% dimming or different lighting effect; workable with a single color, bi-color, RGB and RGBW LED lamps.
4CH CV DMX Decoder LT-858-5A
Input Signal: DMX512, RDM
Input Voltage: 12~24Vdc
Output Voltage: 12~24Vdc
DMX512 Socket: RJ45
Product Size: L175×W42×H33(mm)
Package Size: L183×W48×H41(mm)
Working Temp.: -30℃~65℃
Current Load: 5A×4CH Max. 20A
Output Power: (0-60W...120W)×4CH Max. 480W
Protection: Short circuit / Overload recover automatically
DMX LED Controller LT-858-5A
