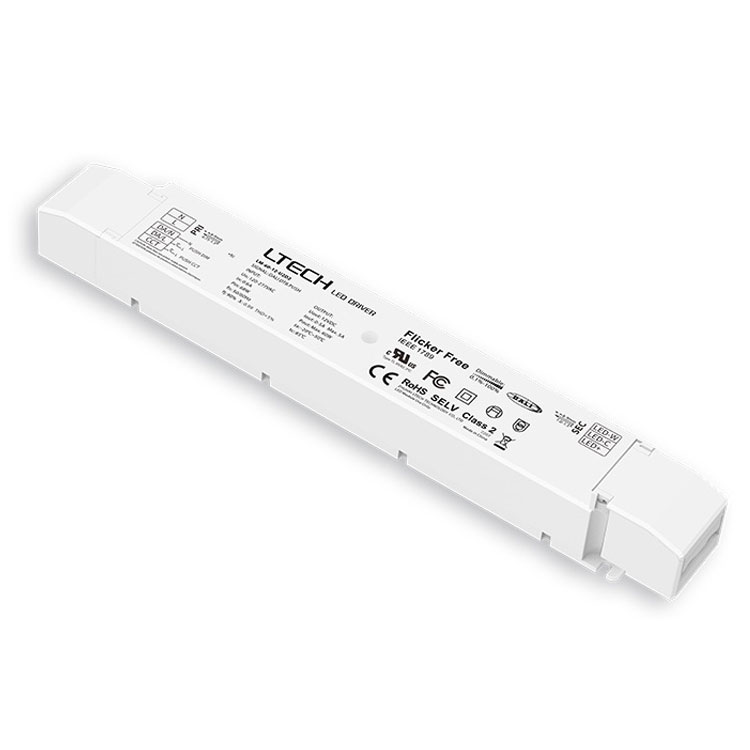

Ltech LM-60-12-U2D2 UL-Certified 60W 12VDC DALI-2 DT6/DT8 DIM&CT LED Driver
Ltech Constant Voltage DALI-2 LED Driver LM-60-12-U2D2, 120-277VAC input, DC12V output, with DALI-2 DT6/DT8 and push DIM/CCT dimming interfaces. 2700-6500K color temperature range, adopt constant power program design and it keeps the same brightness in color temperature adjustment. With soft-on and fade-in dimming function, enhancing your visual comfort. 3600Hz high frequency exemption level. Dimming from 0~100%, down to 0.1%.
Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings.

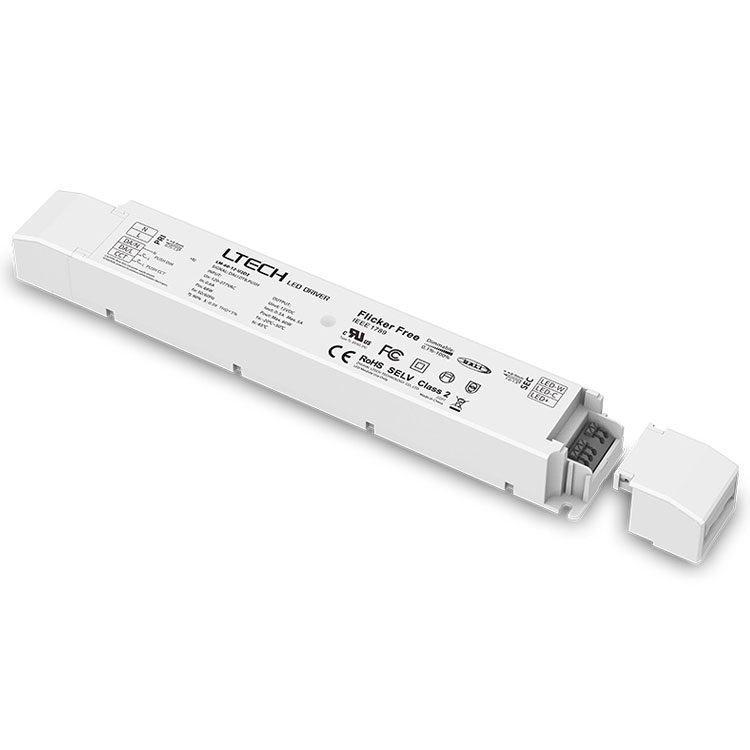

The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
DALI bus standard IEC62386-101, 102, 209.
Comply with the EU’s ErP Directive, stand-by power consumption<0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the power life.
Overheat, over voltage , overload, short circuit protection and automatic recovery.
Suitable for indoor light applications of Ⅰ /Ⅱ/Ⅲ type.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).
Standards and Certifications
|Model:||L-tech LM-60-12-U2D2 DALI-2 DT6/DT8 LED Driver|
|Dimming Interface:||DALI-2DT6/DT8, PUSH DIM/CCT|
|Input Current:||0.6A/120Vac, 0.35A/230Vac, 0.3A/277Vac|
|Output Current:||Max. 5A|
|Output Power:||Max. 60W|
|Dimming Range:||0~100%, down to 0.01%|
