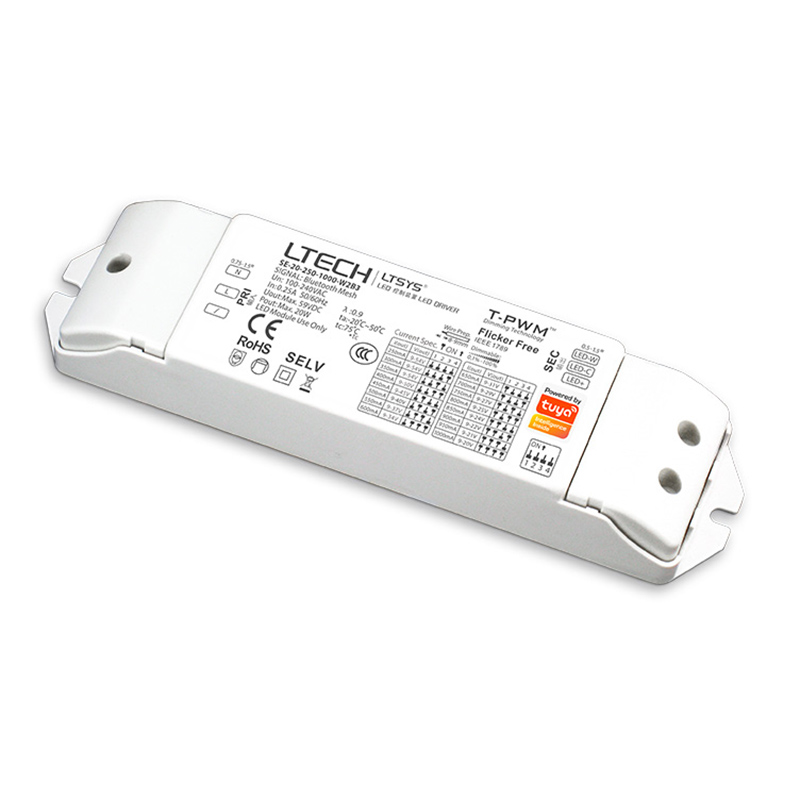

20W Constant Current Tunable White Driver SE-20-250-1000-W2B3
The 100-240V LED dimming driver is designed with 1 channel 100-240V input and 1 channel PWM constant current output. By dip switch.
0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
Besides the 100-240V signal, the dimming driver can be controlled by push switch and potemtiometer as well.
Wireless type: TuYa Bluetooth Mesh
Input Voltage: 100-240Vac
Power Factor: PF>0.95
Output Voltage: 9-54Vdc
Output Current: 250-1000mA
Output Power: 1-20W
Dimming Range: 0~100%, dimming depth: Max. 0.1%
Warranty: 5 years
Standards and Certifications
