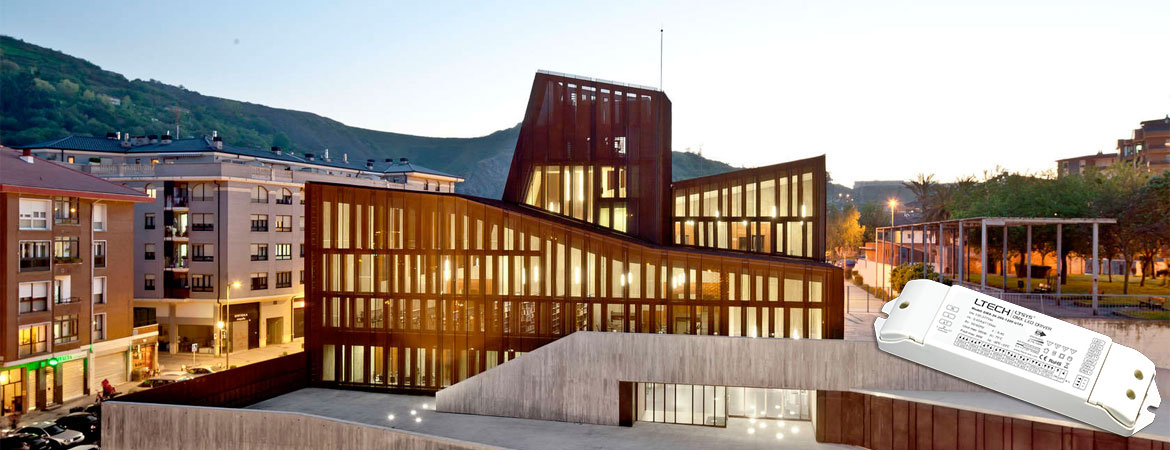

DMX-36-200-1200-U1P1 36W 200-1200mA CC DMX Driver
Dimming interface: DMX512/RDM
Dimming range: 0-100%, LED Startup Current<0.1%
Input voltage: 100-277VAC
Current Accuracy: ±3%
Output voltage: 10-54VDC
CC output: 200mA-1200mA
Output power: 2W-36W
working temperature: -30℃～55℃
Package Size: 178x48x33mm(LxWxH)
Weight (G.W): 150g

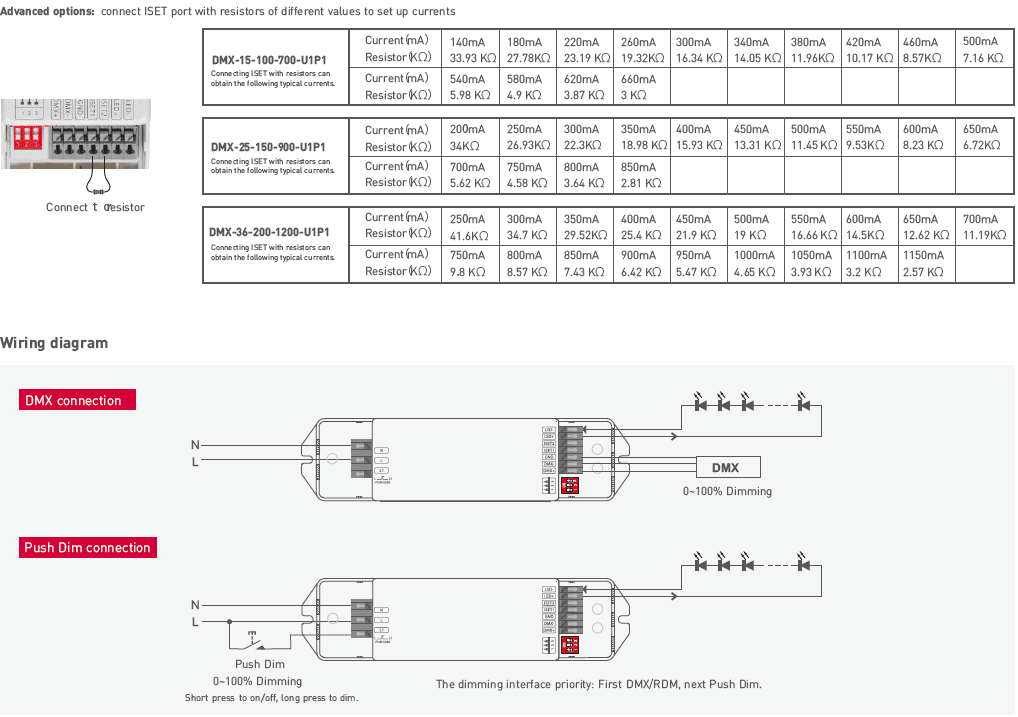

Dimming interface: DMX512/RDM, Push Dim
With the RDM remote device management protocol,
Supports DMX512 signal bi-directional communication.
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Multiple current, wide voltage, compatible with a variety of LED lights.
Non-load output voltage 0V to prevent damages to LED caused by poor cont
Short circuit / Over-heat / Overload / Non-load protection
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
