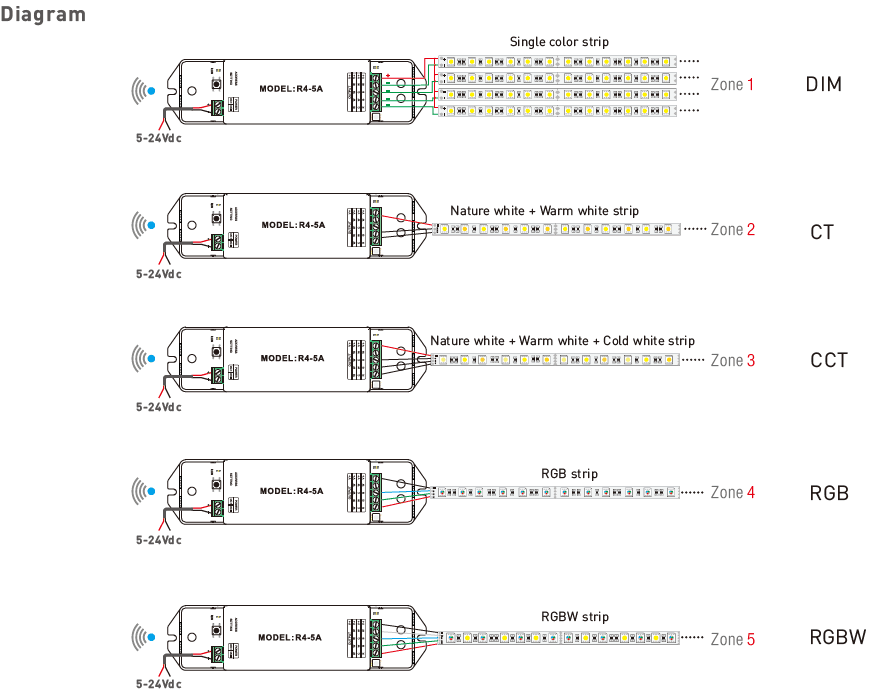

DC5-24V R4-5A CV Zone Receiving controller
Working Frequency: 2.4GHz
Input voltage: DC5V~DC24V
Max current load: 5A x4CH Max 20A
Max output power :100W/240W/480W(5V/12V/24V)
Remote Distance :50m (Distance of cross-eyed)
Working temperature: -30℃～55℃
Package size :L178×W48×H33mm
Weight (G.W.) :150g
