3CH CV DMX Decoder LT-830-8A

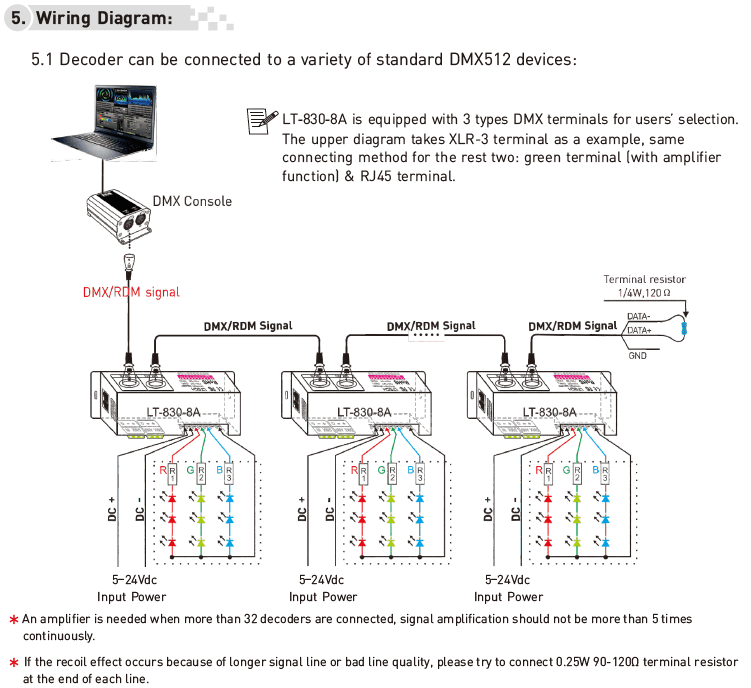

LT-830-8A With the standard RDM remote device management protocol supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol). Equipped with DMX standard XLR-3, RJ45, green terminal interface. Realize 0-100% dimming or different lighting effect; workable with a single color, bi-color or RGB LED lamps.
LT-830-8A 3CH CV DMX Decoder LT-830-6A
Input signal :DMX512
Input power :DC5V～DC24V
Max load current :8A ×3CH Max 24A
Max output power: (0~50W...192W)×3CH Max. 576W

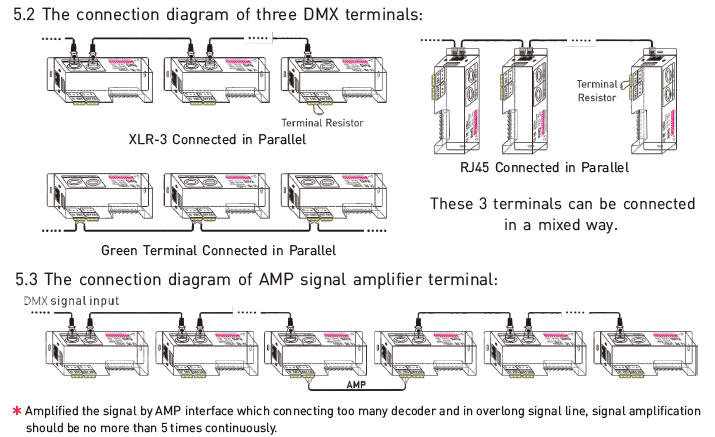

DMX512 socket :XLR-3, RJ45, Green terminal (with signal amplification function)
Dimming range: 0~100%
Working temperature: -30℃～65℃
Package Size: L180×W82×H50mm
Weight (G.W) :430g
