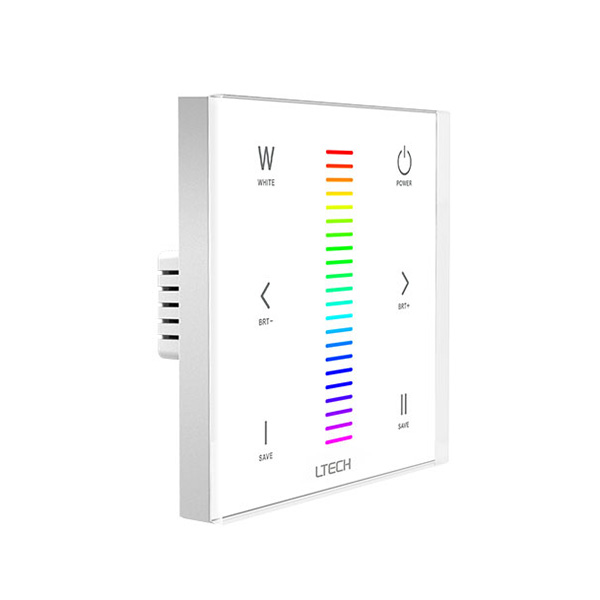

E4 RGBW Touch Panel

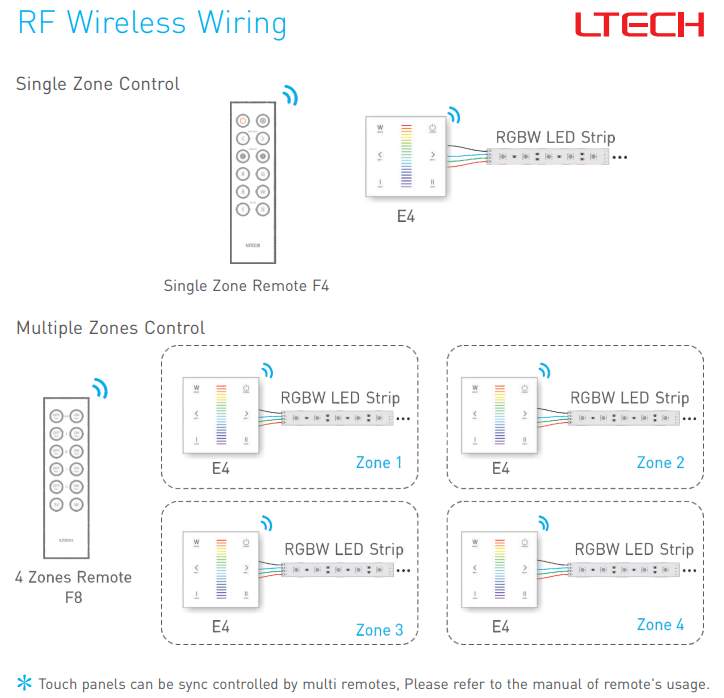

2 in 1 function: RF wireless control and PWM power output.

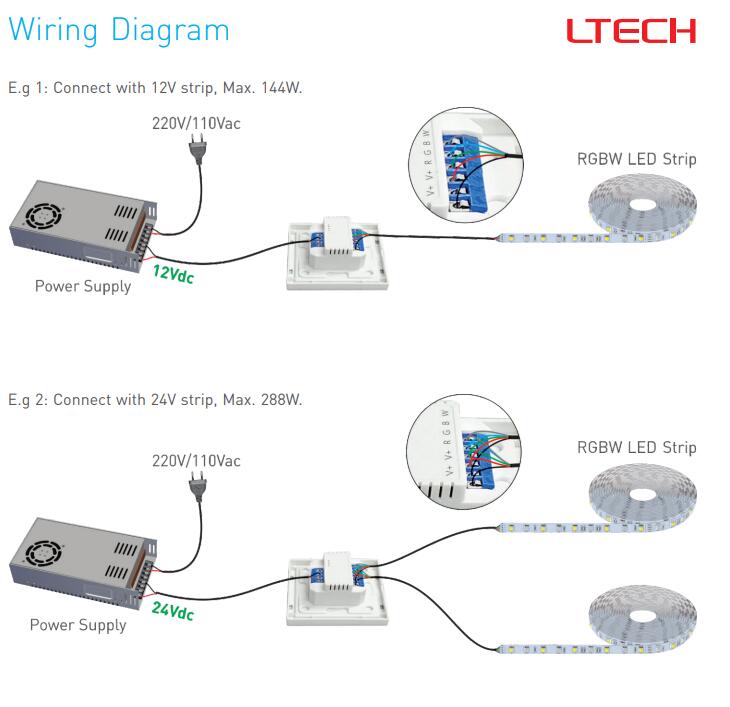

Power output, lamps can be connected directly, easy and convenient
Touch keys with chord and LED indicator
Save any scene you like, touch 1 key to recall the scene, easy and convenient
Adopts capacitive touch control technology on the full-color slider, makes LED color
selection more user-friendly

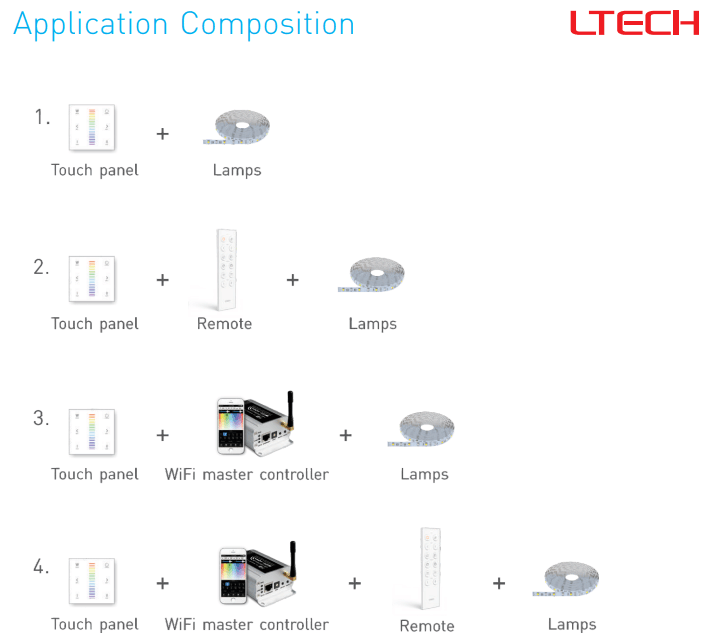

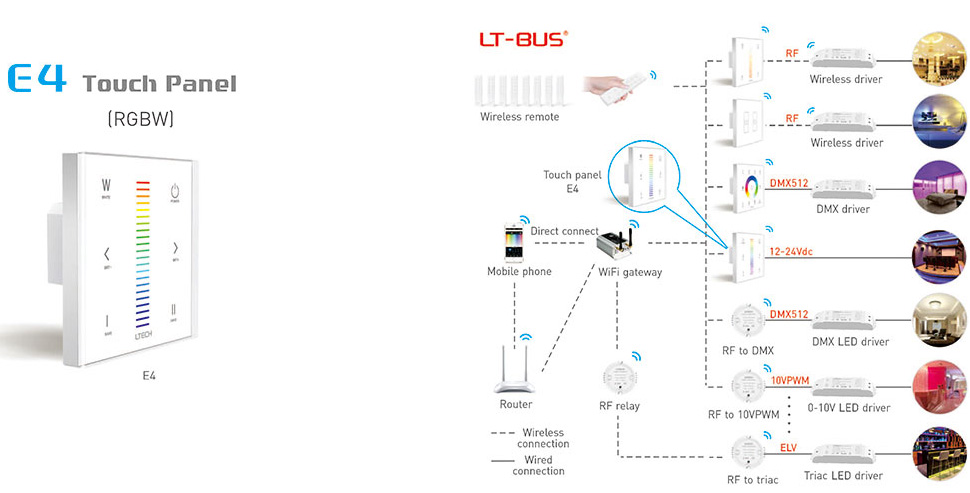

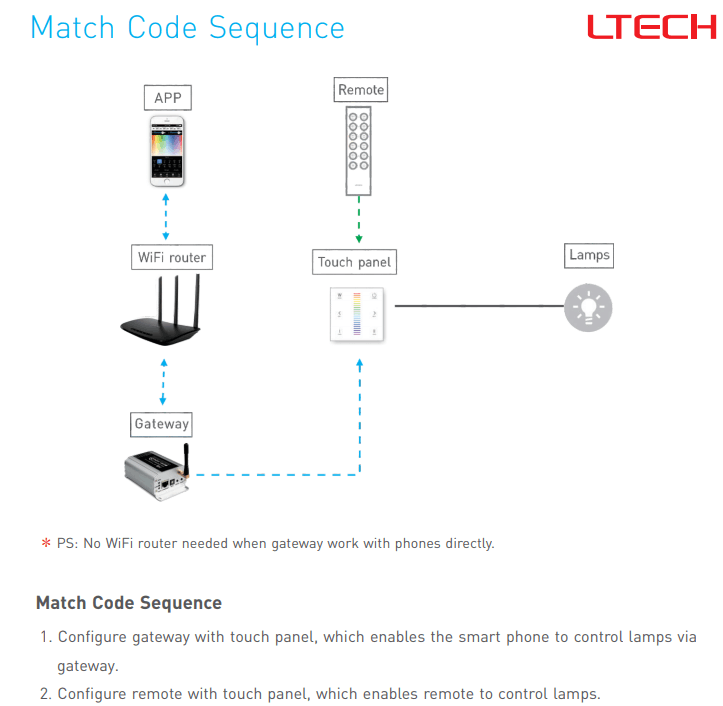

The touch panel can be controlled by remote directly or smartphone if add a gateway.
E4 RGBW Touch Panel
Input Voltage: 12-24Vdc
Current Load: 3A×4CH Max. 12A
Output Power: (0~36W...72W)×4CH Max. 288W
Working Temp.: -20℃~55℃
Package Size: L113×W112×H50(mm)
