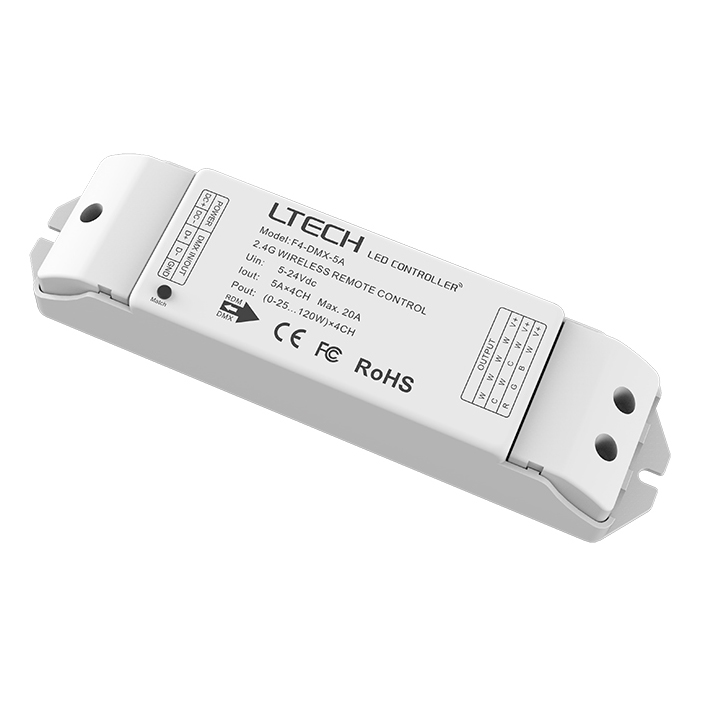

LED Wireless&Wire Driver F4-DMX-5A
LED Wireless & Wire Driver

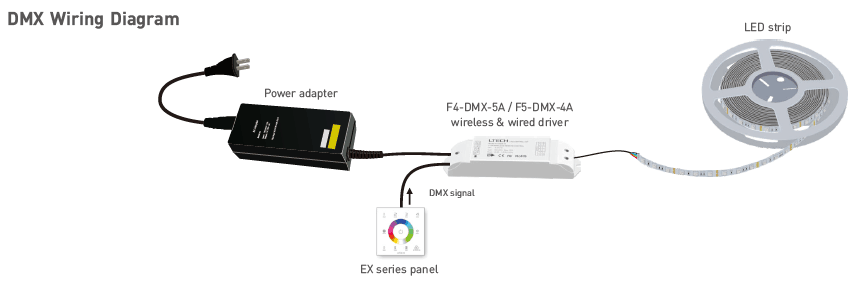

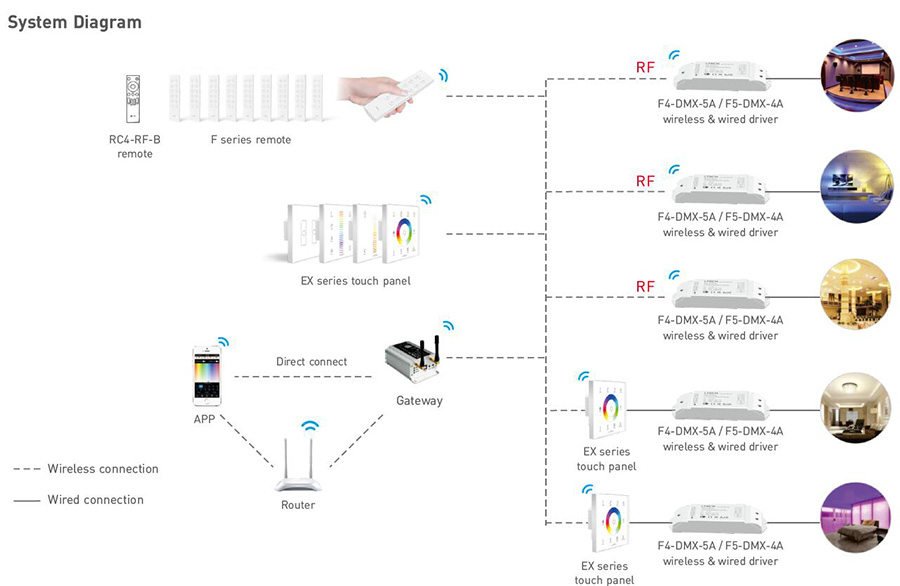

This product support two wiring ways: RF 2.4GHz wireless connection and DMX wired
connection. Workable with WiFi-106, intelligent gateway, EX series panel, F series remote
and RC4-RF-B remote, etc..

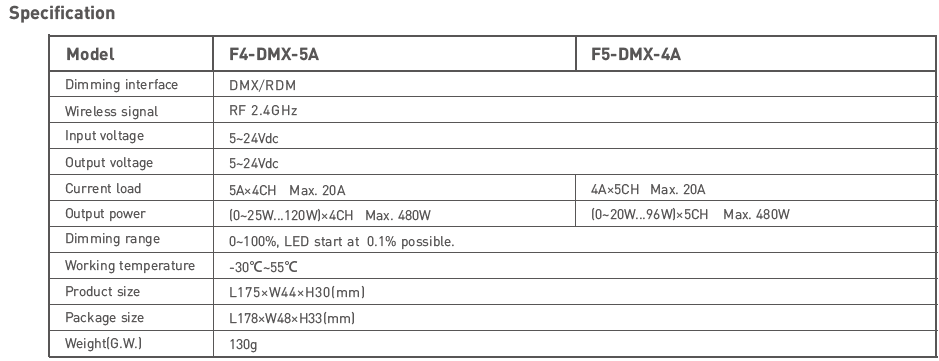

Dimming interface: DMX/RDM
Wireless signal: RF 2.4GHz
Input voltage: 5~24Vdc
Output voltage: 5~24Vdc
Current load: 5A×4CH Max. 20A
Output power: (0~25W...120W)×4CH Max. 480W
Dimming range: 0~100%, LED start at 0.1% possible.
Working temperature: -30℃~55℃

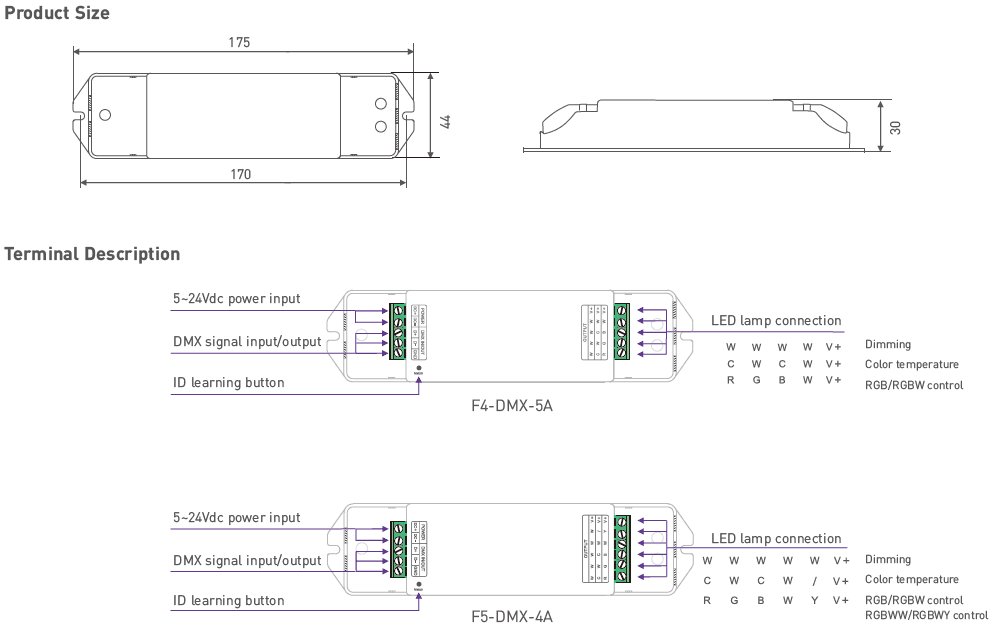

Product size: L175×W44×H30(mm)
