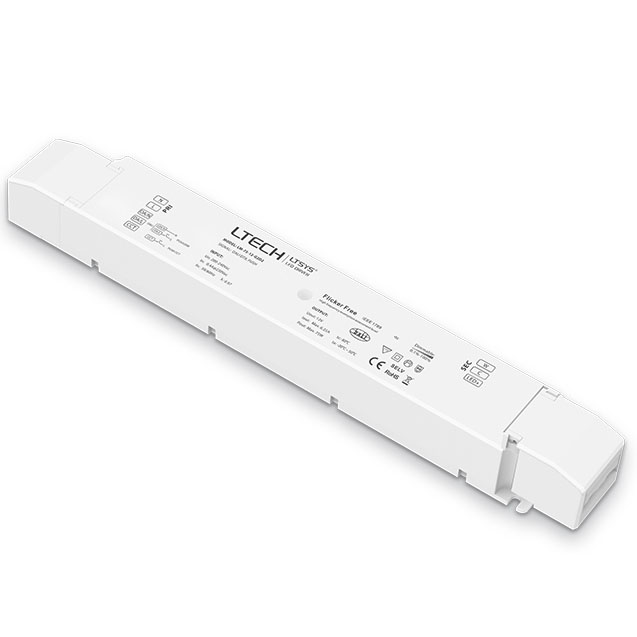

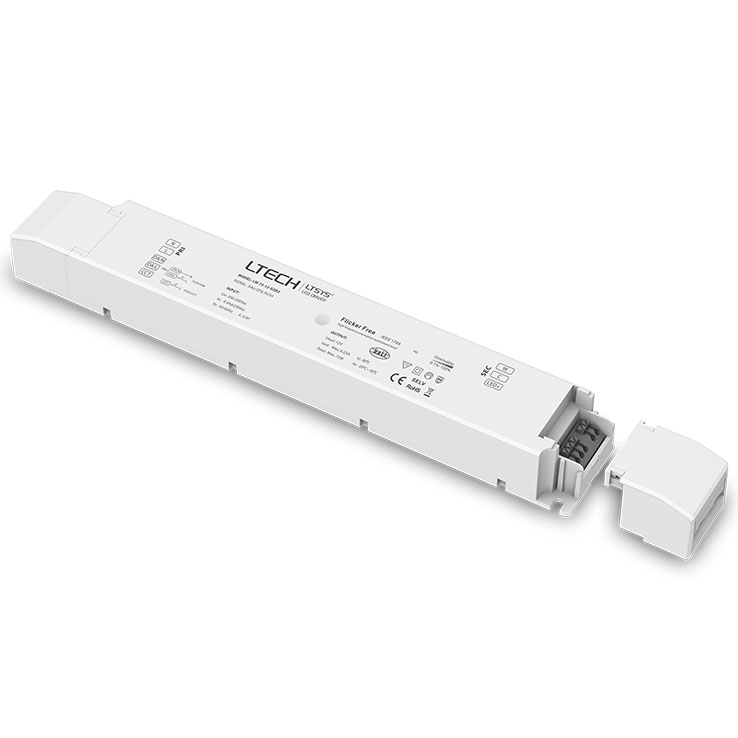

75W 12VDC CV DALI DT8 DIM&CT Driver（200-240Vac）LM-75-12-G2D2
LED Intelligent Driver
Dimming interface: DALI DT8, Push DIM/CCT
2 independently SELV constant voltage output channels.
DALI DT8, DIM and color temperature adjusting driver.
Constant power design, adjust the different color temperature to keep the same brightness.
Dimming range from 0-100%, LED start at 0.1% possible.
Color temperature adjusting range: 2700-6500K
0~100% flicker-free, achieve the level of exemption assessment.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Standby Power Loss: <0.5W
Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamps application.
