What is circadian lighting, exactly?

Circadian lighting is light that changes throughout the day to mimic the natural progression of sunlight. Our Circadian CCT LED sheets do this by letting you adjust the color temperature from a cool, energizing daylight (6500K) for midday focus to a warm, relaxing candlelight (2700K) in the evening. The goal is to support your body's natural sleep-wake cycle, which can contribute to better sleep and daytime alertness. It's a pretty deep topic, and you can learn more in our guide to tunable white lighting.

How does this technology create the best circadian rhythm lighting for better sleep?

It's all about signaling your body. Exposure to the cool, blue-rich light from a 6500K setting during the day suppresses melatonin, the hormone that makes you sleepy. As you shift the light towards a warm 2700K in the evening, you're reducing that blue light exposure. This allows your body's melatonin production to rise naturally, signaling that it's time to wind down and prepare for sleep. For this to work, you need a controller that can automate this daily shift.

What's the difference between these tunable white sheets and your RGB+CCT sheets?

It comes down to the quality of the white light. These Circadian CCT sheets use two dedicated types of SMD 2835 LEDs—one warm white and one cool white. Blending these two gives you a very pure, high-quality white light across the entire temperature range. Our RGB CCT sheets are fantastic for dynamic color, but they create white light by mixing red, green, and blue LEDs. For a project focused purely on the best white light for backlighting, a dedicated CCT sheet is the right tool.

How many wires do I need for a tunable white LED sheet?

You'll need three wires. All our CCT sheets are 24V DC and have three connection points: a common positive (+24V), one negative for the warm white LEDs (WW), and one negative for the cool white LEDs (CW). You'll need to run 3-conductor cable from your controller to the sheet. We stock the 3-pin connectors and wire you'll need for the job.

What controller do I need to make the color change automatically?

To get that automated sunrise-to-sunset effect, you need a programmable CCT controller. Look for smart controllers that work over WiFi or Zigbee, as they can usually be programmed with 'scenes' or timed schedules using an app like Tuya, Smart Life, or by integrating with systems like Home Assistant. This allows you to set it once and have it run the circadian schedule automatically. You can find several options in our CCT dimmers and controllers category.

What's the best way to light a huge wall without wiring dozens of small sheets?

That's a common headache on big jobs. Daisy-chaining a lot of small panels creates a ton of wiring and potential failure points. The standard industry solution is just to deal with it, but we built a better one. For large, continuous surfaces, the clear winner is our super long tunable LED sheet roll. It comes in a continuous roll up to 10 meters long, eliminating most of the connections you'd otherwise have to make.

Can I dim the brightness as well as change the color temperature?

Yes, any CCT controller worth its salt will let you do both. The controller manages two things simultaneously: it adjusts the overall power going to both sets of LEDs to control brightness (dimming), and it adjusts the power ratio between the warm white and cool white LEDs to change the color temperature (CCT tuning). You get full control over both intensity and color.

How does circadian rhythm technology in LED sheets really work?

It works by influencing your body's production of melatonin, the sleep hormone. Your brain is hard-wired to react to the color of light. During the day, the cool, blue-heavy light of a 6500K setting mimics the sun and tells your brain to suppress melatonin, keeping you awake and alert. In the evening, shifting to a warm, low-blue 2700K light allows melatonin levels to rise naturally, preparing you for a restful night's sleep.

Do these sheets get hot enough to need a heat sink?

Generally, no. The flexible printed circuit board (FPC) is designed to spread the heat out, and in a typical backlighting application with some air behind the panel, they operate well within their thermal limits. The only time I'd recommend adding an aluminum plate as a heat sink is if you're installing the sheet in a very tight, completely sealed enclosure with zero airflow.

Why are all your circadian LED sheet lights 24V?

We've standardized on 24V for nearly all our professional-grade flexible lighting, including all 5 of our main CCT sheet models. A 24V system can carry the same amount of power with half the current of a 12V system. This means less energy lost as heat in the wiring and, most importantly, much less voltage drop. It allows you to power larger sections of lighting from a single power supply without the far end getting dim, which is critical for large, uniform backlit panels.

CCT Tunable LED Sheet Solutions - Healthy Living Circadian Rhythm Lighting

CCT tunable LED sheet light panels are the preferred choice for backlighting projects in home and residential spaces. SuperLightingLED™ CCT LED sheets allow you to instantly adjust the color temperature of kitchen island lighting or LED roofing based on local sunrise and sunset times, with support from compatible CCT controllers and remote controls.

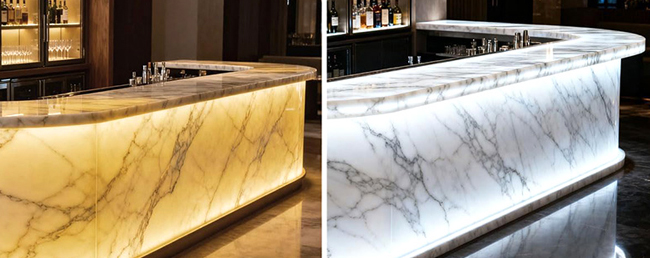

Their 2700K to 6500K lighting range aligns well with the human circadian rhythm. On overcast or rainy days with insufficient natural light, adjust the kitchen or ceiling backlight to 6500K sunlight for optimal brightness to support indoor activities. As night falls, switch it to 2700K warm yellow light to enhance the cozy ambiance of your dwelling.

Tunable White LED Sheet Lighting Solutions For Backlighting

How Can You Obtain Tunable White LED Sheet that Aligns with Your Health-Conscious Lighting Approach?

The choice of CCT LED sheet determines the type of controller and power supply you need to purchase for your circadian light sheet backlighting system. If you're unsure, check out our selection guide:

For simple wiring even with multiple standard-sized panels - Choose our long roll tunable circadian LED light sheet
For intricate backsplash backlighting areas - Choose our 24W mini 10x10 CCT LED matrix sheet
For uniform rectangular countertop backlighting areas - Choose our 40W popular 22x11 CCT LED matrix sheet
For high brightness - Choose our 55W 22x10 CCT LED matrix sheet panel or 60W 24x12 CCT LED matrix light sheet
For energy-saving backlight ambiance - Choose our 23W low-power 20x10 CCT LED matrix sheet
Highlight more dazzling warm-to-cool transitions on stone countertops - Choose our 23W 20x10 “golden yellow + ice blue” dynamic light panel

Whether your goal is to control the kitchen island backlighting and backsplash areas together or separately, choosing an RF-synchronized CCT controller offers the greatest flexibility. These controllers support wireless wall panels, allowing you to group, synchronize, or independently adjust brightness and color temperature across multiple backlighting zones—without additional wiring. With a single wall panel, you can easily switch between daytime and evening lighting scenes, creating a healthier and more adaptive kitchen lighting environment.

To learn more about LED sheets for backlighting systems, please read our blog.
