Full-Color RGB CCT LED Sheets

It's all about the quality of the white light. A standard RGB light sheet mixes red, green, and blue to make a low-quality, purplish-white. An RGBW sheet adds a single dedicated white chip, which is better. But an RGBCCT (RGB + Correlated Color Temperature) LED sheet has five channels: Red, Green, Blue, plus separate Warm White and Cool White chips. This means you get vibrant, saturated colors when you want them, AND you can blend the two white channels to create a high-quality, high-CRI white light anywhere from a warm 1800-2700K to a cool 6500K. For a full breakdown, see our guide to color-changing LED strips.

Yes, absolutely. That's what they're designed for. Each of our full-color RGBCCT LED sheets has clearly marked cut lines, usually between each small circuit of LEDs. You can cut them with a sharp pair of scissors along these lines to fit any shape you need, whether it's around an outlet or for a custom-shaped countertop. The pieces you cut off can even be wired up and used for other small projects.

You'll need a 6-conductor wire. This is a common trip-up for people used to simpler strips. An RGBCCT LED sheet has six connection pads: one for red (R), one for green (G), one for blue (B), one for warm white (WW), one for cool white (CW), and one common positive terminal (V+). Using a 4-pin RGB or 5-pin RGBW cable won't work because you won't be able to control all the channels.

To get independent control over all five color channels, you need a dedicated 5-channel RGBCCT LED controller. You can't use a standard RGB or CCT controller. We have hundreds of compatible controllers that let you manage everything from a wall panel, a handheld remote, or through smart home protocols like Zigbee, DALI, or WiFi. The controller is what makes the magic happen.

It's a straightforward calculation. Find the total wattage of the sheet area you plan to use (the wattage per sheet is on each product page). Add up the wattage for all sheets in your project. Then, multiply that total wattage by 1.2. That final number is the minimum wattage you need for your 24V DC power supply. That extra 20% is a critical safety margin that keeps the driver from overheating and extends its life.

This is a simple wiring mix-up at the controller. Your RGBCCT LED sheet is showing the wrong colors because, for example, the red wire from the sheet is connected to the green terminal on the controller. Just power everything down, double-check that each wire (R, G, B, WW, CW, V+) from the sheet goes to the matching terminal on the controller, and your colors should be perfect.

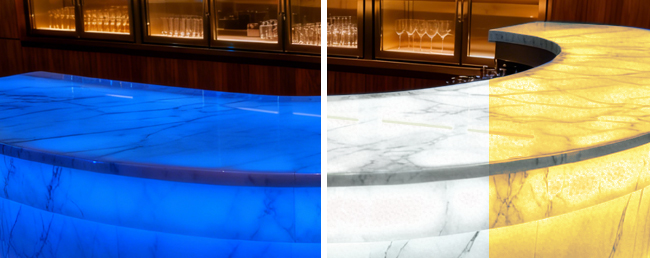

Yes, this is exactly what RGBCCT LED sheets were designed for. They solve the biggest problem with color-changing lights: poor white quality. You get the best of both worlds. Use the dedicated CCT channels for brilliant, clean white light when you're working in the kitchen or at a reception desk. Then, switch to the RGB channels for millions of colors for mood and accent lighting. It's two lighting systems in one flexible sheet.

Our sheets are designed to be tiled together. Most models have connection terminals on multiple sides, so you can easily link them side-by-side or end-to-end to cover large surfaces. For a big installation, the key is to run parallel power feeds from your power supply to different sections of the wall. Our guide to LED sheets covers some of these large-scale install tips.
