Product Information
Key Features

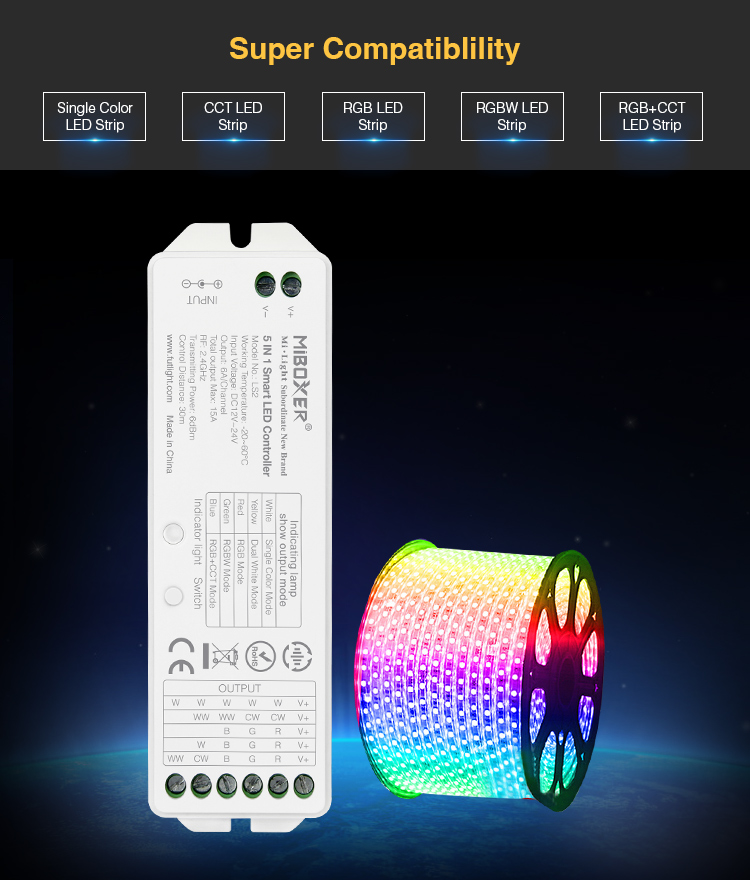

5-in-1 Universal Compatibility
One controller handles five types of LED strips: Single Color, Dual White (CCT), RGB, RGBW, and RGB+CCT.
Powerful 15A Output
Delivers up to 6A per channel with a total maximum output of 15A, capable of driving long or high-density LED strips.

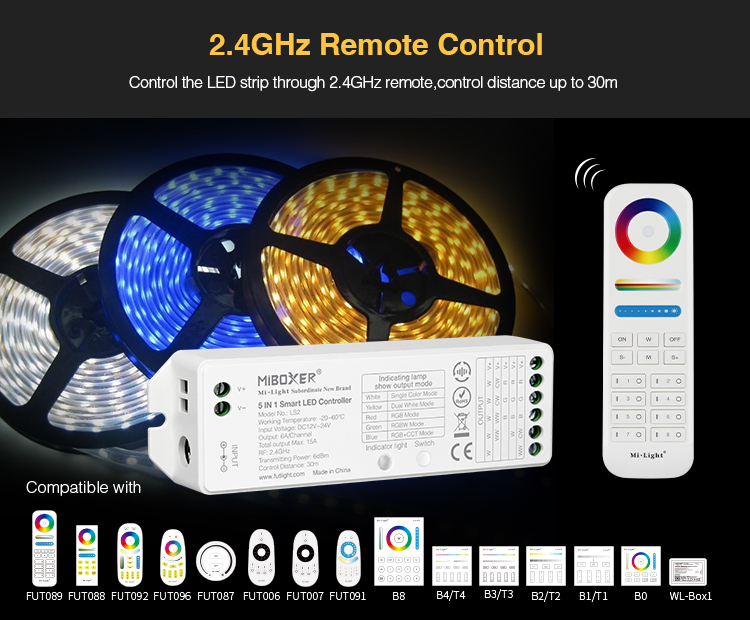

2.4G RF Wireless Control
Utilizes a stable 2.4GHz RF signal for responsive control up to 30 meters (98 ft) without line-of-sight requirements.

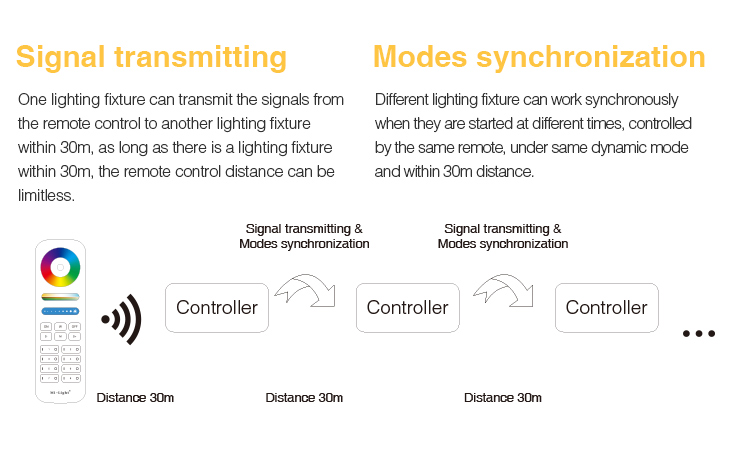

Auto-Sync & Signal Forwarding
Multiple LS2 controllers can sync perfectly when paired to the same remote, and they automatically transmit signals to extend the control range indefinitely.
Technical Highlights
- Mode selection via a simple press of the 'SET' button, with a color-coded indicator light for easy identification.
- Compatible with all Miboxer 2.4G series remotes, including handheld and wall panel versions.
- Common anode connection for broad compatibility with standard low-voltage LED strips.

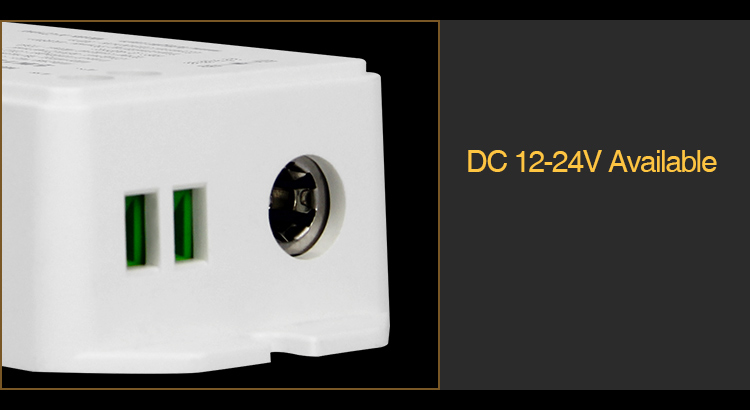

- Wide voltage input (DC12V~24V) automatically adapts to your LED strip and power supply.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 5 in 1 Smart LED Controller |
| Model No. | ML-LS2 |
| Brand | Miboxer |
| Input Voltage | DC12V~24V |
| Output Current | Max. 6A / Channel |
| Total Output | Max. 15A |
| Control Technology | 2.4GHz RF Wireless |
| Control Distance | 30m (98.4 ft) |
| Supported Strip Types | Single Color, CCT, RGB, RGBW, RGB+CCT |
| Working Temperature | -20~60°C |
| Dimensions (L*W*H) | 142 x 38 x 23 mm |
| Weight | 60g |
Application Scenarios
How to Control & Use This Controller

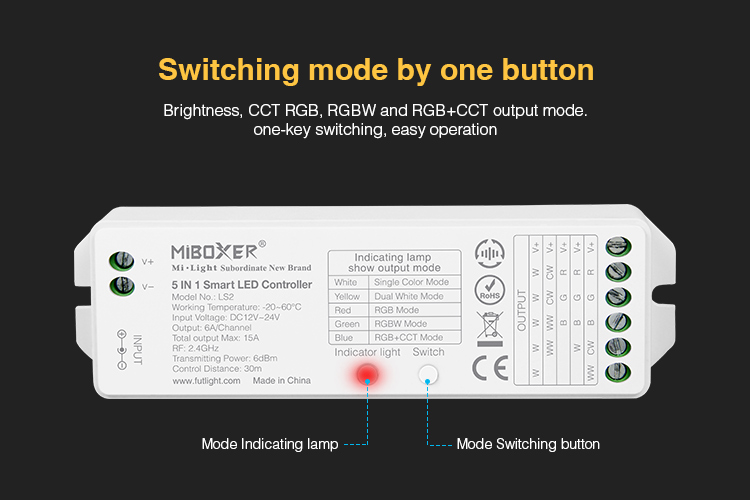

- Select Output Mode: Before wiring, press the 'SET' button on the controller to cycle through the five modes. The indicator light will change color to confirm your selection (White: Single Color, Yellow: CCT, Red: RGB, Green: RGBW, Blue: RGB+CCT).
- Connect Power: Wire your DC12V or 24V power supply to the controller's INPUT terminals, ensuring the positive (+) and negative (-) wires are connected correctly.

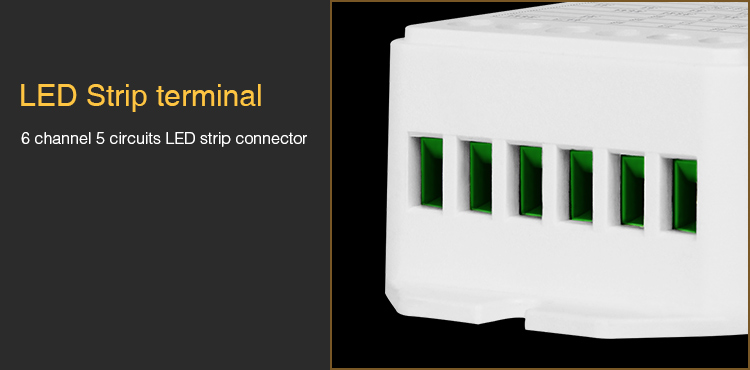

- Connect LED Strips: Wire your LED strip to the OUTPUT terminals. The V+ terminal is for the common positive wire. The other terminals (CW, WW, R, G, B) correspond to the negative wires on your strip. Only connect the wires needed for your selected mode.
- Pair with Remote: To link with a compatible RF Remote Control, first power off the LS2 controller. Power it back on, and within 3 seconds, press the 'I' (ON) button of your desired remote zone three times. The light strip flashing slowly three times indicates successful pairing.
- Ensure the input voltage of the power supply matches the working voltage of your LED strip (e.g., use a 24V power supply for 24V strips).
- Do not exceed the maximum load of 6A per channel or 15A total for the controller.
- Check all wiring for correct polarity before applying power to prevent damage to the controller or LED strips.
- This controller is for indoor use only and is not waterproof.

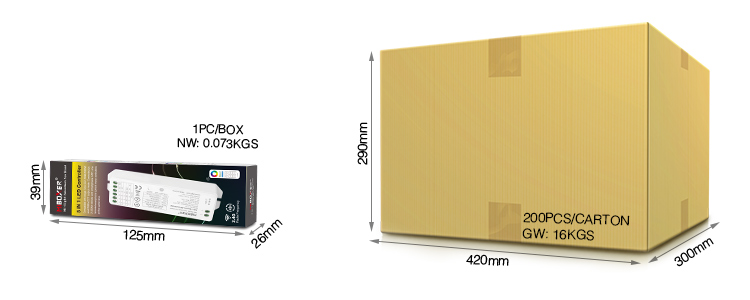

What's in the Box
- ✓1x LS2 5 in 1 Smart LED Controller
- ✓1x User Manual
⇩ Downloads & Documents
PDFLS2
Frequently Asked Questions
Q: What types of LED strips can the LS2 controller handle?
A:The LS2 is a 5-in-1 controller that can operate Single Color, Dual White (CCT), RGB, RGBW, and RGB+CCT LED strips. You select the mode using the 'SET' button on the device.
Q: Is this a WiFi or Zigbee controller?
A:No, the LS2 uses 2.4G RF wireless technology. It requires a compatible Miboxer 2.4G remote control and does not connect directly to your home WiFi network or smart assistants like Alexa or Google Home.
Q: How do I switch between the 5 output modes?
A:You can easily switch modes by pressing the physical 'SET' button on the controller. A different colored indicator light will show which mode is currently active.
Q: Can I control multiple LS2 controllers with one remote?
A:Absolutely. You can pair multiple LS2 controllers to the same zone on a compatible Miboxer remote for perfectly synchronized control.
Q: What is the maximum length of LED strip I can connect?
A:This depends on your strip's power consumption. The controller supports a maximum of 15A. For a 12V system, this is 180W, and for a 24V system, it's 360W. Ensure your strip's total wattage is below this limit.
Q: Should I wire multiple LED strips to this controller in series or parallel?
A:Always wire multiple LED strips in parallel to the controller's output. Connecting long strips in series causes voltage drop, leading to dimming and incorrect colors. A parallel connection ensures each strip gets full, consistent power.
Q: What kind of remote do I need for this controller?
A:You will need any Miboxer or Mi-Light 2.4G series remote control. This includes various handheld remotes and wall-mounted panel controllers.
