DC12V-48V LED constant current Power Repeater BC-991

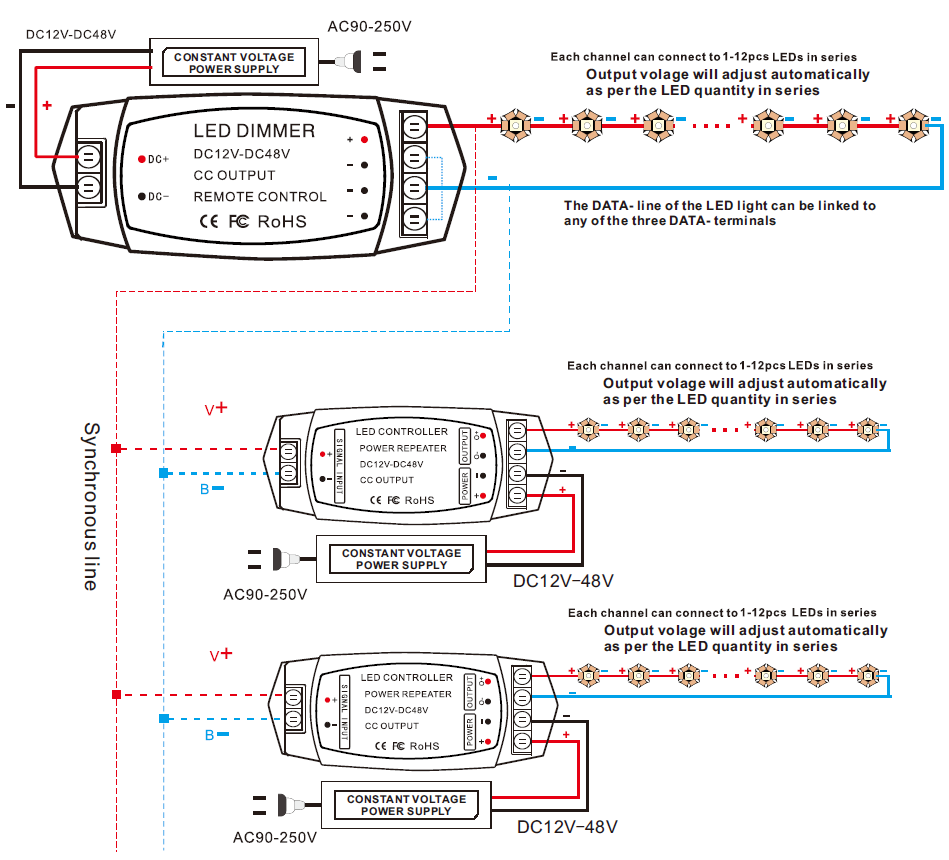

LED constant current power repeater is specially designed for our single color and RGB controllers to expand power output, it accepts PWM signal, double or three times more power can be reached by everyone more power repeater, and in theory, power repeater can be added unlimitedly. Also, the power repeater of constant voltage model and the constant current model could be connected freely, suitable for synchronized controlling on different LED lamps.
1. Automatically adapt to LED light which works from DC12V-48V.
2. Accept PWM control.
3. Constant current 350mA, 700mA, Maximum 2400mA (set before shipping.)
4. Unlimited connection quantity theoretically, unlimited power output expansion.
5. Maximum length from controller to repeater can be 500metersnotice.
6. Power loss memory function.
7. 3000V optoelectronic isolation.
Standards and Certifications
Input power: DC12V-48V
Output signal: Constant Current PWM
Max load current: 350mA、700mA,1050mA…Max2400mA (As per customer request before shipping)
Driving LEDs: 1-12pcs 1W(3W) LEDs

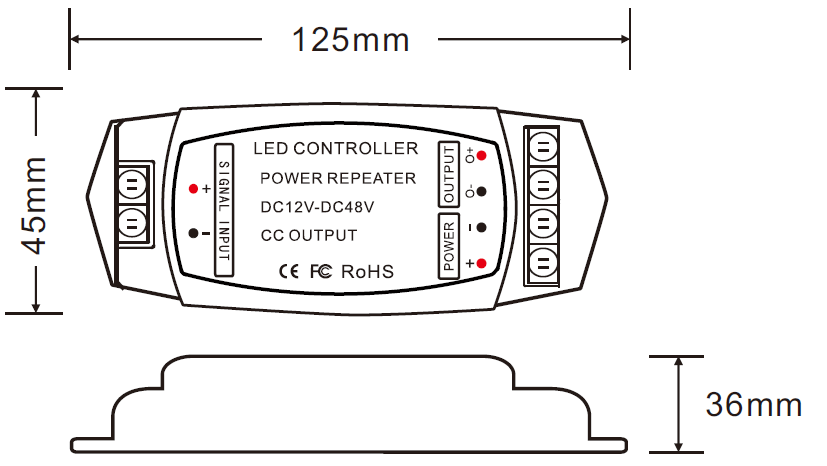

Switch size: L125xW45x H36(mm)
Packing size: L130×W47×H42(mm)
Gross weight: 90g
Please don’t install this controller in lightening, intense magnetic, and high-voltage fields.
1.To reduce the risk of component damage and fire caused by a short circuit, make sure the correct connection
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
3.Check if the voltage and power adapter suit the controller
(please select DC5-36V power supply with constant voltage)
4.Donot connect cables with power on; make sure a correct connection and no short circuit checked with the instrument before power on.
5.Please don’t open the controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without prior notice.
From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except for the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by an inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect connections, and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike, etc force majeure of natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and humidity environment, or near harmful chemicals.
Power Source Selection:
The power source must be a DC constant voltage type of power supply. Due to the efficient output in some power supplies are only 80% of the total, so please select at least a 20% higher output power supply than the consumption of LED lights.
