Product Information
SMD2835 WW+CW White Changing 2(24x12) LEDs 480mm*240mm Bright LED Light Panel Sheet Flex 24V with two 3-pin wire cables - 288 Circuit Zones.
2835 tunable white color temperature LED light sheet with ultra-thin flexible printed circuit board, one row of 24 CCT LEDs, total 12 rows of 24 CCT LEDs (576 lights, 288 warm lights +288 daylight lights). Each two CCT LEDs is a set of independent circuits, you can cut it to the appropriate shape according to your application. Powered by 24V DC low voltage, one tunable white flexible LED light sheet consumes 60 watts at full output.
Ultra slim flexible tunable white LED lighting sheet, 90 high color rendering
One warm white LED and one daylight white LED as a set CCT

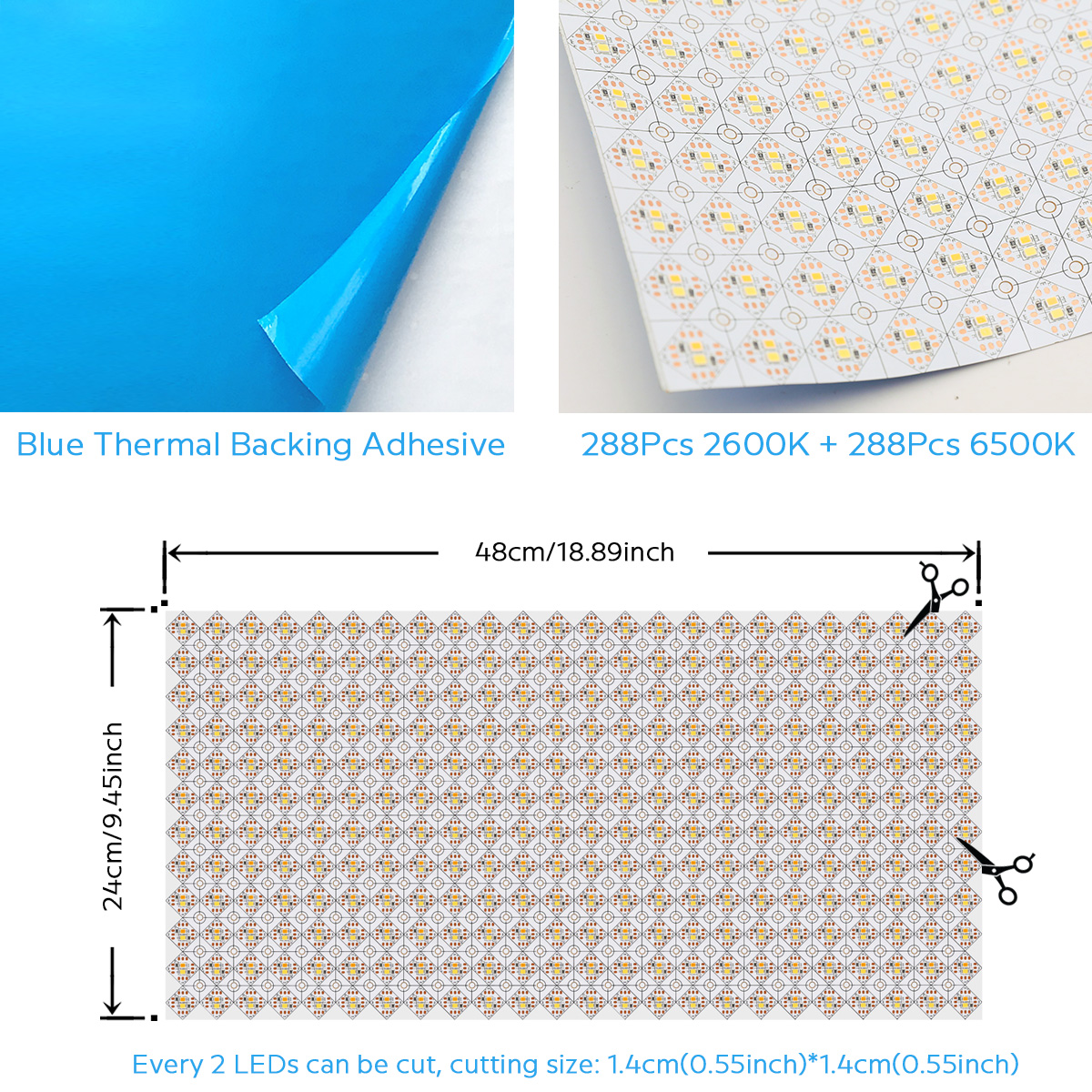

12*(24 sets of CCT LEDs), 9.4 "x18.9" (240mm*480mm) size
2-10lm per LED, 1152lm-5760lm per sheet

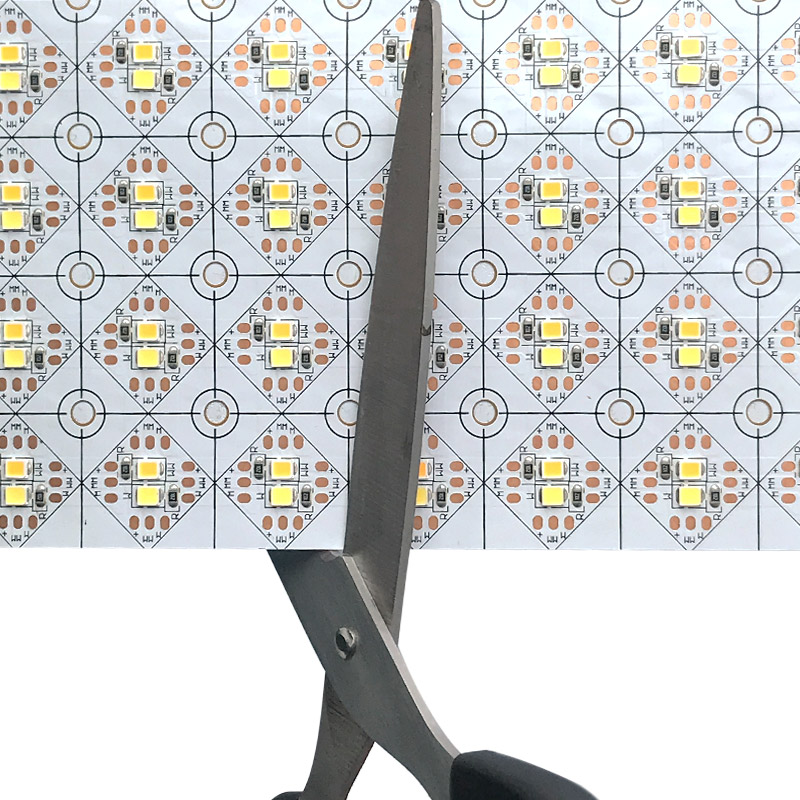

Each CCT set can be cut
Power supply anywhere on the sheet, DC24V input voltage

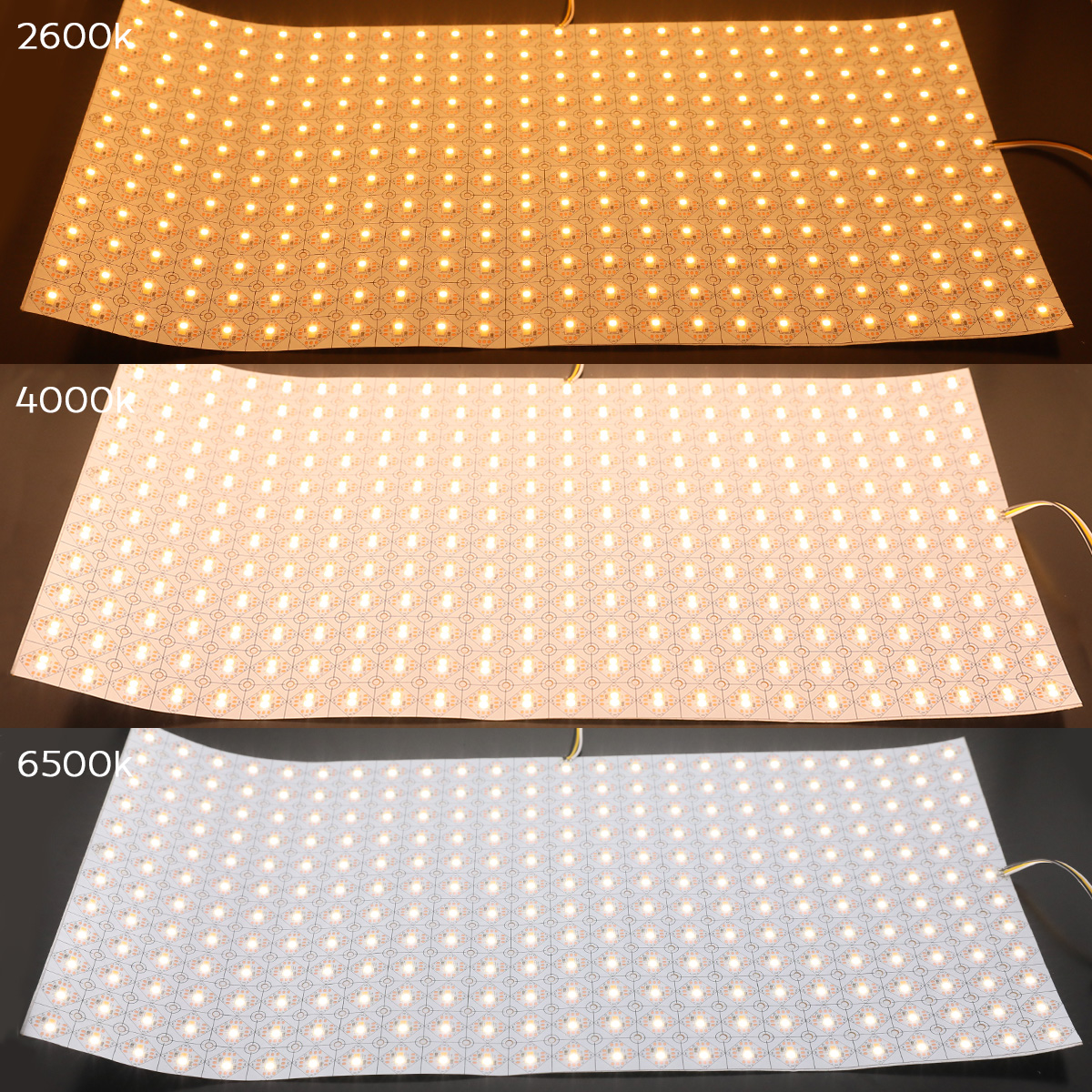

External tunable white control displays 2700K to 6500K color temperature range
Blue adhesive backing for easy installation

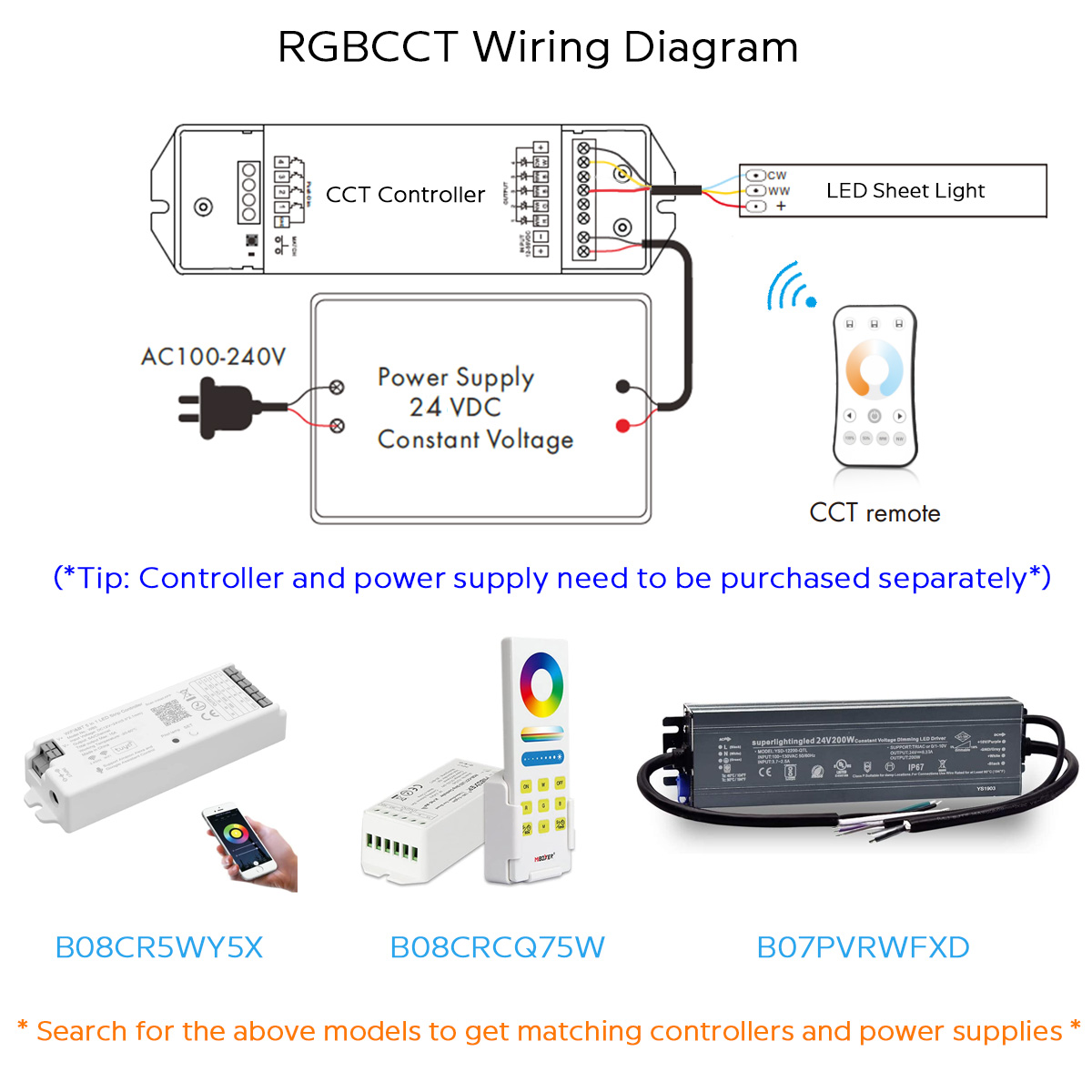

If select kit, you will receive WIFI-BT-WB5 WiFi controller and LRS-100-24 meanwell power supply with an AC plug.
Product Specifications
| LED Strip Type: | 2835 Tunable White Cuttable Flexible LED Light Sheet |
| LED Chip: | SMD2835 |
| Input Voltage: | 24V DC |
| Product Size: | 9.4 "x18.9" (240mm*480mm) |
| Light Color: | CCT, 2700K-6500K |
| Lumen: | 2-10lm/LED, 1152lm-5760lm |
| LED Quantity: | 576 LEDs per sheet, 288 warm lights + 288 daylight lights (464 LEDs per square foot) |
| Working Power: | Max 60W 2.5A per sheet (48.4 watts per square foot) |
| Cut Unit: | 2 LEDs |
| CRI: | 90+ |
| Beam Pattern: | 120 degrees |
| Lifespan: | 50,000+hours |
| IP Rating: | Non-waterproof IP20 |
| Warranty: | 2 years (no UL certification) |
