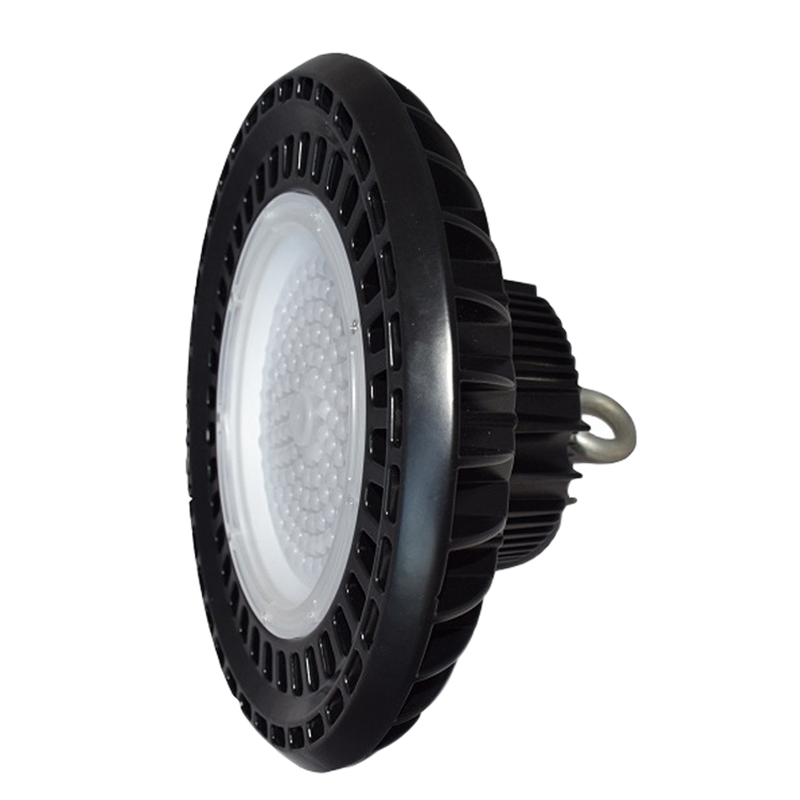

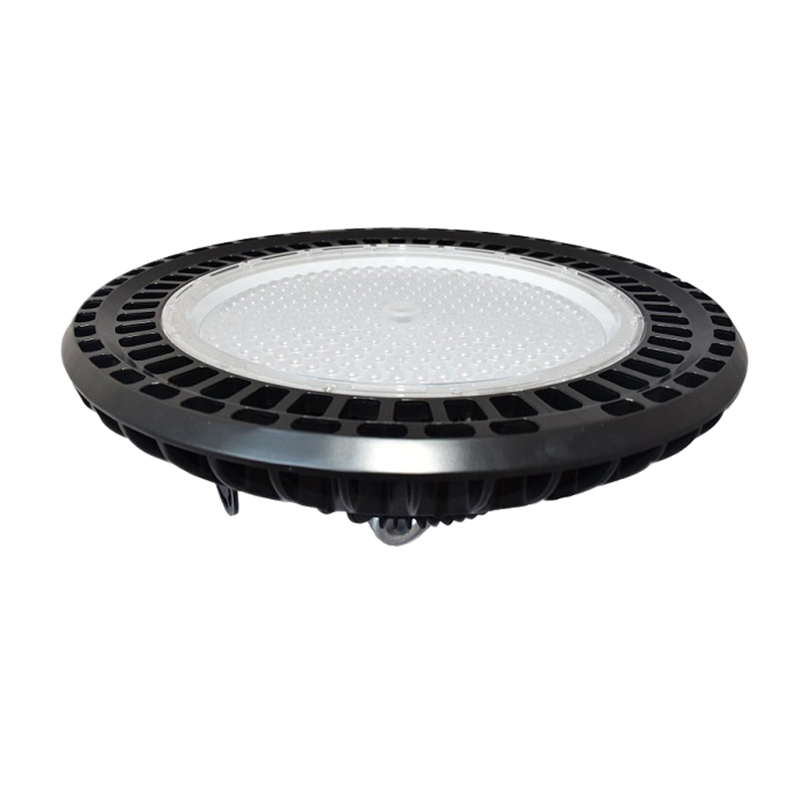

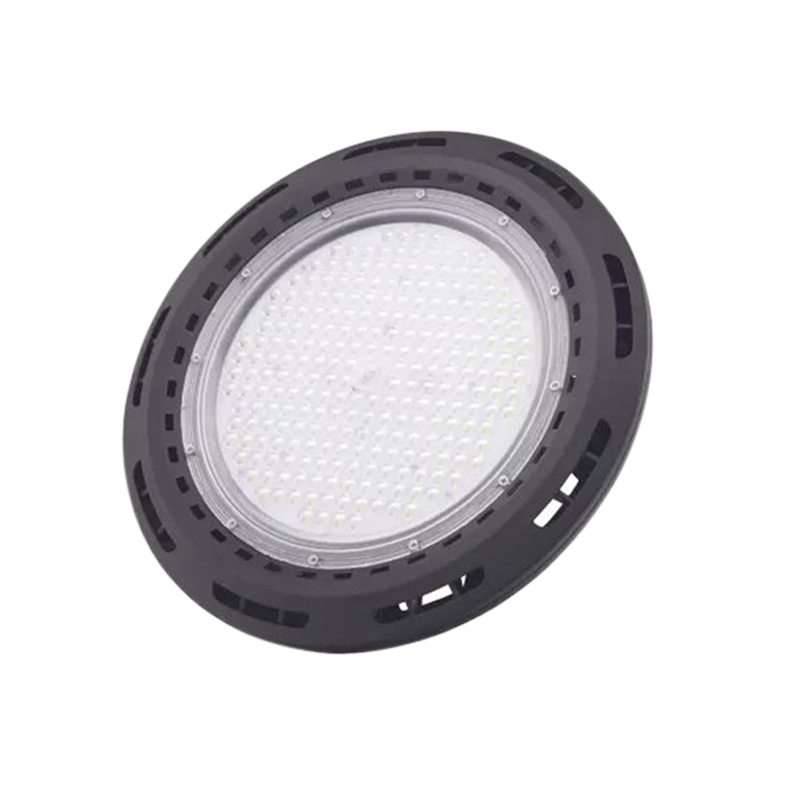

AC100-265V New 100-200W Dimmable UFO LED High Bay Light, 16000Lumens Max, Waterproof IP65, Apply For Workshop and Factory
1. Heat dissipation through main conduction of 4.0mm thick pure aluminum plate is adopted to increase heat capacity conduction.
2. Three-dimensional ventilation, convection and heat dissipation, the temperature of all lamp feet shall not exceed 65°C.
3. Adopt stamping + oil pressure + spinning process, which is innovative, efficient and economical.
4. Generous appearance, super industrial sense, integrated, ultra-thin design.
5. Add the upper and lower cover fastening structure of pure aluminum plate to make the lamps stronger and more durable.
6. The whole lights are equipped with breathing apparatus to make the lamp breathable, dry and free from fog, and ensure that LED light can be normally lit under bad conditions
7. The whole lights can be equipped with three kinds of lenses of 60 degrees, 90 degrees and 120 degrees, which can be used on different occasions.
8. The whole lights waterproof can be IP65.
9. It is widely used in factories, workshops, factories, shopping malls, hotels, warehouses, office environments, gymnasiums, exhibition halls, highway toll stations, large supermarkets, and other tall halls.
Product Name: 100-200W LED High Bay Light
Chip Brand: 3030SMD
Model No: UFOHBL001
Dimension of 100W: 280(D)*185(H) mm (11.02*7.28in)
Dimension of 150W: 340(D)*187(H) mm (13.39*7.36in)
Dimension of 200W: 400(D)*196(H) mm (15.75*7.72in)
LED Color: Warm White/ Nature White/Daylight White
LED Quantities: 133(100W)/210(150W)/315(200W)
Luminous Flux: 8000-16000LM
Luminous Efficiency: 80LM/W
Power Factor: 0.96
Beam Angle: 60/90/120°
Product Weight: 5kg(11lb)
Material: Aluminum Material
Application Areas: factories, workshops, factories, shopping malls, hotels, warehouses, office environments, gymnasiums, exhibition halls, highway toll stations, large supermarkets
